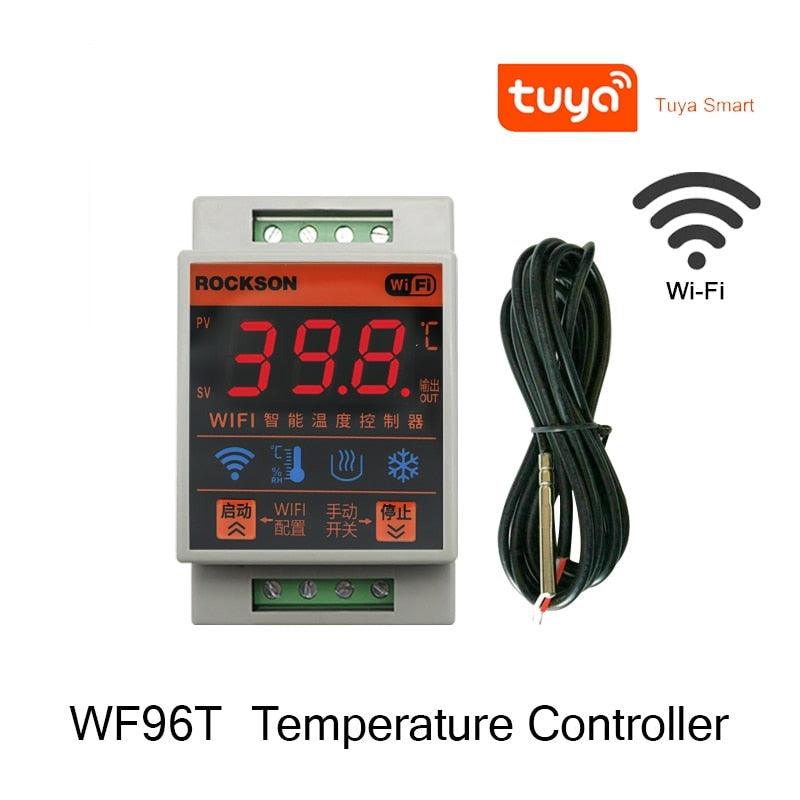

WIFI Smart Temperature Controller Thermostat TRV Digital Remote Control Boiler Heating Cooling Timer Switch by Tuya Smart Life

SPECIFICATIONS

WIFI Smart Temperature Controller Thermostat TRV Digital Remote Control Boiler Heating Cooling Timer Switch by Tuya Smart Life

Working Environment: -10℃~ 50℃

Wireless Standard: Wi-Fi 2.4GHZ B/G/N, not support 5G.

Wattage: 2000W

Voltage: AC 220V

Usage: Industrial

Temperature Ratio: 0.1℃

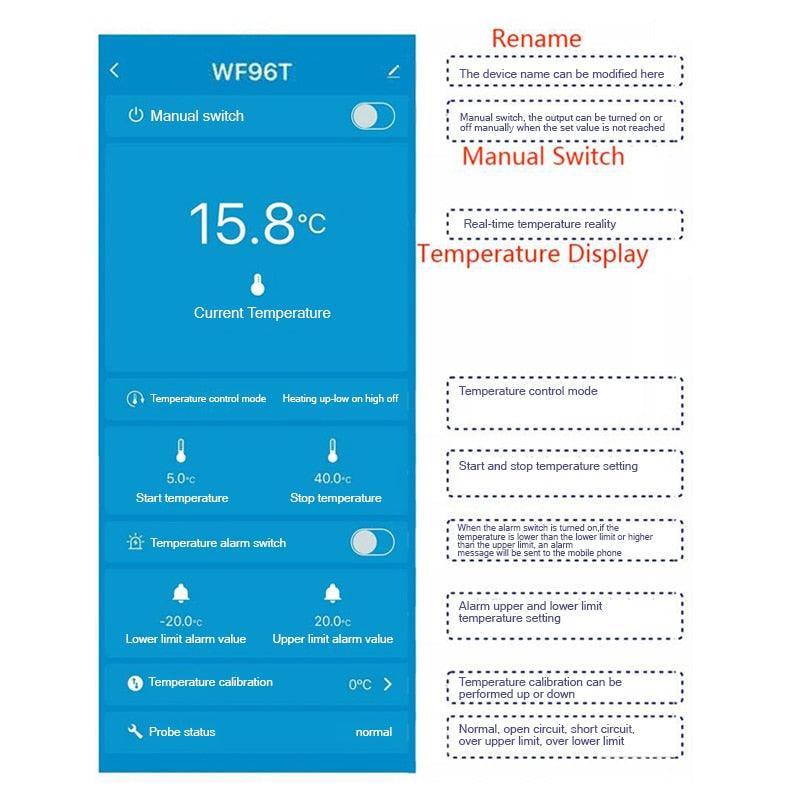

Support APP: Tuya Smart

Model Number: WF96T

Mechnism Life: Over 100000 Times

Measurement Error: ±1℃

Is Smart Device: YES

Function 5: Remote Control ON/OFF

Function 4: Lower Higher Temperature Alarm

Function 3: Timer Relay Switch

Function 2: Start/Stop Heating/Cooling Equipment

Function 1: Temperature Real-Time Supervision

Display Size: 1.9 Inches & Under

Control Temperature Range: -39℃ to +160℃

Contact Current Capacity: 10A Max

Cable Length: 2M

Descriptions

• WF96T- digital display temperature controller，temperature detection, heating or cooling control, high or low temperature alarms can be realized through APP or instrument buttons.

• The product is suitable for various commercial and industrial occasions.Such as Heating System，Hot Water System，Boiler, Breeding, Hatching，and cooling control of intelligent electromechanical equipment.

Functions

• Remote switch control, real-time temperature feedback.

• Can run independently without WiFi，stand-alone temperature control.

• The thermostat can be turned on or off manually no matter where you are.

• Can control refrigeration with high opening and low closing，Low opening and high closing control heating.
  High and low temperature alarm information notification.

• Account sharing function.

Parameter Setting
*Long press the"Start "button to enter theStart Temperature Parameter Setting，display the start temperature value and flashing. press the"Start"or"Stop"button to adjust the value（Long press to quickly add and subtract）If there is no operation after setting, it will automatically return to the operation page after three seconds.

*Long press the"Stop "button to enter theStop Temperature Parameter Setting，display the stop temperature value and flashing.press the"Start"or"Stop"button to adjust the value（Long press to quickly add and subtract）If there is no operation after setting, it will automatically return to the operation page after three seconds.

Note:Setting parameters must be in working condition，then long press the button.The next parameter setting can only be performed after returning to the work page when the last parameter setting is completed.

Manual Temperature Control

Manually Open：When the temperature control has no output, the stop temperature is not reached,press "Stop"button,Manually turn on temperature control output,Once the stop temperature is reached, the relay will open.

Manually Close:When the temperature control is outputing, but the stop temperature is not reached,press "Start"button,Manually turn off temperature control output,Once the start temperature is reached, the relay will The relay will close.

*When the power is turned on for the first time after wiring, the product enters the WiFi configuration mode by default.
*If the product has been added to the app，when you need to reconfigure,Keep pressing the start button before powering on, and then power on again,release the button until the circular water light is displayed on the screen,entered the WiFi configuration mode.

Note: After the user set the controller on APP, the device itself will keep the record, even the wifi is disconnected, the device can also keep working according to its memory.
