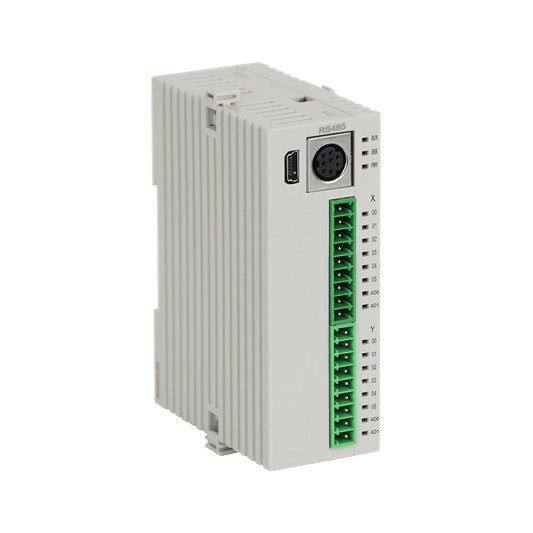

FX3GC PLC Controller

Programmable logic controller is a kind of digital operation electronic system specially designed for application in industrial environment. It uses a programmable memory to store and execute logic operations, sequence control, timing, counting and arithmetic operations and other operating instructions in its internals, and then use digital or analog input and output to control various types of mechanical equipment or production process.

FX3GC is a compact PLC with features below.

1.Highly integrated. Supports 16DI/16DO, 8AD/6DA.

2.Default 2 PLC programming ports: Mini Type B USB (faster reading speed) and RS422 port.

3.Supports multiple high-speed counting and high-speed pulse.

High-speed counting: single phase 6 channels 60KHz or 2 AB(Z) 60KHz + 1 AB phase 10KHz.

High-speed pulse: 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

Acceleration and deceleration are independent.

High speed count + high speed pulse≤480KHz.

4.32K steps program capacity, 32K power retentive registers. Supports interrupt,linear circular

interpolation, PID auto-tuning.

5.Special encryption. Set password as 12345678 to prevent reading data completely.

6.Convenient wiring. 3.5MM pluggable terminals are applied.

7.Easy installation. DIN-Rail (35 mm width) installation is applied.

8.More specifications can be customized.
