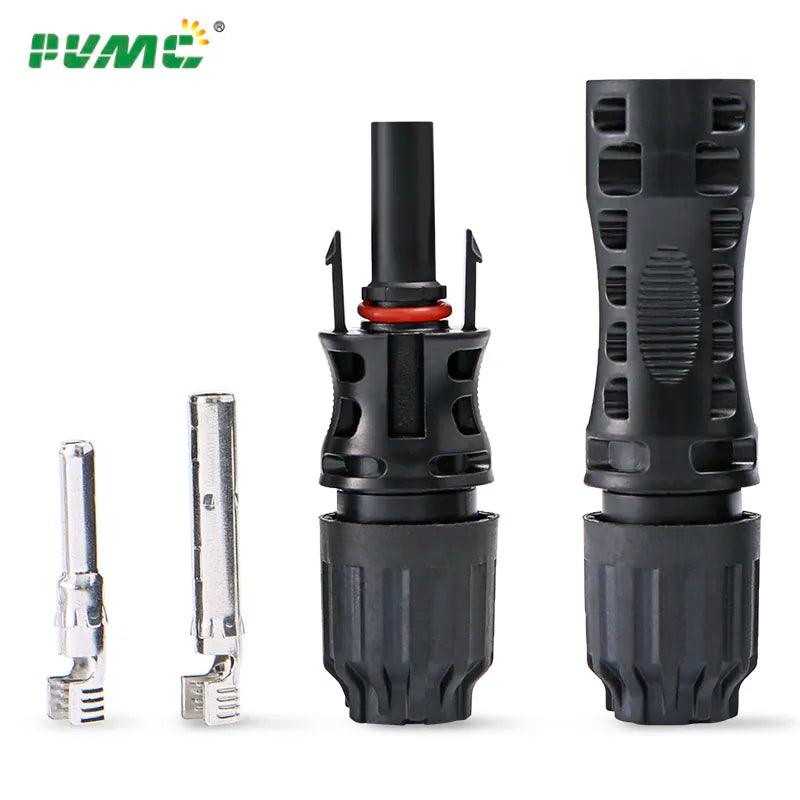

IP67 1500V Solar Conenctors PPO Housing Material solar connector PV Connector for 2.5/4/6mm2 Solar Cable
Couldn't load pickup availability
SPECIFICATIONS
Wholesale ip67 1500V Solar Conenctors PPO Housing Material solar connector PV Connector for 2.5/4/6mm2 Solar Cable
Brand Name: PVMC
Origin: Mainland China
Model Number: 1500V
Certification: CE
Rated voltage:: 1500V DC
Rated current:: 30A
Connector contact resistance:: ≤0.5mΩ
Degree of waterproof:: IP67
Operating temperature range:: -40℃---85℃
Specifications
* Rated current: 30A (2.5m㎡--6m㎡)
* Rated voltage: 1500V DC
* Connector contact resistance:≤0.5mΩ
* Degree of waterproof: IP67
* Flammability rating: UL94-V0
* Safety: Class II
* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )
* Adapter Wire: OD 5mm-7mm
* Connector conductor material: copper, Tin
* Connector Insulation material: PPO/PPE
* Insertion force: less or equal to 50N
* Withdrawal force: over or equal to 50N
* Operating temperature range: -40℃～ +85℃
* Connection: Clamp
