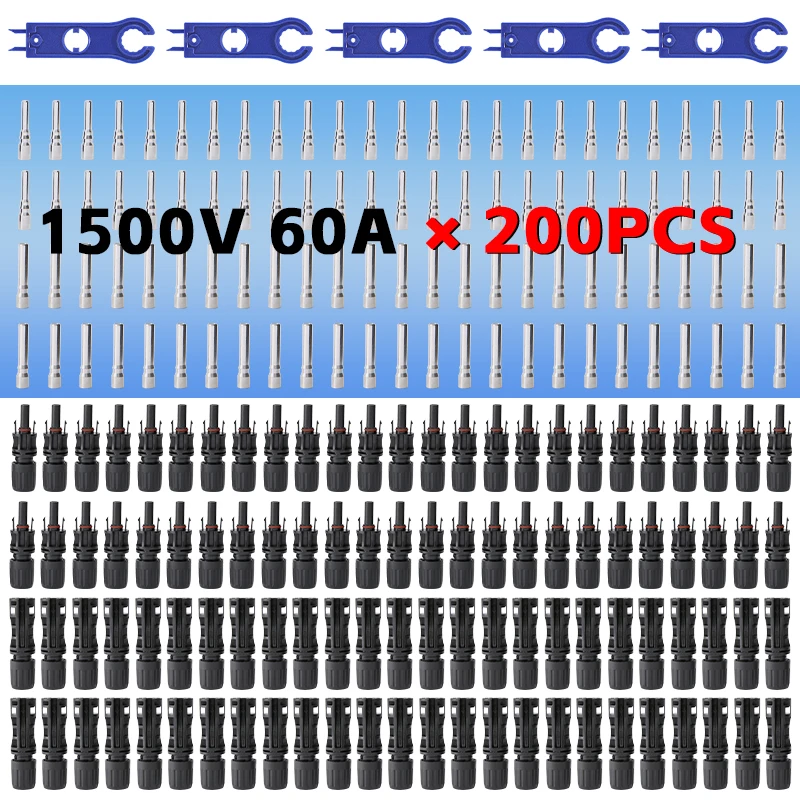

Wholesale DC Photovoltaic Connector male and female Solar Panel PV Connectors 1500V/60A used for Solar Cable 6mm2/8mm2/10mm2

Specifications

* Rated current: 60A

* Rated voltage: 1500V DC

* Degree of waterproof: IP67

* Flammability rating: UL94-V0

* Safety: Class II

* Suitable cable: 6m㎡--10m㎡

* Connector conductor material: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃～ +85℃

* Connection: Clamp
