Tuya Smart ZigBee Radiator Actuator TRV Programmable Thermostatic Radiator Valve App Remote Temperature Controller Support Alexa

SPECIFICATIONS

Tuya Smart ZigBee Radiator Actuator TRV Programmable Thermostatic Radiator Valve App Remote Temperature Controller Support Alexa

Working Temperature: -10℃-40℃

Working Frequency: 868MHz,915MHz or 2.4GHz

Usage: Indoor

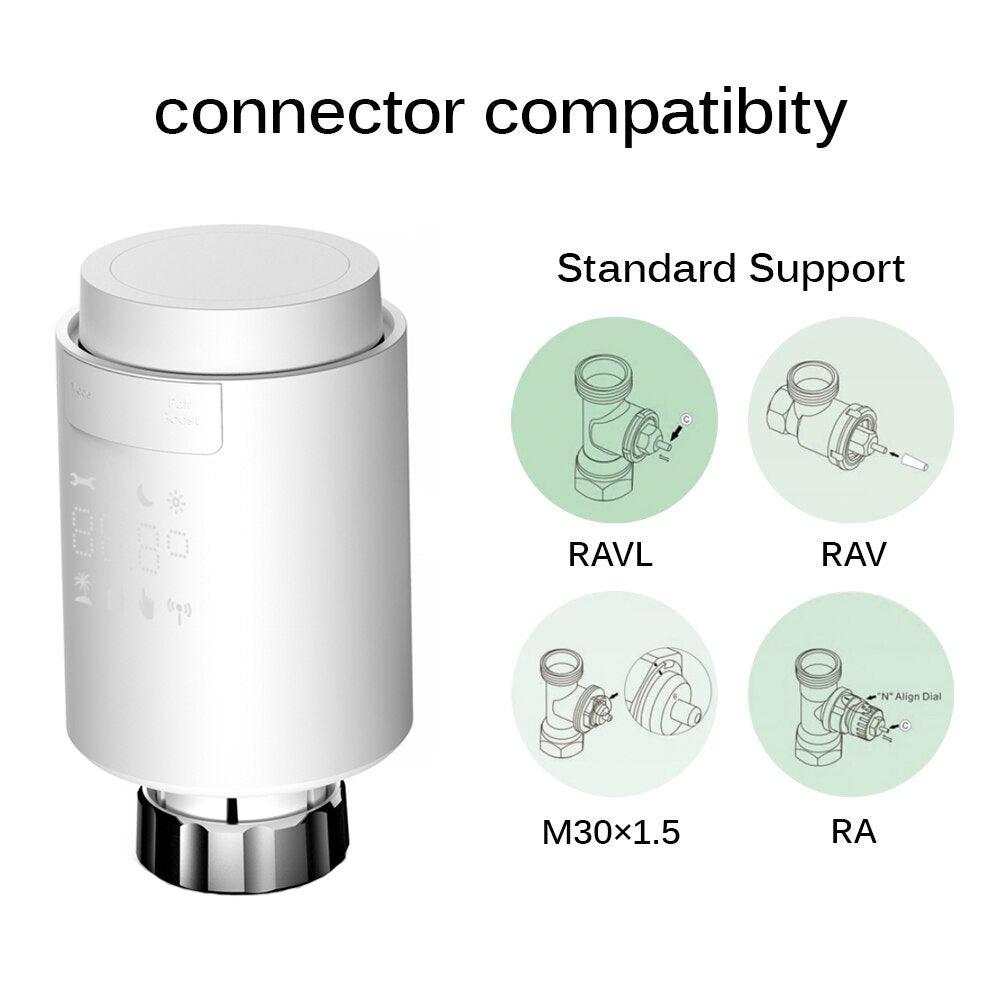

Thread Size: M30*1.5

Running program: Set per 1 week as a cycle

Range of Temperature Display: 1-70℃

Protocol: Zigbee 3.0 Controller

Prode Sensor: NTC(10k)1%

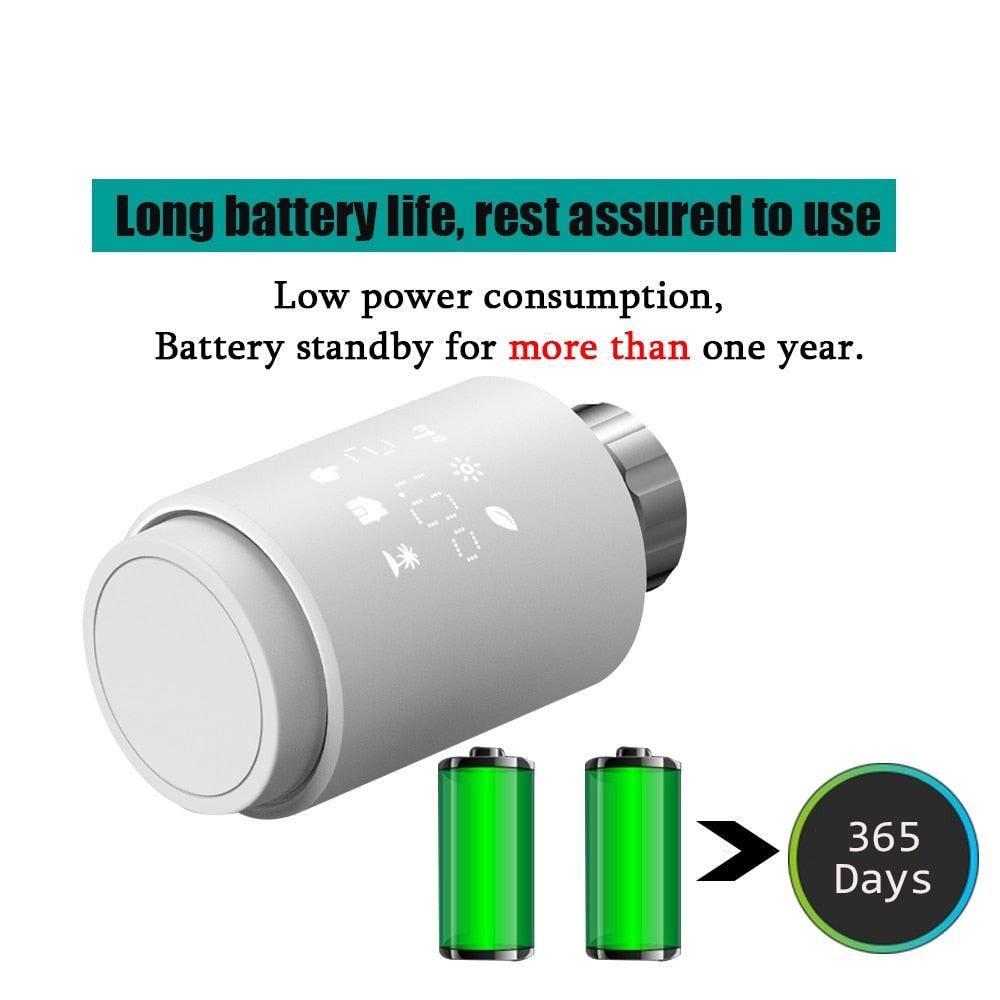

Power Supply: 2*AA* 1.5V LR6

Model Number: TV02

Max.Current: 90mA

Insulating condition: Normal environment

Display Accuracy: 0.5℃

Degree of Protection: IP20

Default Range of Temperature djustment: 5-30℃

Constant Temperature Tolerance: ±0.7℃

APP Connection: Smart Life/Tuya

Product Features:

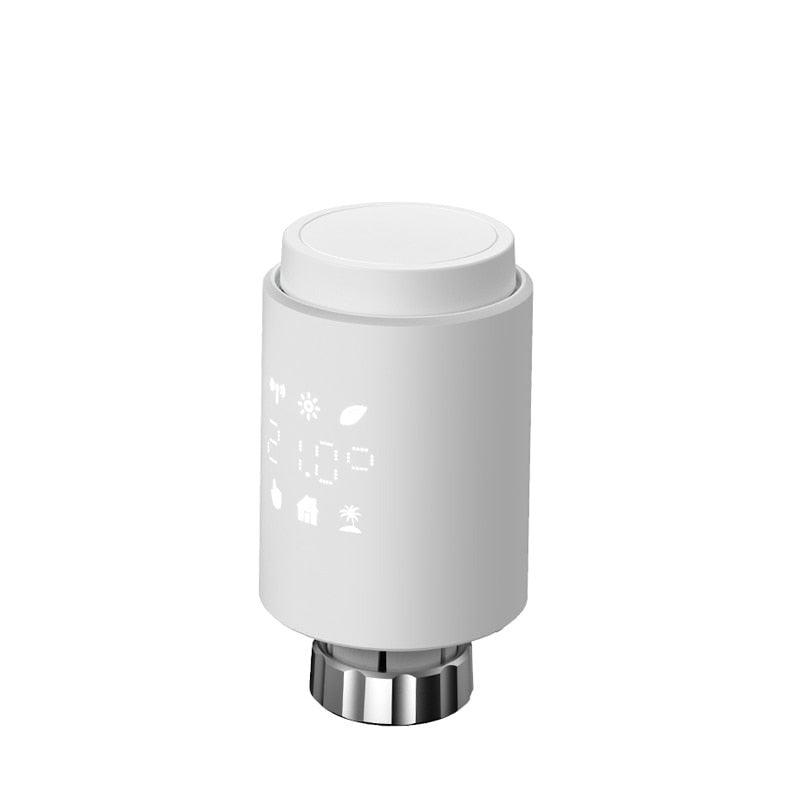

1.Smart Tuya ZigBee Radiator Actuator Thermostat:New mini design with simple and clear LCD display screen on the body,the radiator thermostat is with LCD digital display screen and two sections of AA batteries powered,which is a special valve using cooperatively with heating radiator.Artificially set indoor temperature, mainly used in the floor heating system to control the closing and opening of the pipe 2MQTT Setup  Available.

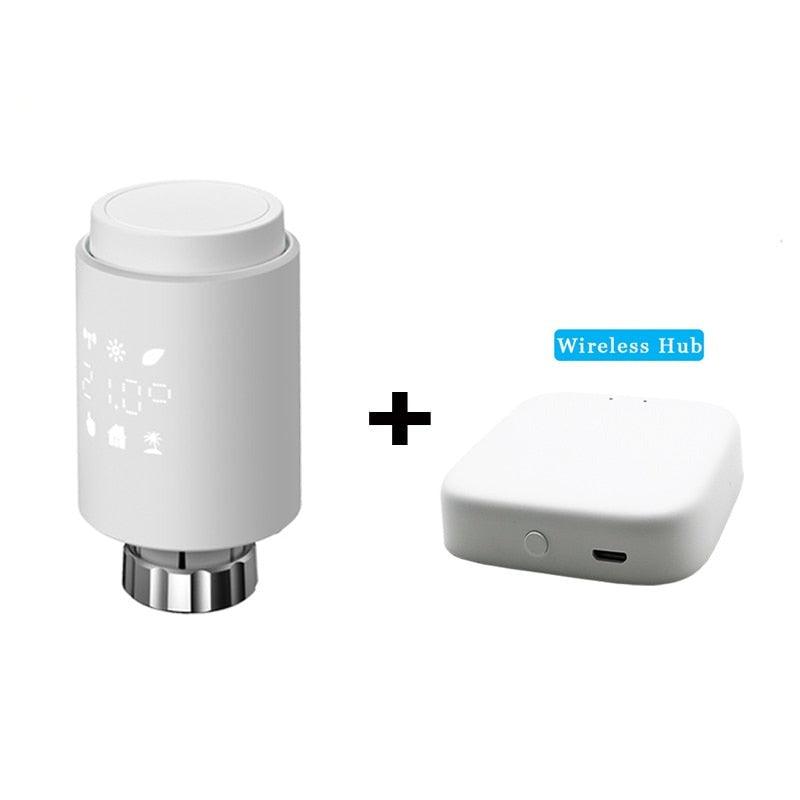

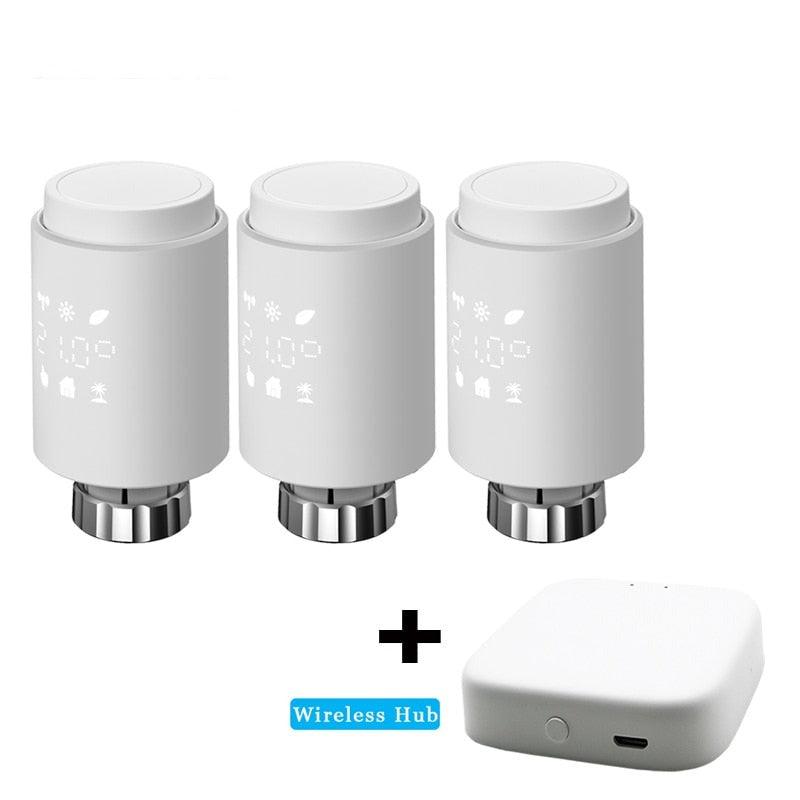

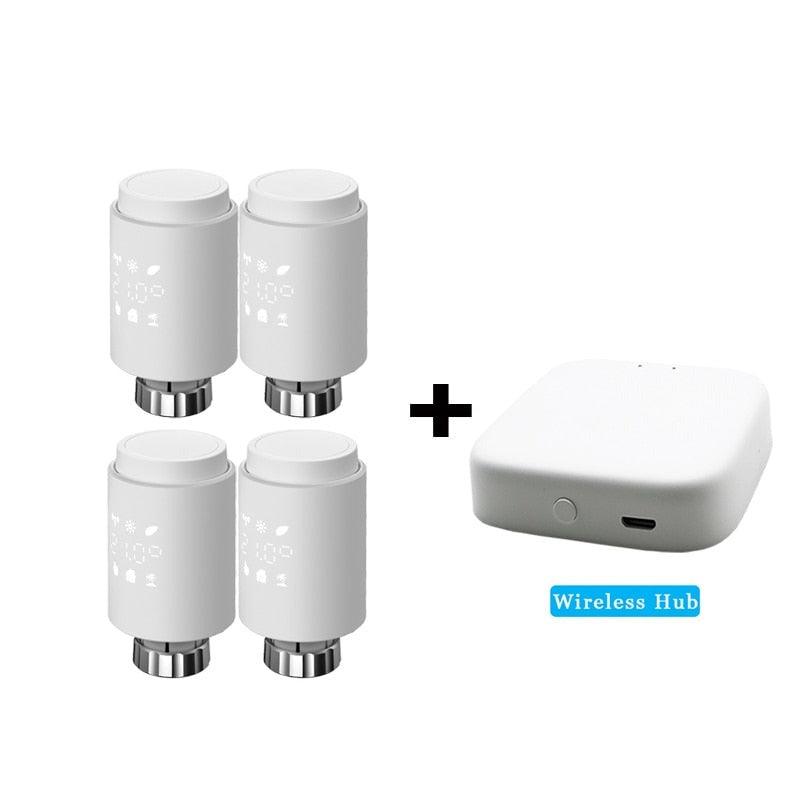

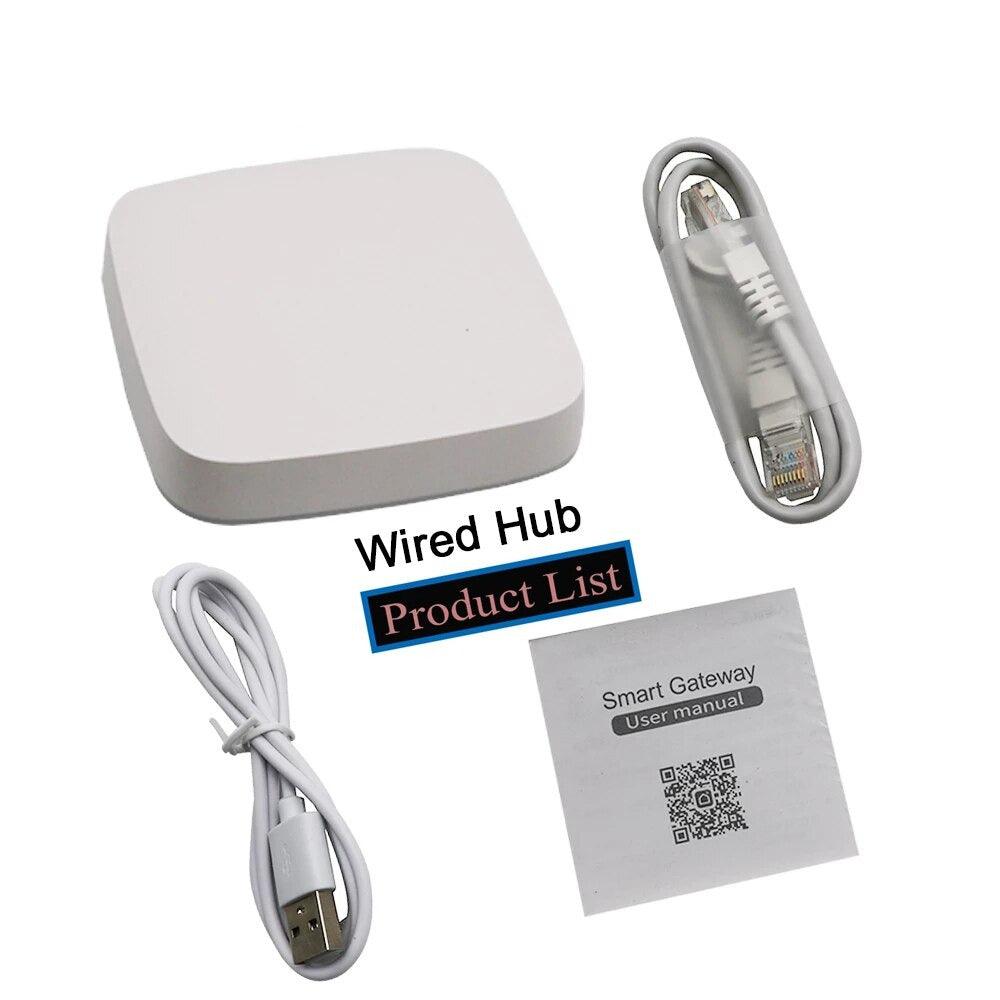

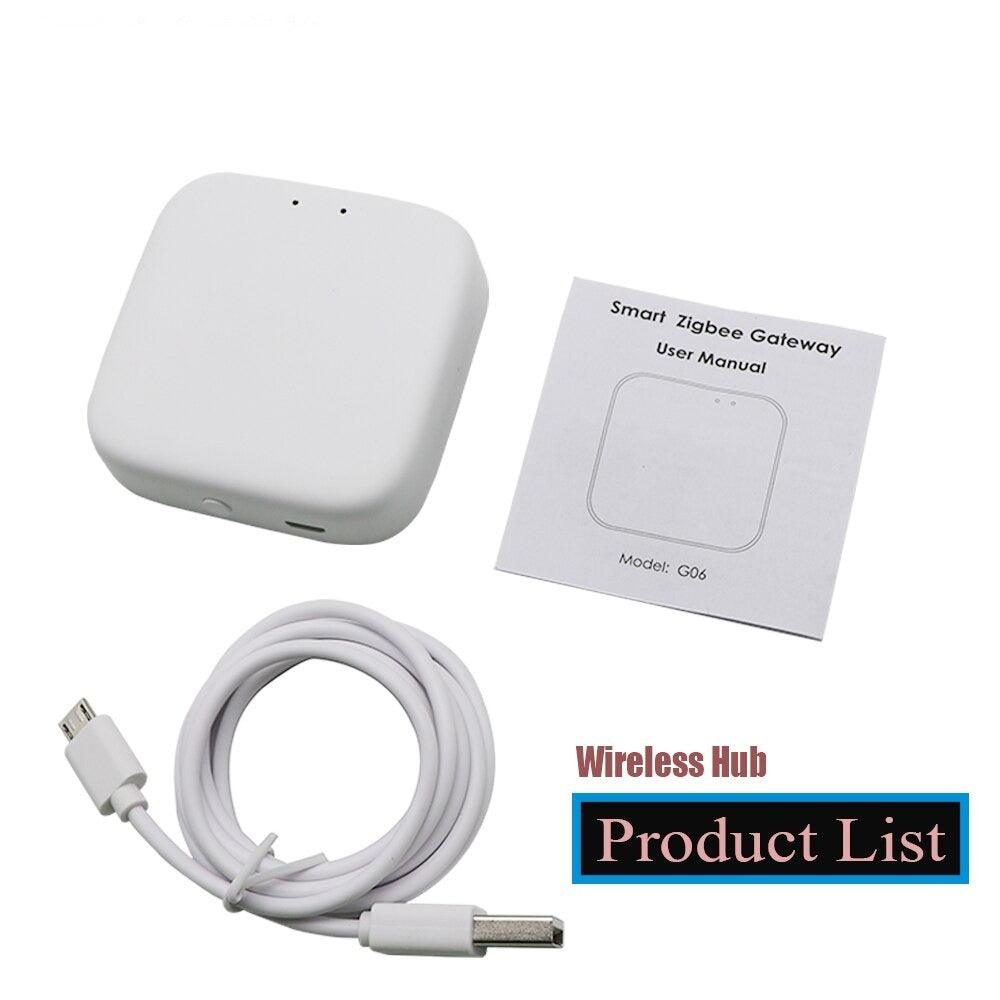

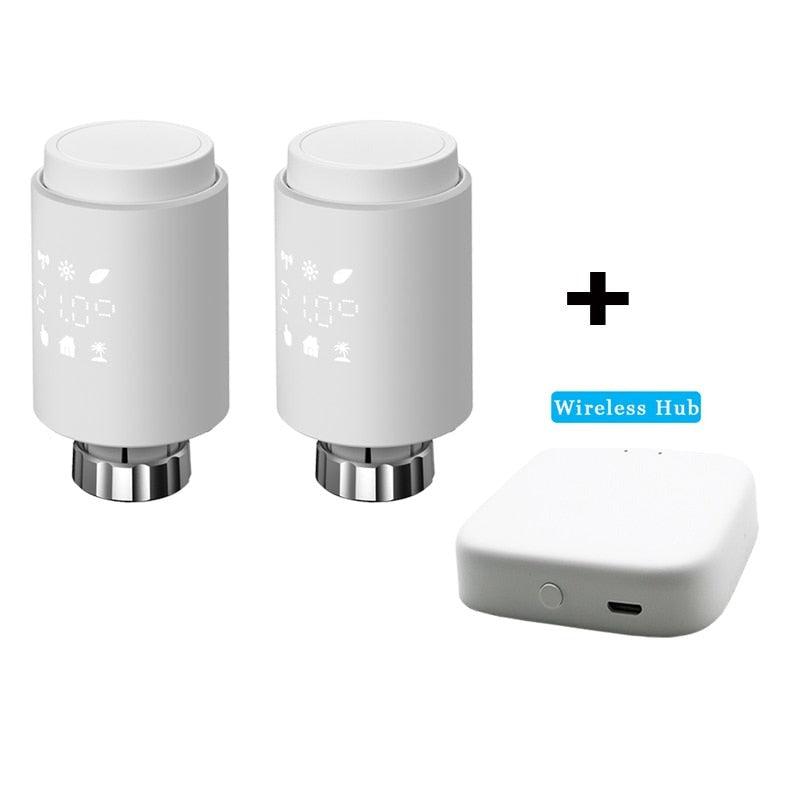

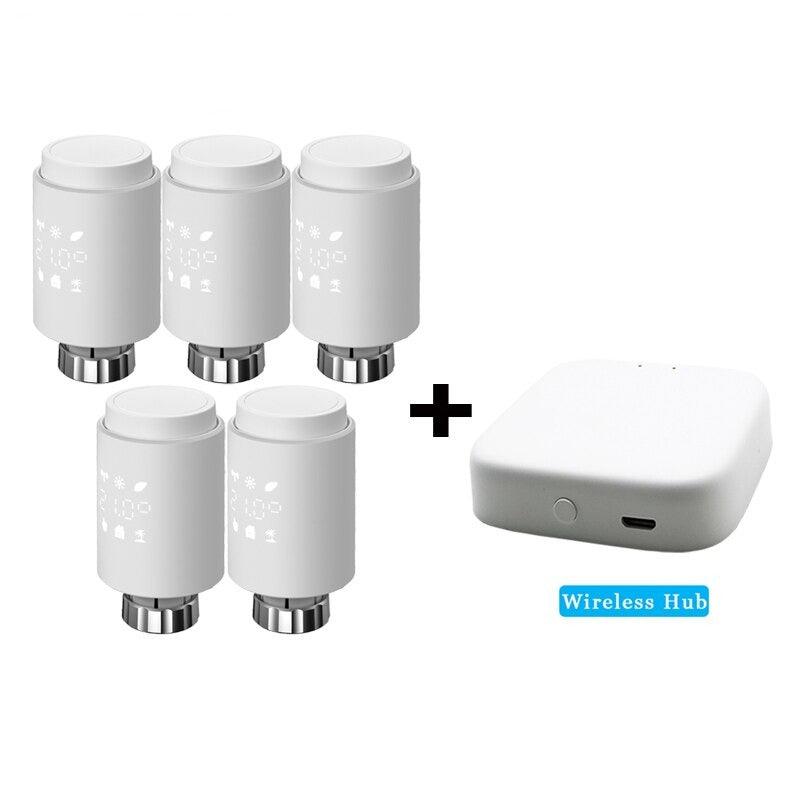

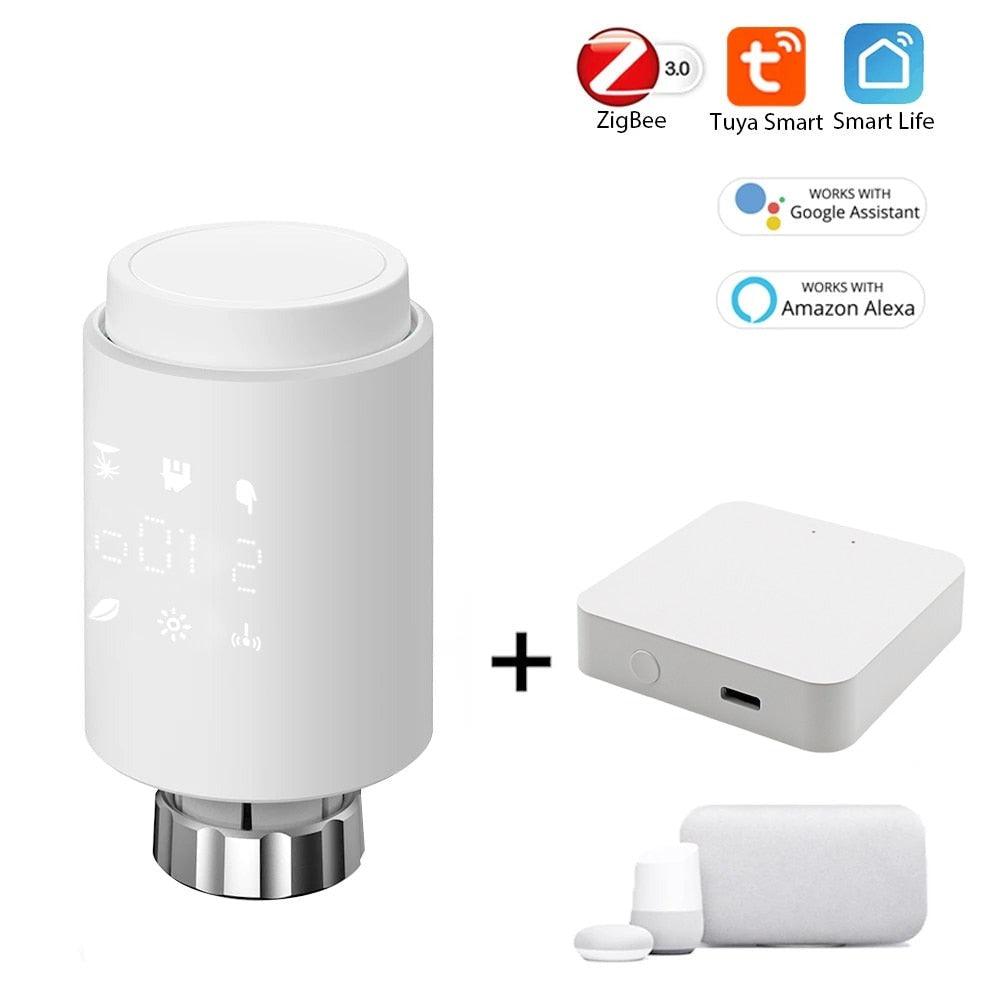

2.A Tuya ZigBee Wireless Gateway Hub is a Must :A ZigBee wireless hub is a must that connects to the valve many other ZigBee smart products and realizes the whole linkage of your smart home devices.Simply add your gateway to the App,then add your radiator actuator to your gateway in the App.

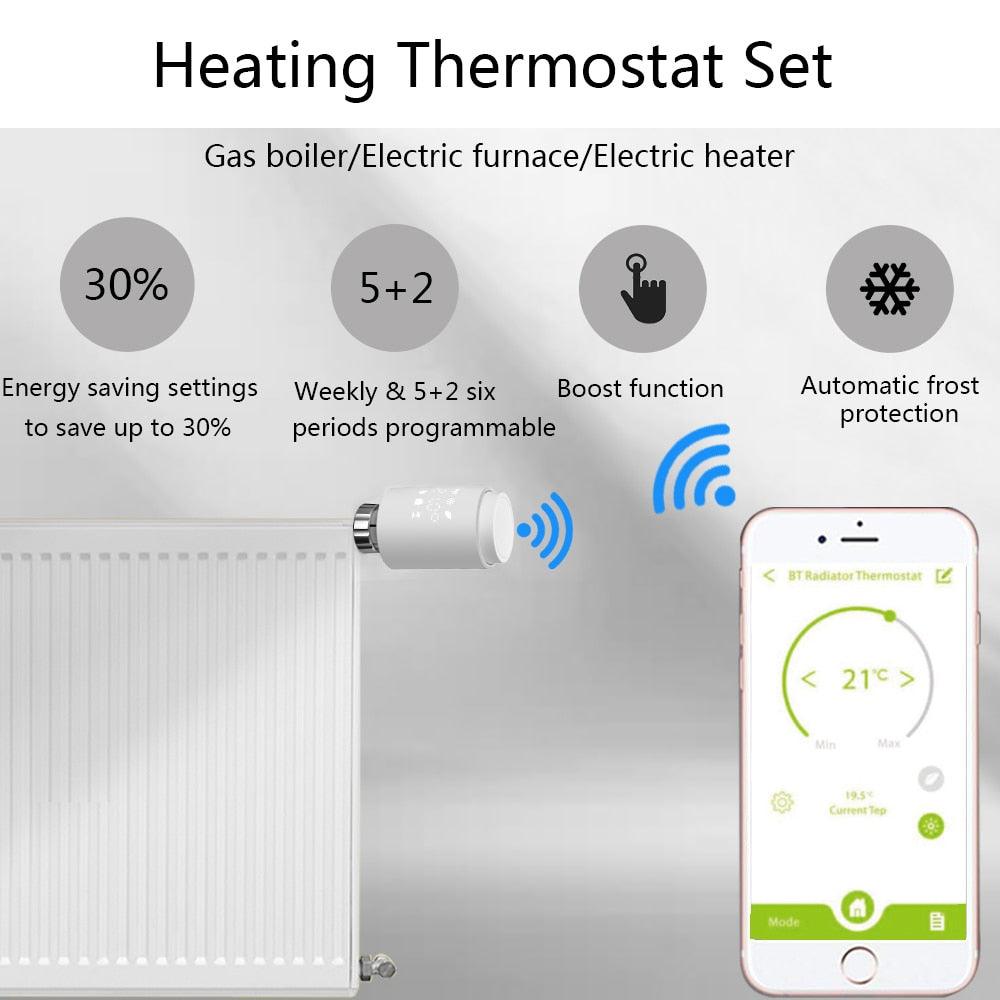

3.Programmable Schedule with Weekly Programming Selection:Supports manual set up 5+2,6+1 and 7days weekly schedule with 6 periods for option,providing you with the maximum convenience for different situation and setting customized schedule for your house temperature.Holiday mode,automatic mode,boost mode available.Choose workday and restday mode to meet your own mind.
4.Voice and Remote Control for the Tuya ZigBee Wireless Gateway:Supports App remote control via your smart phone,together with the hands-free voice control via Alexa and Google Assistant after successfully connecting your valve to Tuya /Smart Life App on the basis of one Tuya ZigBee Wireless Gateway.
5.Open Window Detection:When room temperature suddenly drop into temp. threshold,valve will close for 15 minutes.After that,if the room temp. is still lower than temp. Threshold,it will keep this mode.Besides,it's easy to read digital display with Celsius temperature.
Parameter:
Power:2*AA* 1.5V LR6/mignon/AA(Not included in the package)
Working Temperature: -10~40°C
Constant Temperature Toleranc: ±0.7℃

Temperature Range: 5~30°C

Thread size:M30*1.5mm

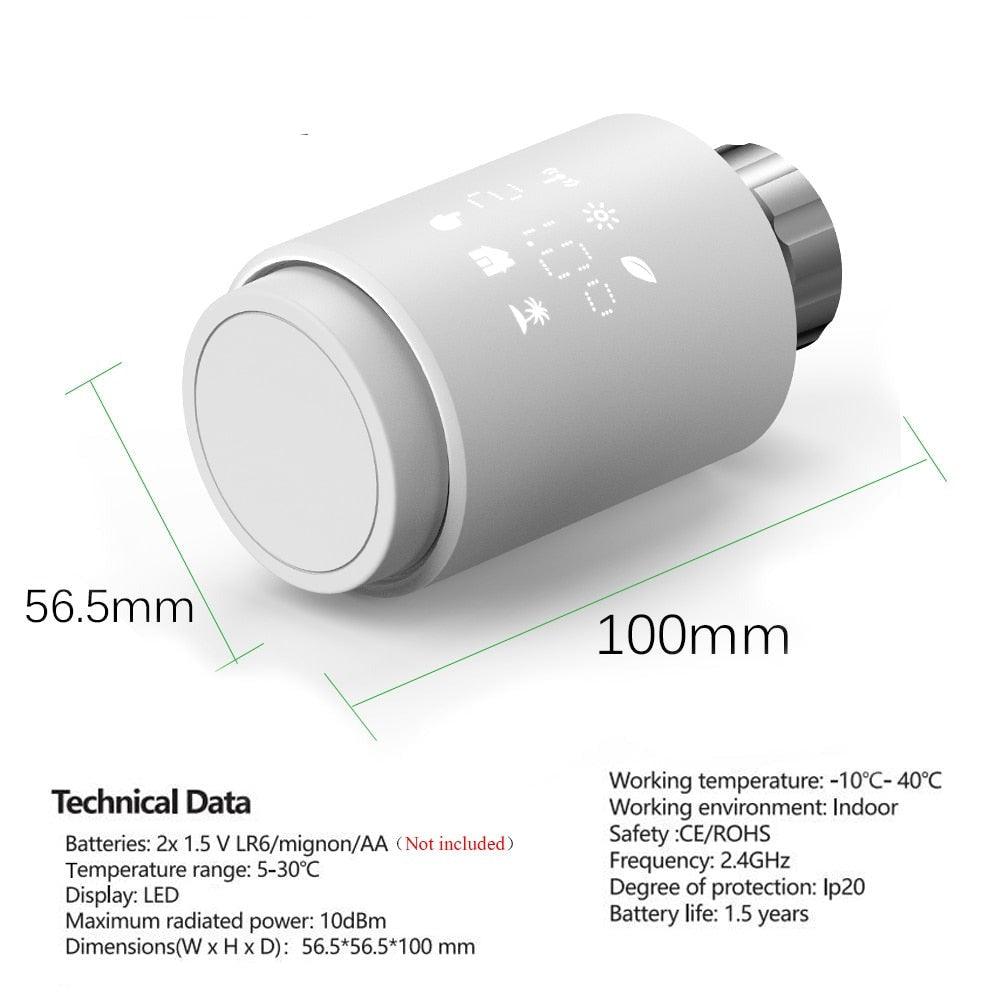

Size: 56.5 *56.5 *100 mm

Package Listing:

1 * Radiator Thermostat
1 * User Manual
