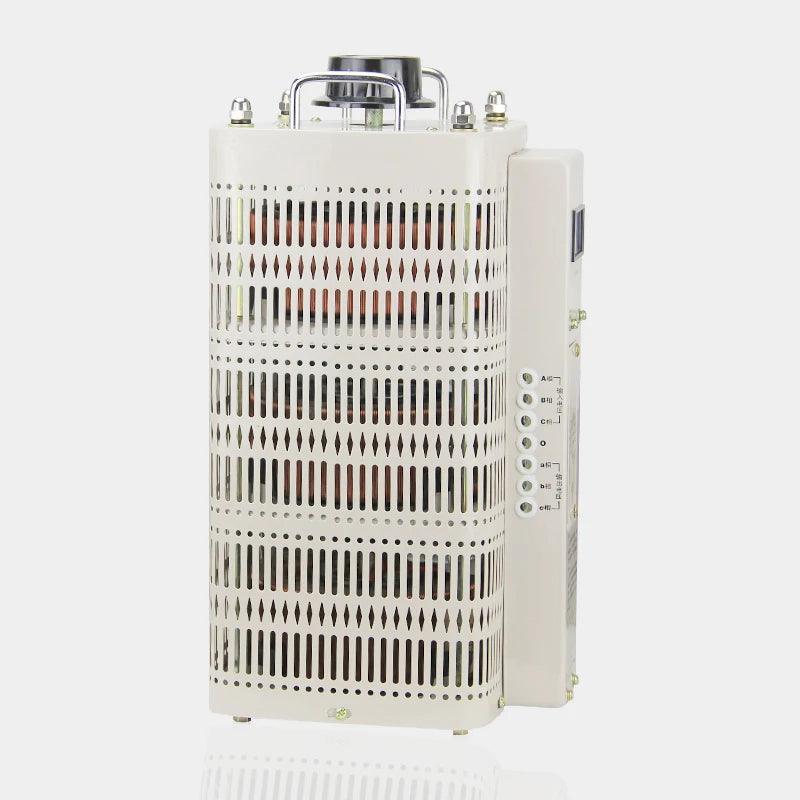

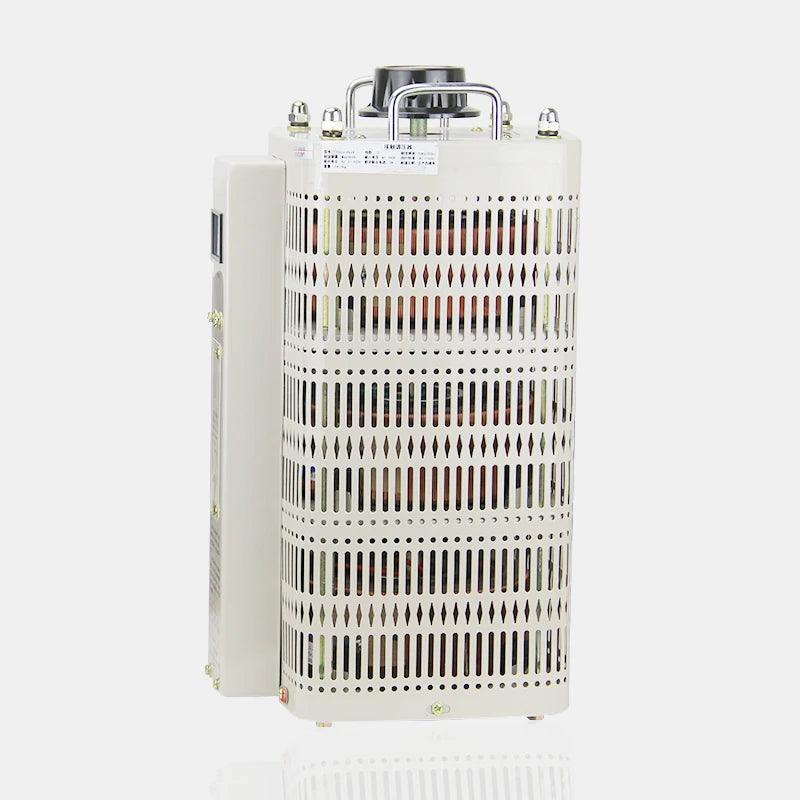

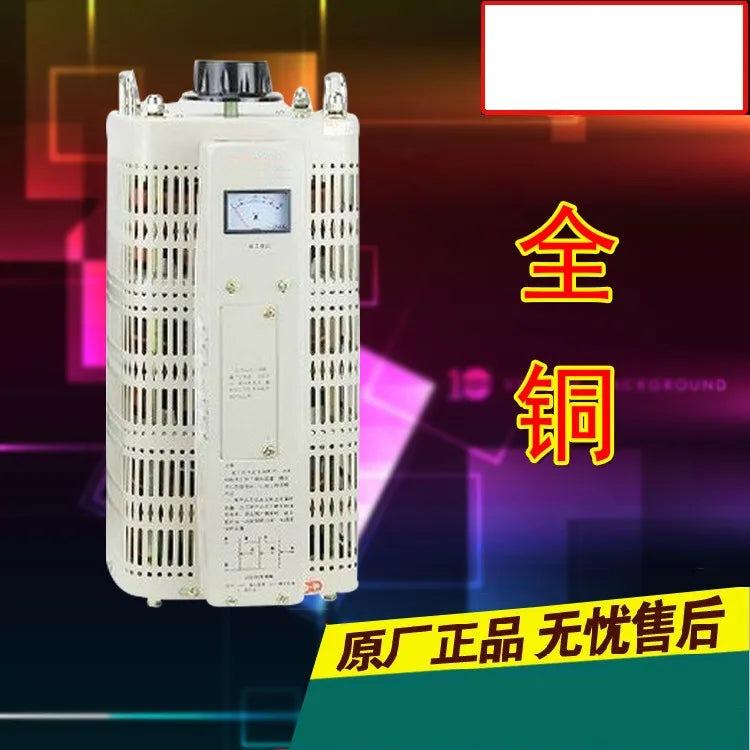

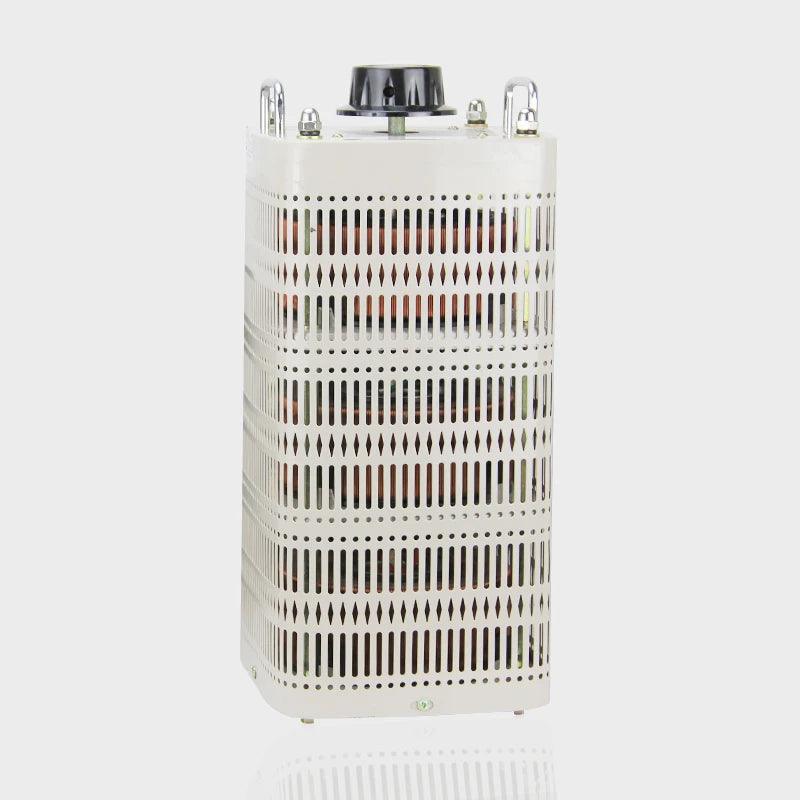

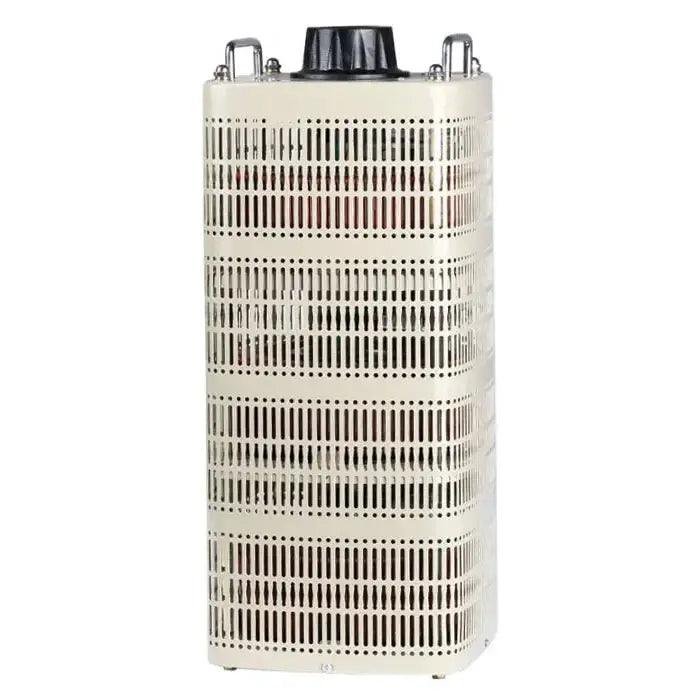

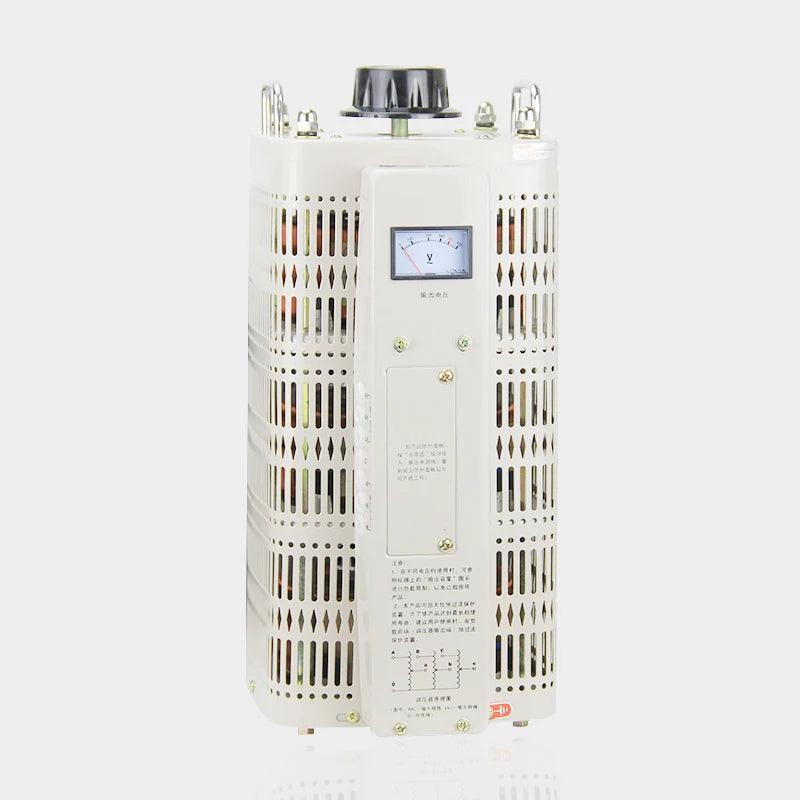

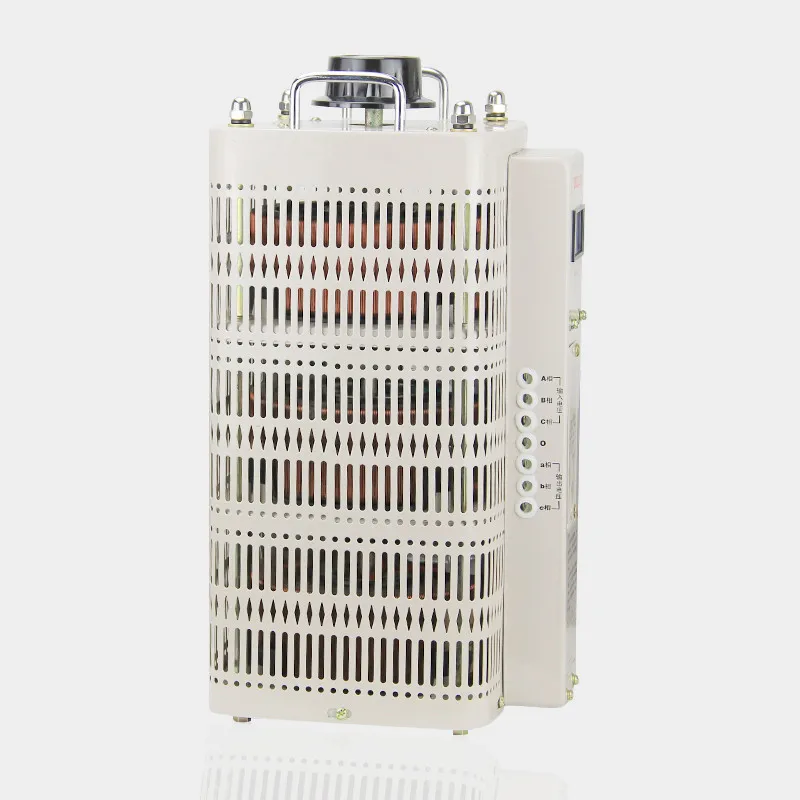

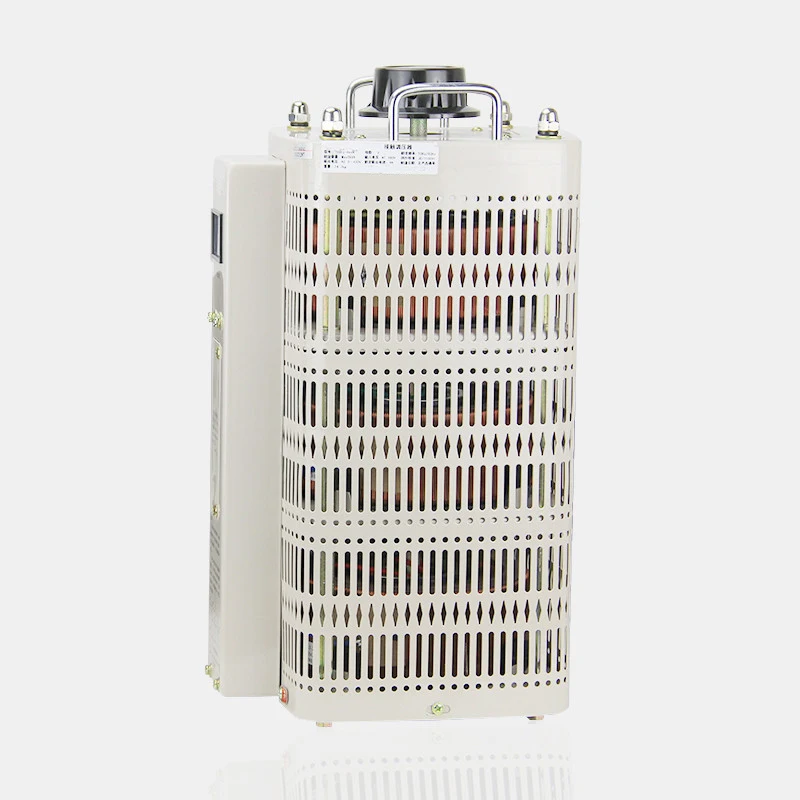

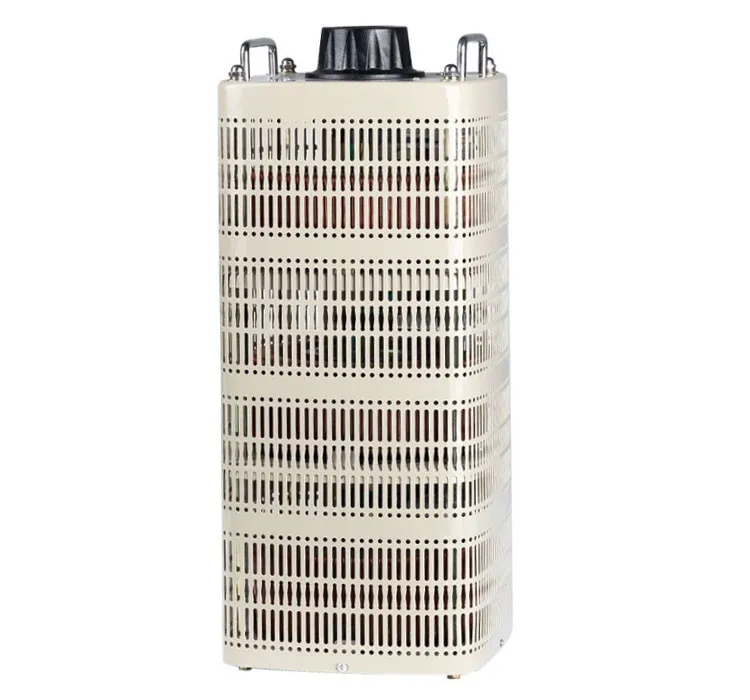

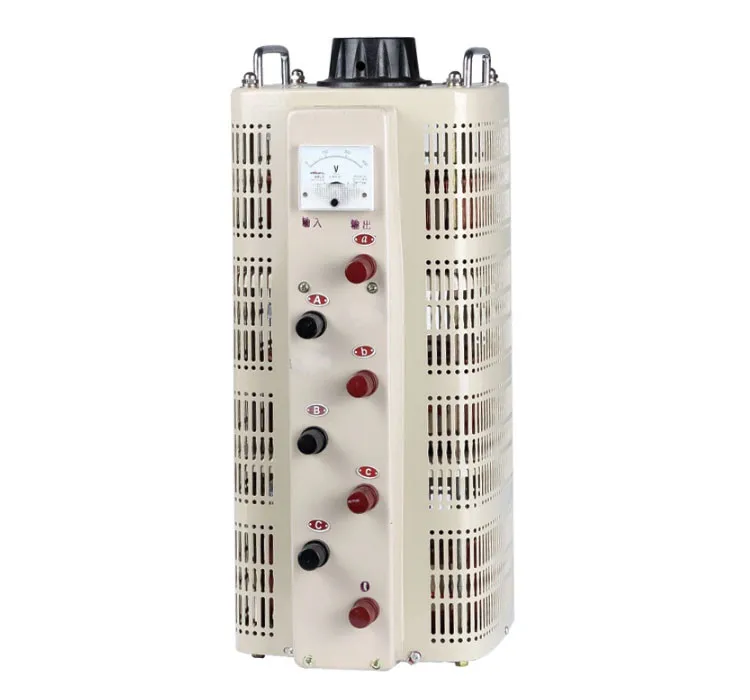

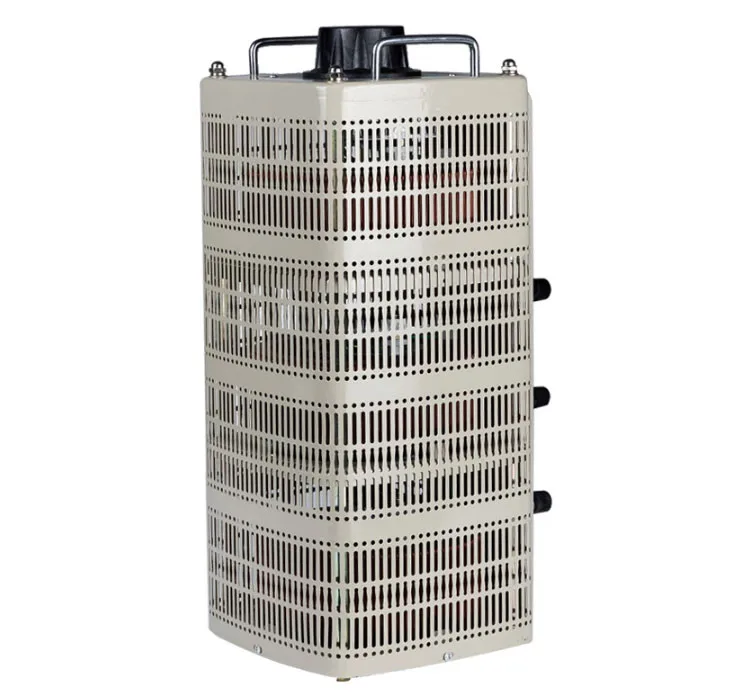

Three phase input 380V transformer 1500W voltage regulator TSGC2 1.5kVA adjustable output 0V-250V power converter
Couldn't load pickup availability
SPECIFICATIONS
Current Type: AC
Usage: SVC
Phase: single phase
is_customized: Yes
Model Number: TSGC2-1.5kVA
Three phase voltage regulator TSGC2-1.5KW / 1.5KVA / 1500W / input voltage 380V / adjustable voltage 0-250V 100% Copper Wired Core
Description
TSGC,TSGC2 manual Voltage Regulator 380V
TDGC: three phase
Power: 1.5kVA
Input:380V
output 0-430V
TSGC TSGC2 1.5kVA three phase manual Voltage Regulator 380V

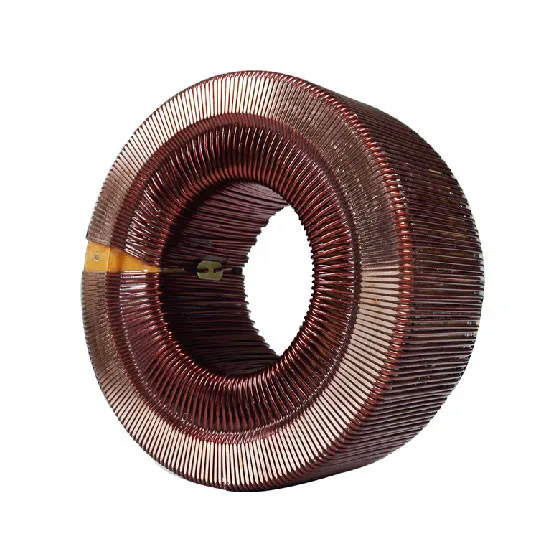

The voltage regulator is in the structure of adjustable compensator, it wind a coil on the loop core,thee brush coincide with the rubbed surface of the coil closely under the spring pressure effect,rotate
the revolving shaft to drive the brush stand, and make the brush move along the coil surf ace to change the contact position of the brush, that means change the turns rate of primary and secondary coil, which
can make the output voltage stepless adjusted within the adjustment range. It has the advantage of no waveform distortion, small volume, less weight, high efficiency, simple and reliable operation, un for
long period and so on.
TDGC,TDGC2, TSGC,TSGC2 series 1.5kVA Contact Voltage Regulator
TDGC: three phase 380V
Power: 1.5kVA
Input:380V
output 0-430V
TDGC/TSGC Voltage regulator
Feature

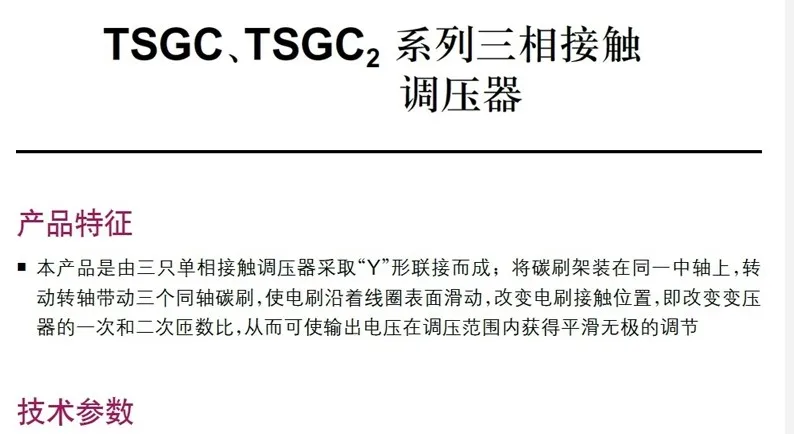

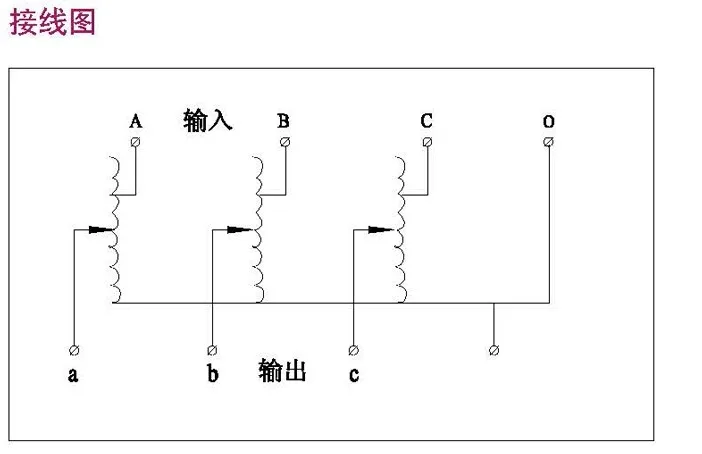

TDGC, TSGC series voltage regulator, whose turn ratio is continuous adjustable, is a kind of autotransformer. TDGC2 is single phase voltage regulator, and TSGC2 is combined of 3 sets of TDGC2 single phase regulator and connected as star-type. This series product is high efficiency, energy saving, no waveform distortion, small in size, light in weight, easy to operate, and running reliable, etc. Widely used in industry (as chemical industry, metallurgy industry, apparatus & meter, mechanical and electrical equipment industry, and light industry), scientific experiment, public equipment and household electrical appliance to voltage regulate, temperature control, light change and power control. It is an ideal AC voltage regulator.
MAIN PERFORMANCE
|
Model |
Capacity |
Input volts |
Output range |
Frequency |
Output current |
|
|
kVA |
V |
V |
Hz |
A |
|
SINGLE PHASE VOLTAGE REGULATOR |
|||||
|
TDGC2-0.5 |
0.5 |
220 |
0~250 |
50/60Hz |
2 |
|
TDGC2-1 |
1 |
4 |
|||
|
TDGC2-2 |
2 |
8 |
|||
|
TDGC2-3 |
3 |
12 |
|||
|
TDGC2-5 |
5 |
20 |
|||
|
TDGC2-10 |
10 |
40 |
|||
|
TDGC2-15 |
15 |
60 |
|||
|
TDGC2-20 |
20 |
80 |
|||
|
TDGC2-30 |
30 |
120 |
|||
|
THREE PHASE VOLTAGE REGULATOR |
|||||
|
TSGC2-3 |
3 |
220/380 |
0~430 |
50/60Hz |
4 |
|
TSGC2-6 |
6 |
8 |
|||
|
TSGC2-9 |
9 |
12 |
|||
|
TSGC2-15 |
15 |
20 |
|||
|
TSGC2-30 |
30 |
40 |
|||
SPECIFICATION
|
MODEL |
Quantity |
Package dimension |
G.W. |
|
|
pcs/ctn |
L*W*H(cm) |
kg |
|
SINGLE PHASE VOLTAGE REGULATOR |
|||
|
TDGC2-0.5 |
4 |
33*31.5*42 |
34 |
|
TDGC2-1 |
4 |
39*22*49 |
27 |
|
TDGC2-2 |
4 |
43*25*50 |
30 |
|
TDGC2-3 |
2 |
49*28.5*26 |
29 |
|
TDGC2-5 |
1 |
29*29*31 |
25 |
|
TDGC2-10 |
1 |
44*44*39 |
54 |
|
TDGC2-15 |
1 |
44*44*64 |
60 |
|
TDGC2-20 |
1 |
44*44*64 |
80 |
|
TDGC2-30 |
1 |
44*44*115 |
160 |
|
THREE PHASE VOLTAGE REGULATOR |
|||
|
TSGC2-6 |
1 |
28*25*55 |
31 |
|
TSGC2-9 |
1 |
31*29*55 |
42 |
|
TSGC2-15 |
1 |
44*44*88 |
79 |
|
TSGC2-30 |
1 |
44*44*115 |
160 |
More details of TSGC TSGC2 1.5kVA three phase manual Voltage Regulator 380V please contact our sales person directly.
TSGC2 (TDGC2J) contact voltage regulator with waveform distortion, small size, light weight, high efficiency and easy to use, reliable, long-term operation and other characteristics, can be widely used in industry (eg chemical, metallurgy, instrumentation, electrical and mechanical manufacturing, light workers, etc.), scientific experiments, household appliances, control speed, dimming and power control purposes, the three an ideal AC voltage power supply.

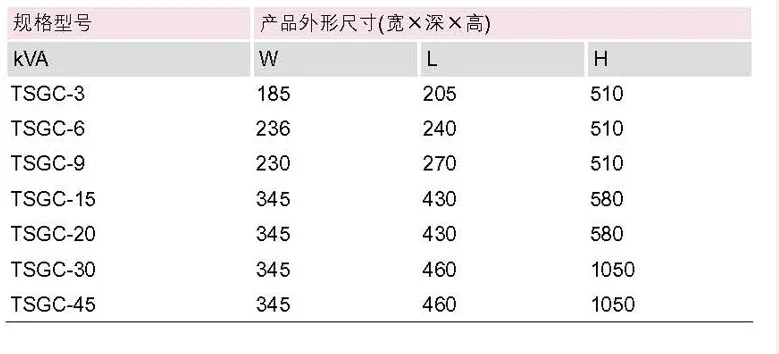

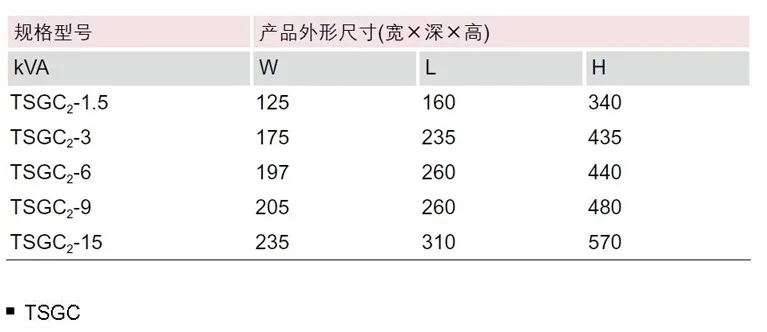

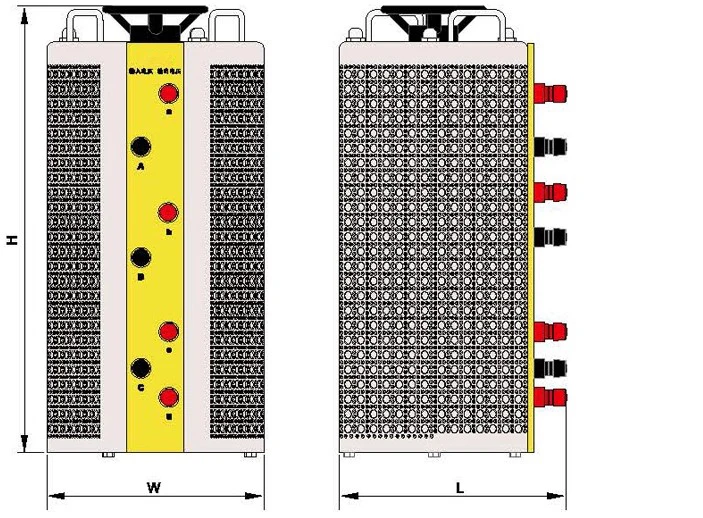

Regulator Model Specification
| Phase | Model | Power (kVA) |
Rated APMS(A) | Dimensions (L×W×T)(mm) |
Weight (kg) |
| Single-phase voltage regulator | TDGC2 | 0.2 | 1 | 120×110×120 | 3 |
| 0.5 | 2 | 140×130×130 | 4 | ||
| 1 | 4 | 200×180×180 | 6.5 | ||
| 2 | 8 | 160x155x145 | 9 | ||
| 3 | 12 | 220×180×200 | 11 | ||
| 5 | 20 | 310×240×240 | 16 | ||
| 10 | 40 | 310×240×410 | 36 | ||
| 15 | 60 | 310×240×560 | 48 | ||
| 20 | 80 | 310×240×770 | 56 | ||
| 30 | 120 | 310×240×1500 | 105 | ||
| Three-phase voltage regulator | TSGC2/TDGC2J | 0.6 | 1.5 | 150×120×330 | 17 |
| 1.5 | 3 | 170×130×340 | 20 | ||
| 3 | 4 | 270×170×420 | 20 | ||
| 6 | 8 | 260×210×460 | 28 | ||
| 9 | 12 | 280×210×480 | 35 | ||
| 15 | 20 | 320×240×570 | 48 | ||
| 20 | 27 | 330×340×1100 | 105 | ||
| 30 | 40 | 330×340×1100 | 150 | ||
| 45 | 60 | 350×430×1500 | 170 | ||
| 60 | 80 | 450×470×1500 | 200 |
Consult us for more models you need.
|
|
|
||||||||||||||||||||||
