Split-Core Current Transformer | OPCT Series | 1000:1~5000:1 Ratio

$16.80 USD
$7.03 USD $16.80 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.

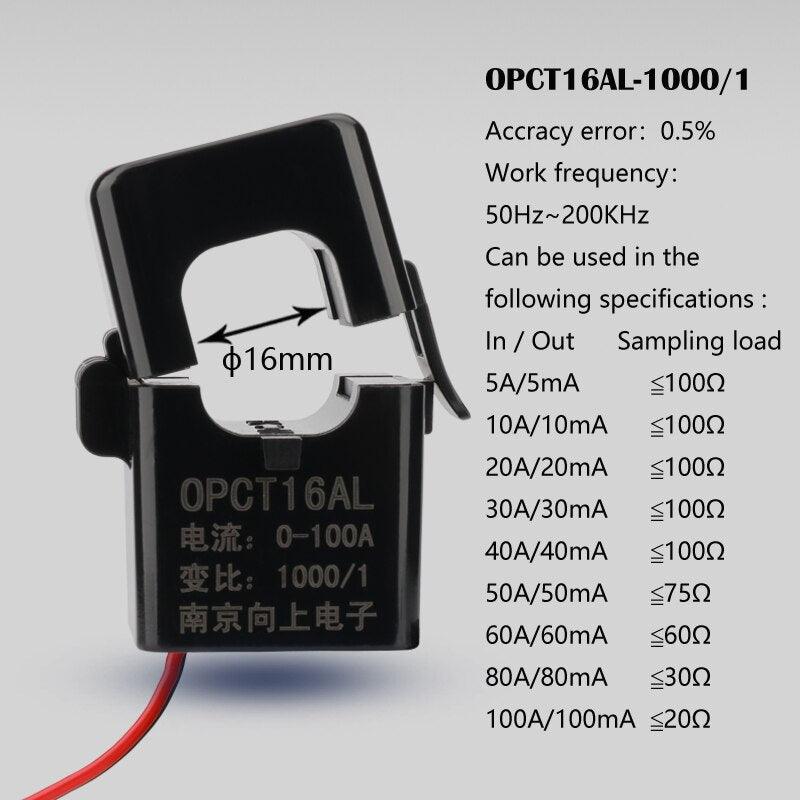

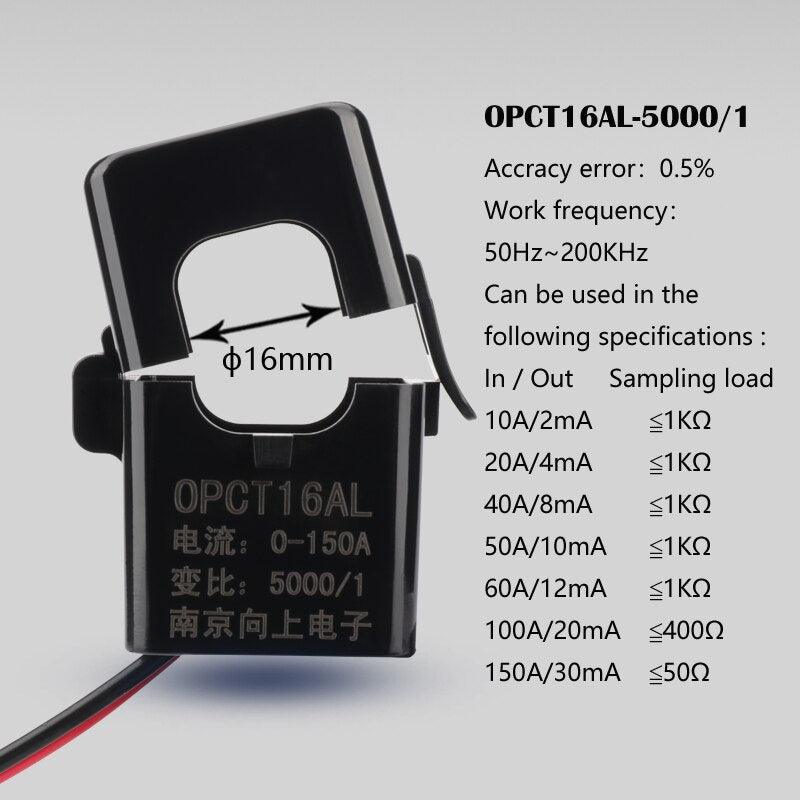

OPCT Split-Core Current Transformer, 0.5 Class Precision, 1000/1~5000/1 Transformation Ratio, 10/16/24/35mm Hole, Clamp-On AC Current Sensor with Optional RJ12 Output

The OPCT series split-core (open/closed) current transformers are high-precision clamp-on sensors designed for AC current metering and monitoring, ideal for applications where cables cannot be disconnected. With 0.5 class accuracy and ratios from 1000:1 to 5000:1, they deliver reliable performance for power grids, EV chargers, and 5G base stations.

✨ Key Features


✅ Split-Core Design: No need to cut cables, easy installation with clamp-on mechanism.

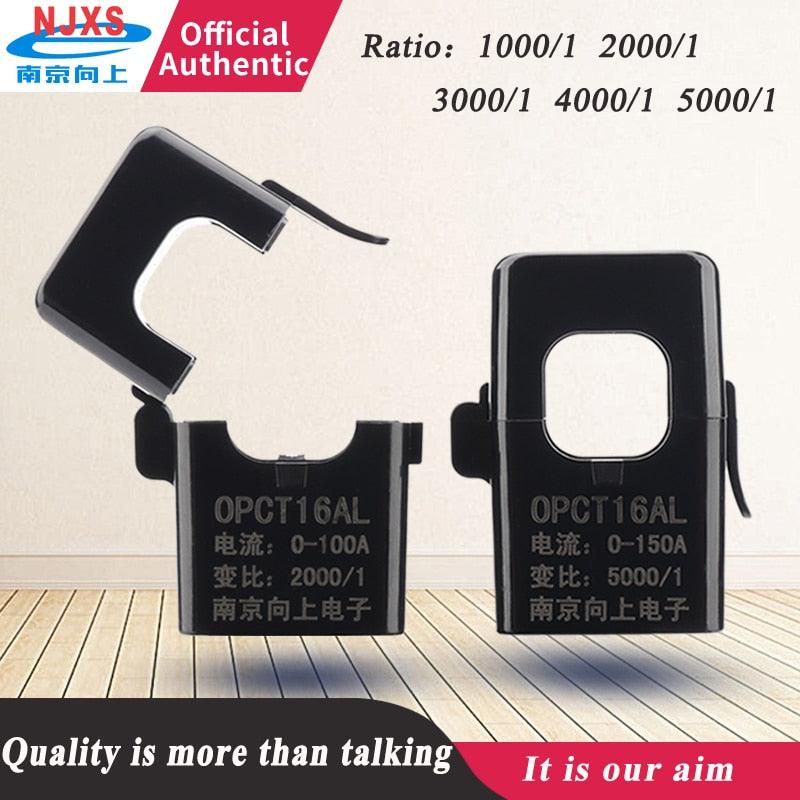

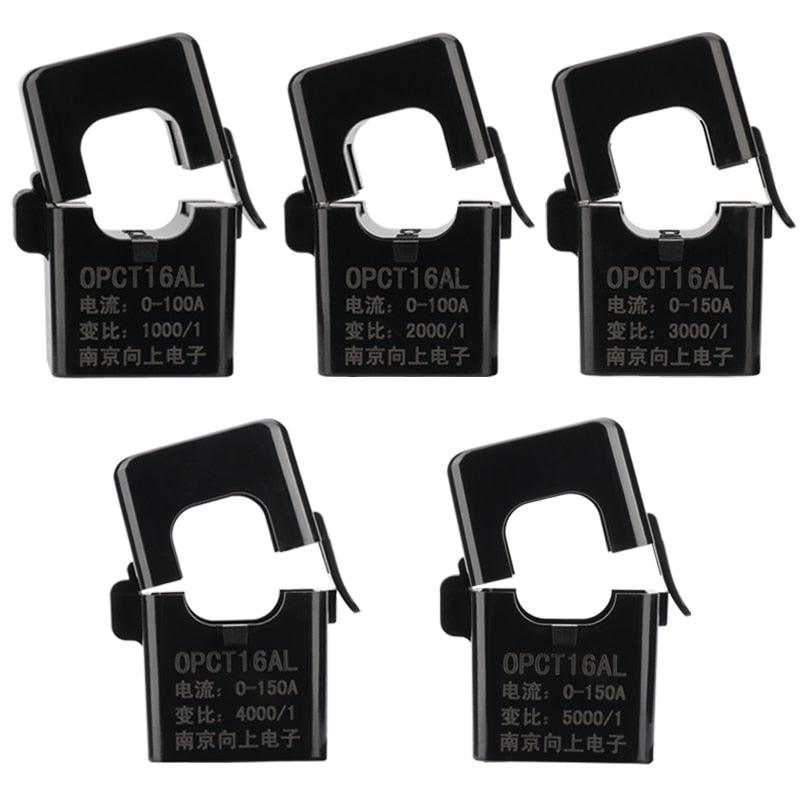

✅ Multiple Ratios & Apertures: Ratios: 1000:1/2000:1/3000:1/4000:1/5000:1; Apertures: 10mm/16mm/24mm/35mm.

✅ High Precision: 0.5% accuracy, 0.3~0.5% linearity error, suitable for high-frequency (up to 200kHz) metering.

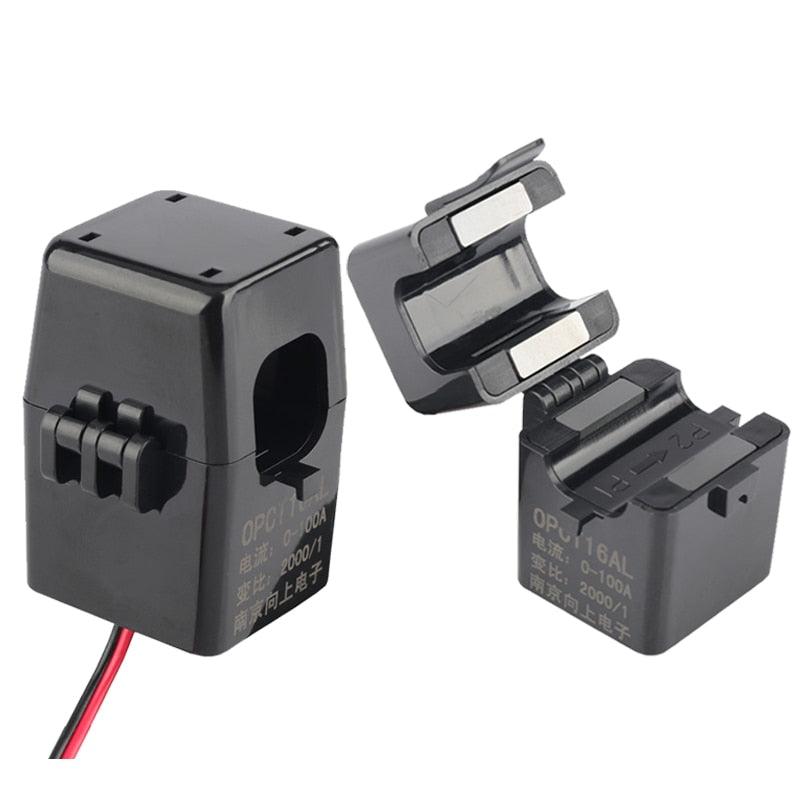

✅ Premium Materials: Ferrite core with mirror-polished contact surfaces for low loss; high-quality enameled copper winding for durability.

✅ Safety & Reliability: Built-in transient suppression diodes (anti-open circuit design), UL94-V0 flame-retardant housing, 2kV/1min withstand voltage.

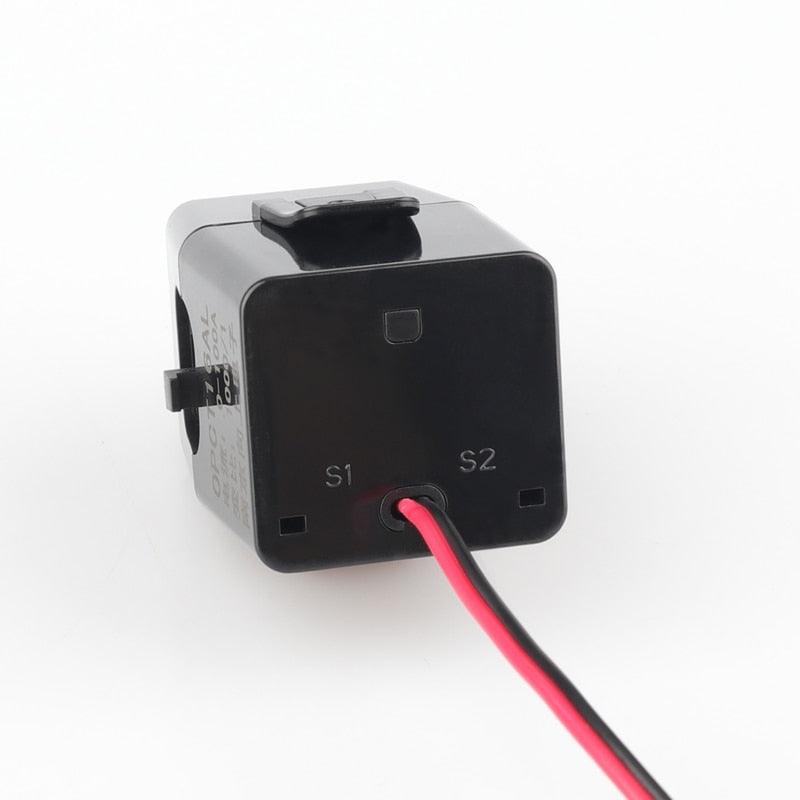

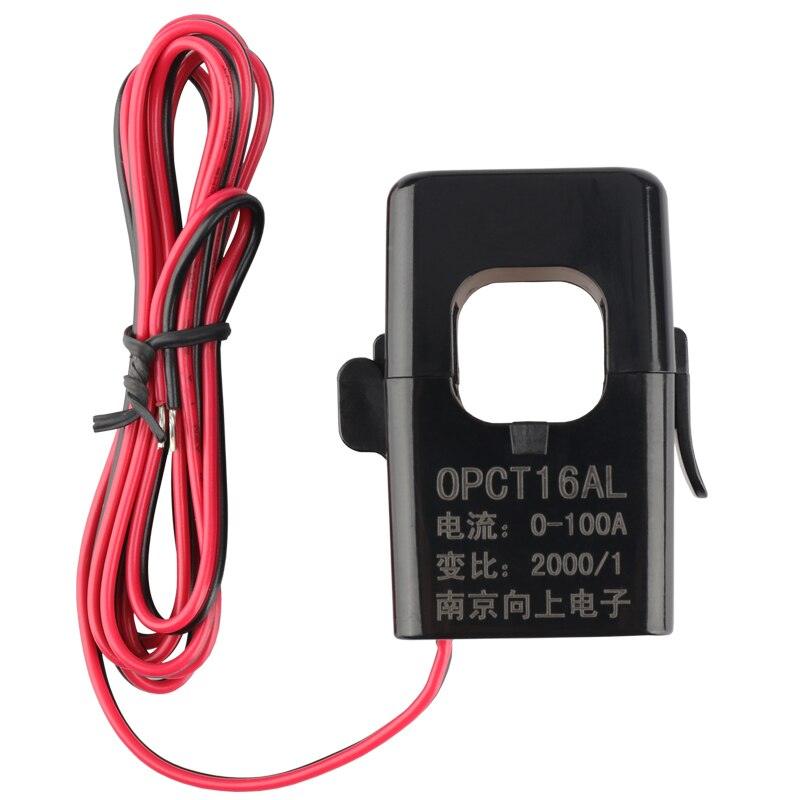

✅ Flexible Output: Standard red/black leads or RJ12 network port (3-in-1) output options.

✅ Wide Operating Range: 50Hz~200kHz frequency, -30℃~+70℃ operating temperature, suitable for harsh environments.

📊 Technical Specifications

Parameter Details
Model Series OPCT10ATL/OPCT16ATL/OPCT24AGL/OPCT35AGL
Type Split-Core (Clamp-On) Current Transformer

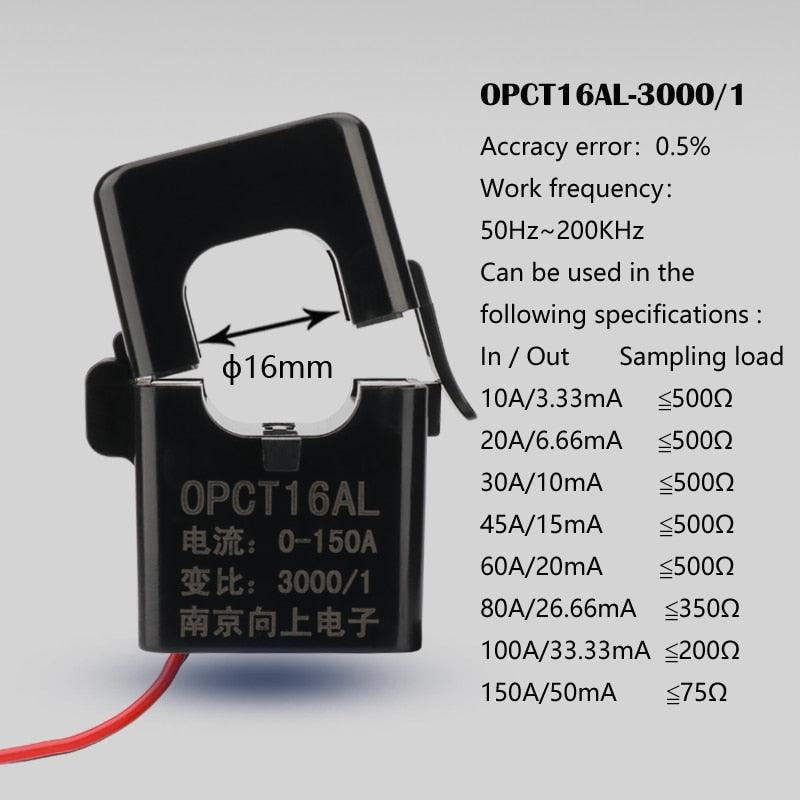

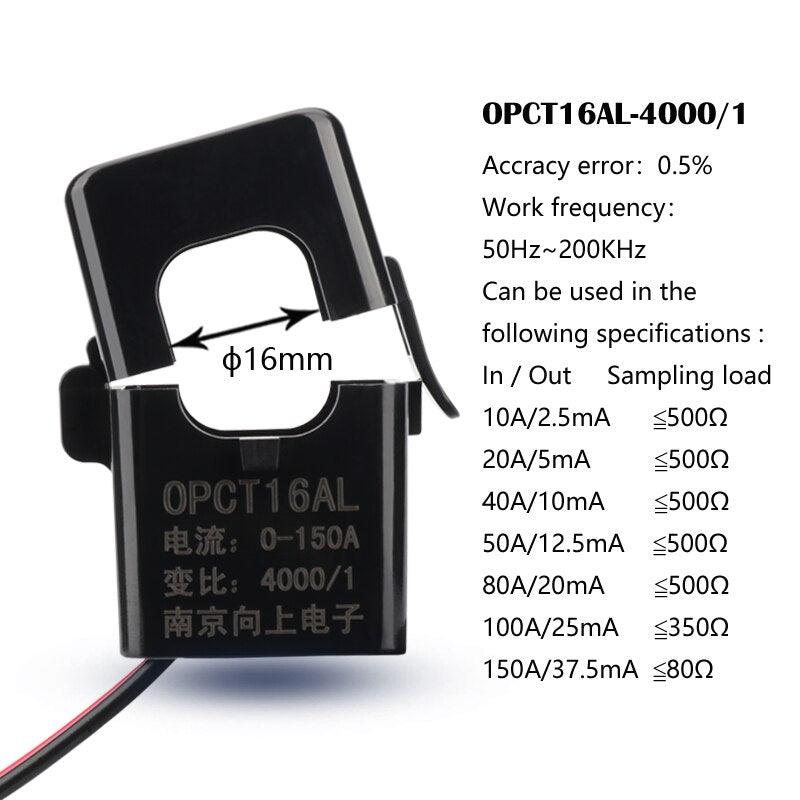

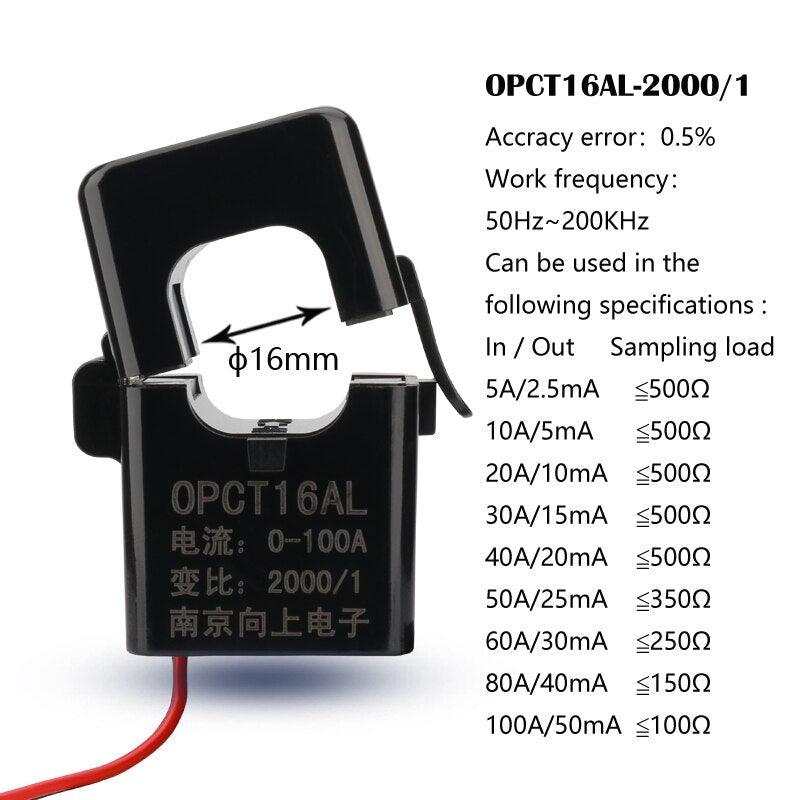

Transformation Ratio 1000:1 / 2000:1 / 3000:1 / 4000:1 / 5000:1
Rated Input Current 0~60A / 0~80A / 0~100A (varies by model)
Rated Output Current 2.5mA / 5mA / 26.66mA (AC)
Accuracy Class 0.5 Class
Operating Frequency 50Hz ~ 200kHz
Aperture Size 10mm / 16mm / 24mm / 35mm
Insulation Resistance ≥500MΩ / ≥1000MΩ
Withstand Voltage 2kV/50Hz/1min
Operating Temperature -30℃ ~ +70℃
Housing Material Flame-Retardant ABS (UL94-V0)

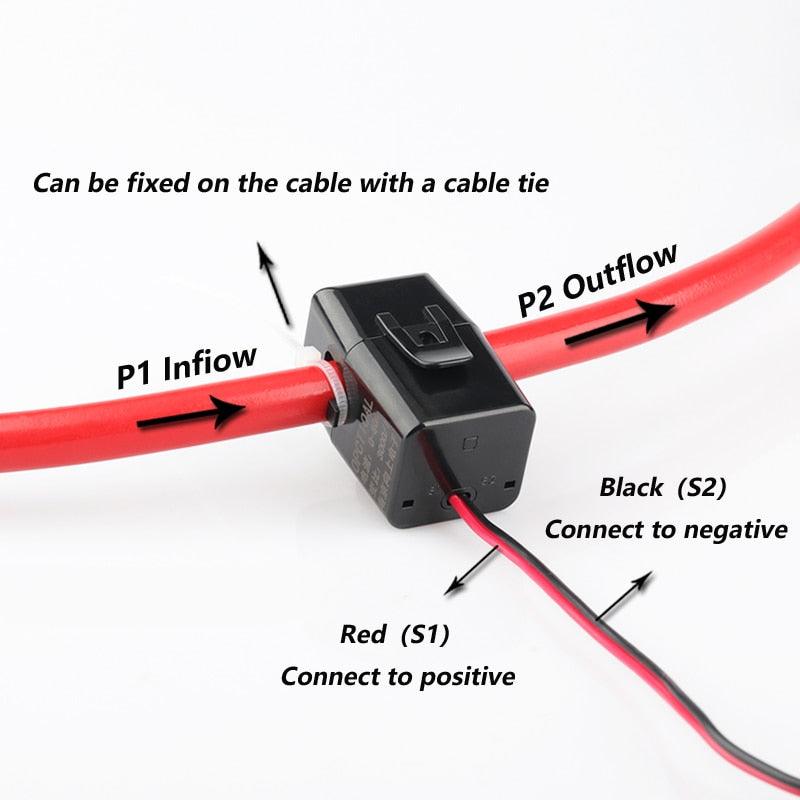

Installation Clamp-On, Dual Cable Tie Fixation
Applications Power Grid Renovation, EV Chargers, 5G Base Stations, Industrial Monitoring



🛠️ Applications


  • Electric vehicle charging pile current monitoring
  • Power grid renovation and smart metering projects
  • 5G communication base station load monitoring
  • Industrial automation and energy management systems
  • Building electrical safety monitoring

OPCT16AL DATA SHEET DOWNLOAD
