Solar DC 1000V PV Fuses 6A 10A 15A 20A 25A 30A 32A High Voltage for Solar System Protection
Couldn't load pickup availability
SPECIFICATIONS
Solar DC 1000V PV Fuses 6A 10A 15A 20A 25A 30A 32A High Voltage for Solar System Protection automotive fuses

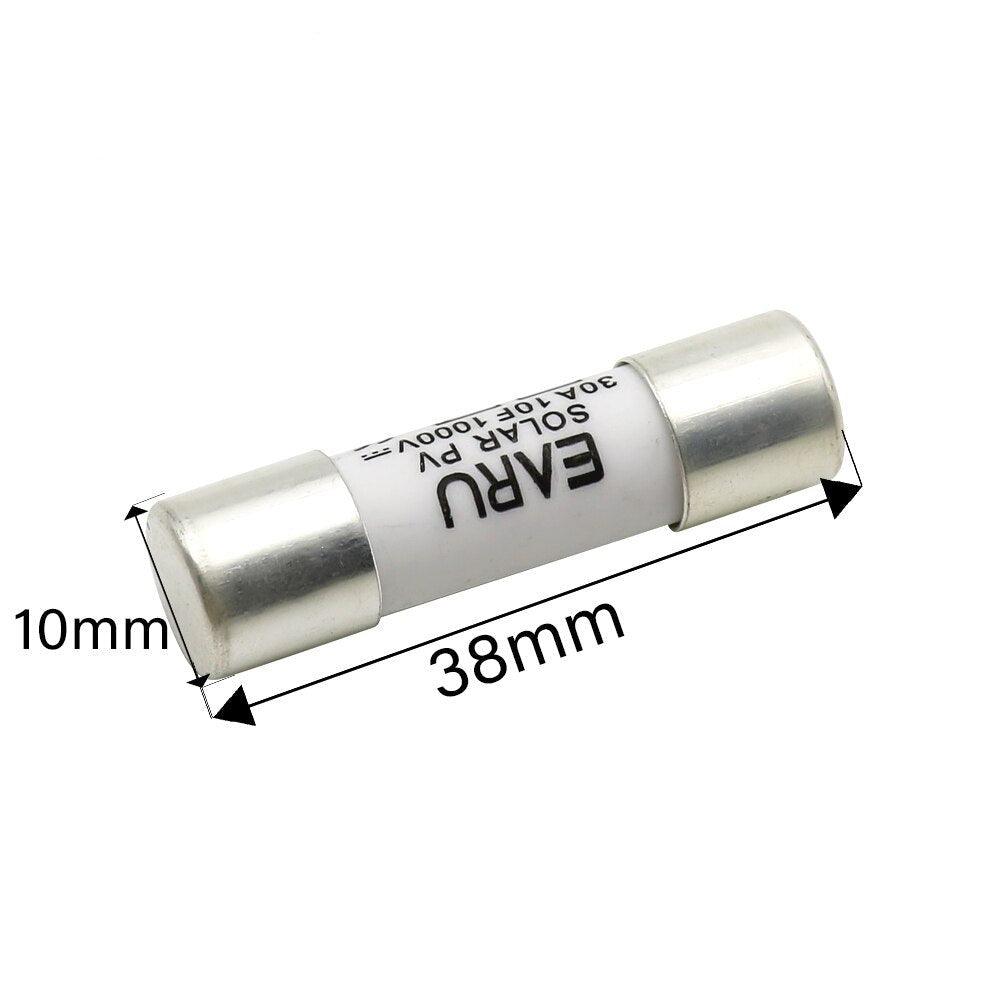

Use for: 10x38mm fuse
Usage: High Voltage
Rated voltage: DC 1000V
Material: Ceramics
Certification: CE
Please noted 6A, 10A, 15A, 20A, 25A, 30A,32A only fuse. If you want fuse holder, you have to buy the fuse holder.
PV String Fuses for solar panels - 1000VDC
A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings.
The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.
Applications
Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1000VDC
Electrical Characteristics
Rated voltage 1000VDC
Amps 6A,10A,15A,20,25A,30A
Rated braking capacity 33kA dc
Minimum interrupting rating 1.3x In
Time constant under 1ms
