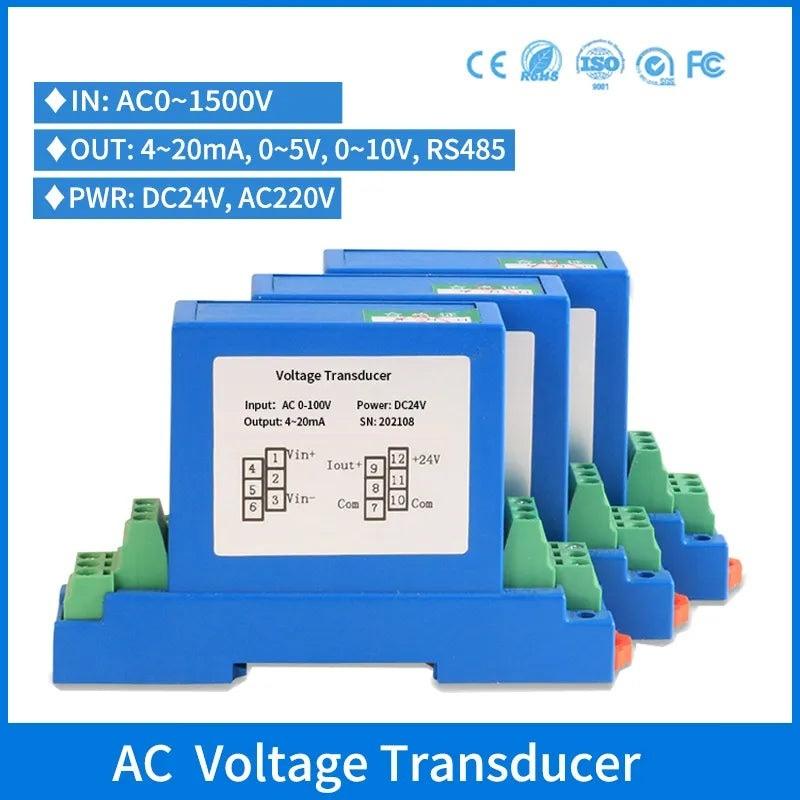

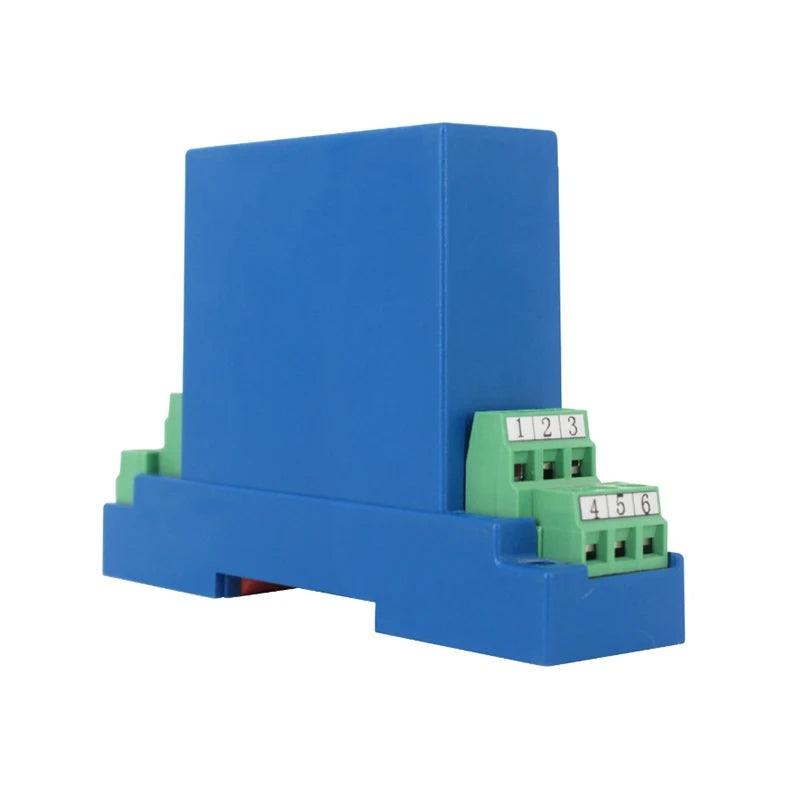

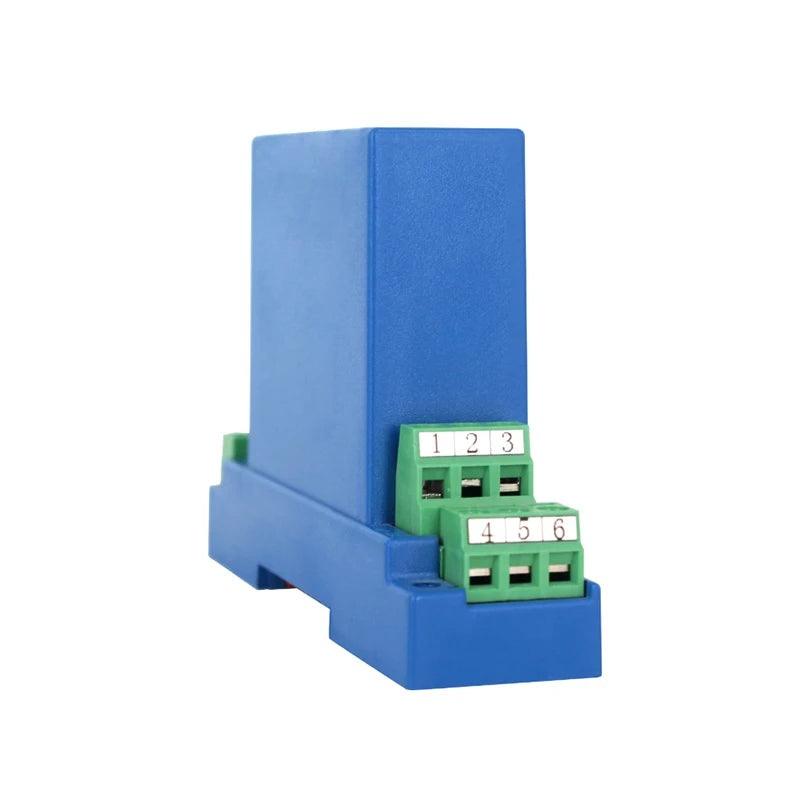

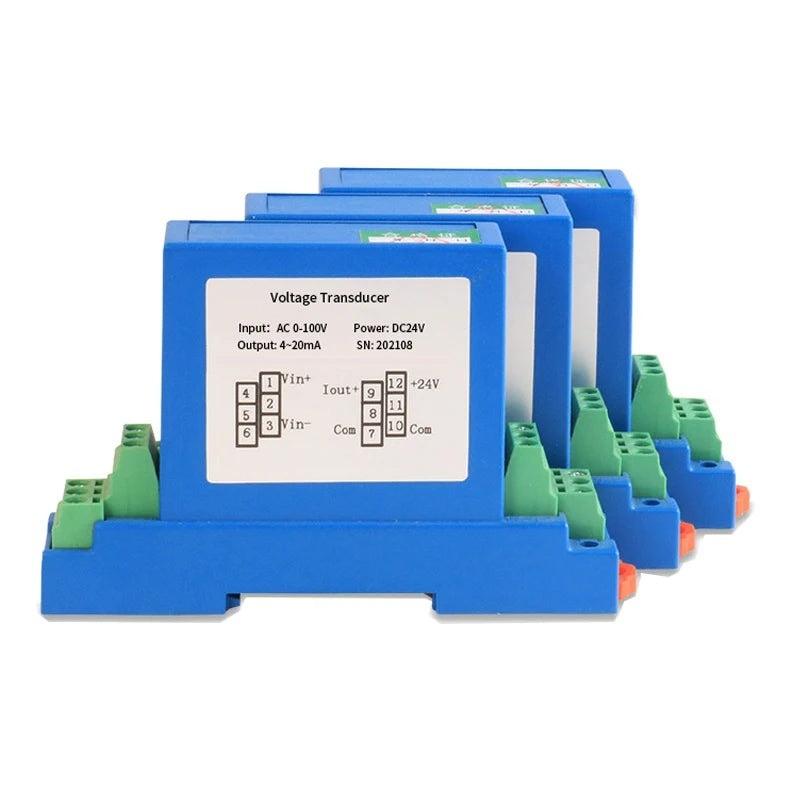

AC220V POWERED Single Phase AC Voltage Transmitter 0-1500V Output 0-5V 4-20mA AC High Voltage Sensor
Couldn't load pickup availability
SPECIFICATIONS
Single Phase AC Voltage Transmitter 0-1500V Voltage Transducer Analog Output 0-5V 4-20mA AC High Voltage Sensor Transducer
Response time: <200ms
Product name: Voltage transducer
Power Supply: DC
Output signal: 4-20mA,0-5V,0-10V,RS485
Origin: Mainland China
Operating Temperature: -30℃~+85℃
Model Number: ELVTB-7

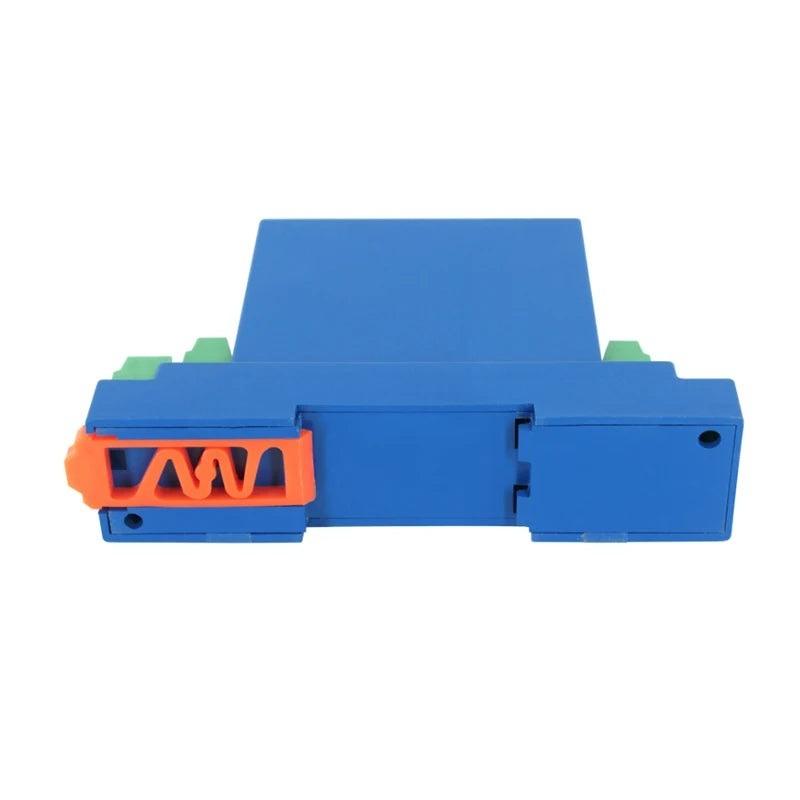

Installation method: DIN 35mm rail+ plane screw fixation
Input voltage range: AC 0-2000V
Frequency range: 40-60HZ
Display Type: Analog Only
Dimensions: No aperture
DIY Supplies: ELECTRICAL
Certification: CE
Brand Name: KEJUN
Accuracy Class: 0.2%FS
Single Phase AC Voltage Transmitter 0-1500V Voltage Transducer Analog Output 0-5V 4-20mA AC High Voltage Sensor Transducer
This link is special for AC voltage transducer.
DC voltage transducer link click here: DC voltage transducer
NOTES:
The AC voltage transducer can make any range within AC0~1500V.
If you need other ranges, please contact me.
We can make special customization for you.
1>>. Working principle: Linear photoelectric isolation.
2>>. Usage: Used for special place for measuring input signal frequency variation and input waveform.AC DC universal.
3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.
4>>. Application: Measurement of distortion waveforms such as triangular wave, trapezoidal wave and thyristor adjustable.
5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.
6>>. Full channel configuration,parameters customized.
