Schneider Electric

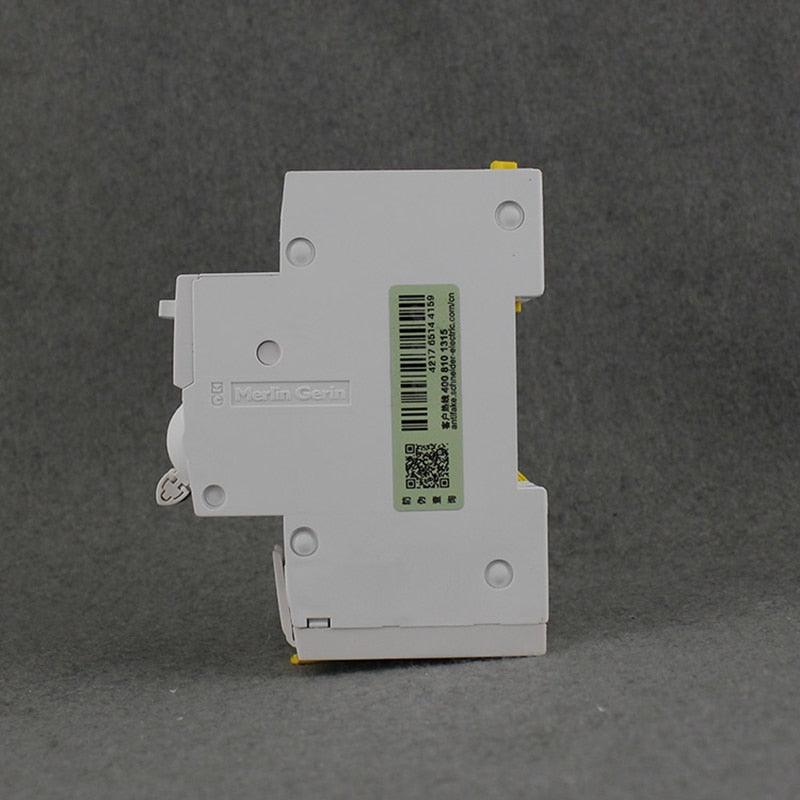

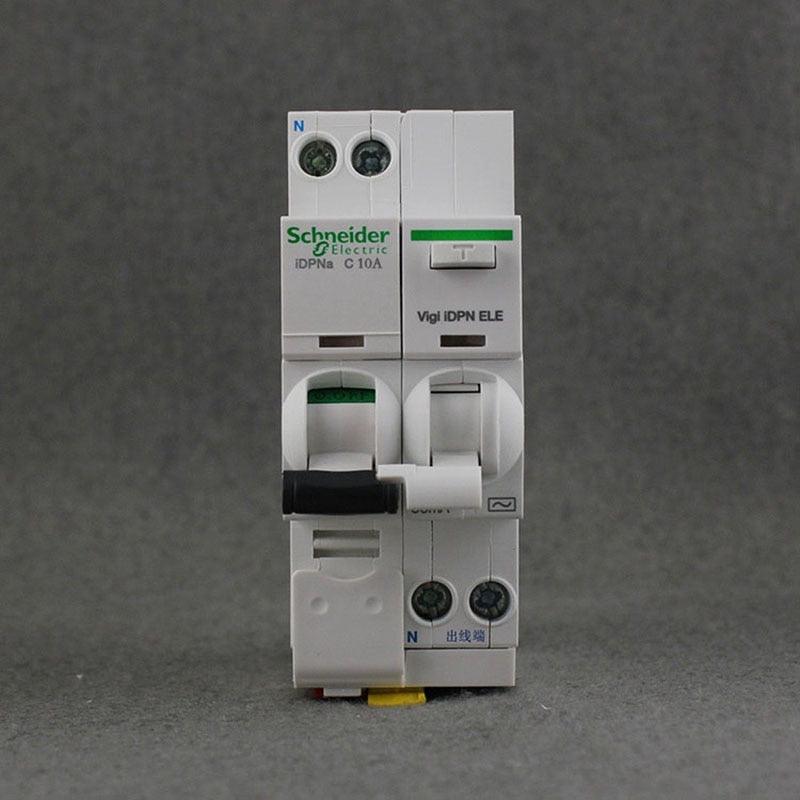

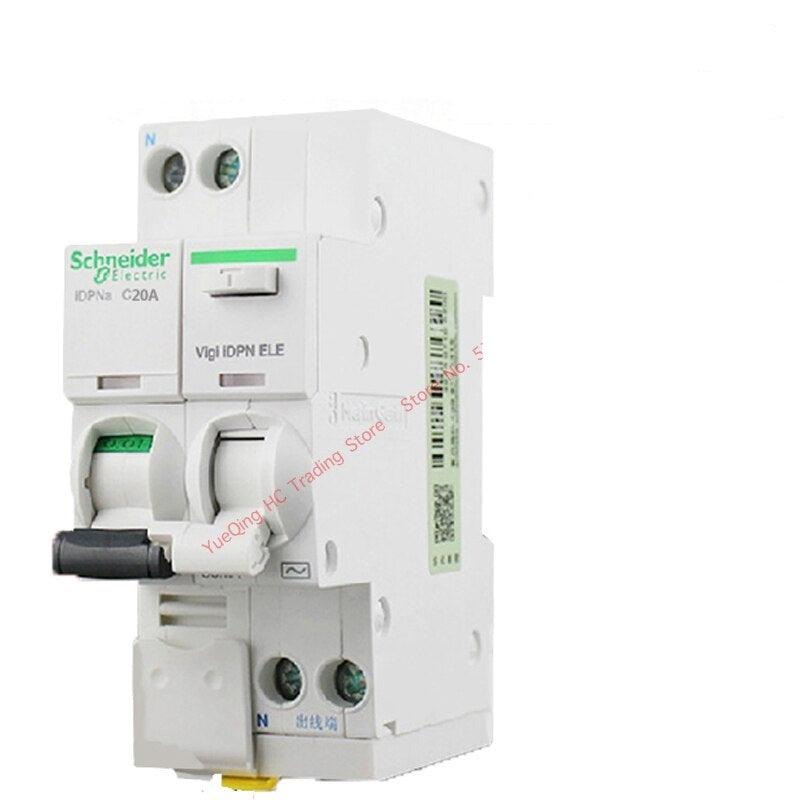

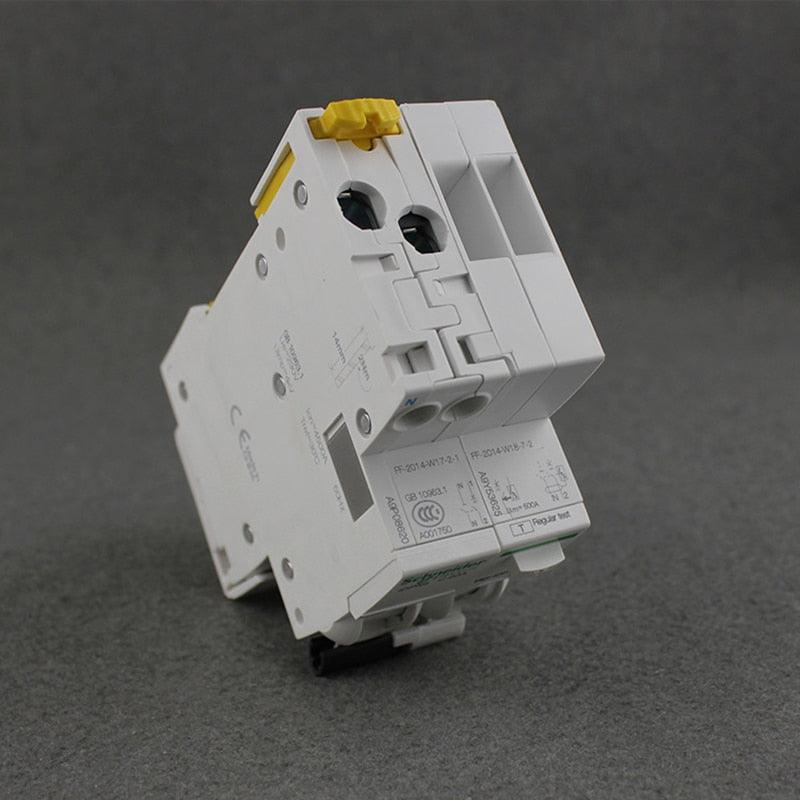

Schneider- Orignal IDPNa 1P+N 30MA Mini Leakage RCBO Breaker

$40.48 USD
$47.62 USD $40.48 USD
Sale Sold out
Shipping calculated at checkout.
Poles Number
Rated Current

Schneider- Orignal IDPNa VIGI 1P+N , 30MA??

Mini Leakage Circuit Breaker Switch|

Residual Current Operation Protection Device

6A, 10A,16A,20A,25A,32A,40A Optional

Specification

Key Value
Brand Schneider Electric
Series Acti9 iDPNa Vigi
Product Type Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
Poles 1P+N (1 protected pole + neutral)
Rated Voltage 230V AC, 50/60Hz
Rated Leakage Current (I??n) 30mA
Rated Current (In) 6A / 10A / 16A / 20A / 25A / 32A / 40A (optional)
Tripping Curve C Curve (5-10 In magnetic trip)
Breaking Capacity (Icn) 4.5kA (at 230V AC)
Leakage Type Type AC (standard)
Module Width 18mm (2 -9mm pitch)
Mounting 35mm DIN rail, snap-on
Connection 1-16mm?? flexible/rigid wire
Protection Functions Overload, short-circuit, residual current (earth leakage) protection
Certifications CE, CCC
Compliance Standards IEC 61009-1, GB 16917.1
Operating Temperature -25C to +60C
Protection Degree IP20 (front), IP40 (when installed in enclosure)


ITEM NO.

Rated Current Part Number
6A 30mA Type AC A9D30606
10A 30mA Type AC A9D30610
16A 30mA Type AC A9D30616
20A 30mA Type AC A9D30620
25A 30mA Type AC A9D30625
32A 30mA Type AC A9D30632
40A 30mA Type AC A9D30640

??
