RS550 Electric Saw Motor DC 18V 19.2V 21V 8 / 14 Teeth High Torque

The RS550 (with gear teeth) DC Brush Motor Series are specially designed for rechargeable lithium electric chain saw and reciprocating saw.

Features:

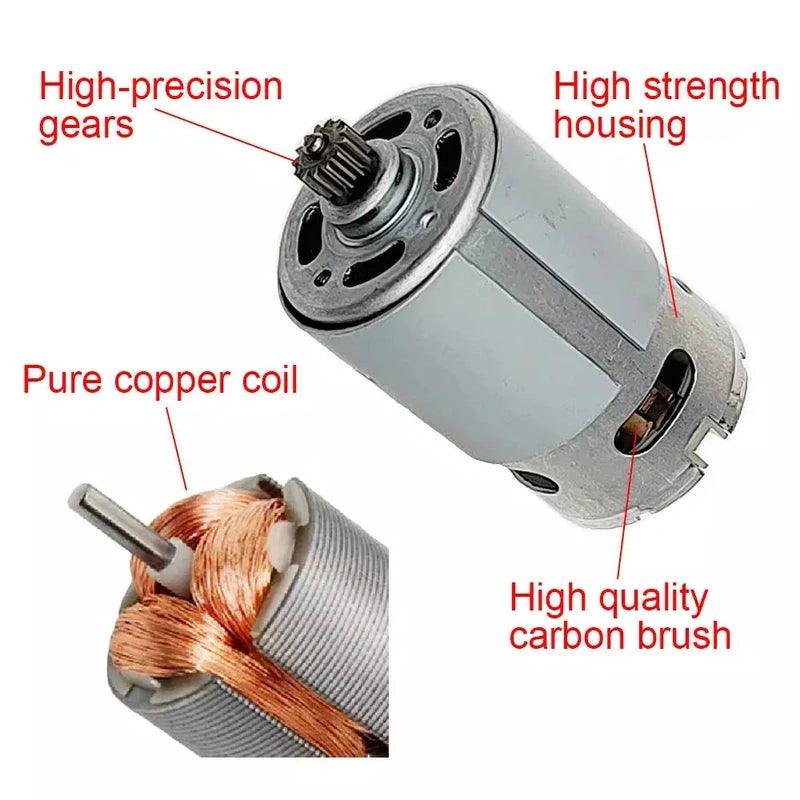

- High-speed and high torque
- High-power, low noise and long life

Parameters:
- Motor type: DC brushed motor
- Support voltages: 16.8V / 18V / 19.2V / 21V
- Support gear teeth number: 8 / 14
- No load Speed 20000-30000RPM
- Rated Power: 80W (approx.)
- Gear Material: All Metal
- Motor Total Weight: 240g (approx.)
- Motor Use Temperature: 0℃-50℃
- Motor Storage:
- Temperature: 0℃-40℃
- Humidity: 15%-90% RH

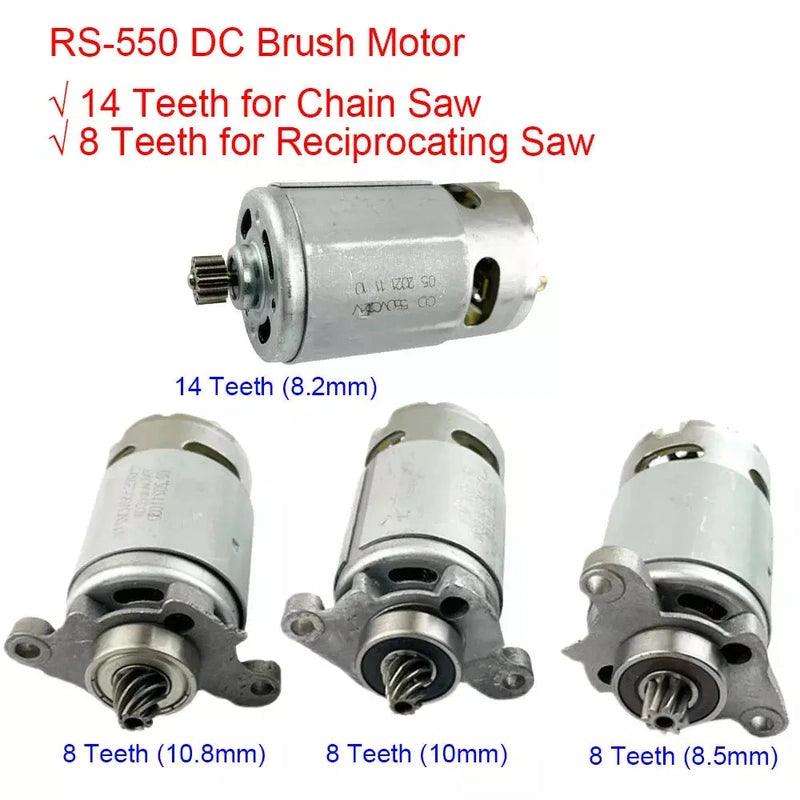

There are 4 types of tooth shapes:

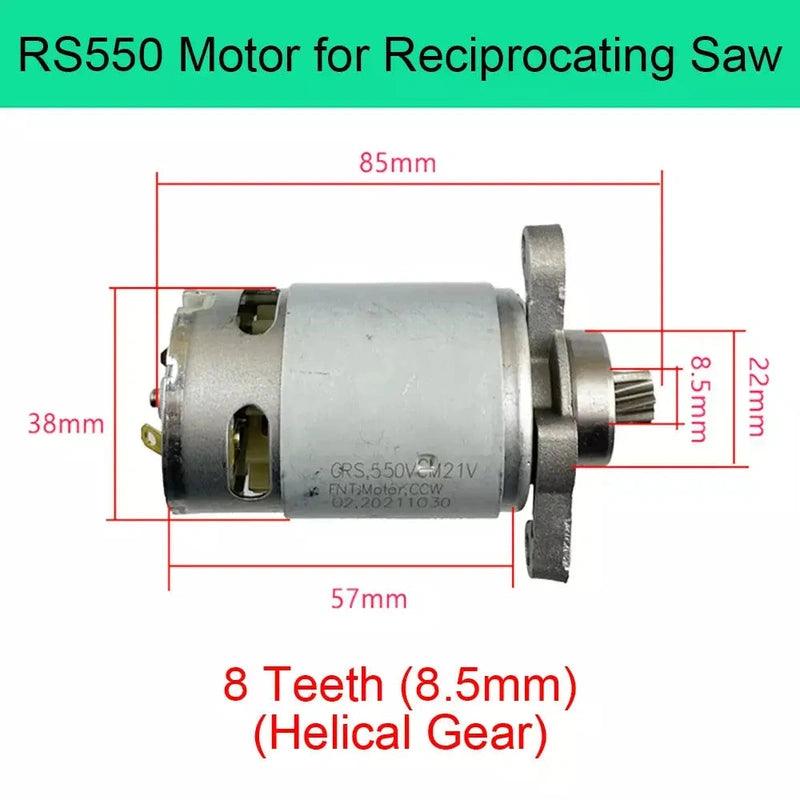

- 8 teeth (8.5mm): Helical gear, for reciprocating saw
- 8 teeth (10mm): Small conical gear, for reciprocating saw

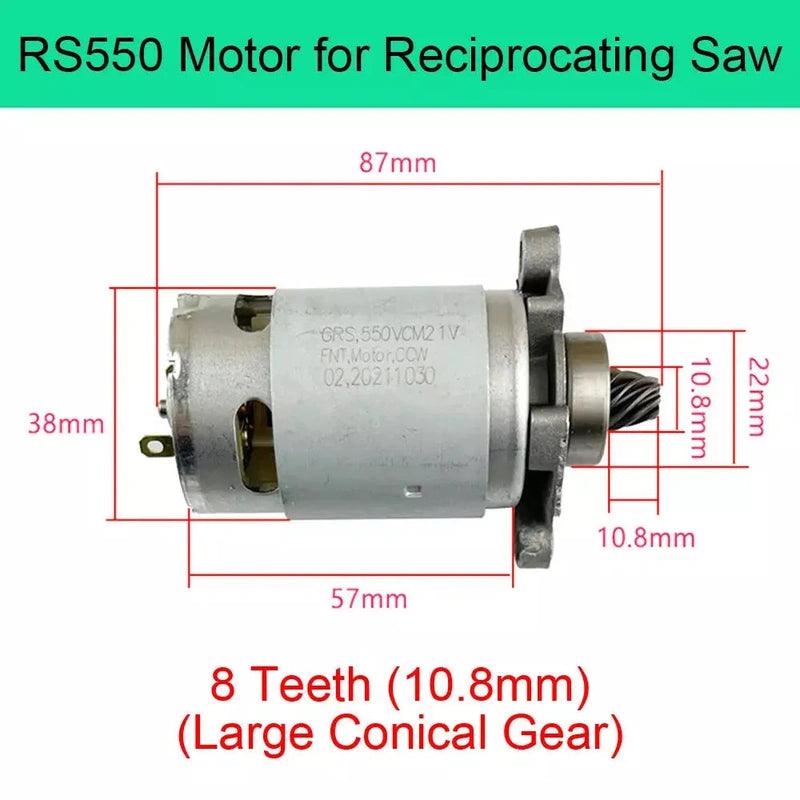

- 8 teeth (10.8mm): Large conical gear, for reciprocating saw

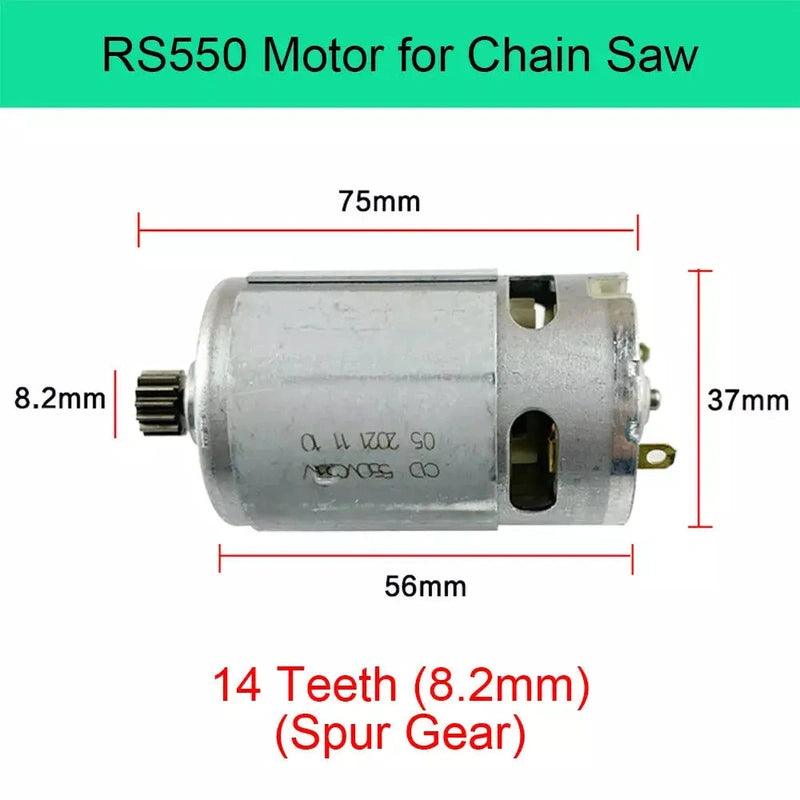

- 14 teeth (8.2mm): Spur gear, for 4 / 6 inches chain saw

Notes:
Please pay attention to safety when using, disassembling and repairing power tools, and according to the product manual and take necessary personal protection measures, and keep them out of the reach of children.

Package:
- 1 x RS550 motor (with gear)
