Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch
SPECIFICATIONS
Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch
AC 660V 10A Switch Equipment Lift Elevator Latching Self Lock
Warranty: 1 Year
Unit Type: piece
Switch Type: Push Button Switch
Package Weight: 0.110kg (0.24lb.)
Package Size: 5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
Origin: CN(Origin)
Model Number: LAY37
Item Type: Switches
Certification: ce,CCC
Brand Name: EARUELETRIC
Product Name : Push Button Switch;
Action Type : Lacthing;

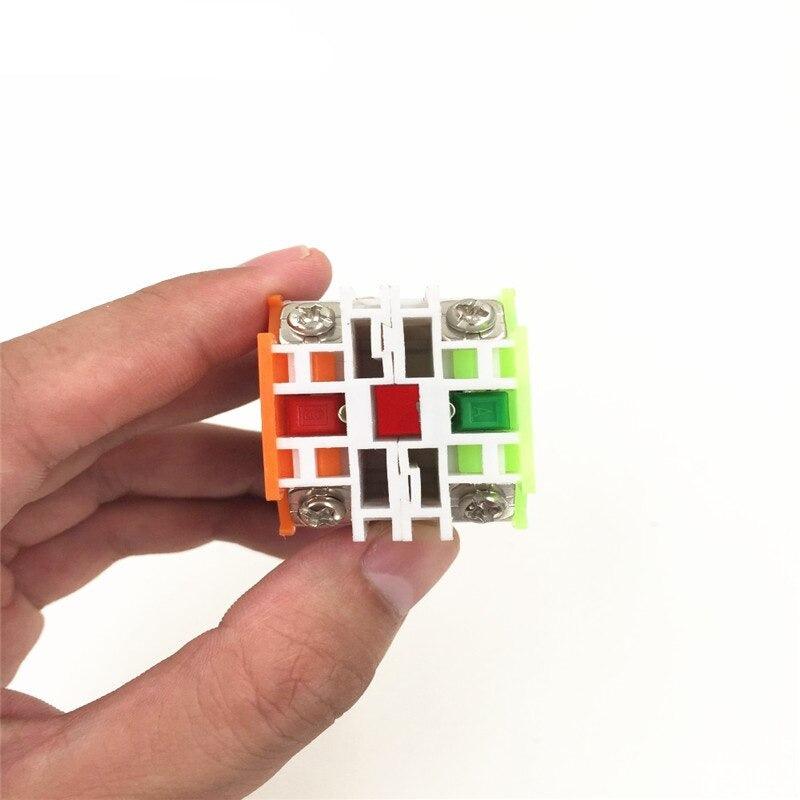

Contact Type : 1 NO + 1 NC;
Poles : DPST

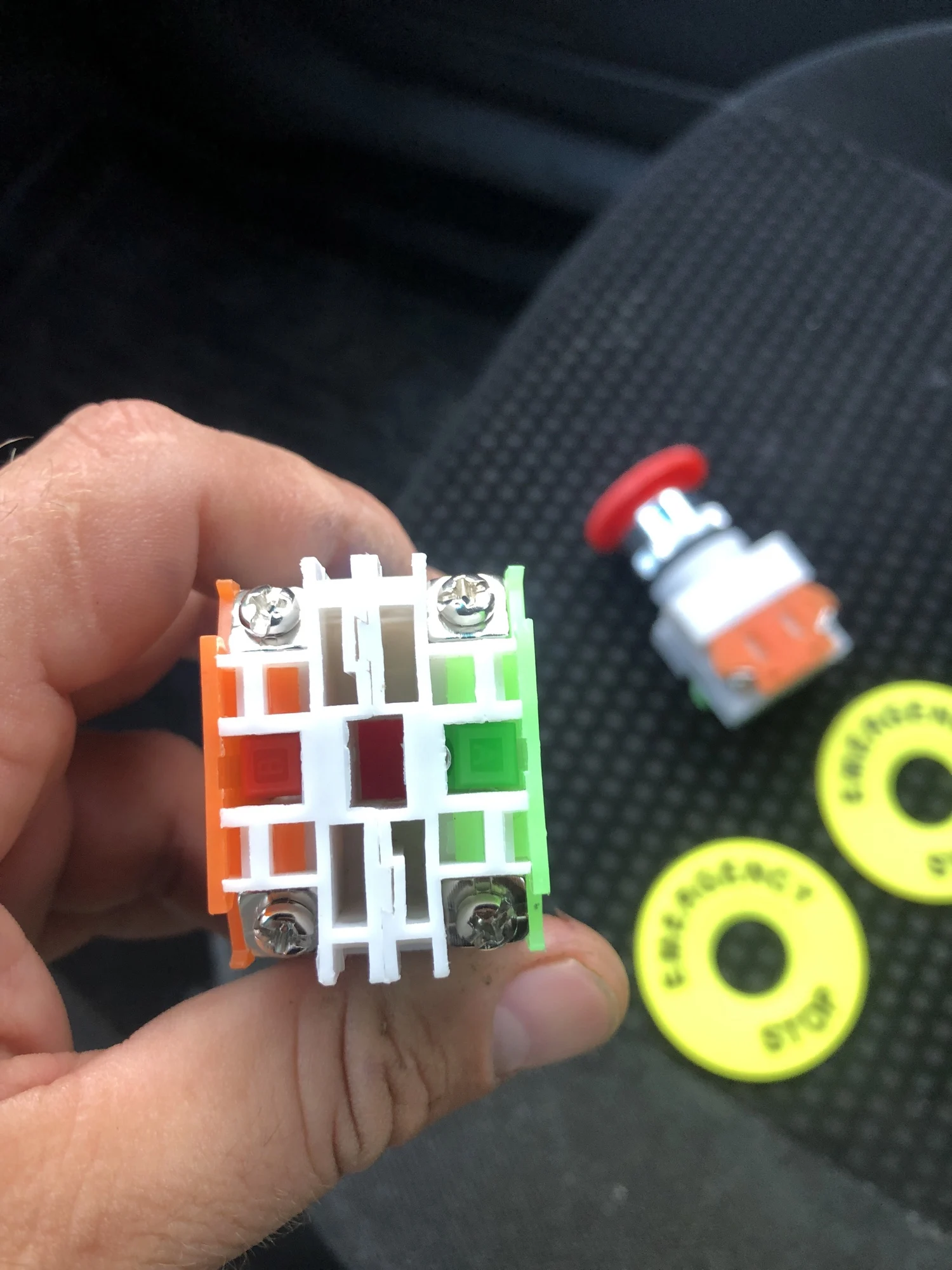

Ui : 660V;Ith : 10A;Terminals Quanlity : 4 Pins

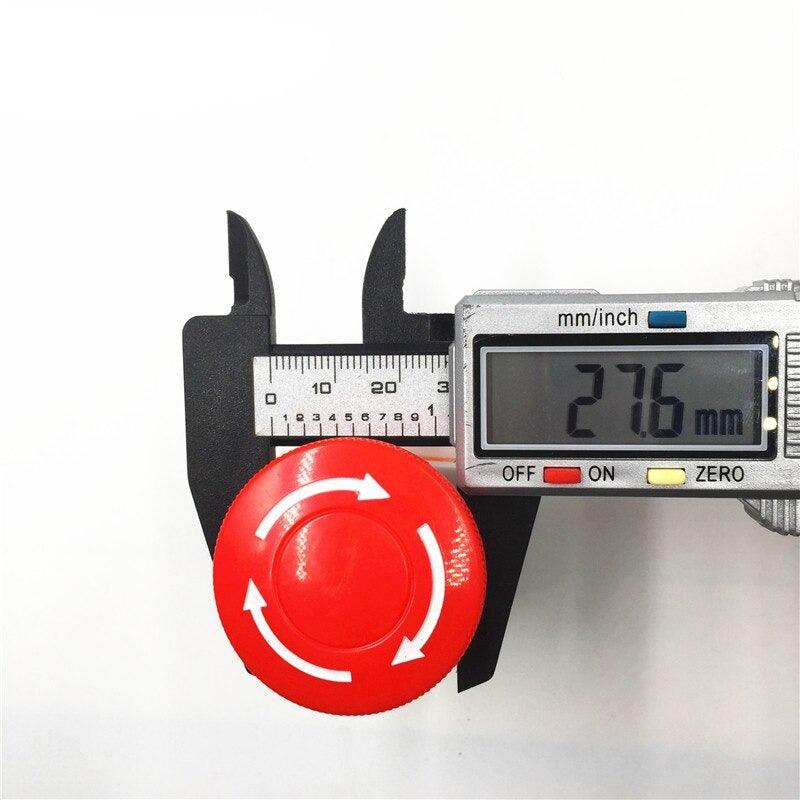

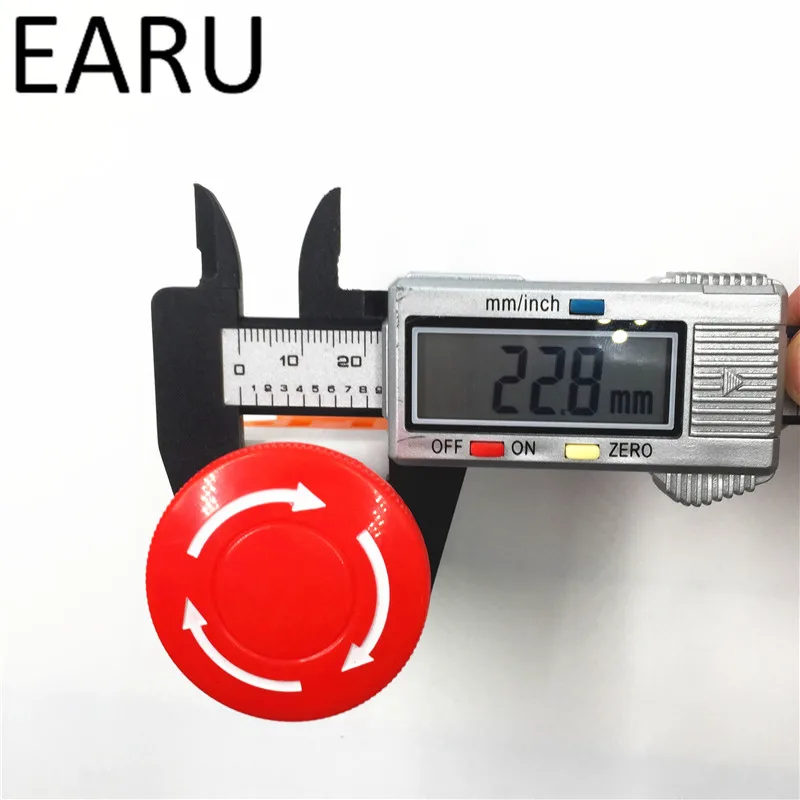

Button Diameter : 40mm/ 1.6";
Mount Hole Diameter : 22mm / 7/8";
Fit Panel Thickness(adjustable) : 6mm / 15/64"(max.)

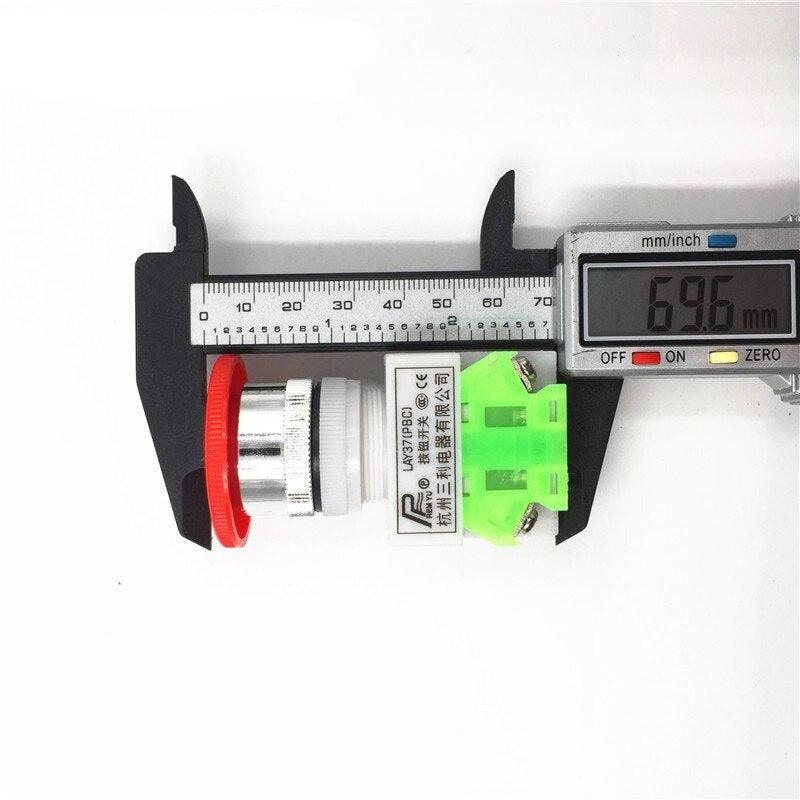

Size : 60 x 70mm/ 2.4" x 2.8" (Max.D*H);
Cap Lamp : Red;
Material : Plastic,Metal
Color : As Picture Shown;Weight : 46g;Package Content : 1 x Push Button Switch Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A

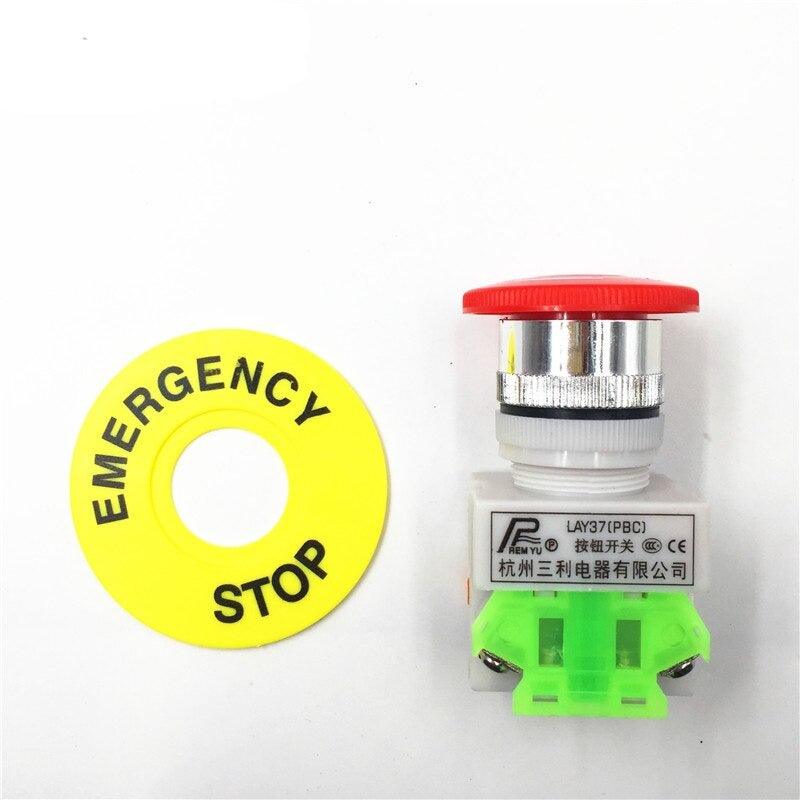

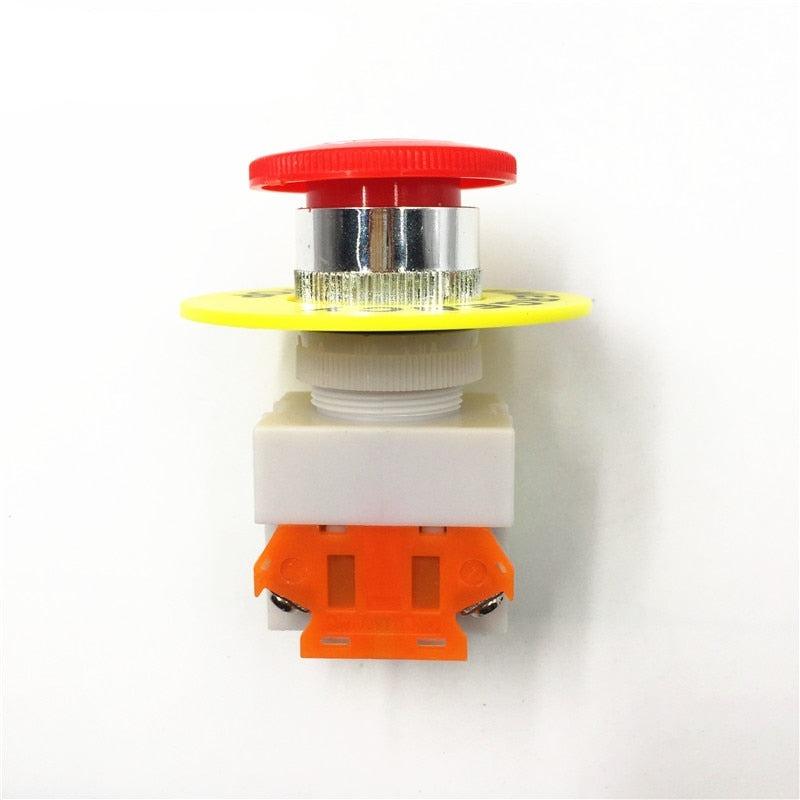

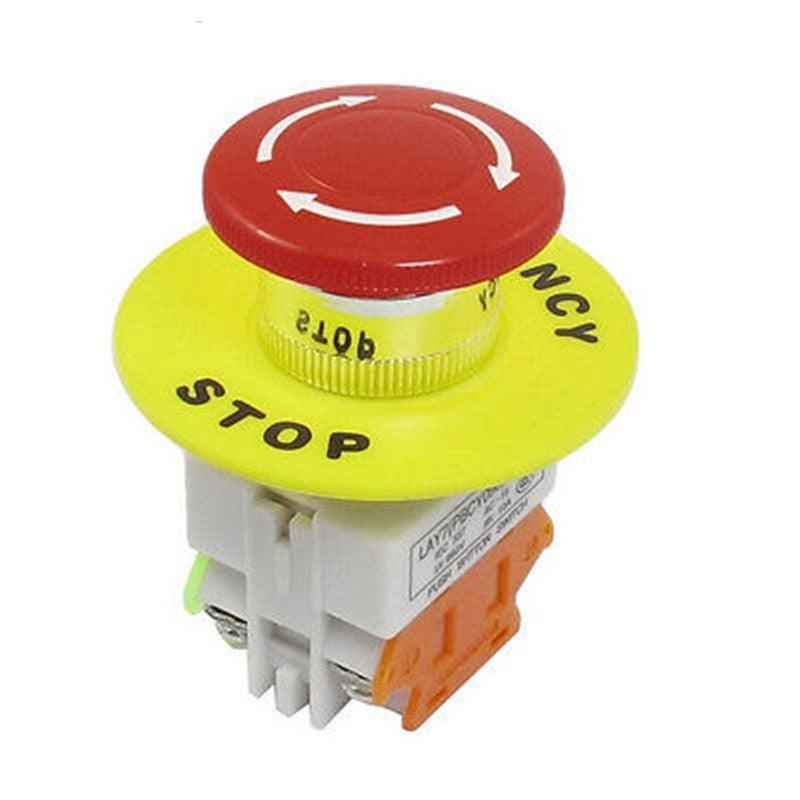

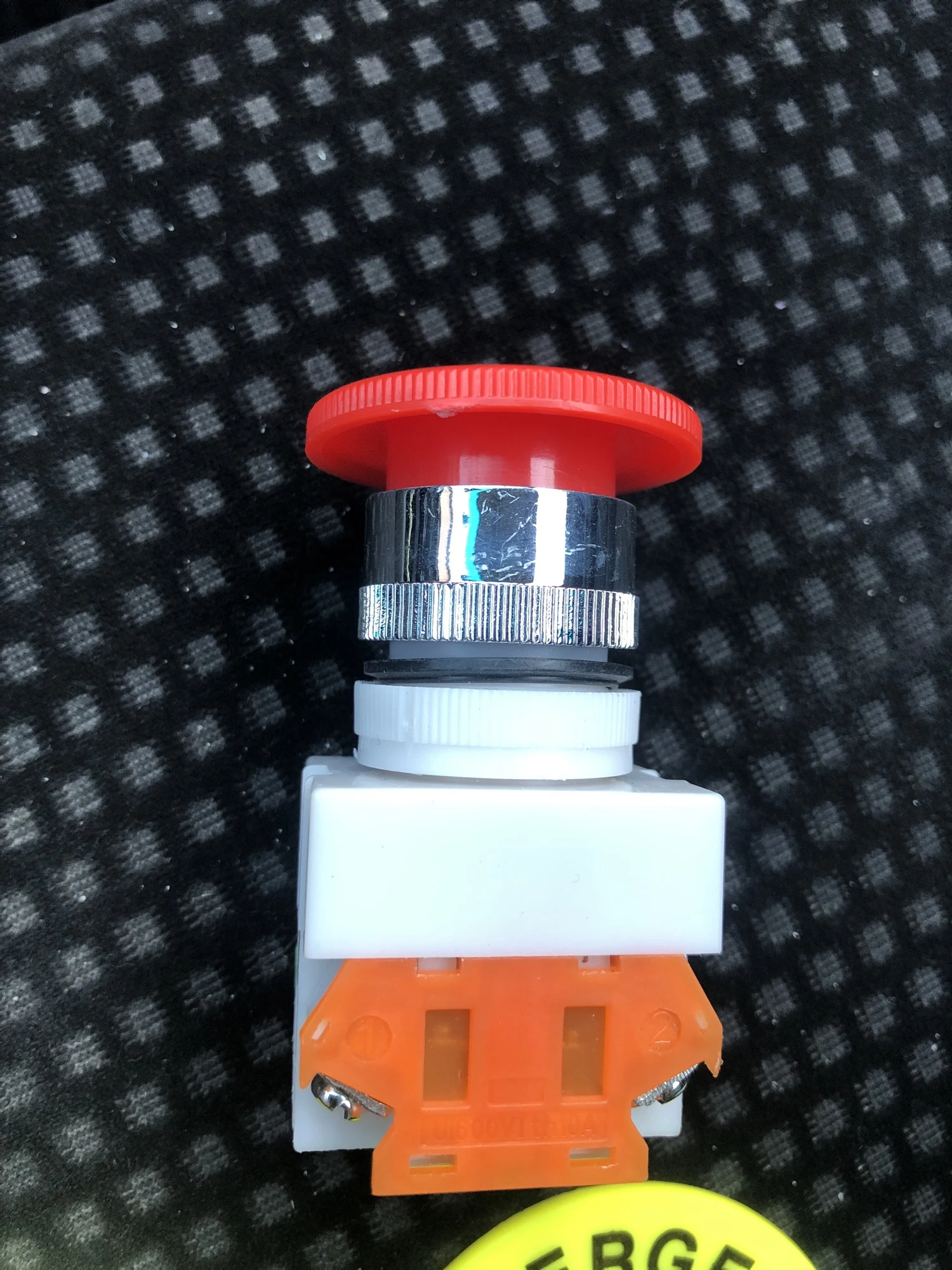

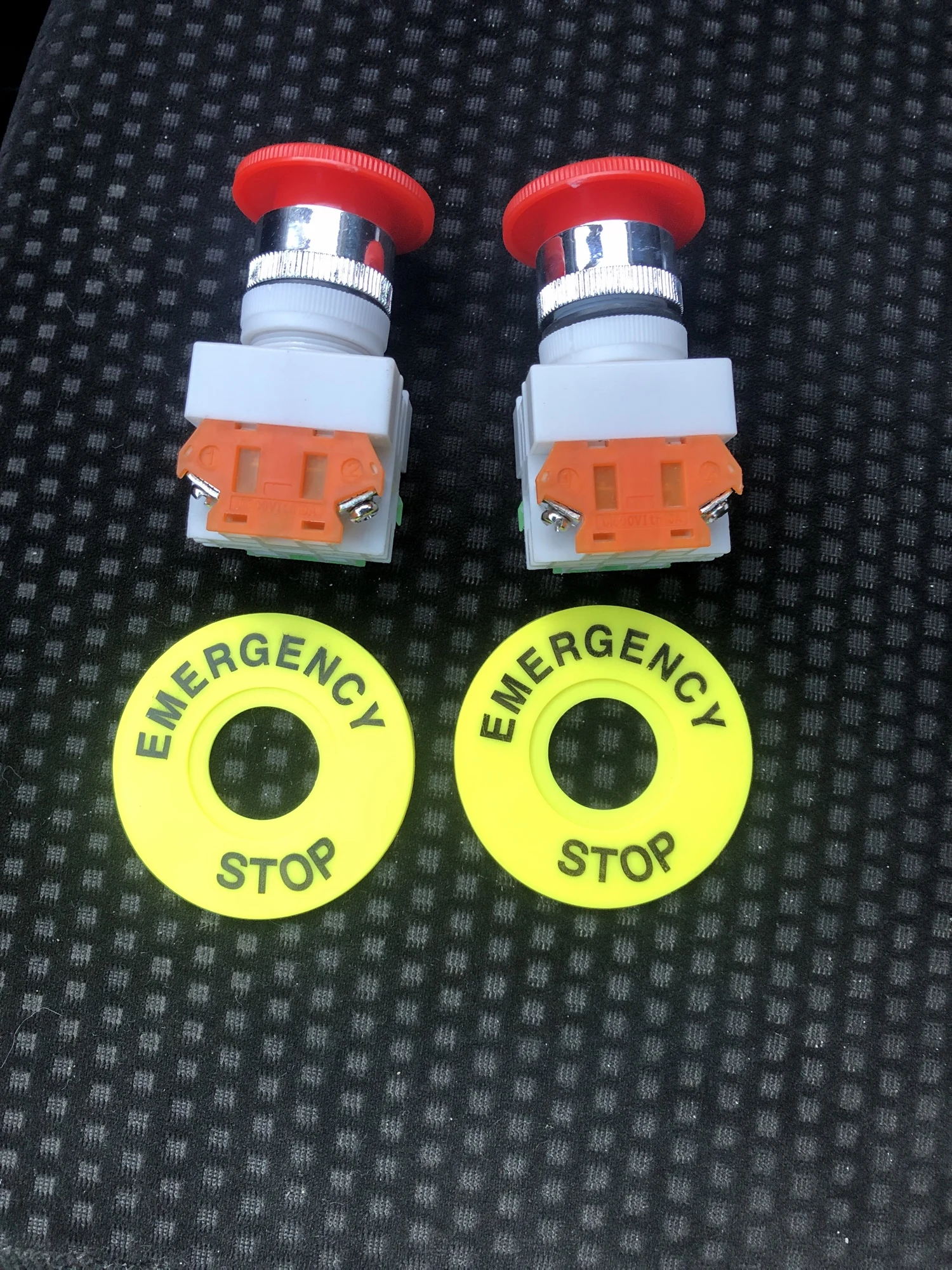

* Features: 4 terminals, 22mm mounting hole, 1NO+1NC contact type, red mushroom emergency stop latching push button switch with yellow cap.
* Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
