RC 520-18225 Double Head Shaft of Sweeping Robot Micro Mini DC Motor
Regular price
$28.22 USD
Regular price
$9.41 USD
Sale price
$28.22 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
RC 520-18225 Double Head Shaft of Sweeping Robot Micro Mini DC Motor
Brand Name: HYSMOTOR
Origin: Mainland China
RC520-18225 double head shaft of sweeping robot micro mini dc motor

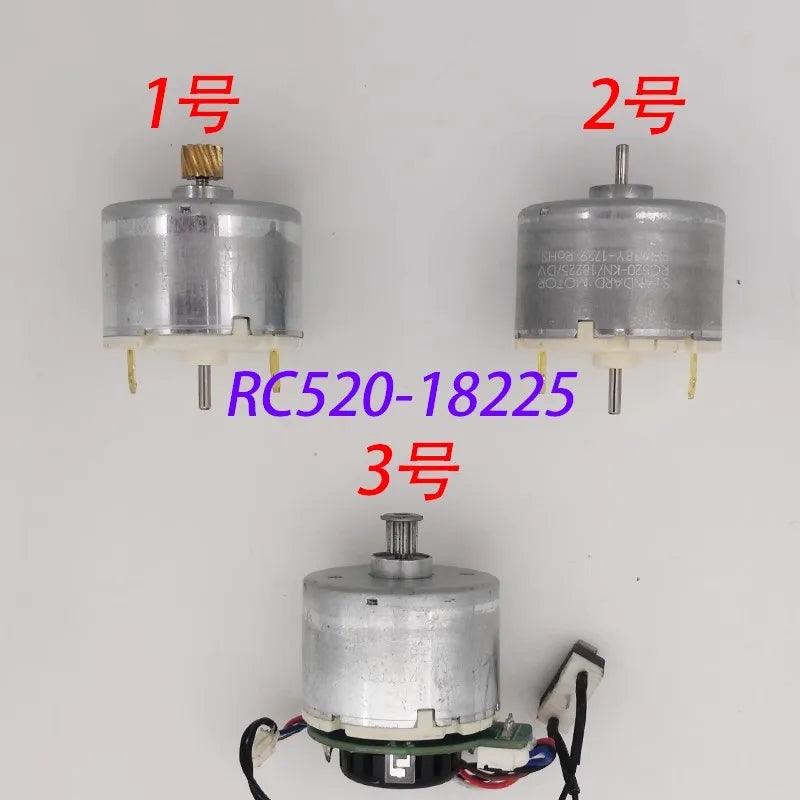

RC520-18225 sweeping robot motor type:
No.1 motor:Motor with copper wheel
No.2 motor:Motor without copper wheel
No.3 motor:Motor with encoder

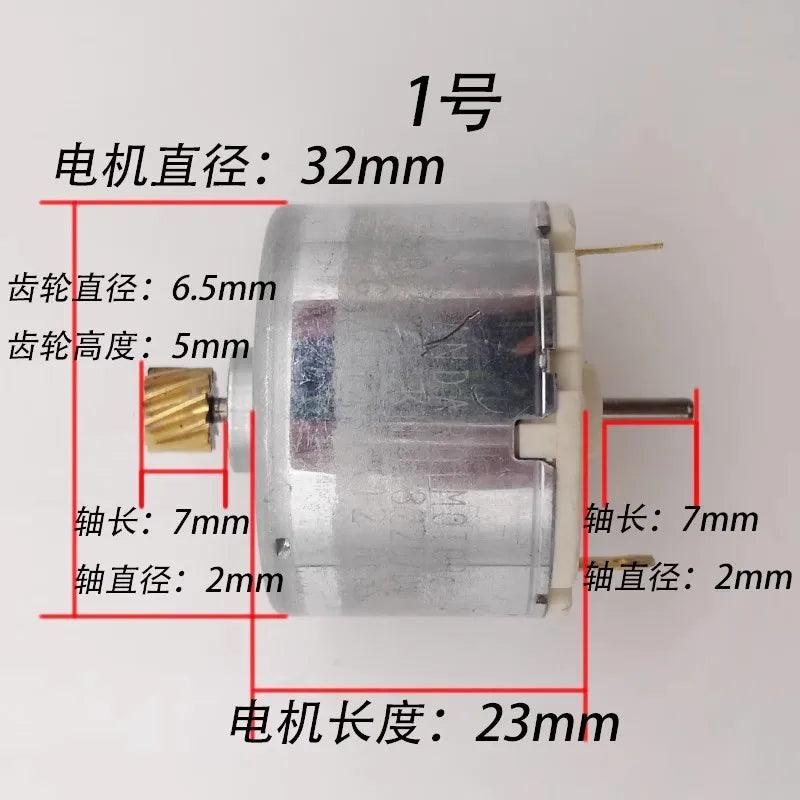

No.1
motor（motor with copper wheel)
Motor diameter: 32mm
Gear diameter: 6.5mm
Gear height: 5mm
Shaft length: 7mm
Shaft diameter: 2mm
Motor length: 23mm

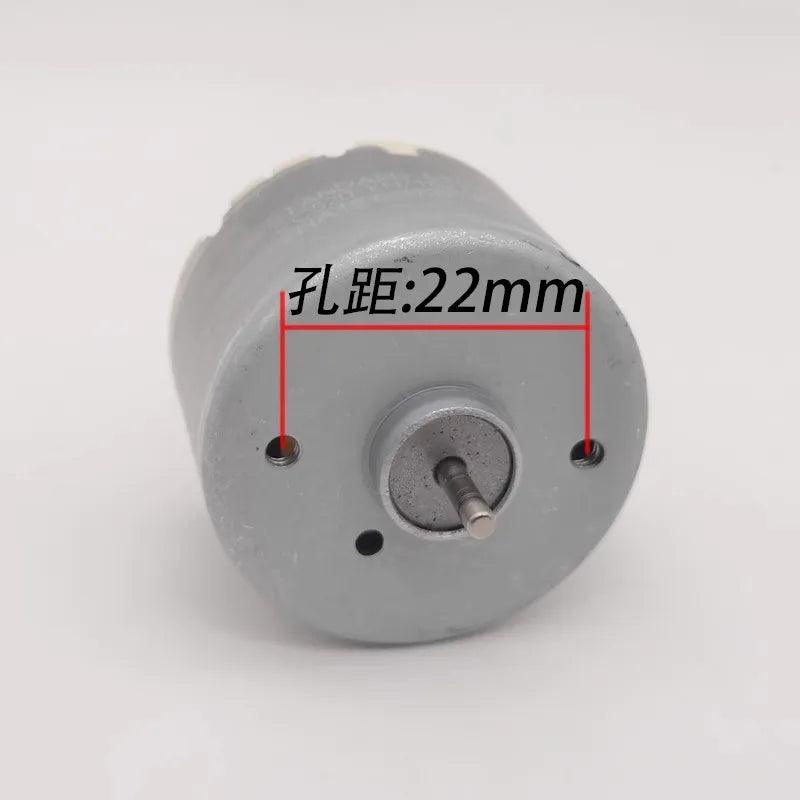

Distance between holes: 22mm

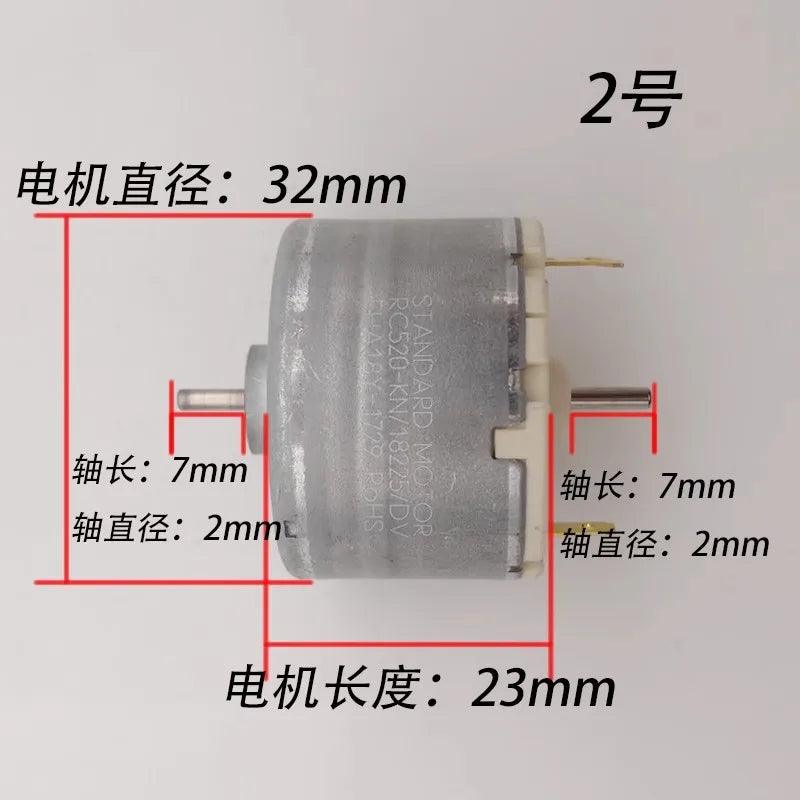

No.2
motor(motor without wheel)
Motor diameter: 32mm
Shaft length: 7mm
Shaft diameter: 2mm
Motor length: 23mm
Distance between holes: 22mm

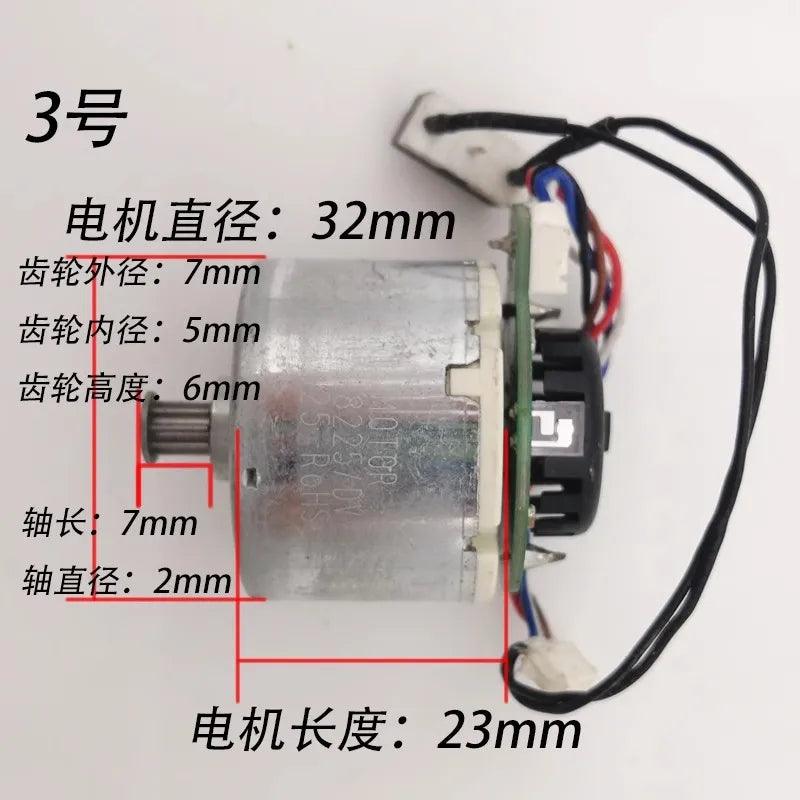

No.3
motor(motor with encoder)
Motor diameter: 32mm
Gear outer diameter: 7mm
Gear inner diameter: 5mm
Gear height: 6mm
Shaft length: 7mm
Shaft diameter: 2mm
Motor length: 23mm
Distance between holes: 22mm
