PWM Controller Speed Motor 1500W 30A DC12V-50V Regulator Pump LED DC 12V 24V 48V Electric Adjustable Speed Voltage PLC CCM6DS

Introduction of the speed controller

1. Product Name : CCM6DS-1 DC Speed Controller

2. Voltage : DC 12V 24V 36V (DC 12V - 50V)

3. Current : 30A

4. Power : Maximum 1500W (Recommended 12v is within 250W; 24v is within 350W; 48v is within 500W)

5. Speed adjustment range from 0% to 100%;

6. Frequency: 21KHZ

7. The controller is suitable for DC brushed motors and is not suitable for use in brushless motors.

8. Cannot be powered by 48V battery

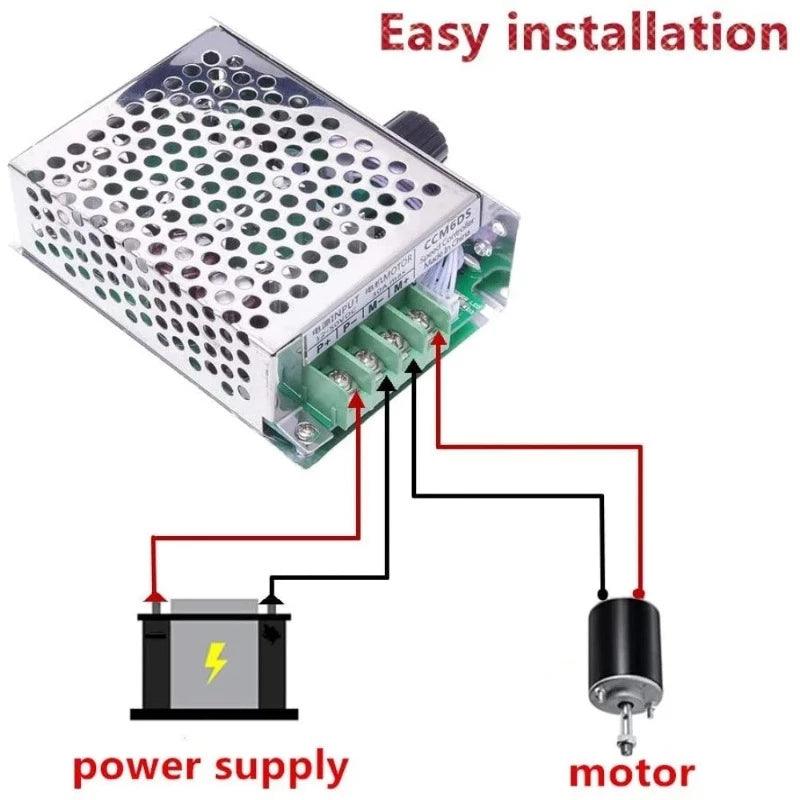

The introduction of wiring method

P + : Connect DC power supply positive

P - : Connect DC power supply negative

M + : Connect the positive of the motor

M - : Connect the negative of the motor

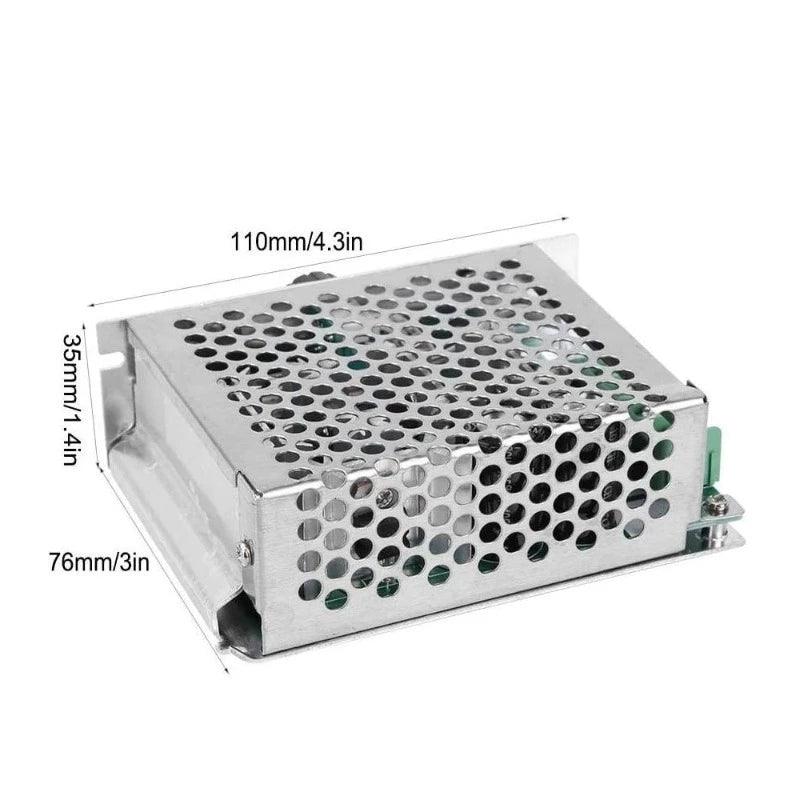

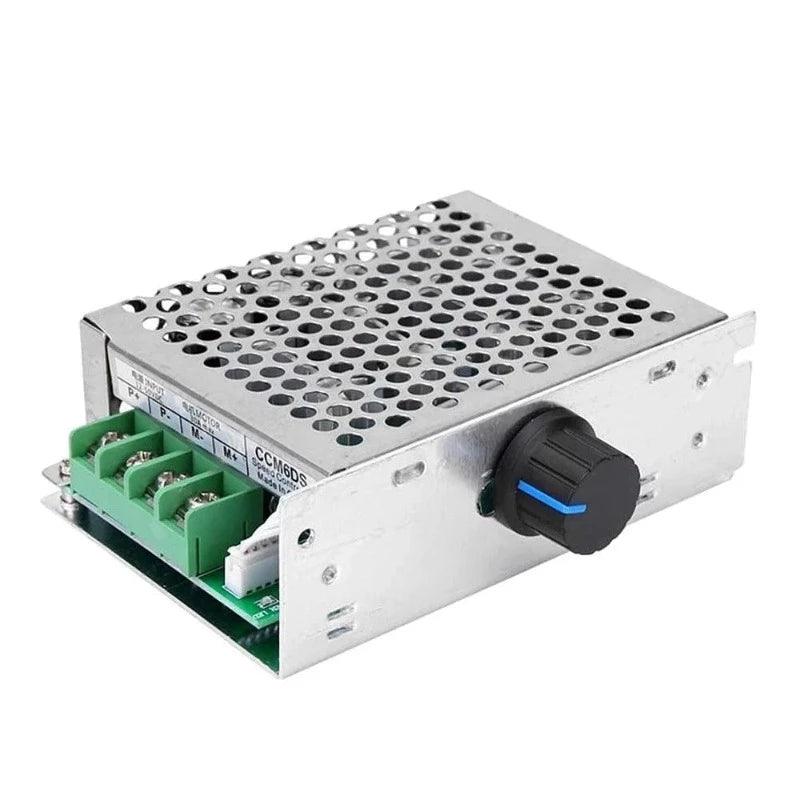

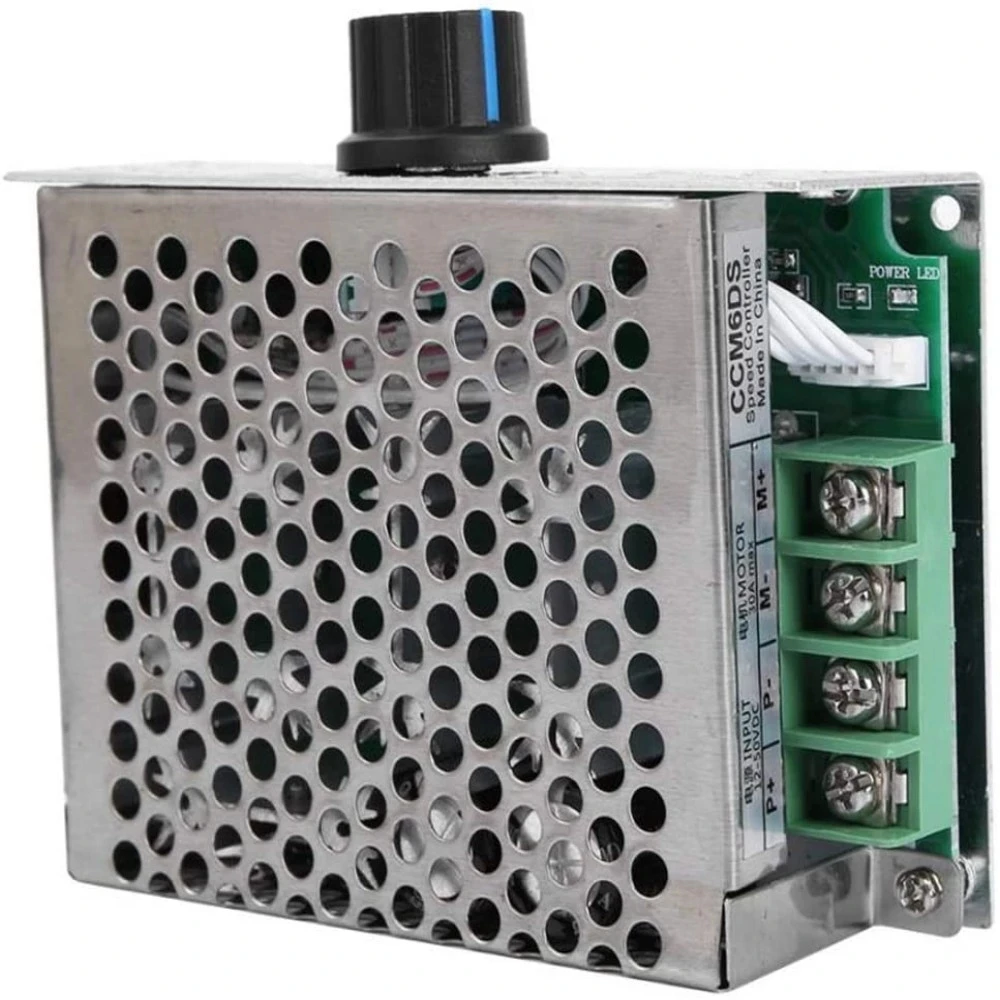

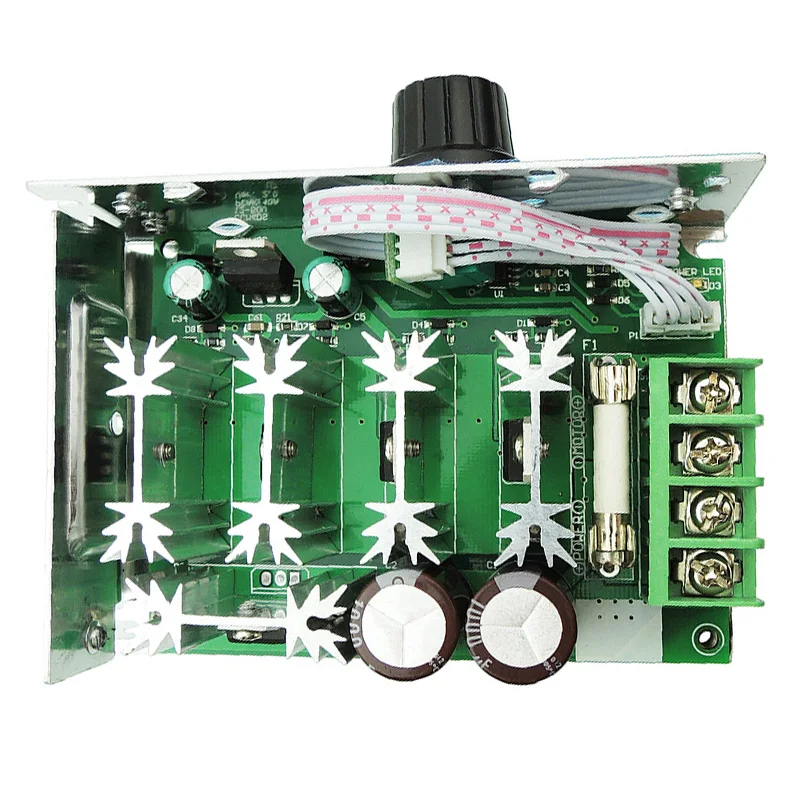

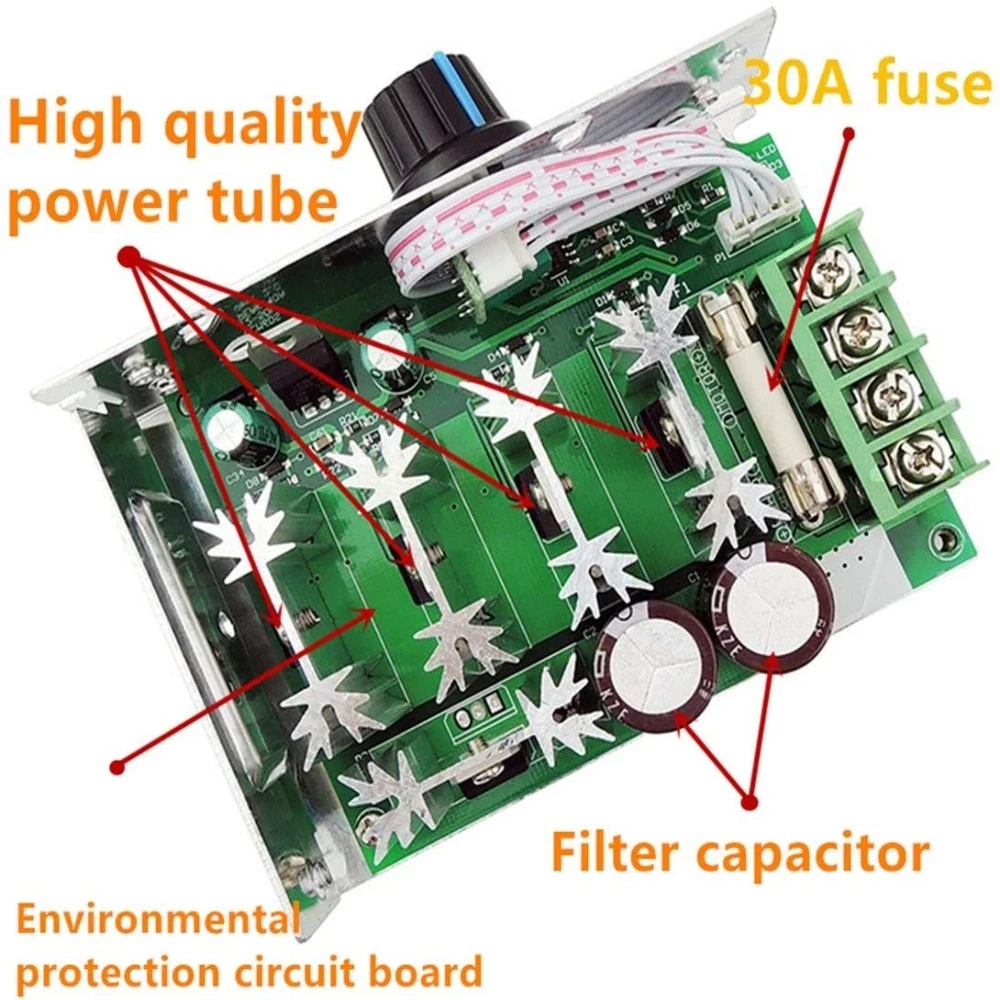

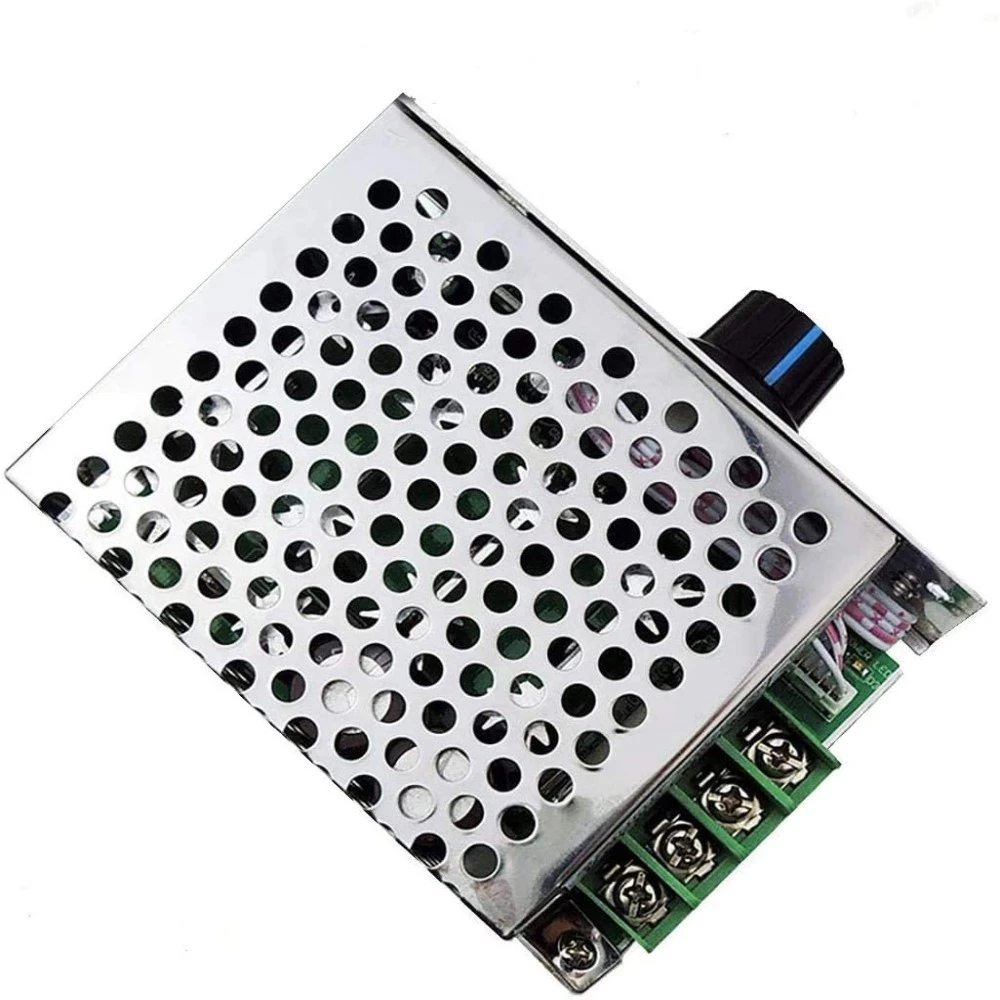

The following are photos of the controller
