CHINT JR36 Seires Thermal Overload Relay 0.45A~160A
Regular price
$16.68 USD
Regular price
$20.98 USD
Sale price
$16.68 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

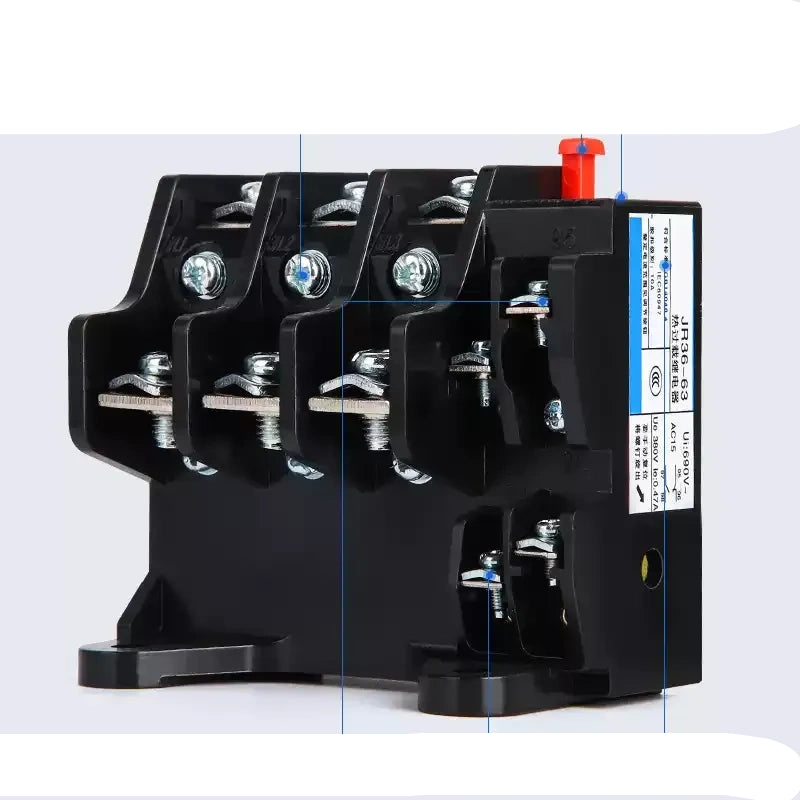

JR36 Series Thermal Overload Relay, 0.45A-160A, Motor Overload & Phase Loss Protector, 660V/690V
Product Description

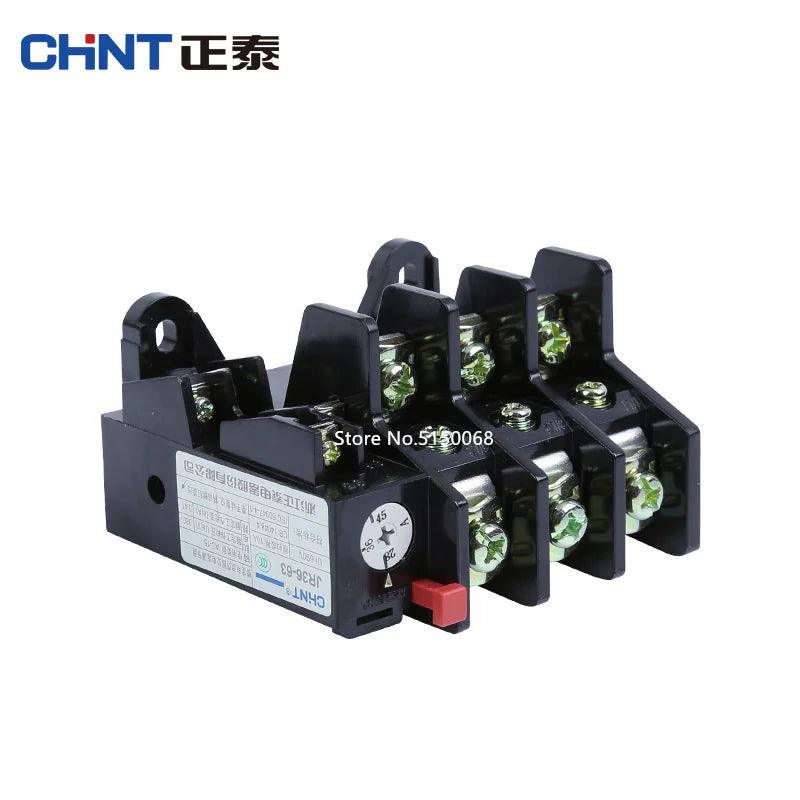

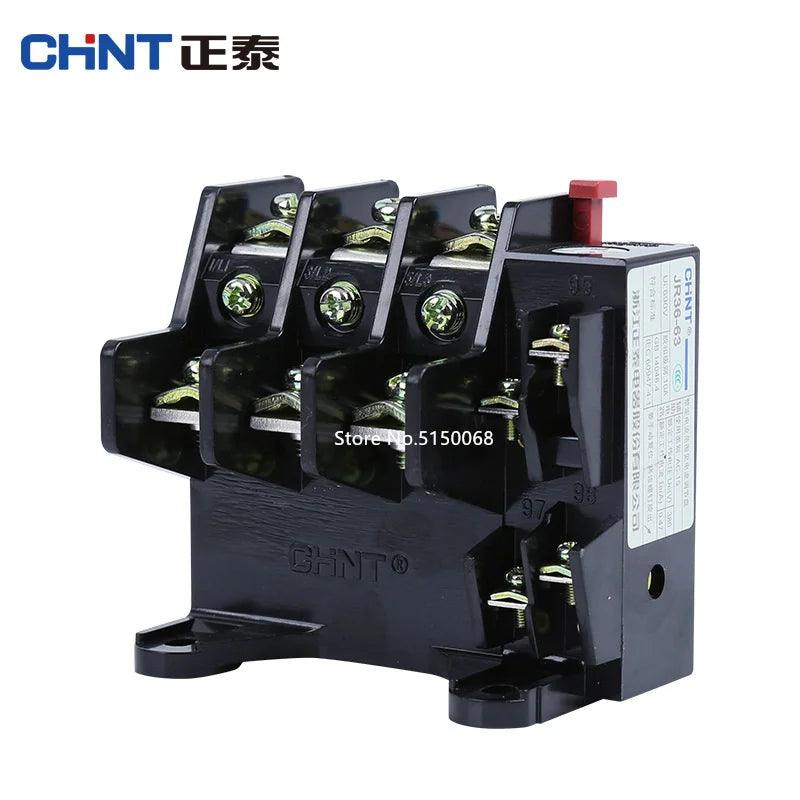

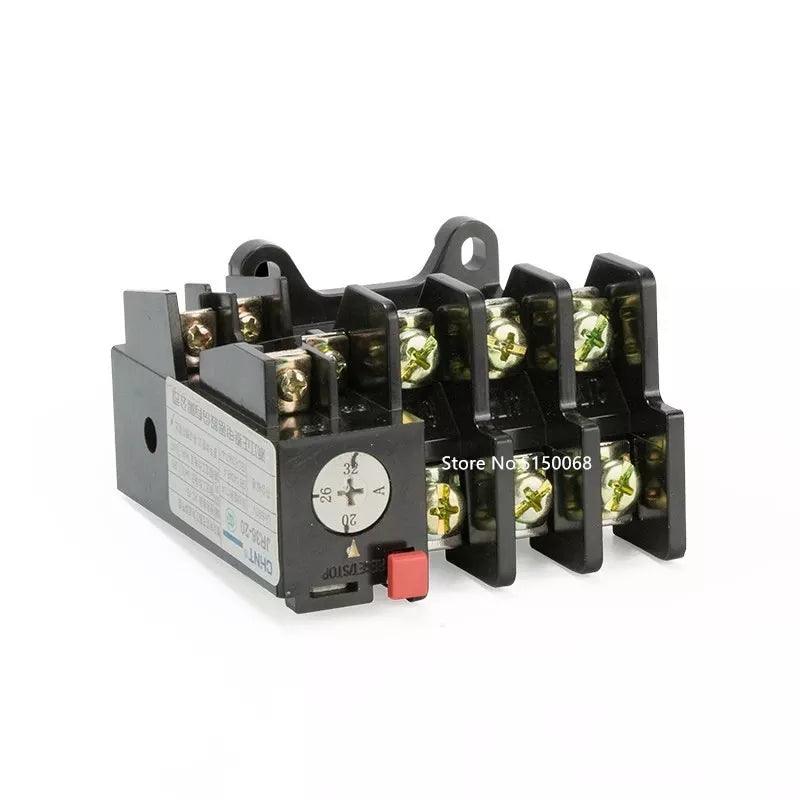

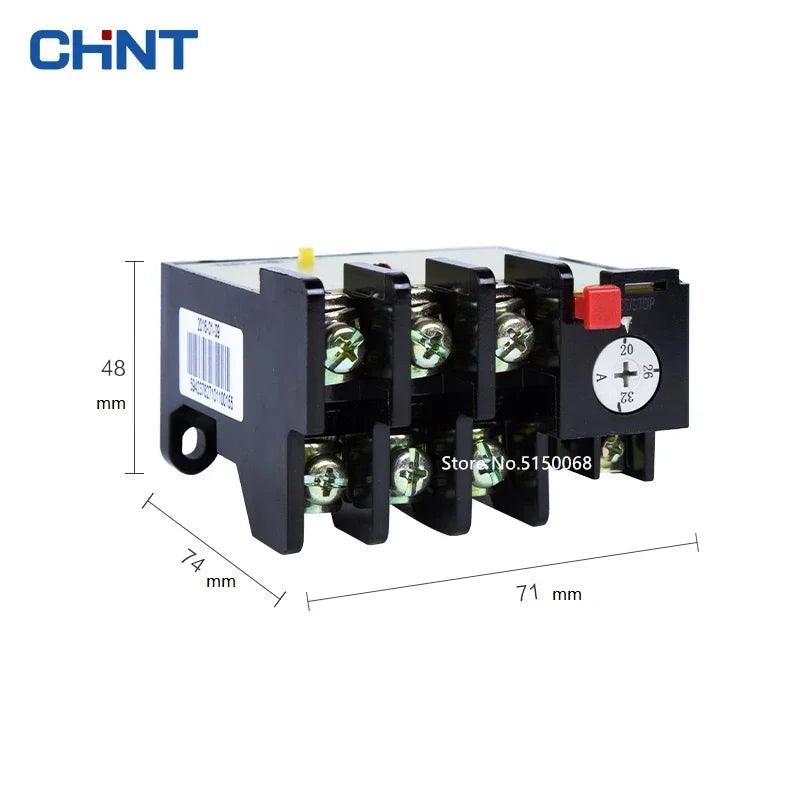

Product Name: JR36 Thermal Overload Relay
Series: JR36-20 / JR36-63 / JR36-160
Adjustable Current Range: 0.45A?€?160A (Multiple models available)
Rated Voltage: Up to 660V/690V, 50Hz
Contact Material: Silver Alloy
Trip Class: 10A
Auxiliary Contacts: 1NO + 1NC
Reset Mode: Manual / Automatic switchable

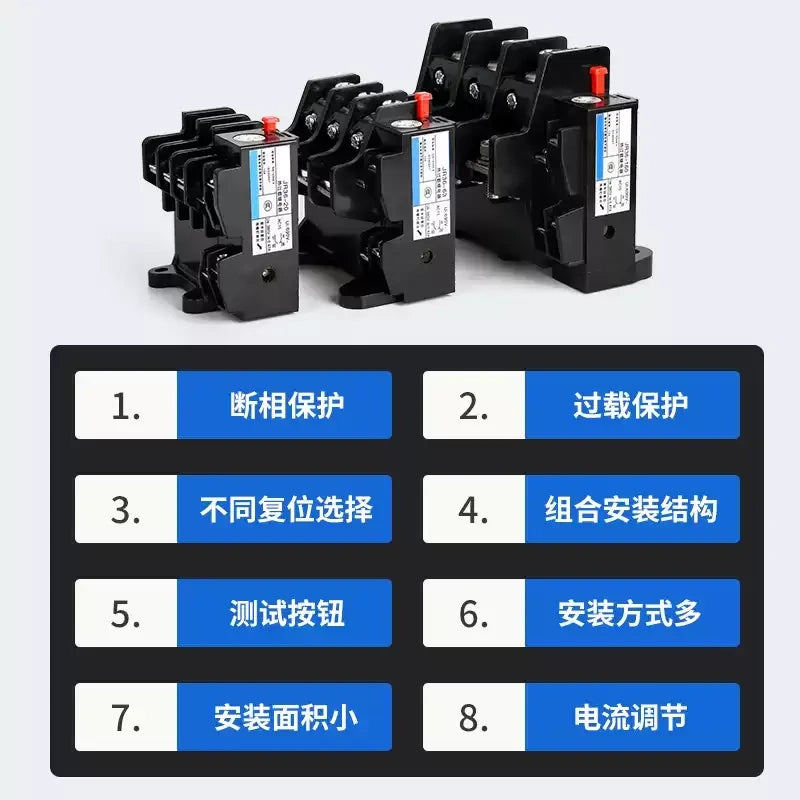

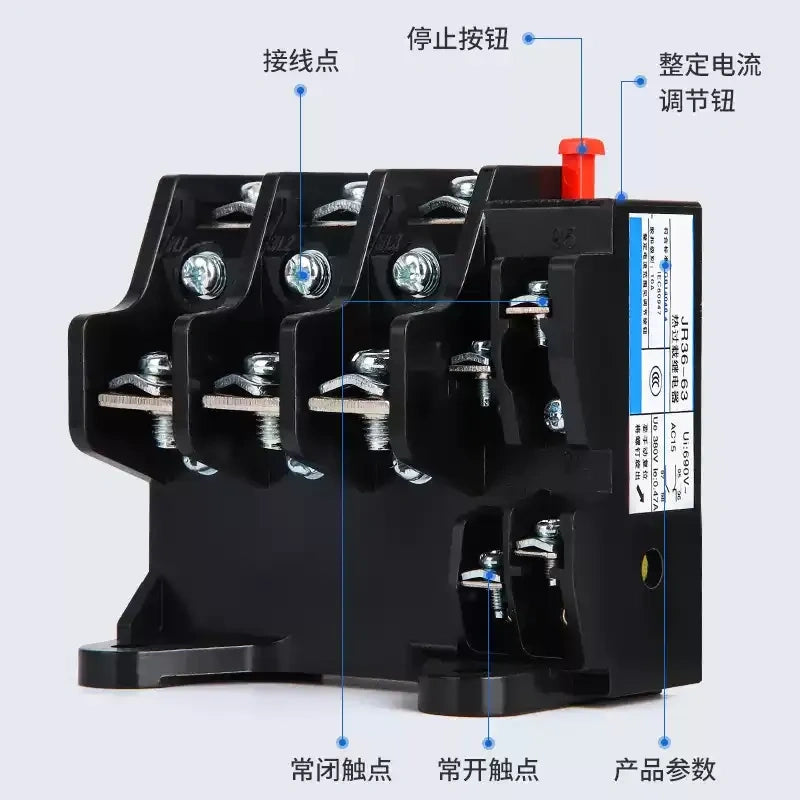

Features: Overload & Phase Loss Protection, adjustable setting current, test/stop buttons
Key Features:
- Reliable protection against motor overload, phase loss, and stalling for AC motors.
- Wide adjustable current range (0.45A?€?160A) to match various motor power ratings.
- Dual reset mode (manual/automatic) with dedicated test and stop buttons for easy maintenance.
- Silver alloy contacts for high conductivity and long service life.
- Compact design, easy to install in combination with contactors or as standalone units.
- Flame-retardant insulating housing, suitable for industrial control panels and motor circuits.
Applications:
Motor overload protection, pump control, conveyor systems, HVAC equipment, industrial machinery, and automation control panels.
DATA SHEET
| Attribute | English |
|---|---|
| Product Type | Thermal Overload Relay |
| Series | JR36-20, JR36-63, JR36-160 |
| Current Range | 0.45A-160A (Multiple adjustable ranges) |
| Rated Voltage | 660V / 690V, 50Hz |
| Contact Material | Silver Alloy |
| Trip Class | 10A |
| Auxiliary Contacts | 1NO + 1NC |
| Reset Mode | Manual / Automatic |
| Protection Functions | Overload & Phase Loss Protection |
| Features | Adjustable Current, Test/Stop Buttons, Compact Size |
| Housing Material | Flame-Retardant Insulating Material |
| Application | Motor Control, Industrial Automation, HVAC, Pumps, Conveyors |
CHINT JR36 Series Thermal Overload Relay 0.45A~160A

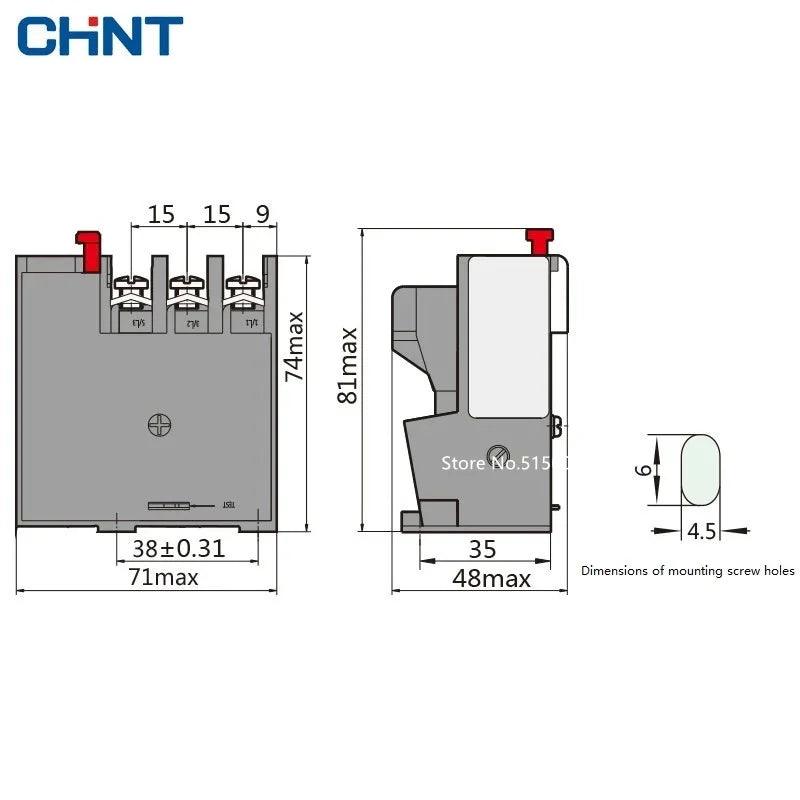

1. Model & Matching Contactor Parameter Table (Item No. = MPN)
All units: 3P bimetallic, 1NO+1NC aux contact, switchable auto/manual reset, match CJX2 / CJT1 contactors
| MPN / MODEL NO. | Item No. | Adjustable Current Range | Matching Contactor |
|---|---|---|---|
| JR36-20/0.45 | JR36-20/0.45 | 0.32 ~ 0.45A | CJX2-09~25, CJT1-10~20 |
| JR36-20/0.68 | JR36-20/0.68 | 0.45 ~ 0.68A | CJX2-09~25, CJT1-10~20 |

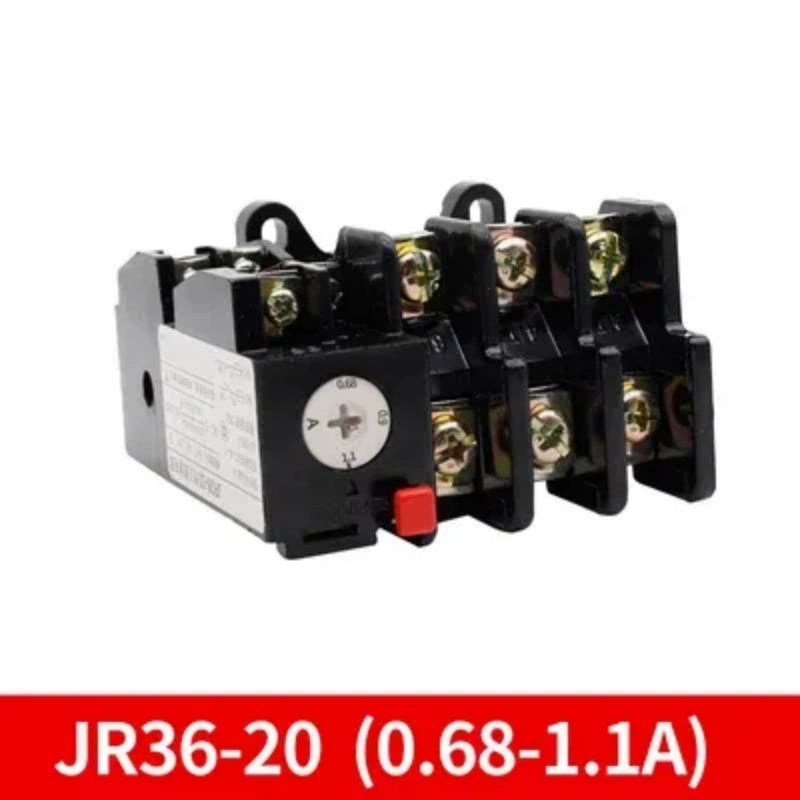

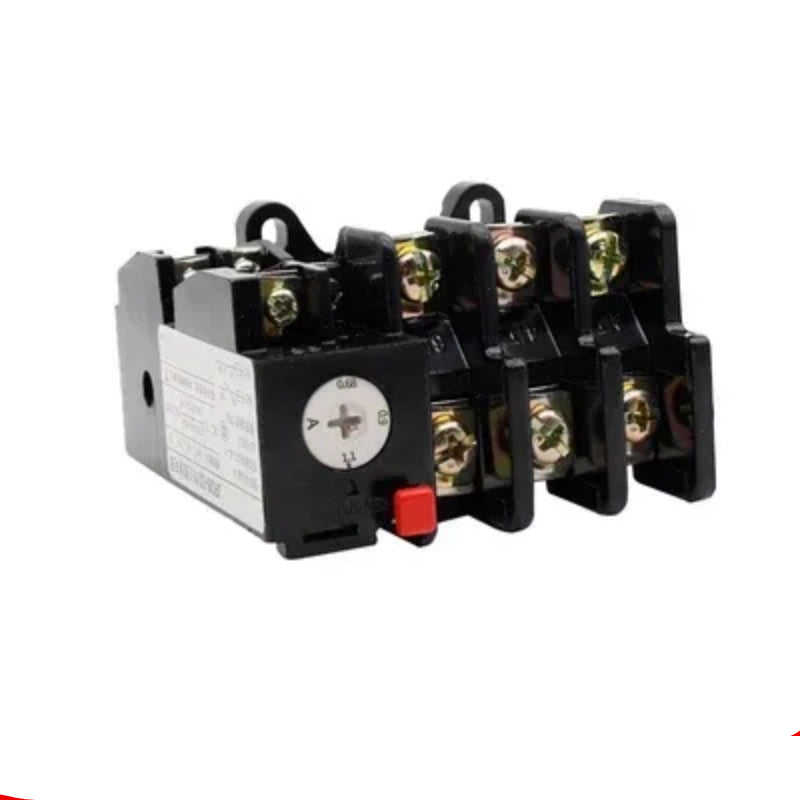

| JR36-20/1.0 | JR36-20/1.0 | 0.68 ~ 1.0A | CJX2-09~25, CJT1-10~20 |

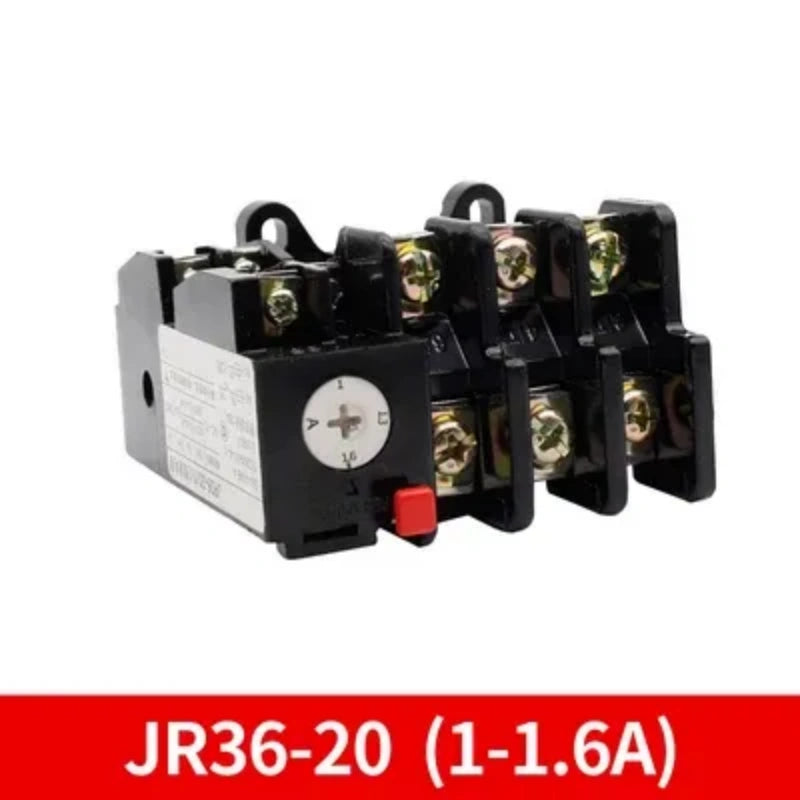

| JR36-20/1.6 | JR36-20/1.6 | 1.0 ~ 1.6A | CJX2-09~25, CJT1-10~20 |

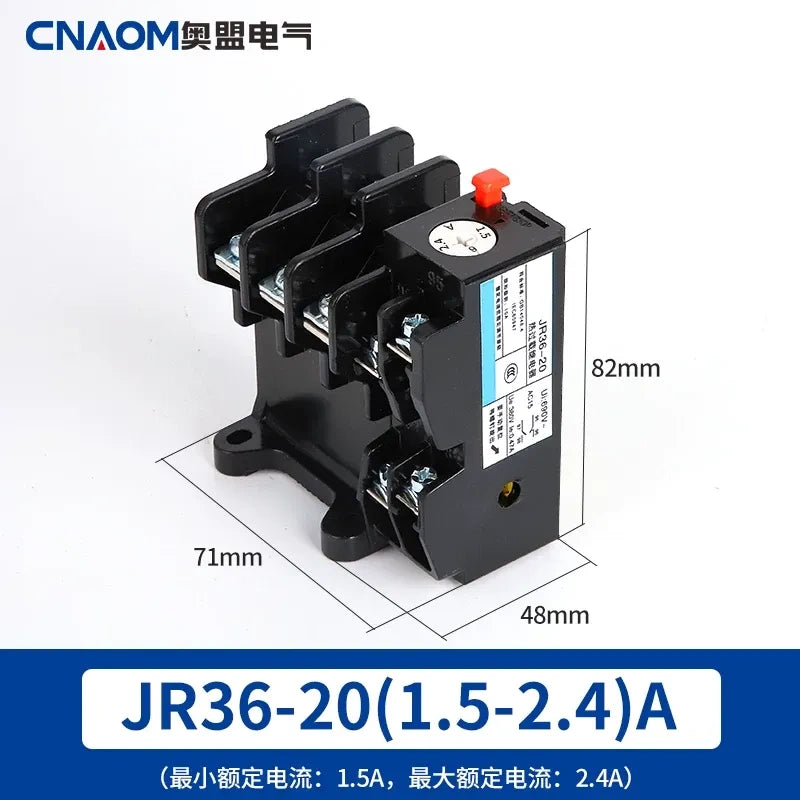

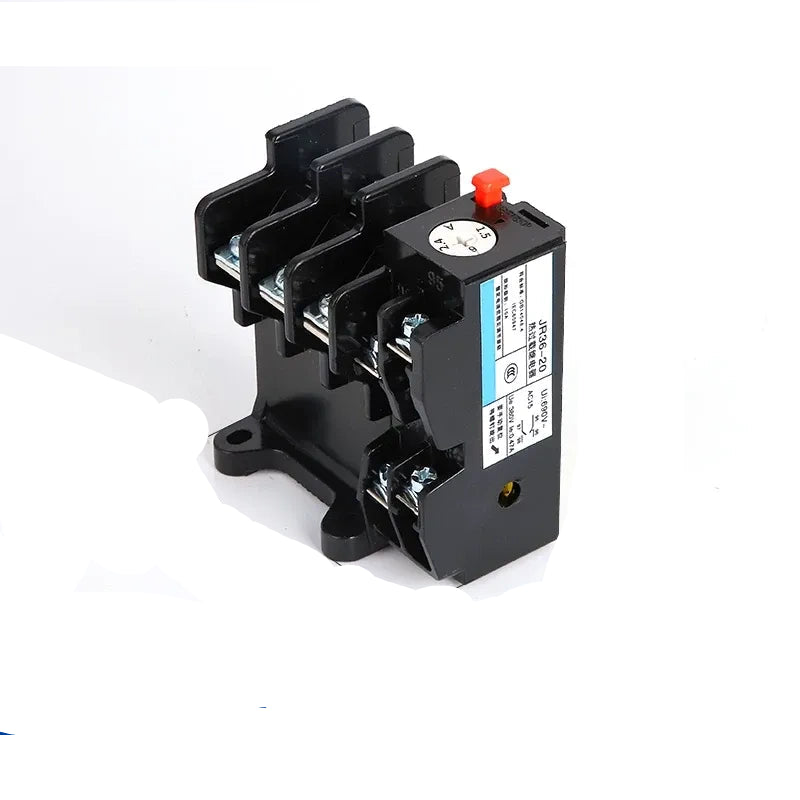

| JR36-20/2.4 | JR36-20/2.4 | 1.6 ~ 2.4A | CJX2-09~25, CJT1-10~20 |
| JR36-20/3.5 | JR36-20/3.5 | 2.4 ~ 3.5A | CJX2-09~25, CJT1-10~20 |

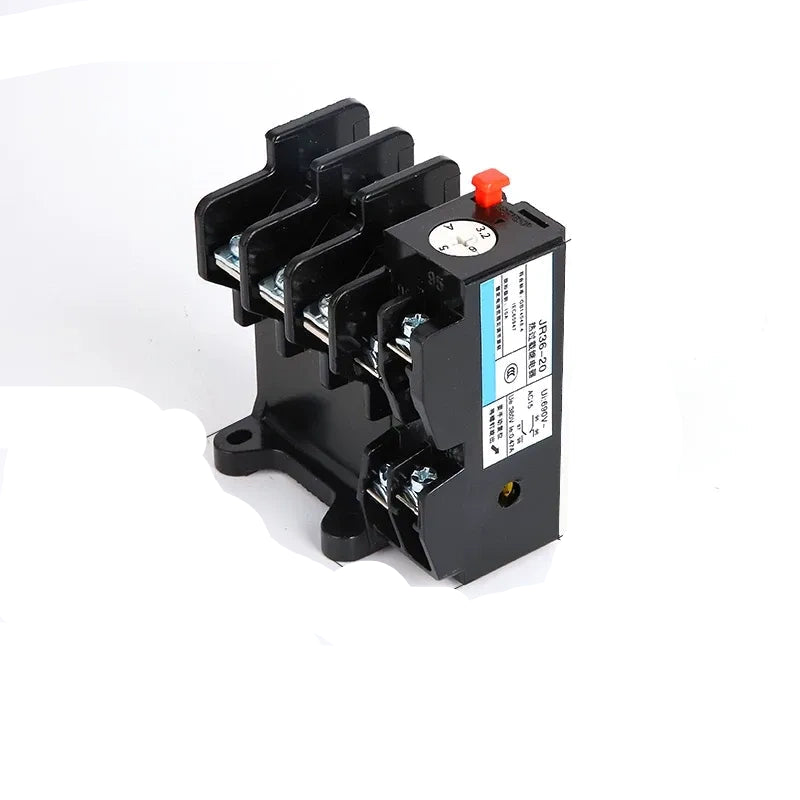

| JR36-20/5.0 | JR36-20/5.0 | 3.5 ~ 5.0A | CJX2-09~25, CJT1-10~20 |
| JR36-20/7.2 | JR36-20/7.2 | 5.0 ~ 7.2A | CJX2-09~25, CJT1-10~20 |

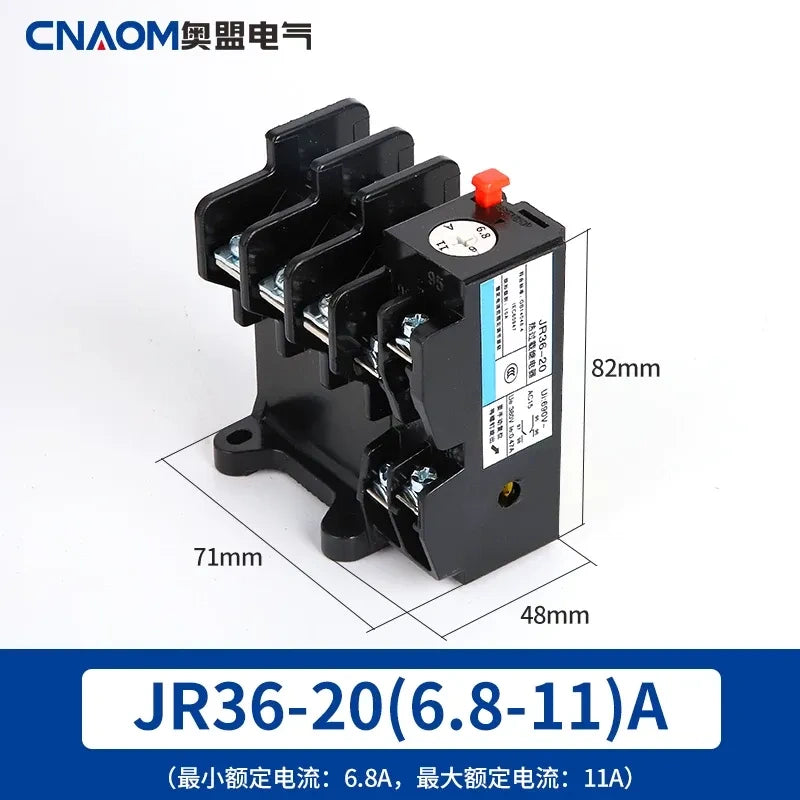

| JR36-20/11 | JR36-20/11 | 6.8 ~ 11A | CJX2-09~25, CJT1-10~20 |

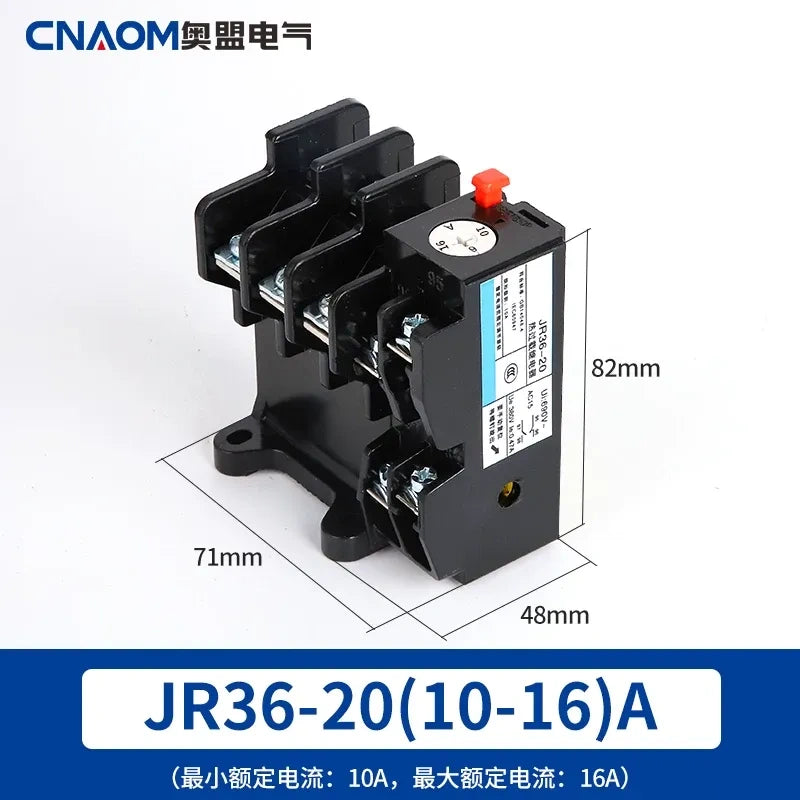

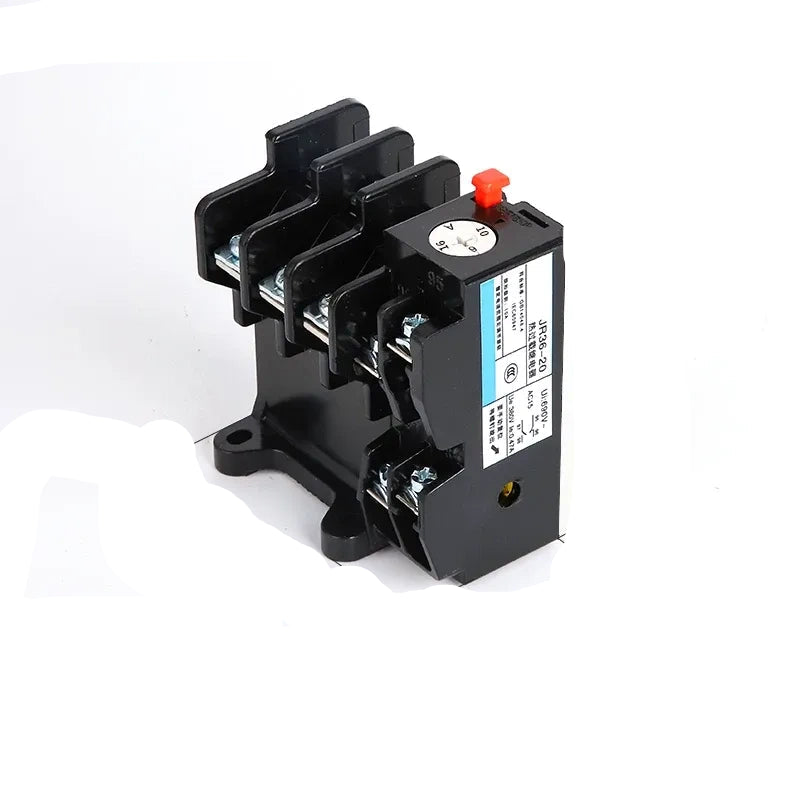

| JR36-20/16 | JR36-20/16 | 10 ~ 16A | CJX2-18~25, CJT1-20 |
| JR36-20/22 | JR36-20/22 | 14 ~ 22A | CJX2-25, CJT1-20 |
| JR36-63/32 | JR36-63/32 | 20 ~ 32A | CJX2-32~40, CJT1-40 |
| JR36-63/45 | JR36-63/45 | 28 ~ 45A | CJX2-40, CJT1-40 |

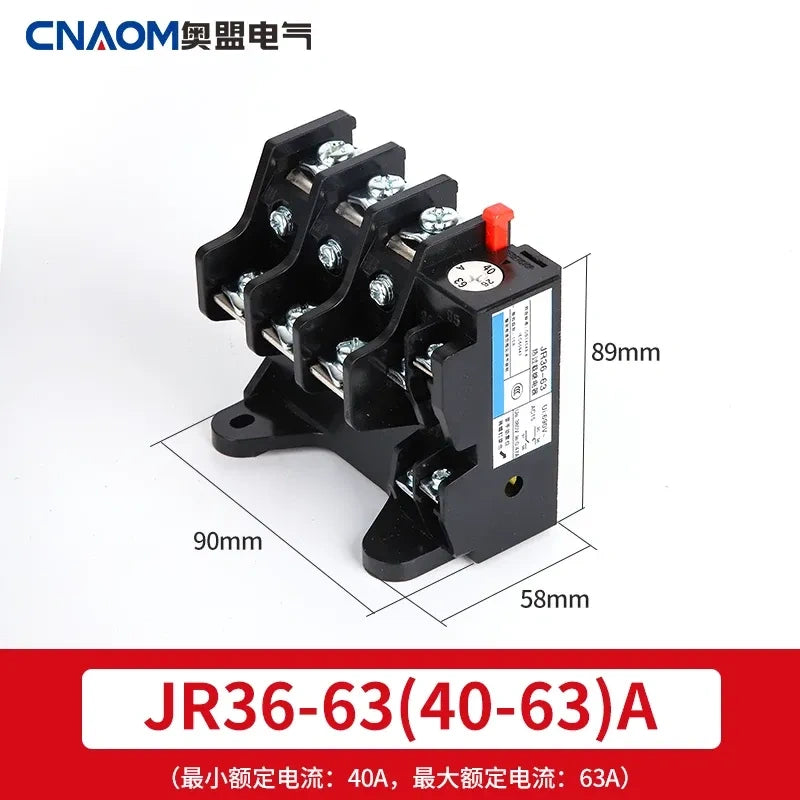

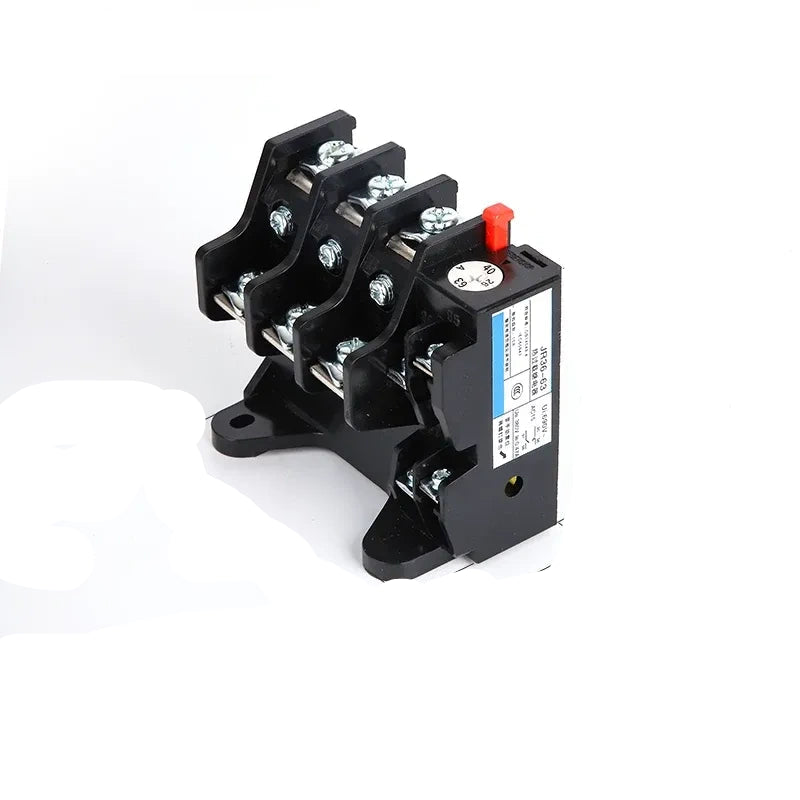

| JR36-63/63 | JR36-63/63 | 40 ~ 63A | CJX2-50~65, CJT1-60 |

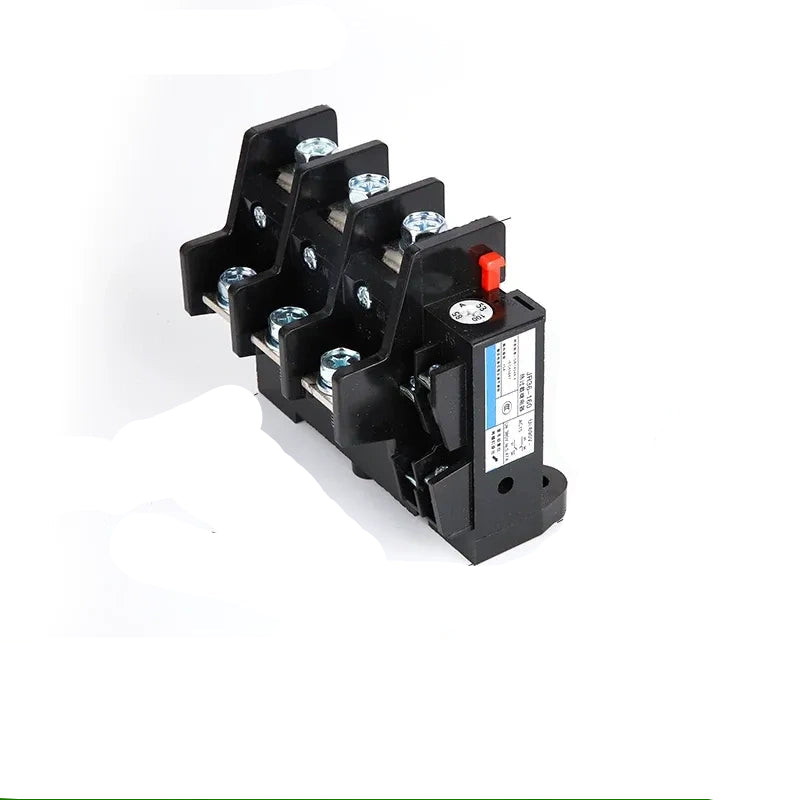

| JR36-160/85 | JR36-160/85 | 53 ~ 85A | CJX2-80~95, CJT1-100 |

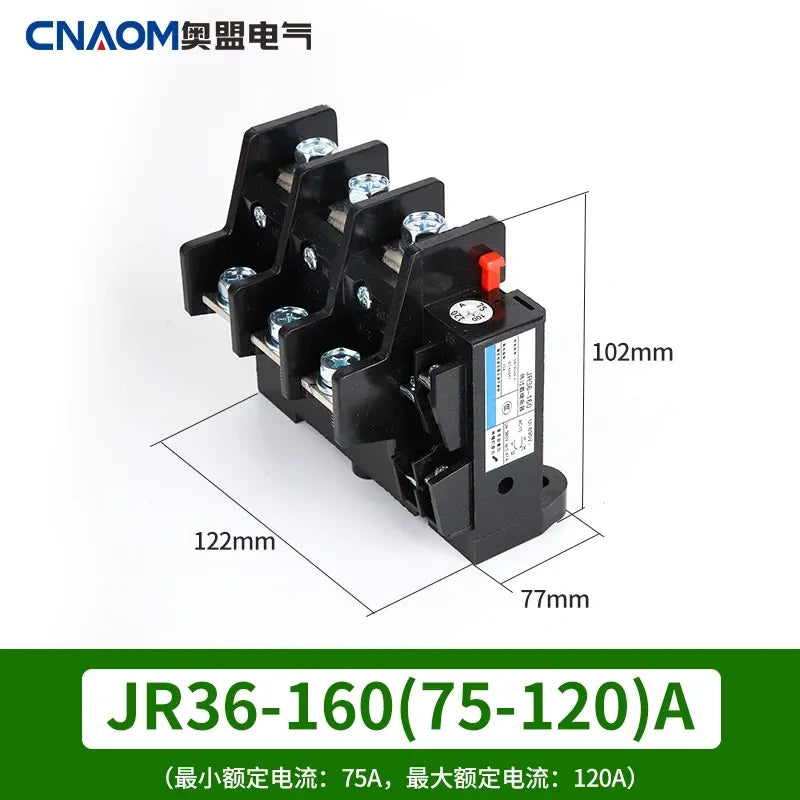

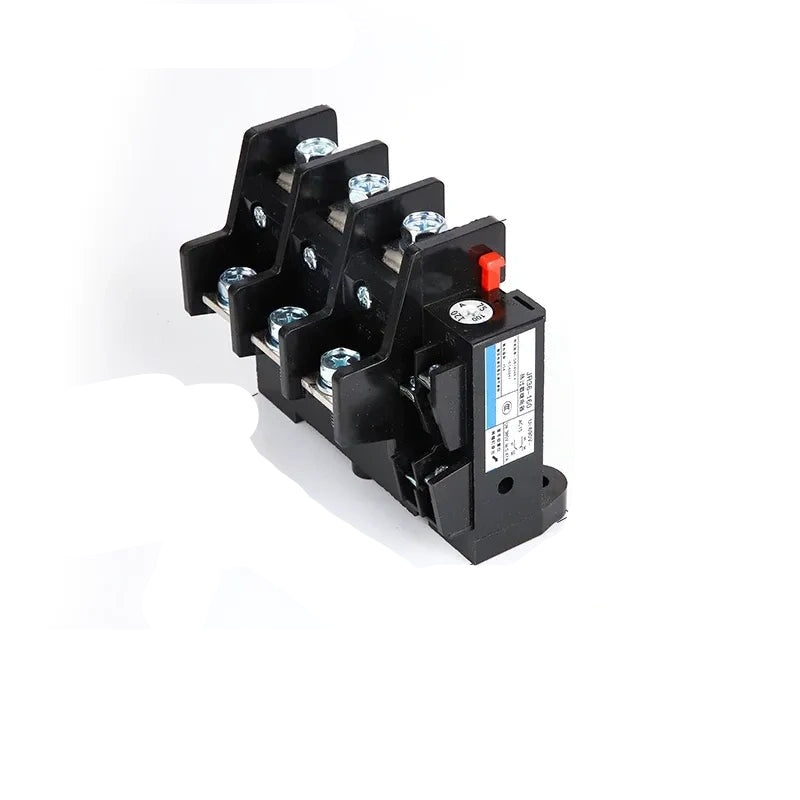

| JR36-160/120 | JR36-160/120 | 75 ~ 120A | CJX2-100, CJT1-100 |

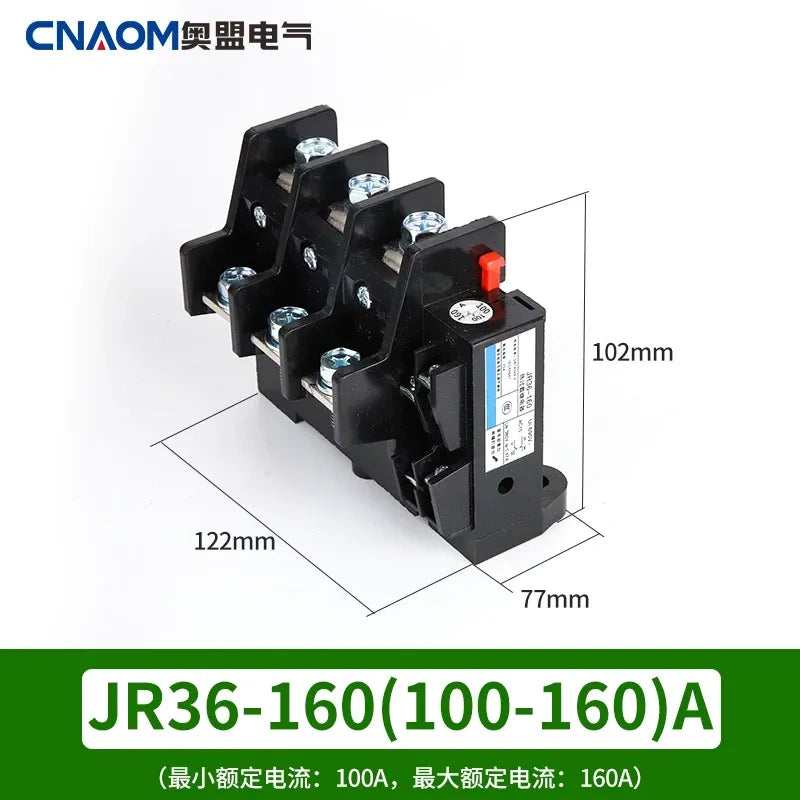

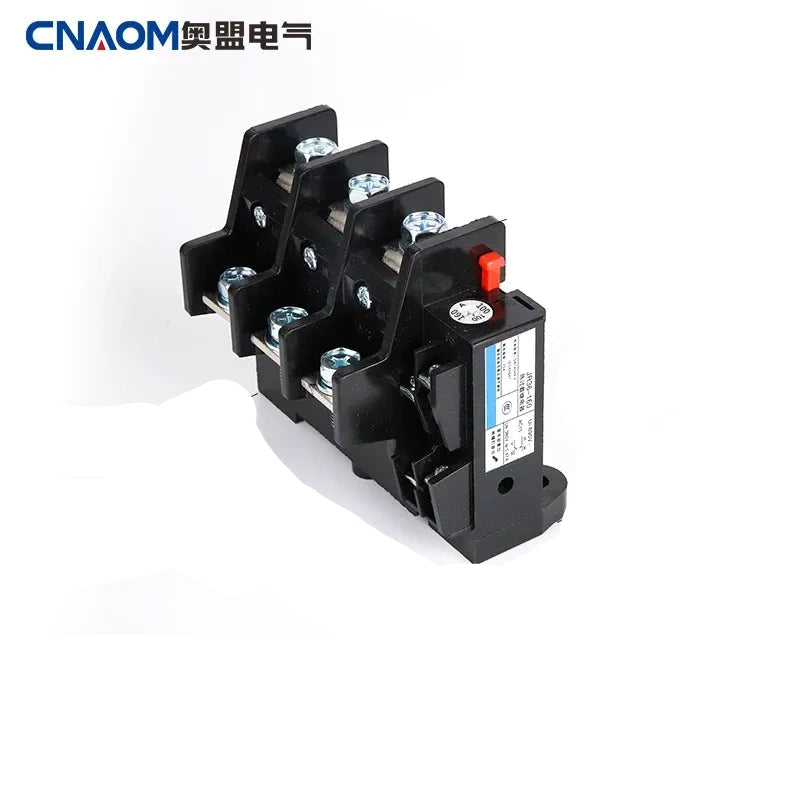

| JR36-160/160 | JR36-160/160 | 100 ~ 160A | CJT1-150 |

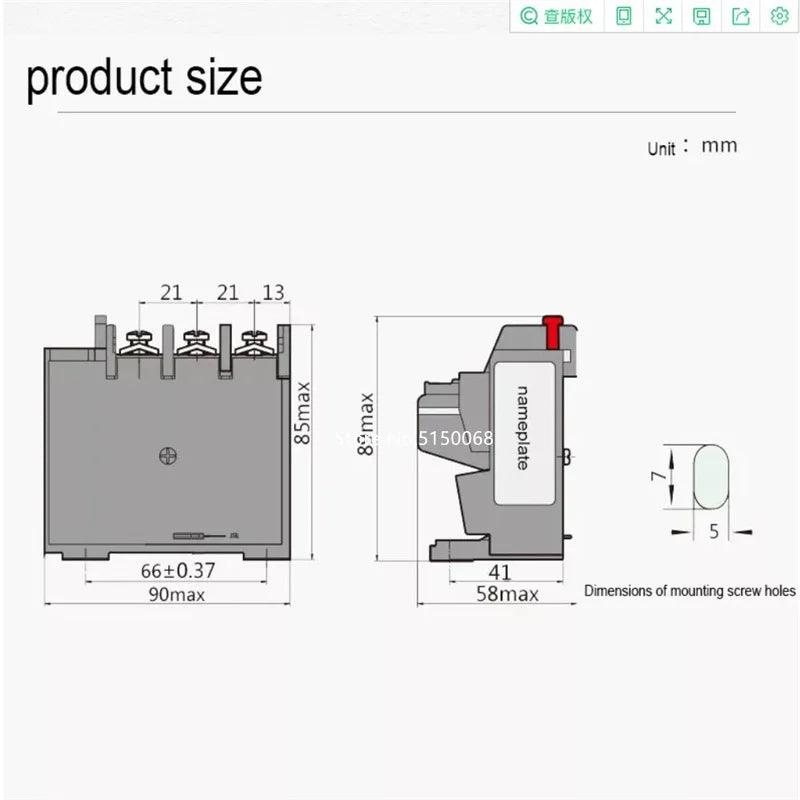

Model Code Rule
JR36-[Frame Size]/[Max Adjust Current]
- Frame 20: Small frame, max 22A
- Frame 63: Medium frame, max 63A
- Frame 160: Large frame, max 160A
