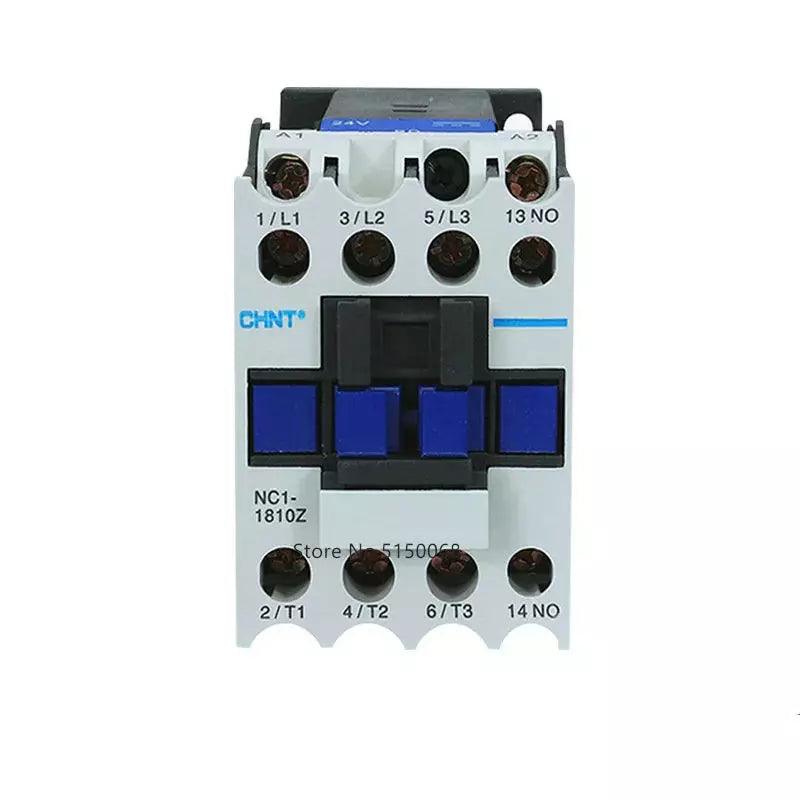

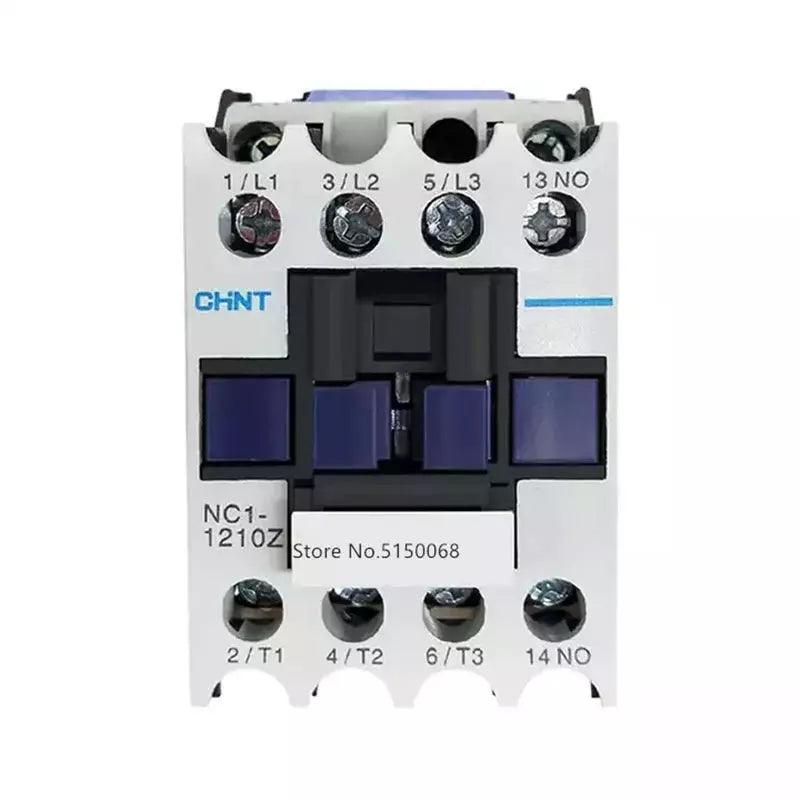

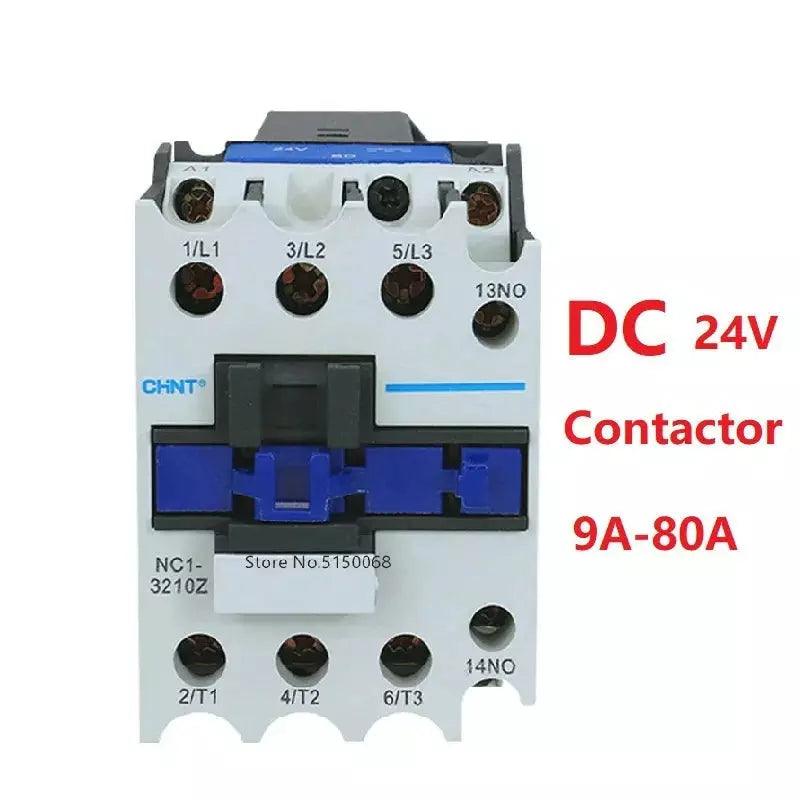

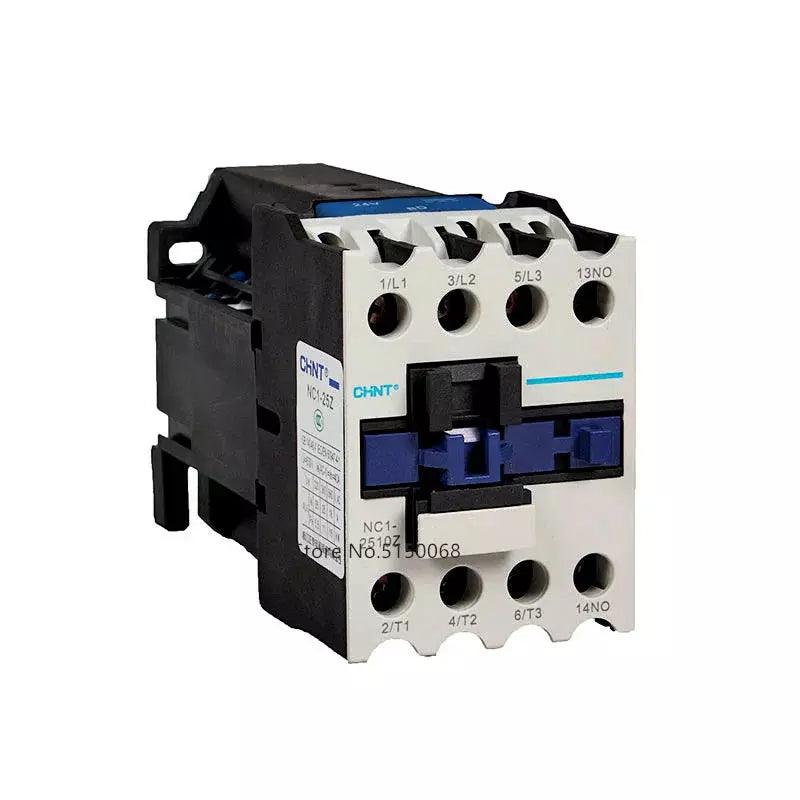

Original CHINT NC1-Z DC24V Operated Contactor DC24V Coil 09A~80A
Couldn't load pickup availability
Original CHINT NC1-Z DC Operated Contactor DC24V Coil 09A~80A 1NO/1NC Motor Control DC Magnetic Contactor
brand:CHINT
brand_origin:China
product_category:Magnetic Contactor
sub_category:DC Coil AC Contactor
model_series:NC1-Z
available_models:NC1-0910Z,NC1-1210Z,NC1-1201Z,NC1-1801Z,NC1-1810Z,NC1-2510Z,NC1-2501Z,NC1-3210Z,NC1-3201Z,NC1-4011Z,NC1-5011Z,NC1-6511Z,NC1-8011Z

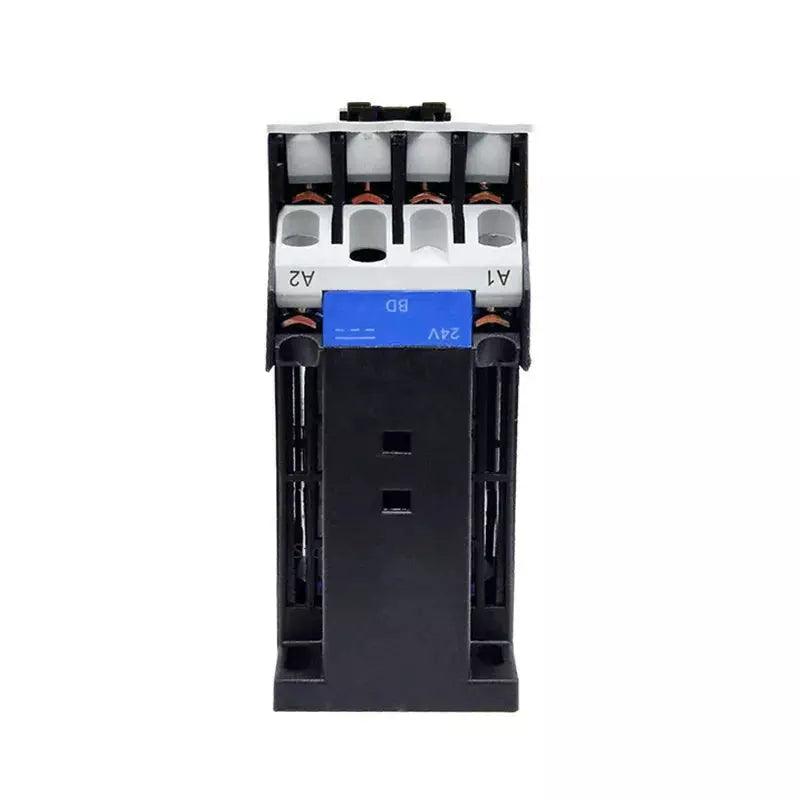

coil_voltage:DC24V
rated_current:9A,12A,18A,25A,32A,40A,50A,65A,80A
auxiliary_contact_type:1NO / 1NC / 1NO+1NC
main_circuit_voltage:AC400V AC-3

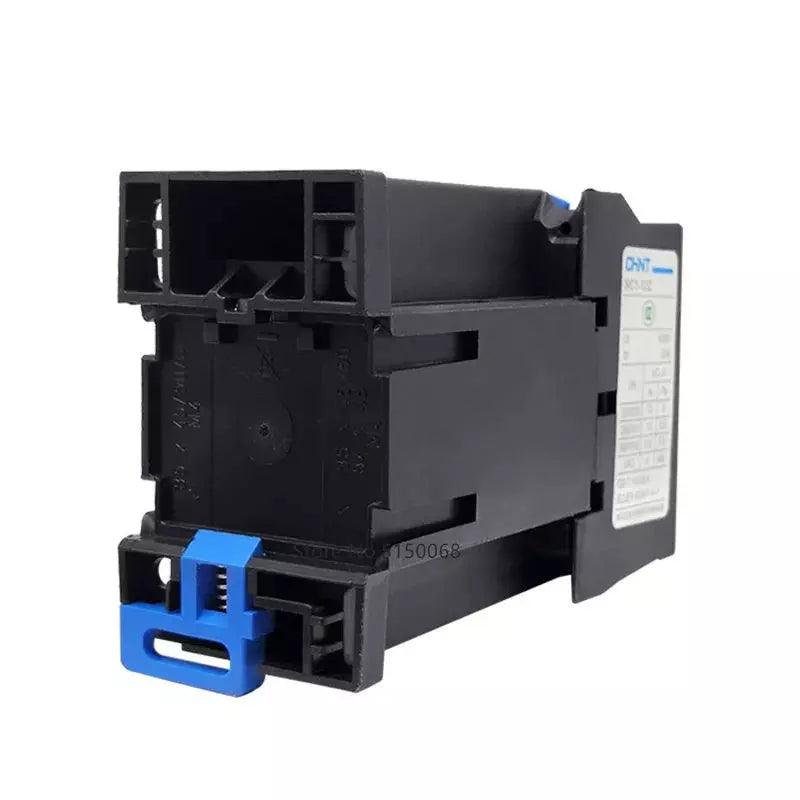

installation:35mm DIN Rail Mount
housing_material:UL94-V0 Flame Retardant Plastic
contact_material:Silver Alloy Contact
core_feature1:DC coil without AC buzzing noise
core_feature2:Arc-resistant, anti-welding contact
core_feature3:Anti voltage fluctuation coil design
application:PLC Control Cabinet,Small AC Motor,Solenoid Valve,Industrial Automation Equipment
certification:CCC,IEC60947-4-1,GB14048.4
condition:Original New Genuine
Full Model Parameter Table (Item No. = Complete MPN, DC24V Coil)
| Full MPN / MODEL NO. | Item No. | AC-3 Rated Current | Main Poles | Built-in Aux Contact | Matching Thermal Relay |
|---|---|---|---|---|---|
| NC1-0910Z 24V | NC1-0910Z 24V | 9A | 3NO | 1NO | NR2-09 |
| NC1-0901Z 24V | NC1-0901Z 24V | 9A | 3NO | 1NC | NR2-09 |
| NC1-1210Z 24V | NC1-1210Z 24V | 12A | 3NO | 1NO | NR2-12 |
| NC1-1201Z 24V | NC1-1201Z 24V | 12A | 3NO | 1NC | NR2-12 |
| NC1-1810Z 24V | NC1-1810Z 24V | 18A | 3NO | 1NO | NR2-18 |
| NC1-1801Z 24V | NC1-1801Z 24V | 18A | 3NO | 1NC | NR2-18 |
| NC1-2510Z 24V | NC1-2510Z 24V | 25A | 3NO | 1NO | NR2-25 |
| NC1-2501Z 24V | NC1-2501Z 24V | 25A | 3NO | 1NC | NR2-25 |
| NC1-3210Z 24V | NC1-3210Z 24V | 32A | 3NO | 1NO | NR2-32 |
| NC1-3201Z 24V | NC1-3201Z 24V | 32A | 3NO | 1NC | NR2-32 |
| NC1-4011Z 24V | NC1-4011Z 24V | 40A | 3NO | 1NO+1NC | NR2-36 |
| NC1-5011Z 24V | NC1-5011Z 24V | 50A | 3NO | 1NO+1NC | NR2-36 |
| NC1-6511Z 24V | NC1-6511Z 24V | 65A | 3NO | 1NO+1NC | NR2-36 |
| NC1-8011Z 24V | NC1-8011Z 24V | 80A | 3NO | 1NO+1NC | NR2-93 |
