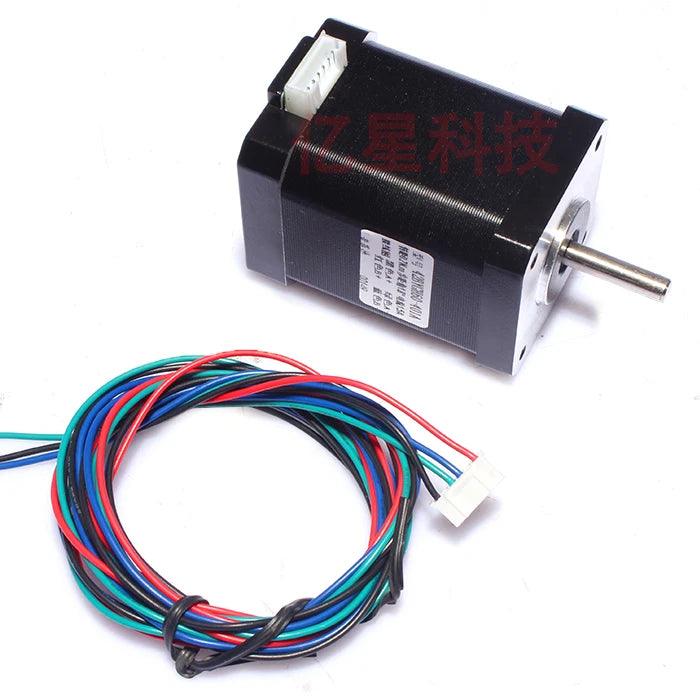

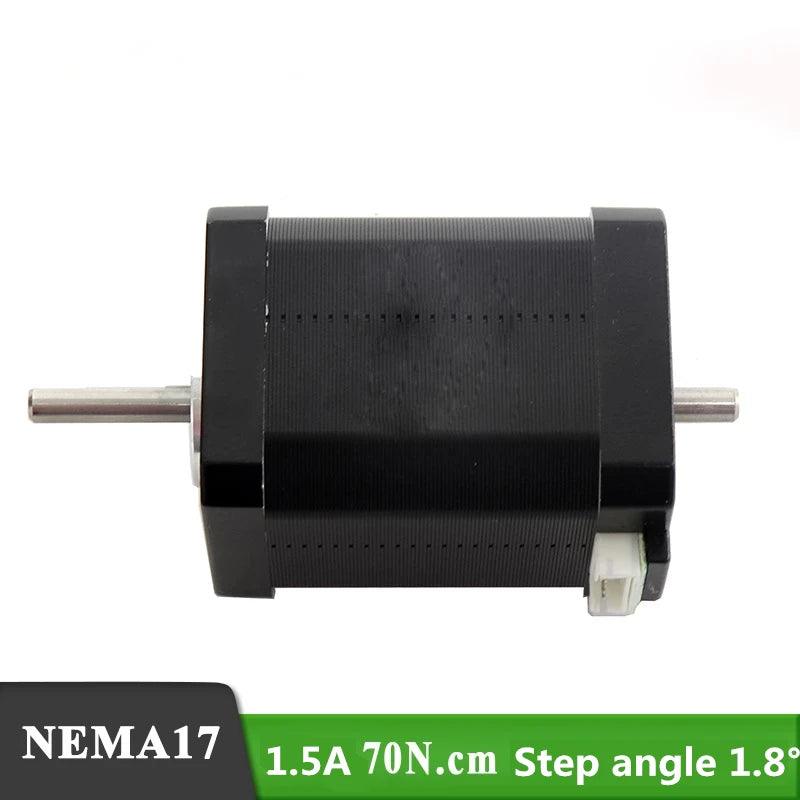

Nema 17 Stepper Motor Body 34mm 40mm 48mm 60mm 0.7Nm 1.5A 42 Step Motor DC 4-Lead Nema17 for Extruder CNC XYZ 3D Printer

$30.08 USD
$11.59 USD $30.08 USD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)

SPECIFICATIONS

Nema 17 Stepper Motor Body 34mm 40mm 48mm 60mm 0.7Nm 1.5A 42 Step Motor DC 4-Lead Nema17 for Extruder CNC XYZ 3D Printer

Brand Name: HYSMOTOR

Certification: ROHS

Origin: Mainland China

Continuous Current(A): 1.5A

Type: Micro Motor

Protect Feature: Totally Enclosed

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Torque: 0.7nm

Model: 42BYGH34S/40S/48S (cable length of plug-in type 1m)

Motor current: 1.5A

Output torque: 0.28Nm/0.4NM/0.55Nm

Body length: 34mm/40mm/48mm

Shaft length: 22mm

Shaft diameter: 5mm

Shaft mode: single shaft

Step angle: 1.8 two-phase

42BYGH34S Stepper motor body 34mm

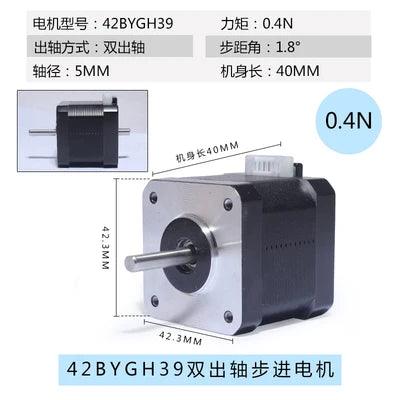

42BYGH40S Stepper motor body 40mm

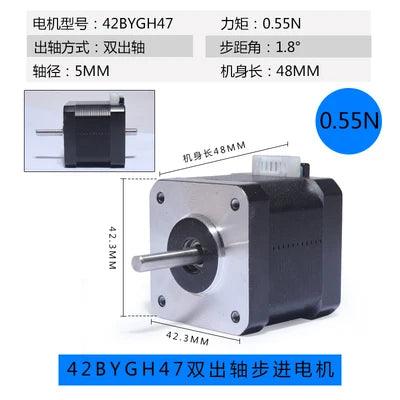

42BYGH48S Stepper motor body 48mm

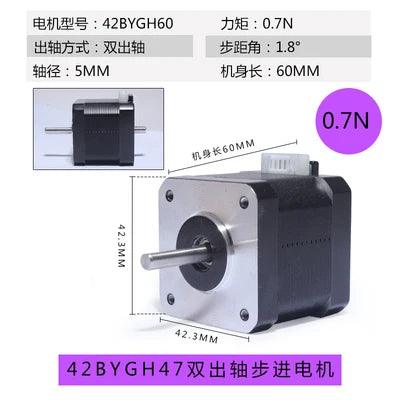

42BYGH60S Stepper motor body 60mm


Black wire A+; Green wire A-; Red wire B+; Blue wire B-
