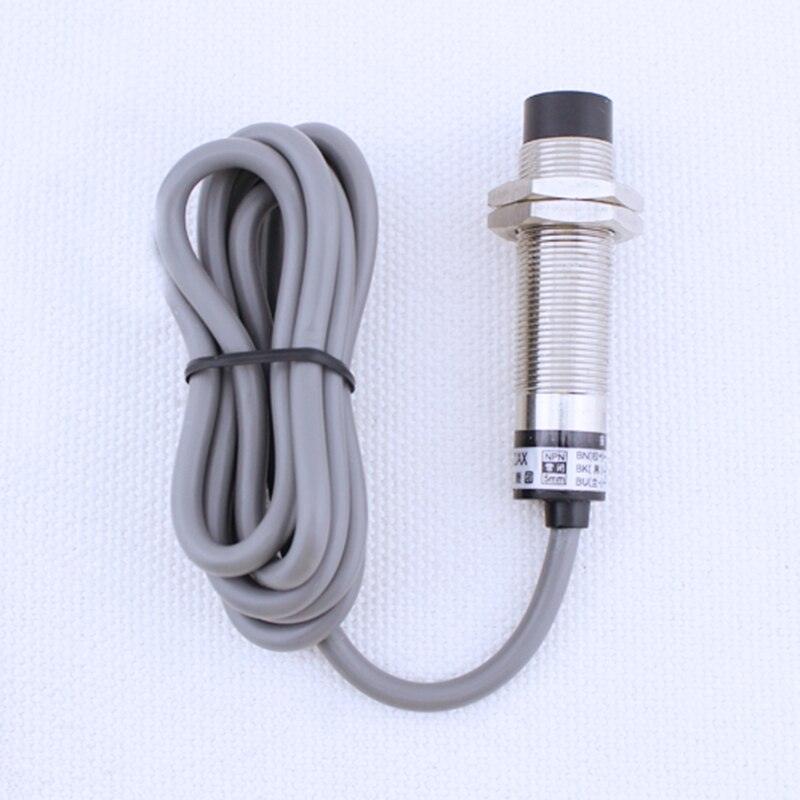

M16 3mm 5mm DC6~36V Cylinder Inductive Proximity Sensor Switch LJ16A3-3(5) PNP/NPN NO NC

Regular price $4.77 USD
Regular price Sale price $4.77 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

M16 3mm 5mm DC6~36V Cylinder Inductive Proximity Sensor Switch

LJ16A3-3(5)-Z/BX/AX/CX/BY/AY/CY/EX/DX

2/3/4-wire PNP/NPN NO NC

Wire:: 2/3/4-Wire type

Warranty: 1Y

Voltage:: DC6~36V

The diameter: 16mm

Switch Type:: PNP/NPN NO/NC

Switch Type: Proximity Switch

Product Name:: Proximity Sensor switch

Origin: CN(Origin)

Model Number: LJ16A3-3(5)-Z/BX/AX/CX/BY/AY/CY/EX/DX

Material: Copper

Item Type: Switches

Features: Proximity Sensor switch

Detecting distance:: 3mm/5mm

Current: 200mA

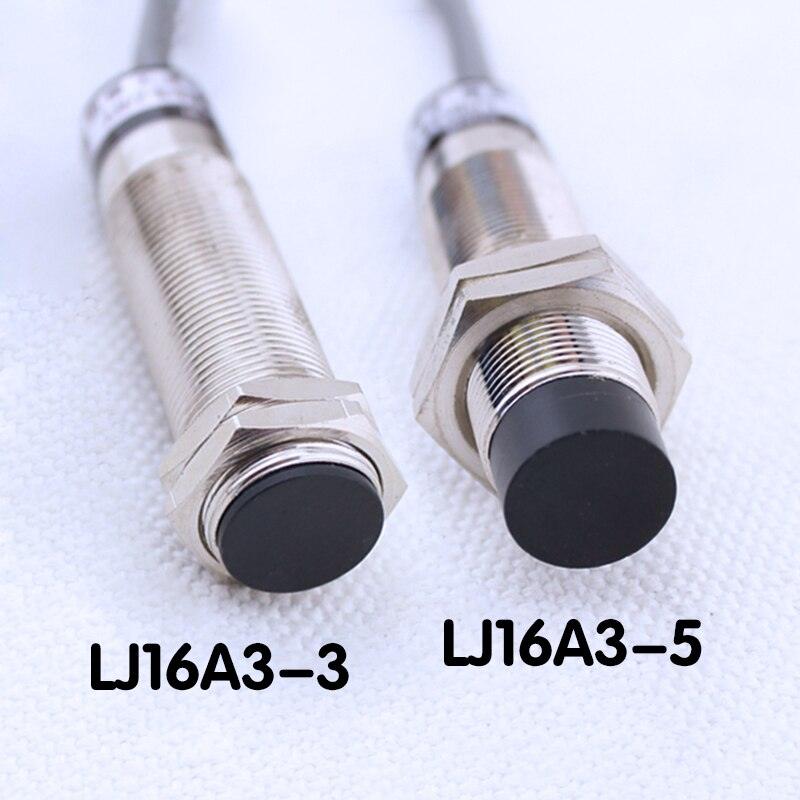

LJ16A3-3-Z/BX: DC NPN 3-wire Normally Open 16mm diameter ; 3mm detection distance
LJ16A3-3-Z/AX: DC NPN 3-wire Normally Close 16mm diameter ; 3mm detection distance
LJ16A3-3-Z/CX: DC NPN 4-wire Normally Open and Normally Close 16mm diameter ; 3mm detection distance

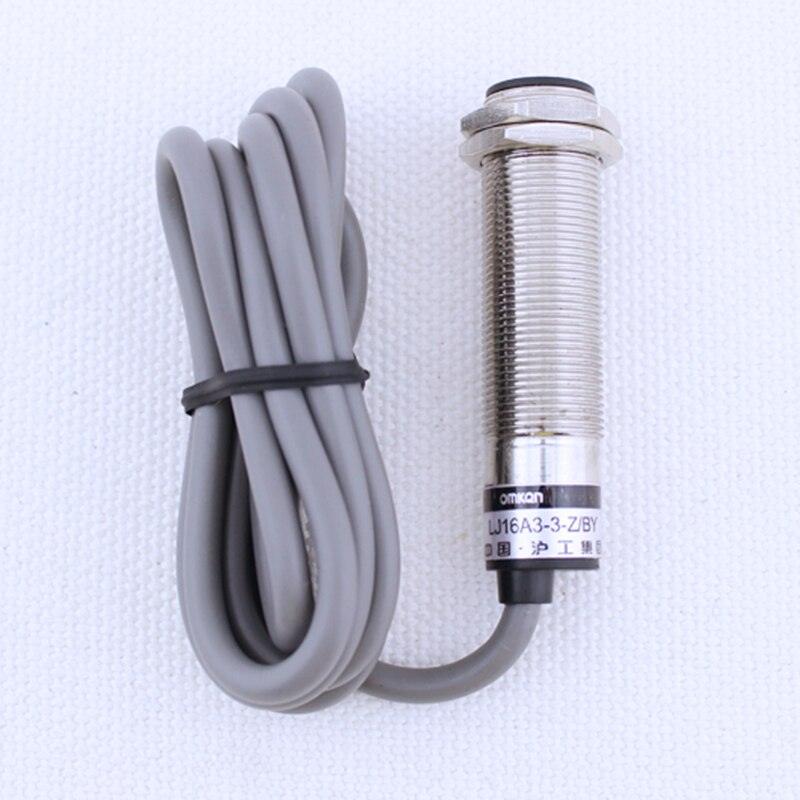

LJ16A3-3-Z/BY: DC PNP 3-wire Normally Open 16mm diameter ; 3mm detection distance
LJ16A3-3-Z/AY: DC PNP 3-wire Normally Close 16mm diameter ; 3mm detection distance
LJ16A3-3-Z/CY: DC PNP 4-wire Normally Open and Normally Close 16mm diameter ; 3mm detection distance
LJ16A3-3-Z/EX: DC Two-wire Normally Open 16mm diameter ; 3mm detection distance
LJ16A3-3-Z/DX: DC Two-wire Normally Close 16mm diameter ; 3mm detection distance

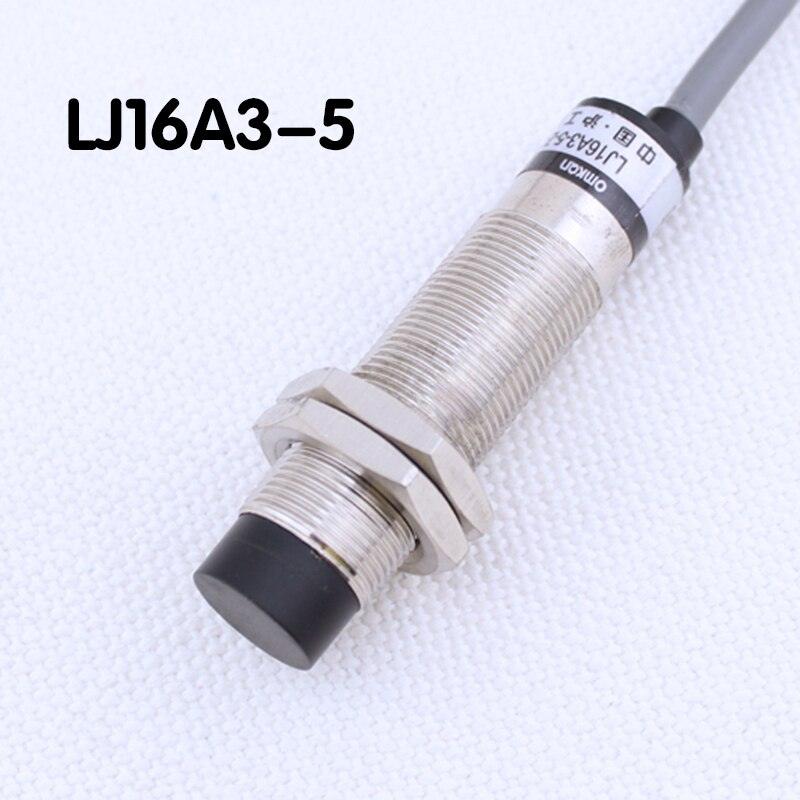

LJ16A3-5-Z/BX: DC NPN Normally Open 3-wire type 16mm diameter ; 5mm detection distance
LJ16A3-5-Z/AX: DC NPN Normally Close 3-wire type 16mm diameter ; 5mm detection distance
LJ16A3-5-Z/CX: DC NPN 4-wire Normally Open and Normally Close 16mm diameter ; 5mm detection distance
LJ16A3-5-Z/BY: DC PNP Normally Open 3-wire  type 16mm diameter ; 5mm detection distance
LJ16A3-5-Z/AY: DC PNP Normally Close 3-wire type  16mm diameter ; 5mm detection distance
LJ16A3-5-Z/CY: DC PNP 4-wire Normally Open and Normally Close 16mm diameter ; 5mm detection distance
LJ16A3-5-Z/EX: DC Two-wire Normally Open 16mm diameter ; 5mm detection distance
LJ16A3-5-Z/DX: DC Two-wire Normally Close 16mm diameter ; 5mm detection distance
