LA5F500803 Main Contact Kit For Contactor LC1D475 LC1F500 LC1E500 Moving And Fixed Contacts
Couldn't load pickup availability
SPECIFICATIONS
LA5F500803 Main Contact Kit For Contactor LC1D475 LC1F500 LC1E500 Moving And Fixed Contacts Contactor Accessories Replacement
Phase: 3
Number of Pole: 3
Model Number: LA5F500803
Main Circuit Rating Voltage: 380V
Electricity Type: AC
Description
One set includes:3 movable parts & 6 fixed parts & 3 leaf springs
Please check the picture below:
grade B:the contact point contains approximately 40% silver,and the color of the contacts are white
grade A: the contact point contains approximately 85% silver,and the color of the contacts are red
grade A plus: the contact point contains approximately 85% silver
The color of the moving contact is black. And the size of the contact point of moving part is bigger than A grade.
and the grade A plus also contains some replacement tools which grade A and grade B doesn't have.And the package of grade A plus is also different from the other two.
Please check the pictures below:

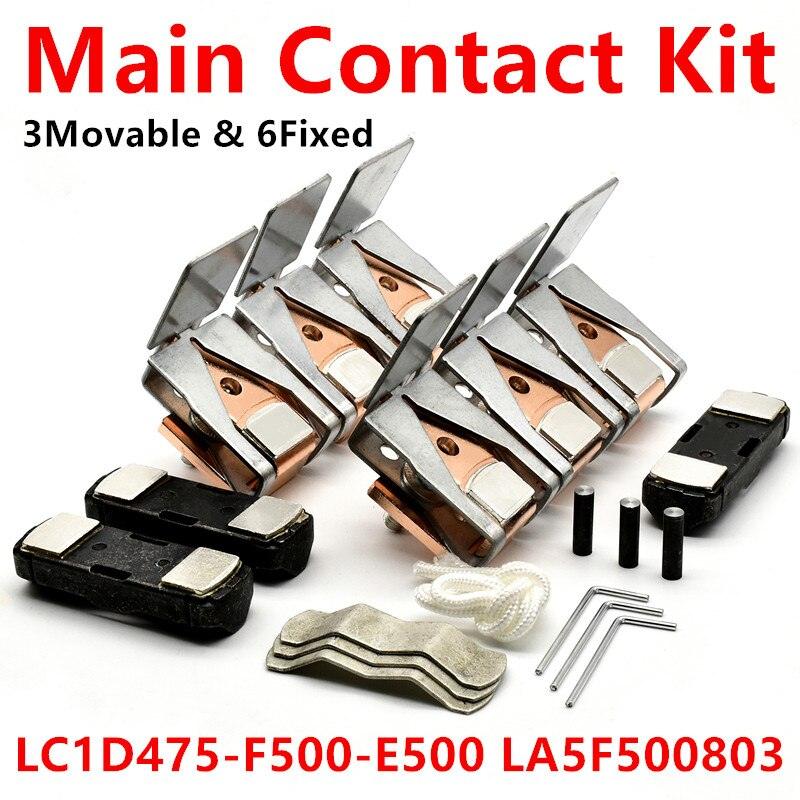

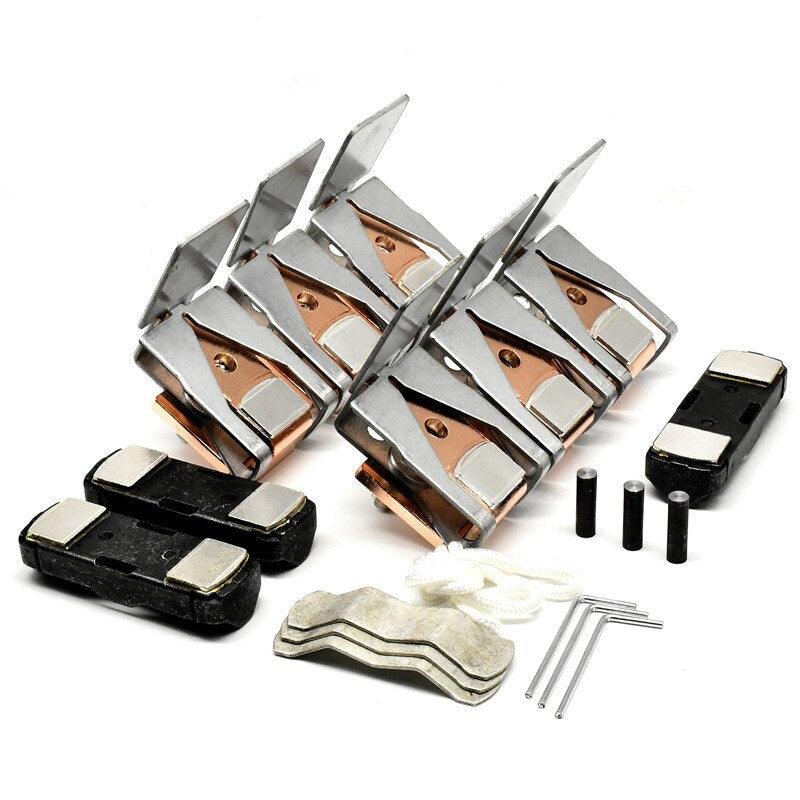

grade A plus one set contains 3 moving parts and 6 fixed parts and replacement kits:
grade A plus package is different from the other two:

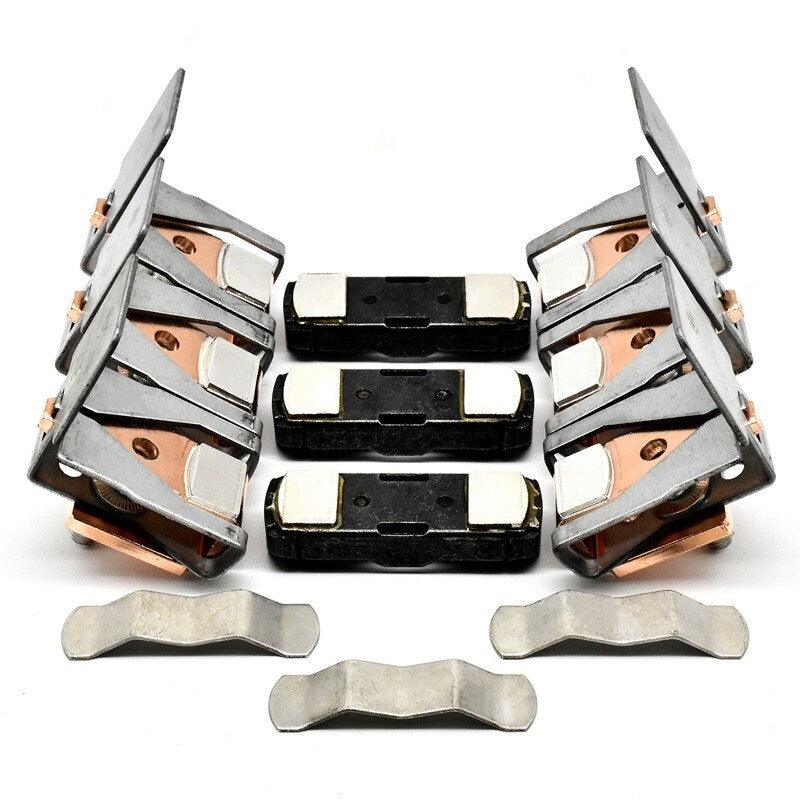

grade A one set contains 3 moving parts and 6 fixed parts and without replacement kits:

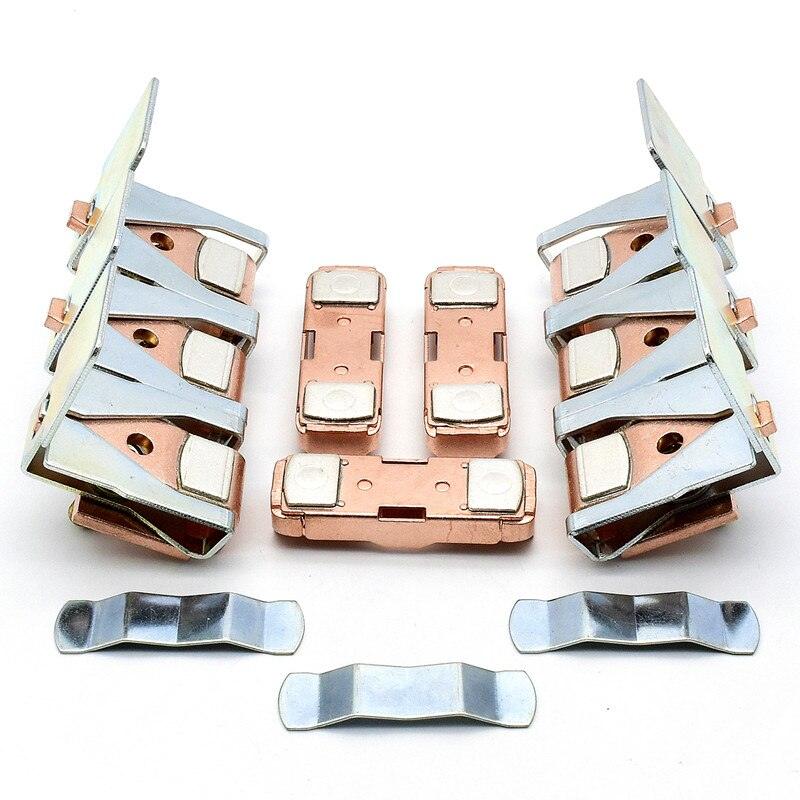

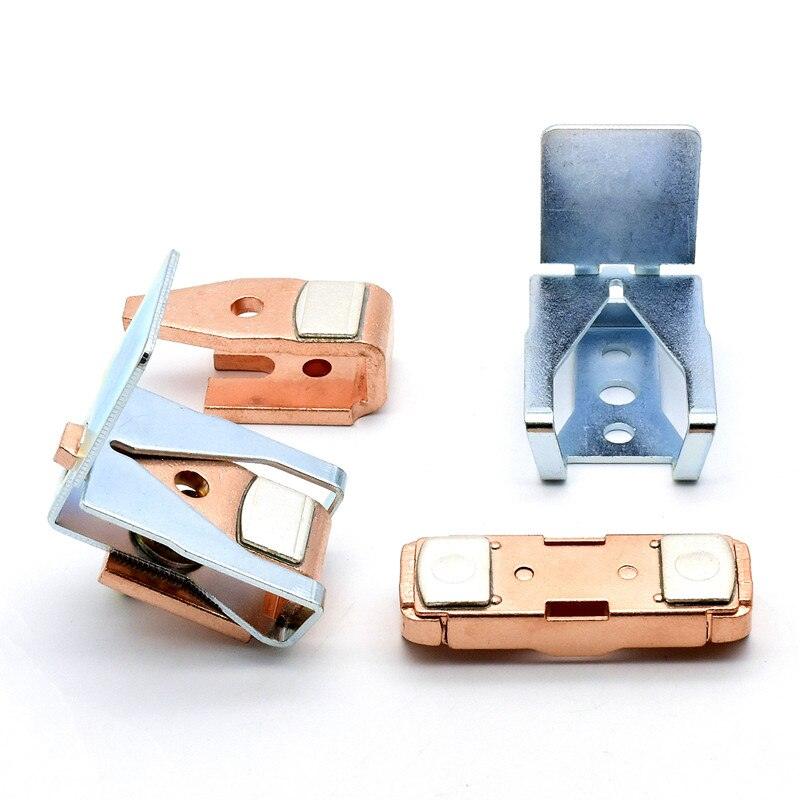

grade B one set contains 3 moving parts and 6 fixed parts and without replacement kits:
