JGB37-520 6V 12V 24V DC High Torque Metal Gear Box Electric Motor New Gearmotor 10/22/45/66/107/200/600/960rpm PWM Speed Control
Couldn't load pickup availability
SPECIFICATIONS
JGB37-520 6V 12V 24V DC High Torque Metal Gear Box Electric Motor New Gearmotor 10/22/45/66/107/200/600/960rpm PWM Speed Control
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Continuous Current(A): 300ma
Output Power: 1W
Commutation: Brush
Type: Gear Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: jgb37-520
Torque: 16kg.cm
DC12V 24V Large Torque Speed Reduction Gear Motor with Metal Gearbox 37GB520
Specification:
Notice: The lower speed is the larger torque
-
Voltage: DC12V
No-load Speed: 7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm
-
Voltage: DC24V
No-load Speed: 7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm
-
Max Power: 10W
-
Max Torque: 25kg/cm
-
Motor Diameter: 33mm
-
Motor Body Length: 22.7mm
-
Output Shaft Diameter: 6mm
-
Output Shaft Length: 15mm
-
Gearbox Diameter:37mm
-
Gearbox Length:see the table

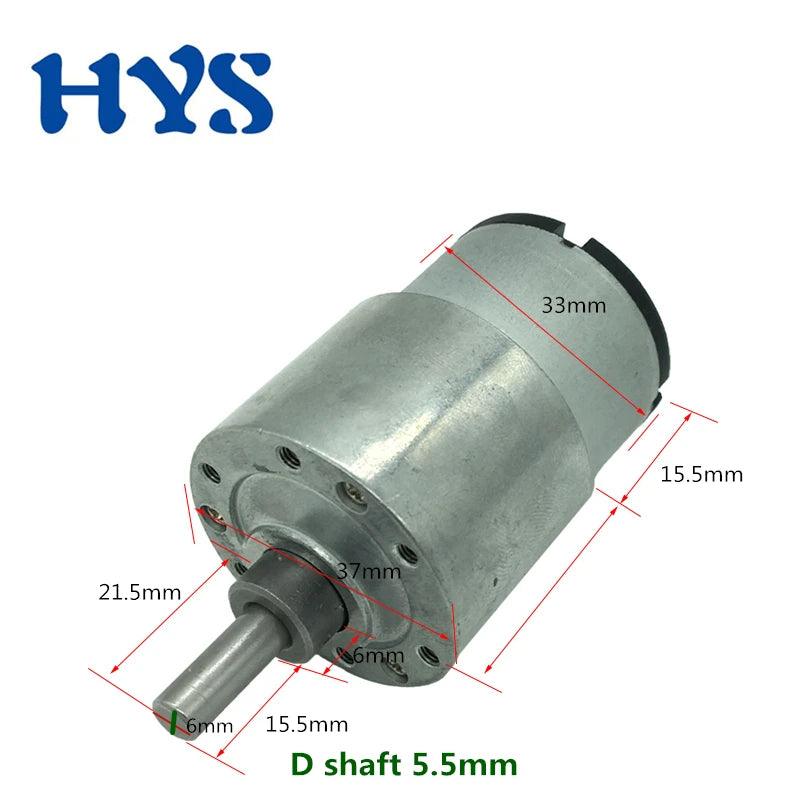

Size¶meter:

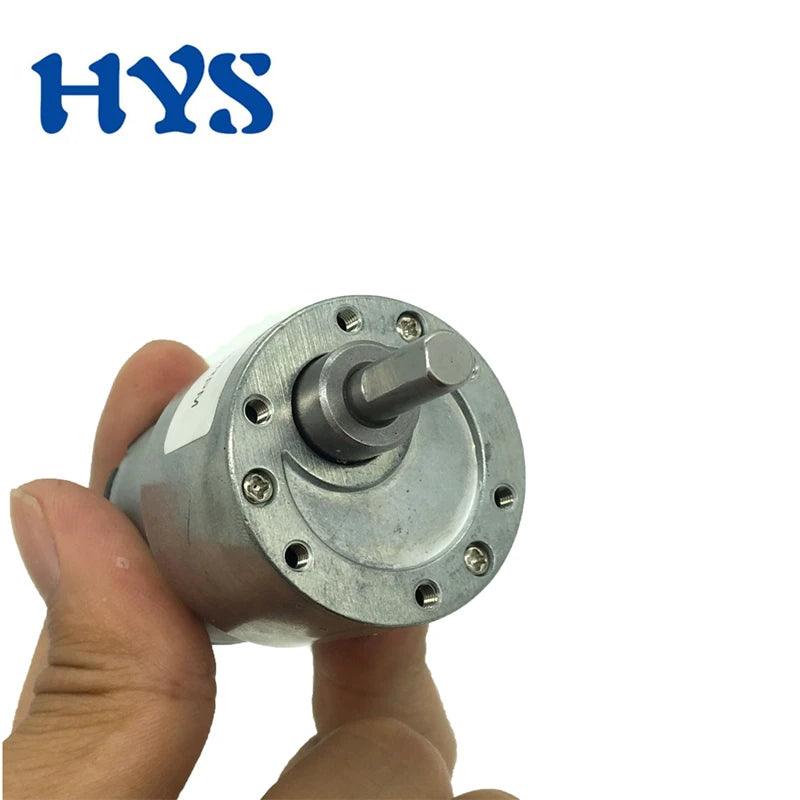

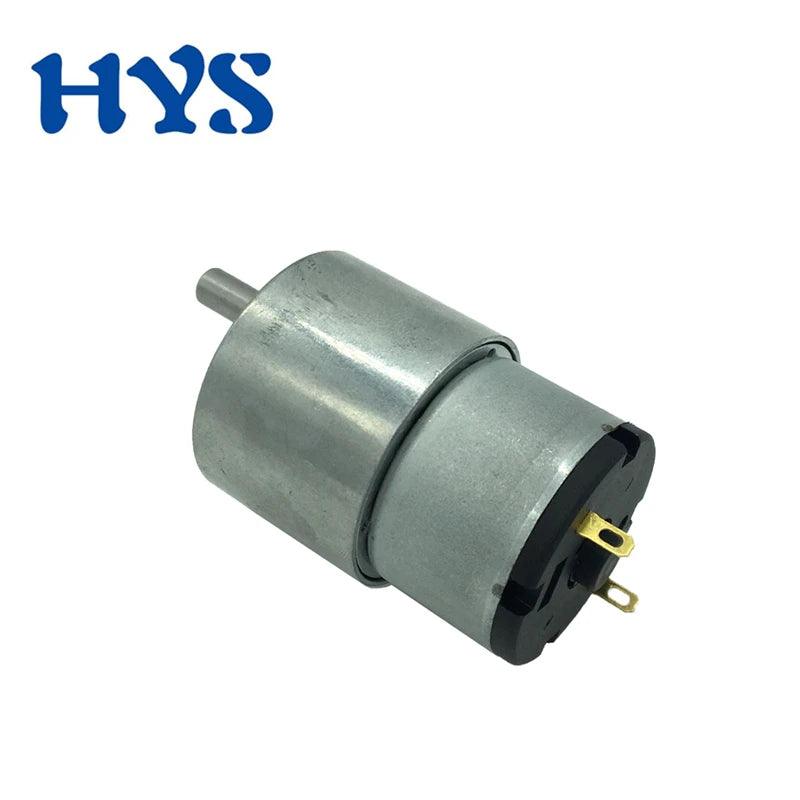

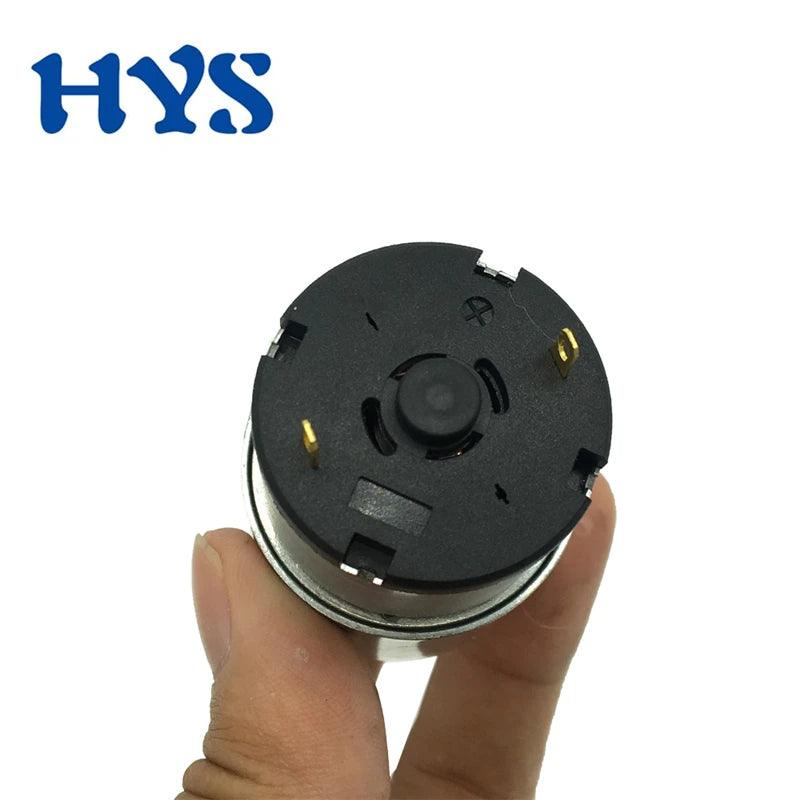

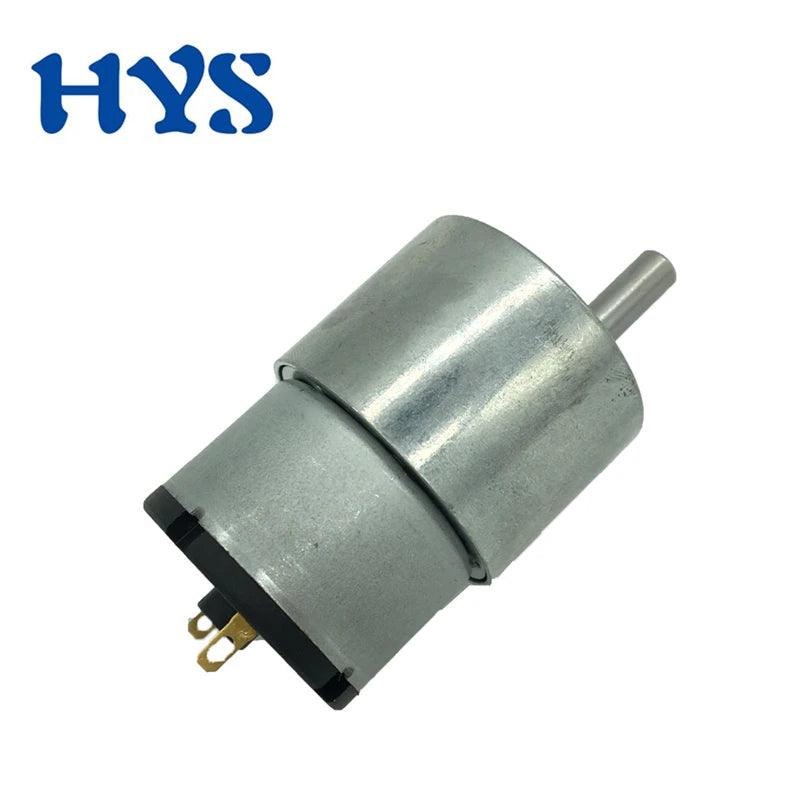

Gear Dc Motor Show:
