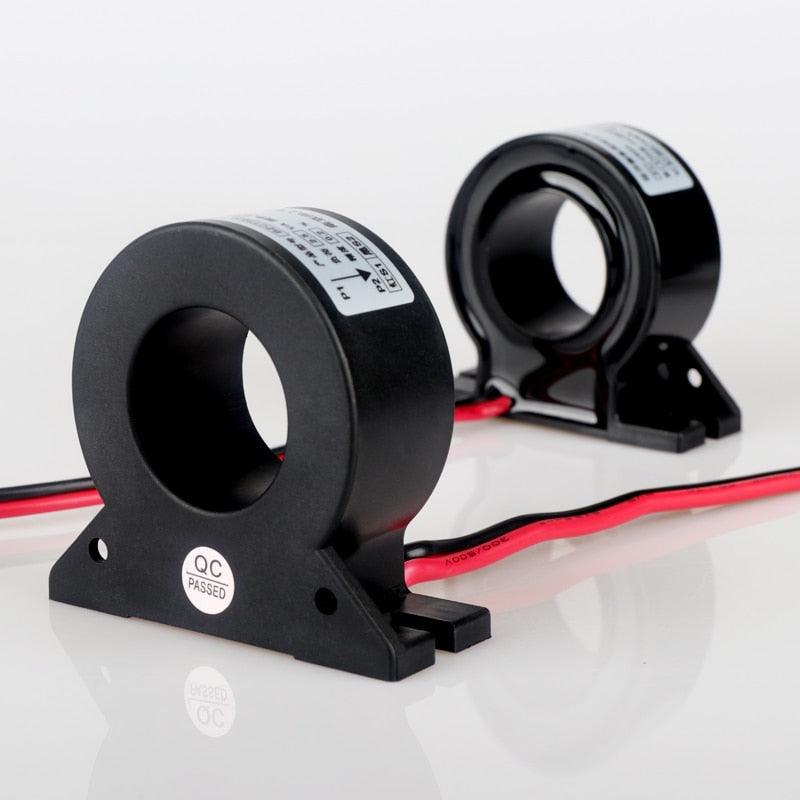

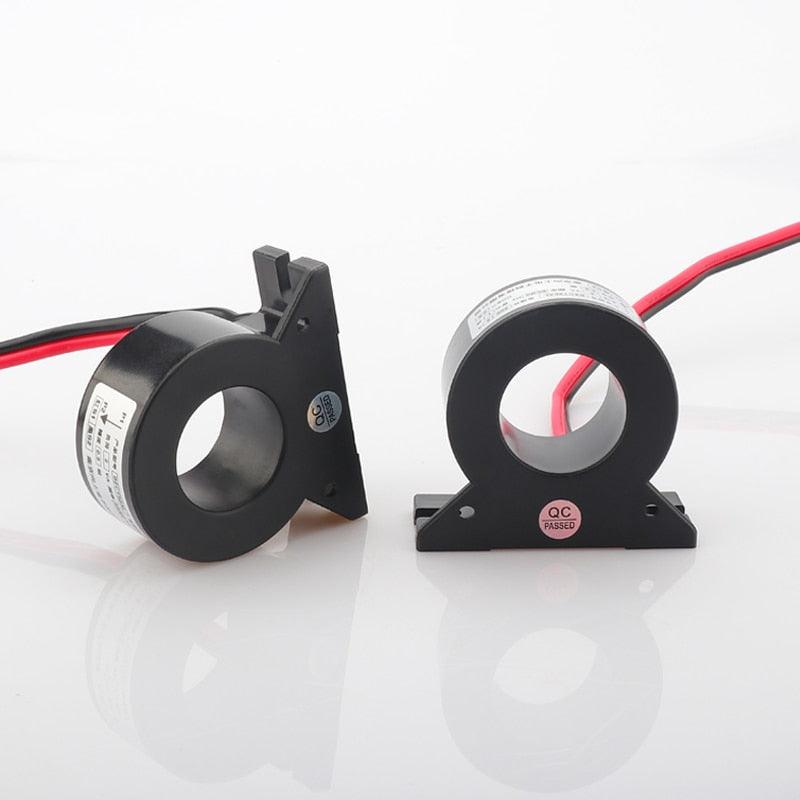

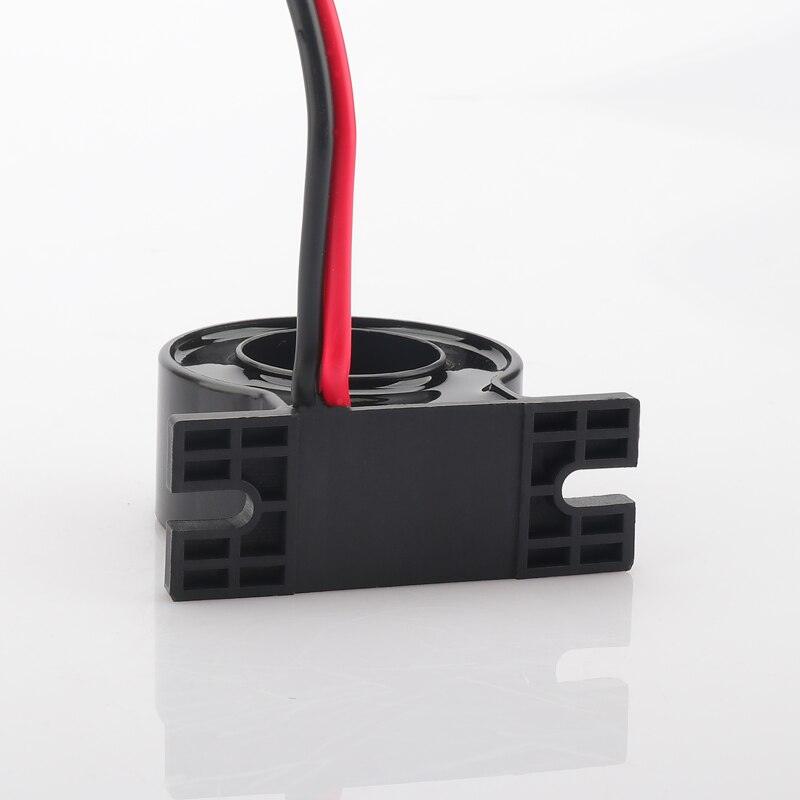

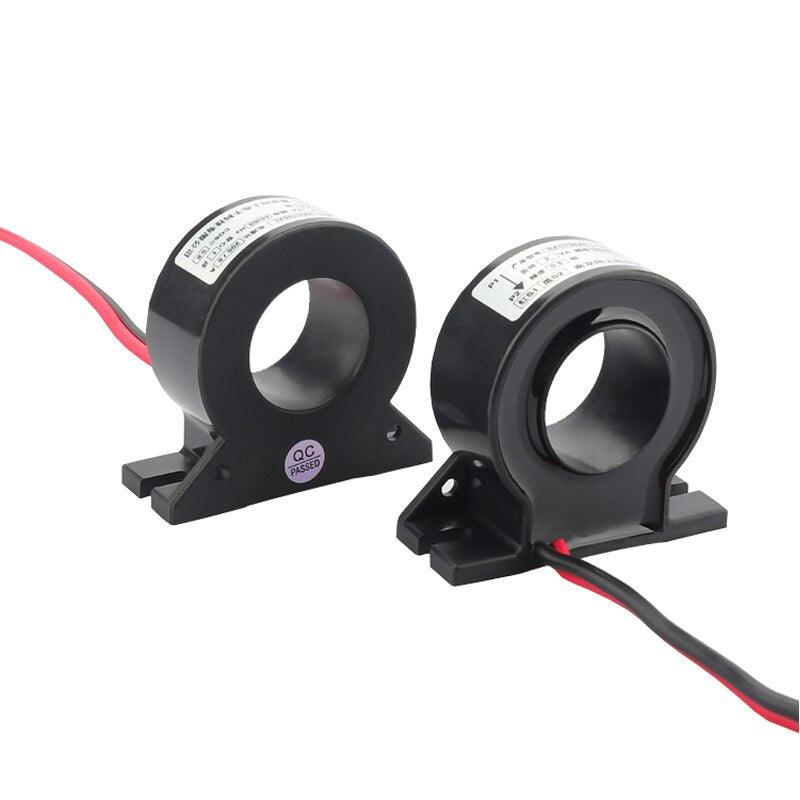

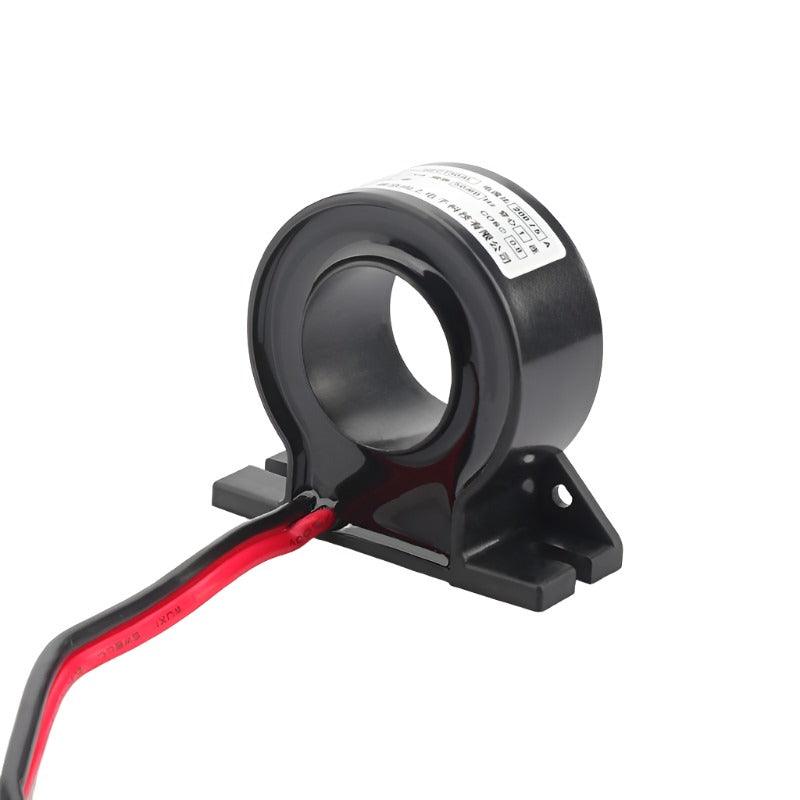

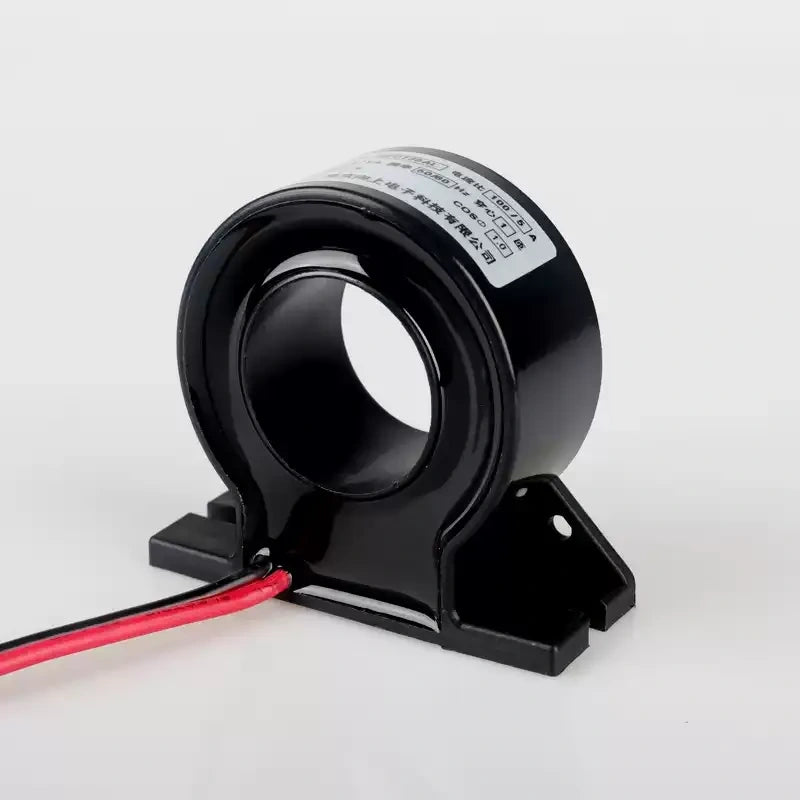

BZCT30AL Through-Core Current Transformer

$20.60 USD
$10.45 USD $20.60 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.

BZCT30AL Standard Current Transformer, Through-Core 1-Turn Installation, 0.1/0.2/0.5/1 Class, 50A~400A/5A, for Energy Metering & Power Monitoring

The BZCT30AL series through-core current transformers are precision-engineered sensors designed for accurate AC current measurement in energy meters and power monitoring systems. With 1-turn pass-through installation and grades up to 0.1 class, they deliver reliable performance for primary currents from 50A to 400A with standard 5A secondary output.

✨ Key Features


✅ High Precision Grades: 0.1/0.2/0.5/1 Class accuracy options for commercial and industrial metering.

✅ Complete Ratio Range: Primary currents: 50A/75A/100A/150A/200A/250A/300A/400A; Standard secondary output: 5A.

✅ Premium Core & Winding: 085 high-grade silicon steel sheet core (low iron loss, high permeability) + high-quality enameled copper wire for durability.

✅ Reliable Output Leads: 2×2.5mm² low-resistance oxygen-free copper leads with tube pin connectors, flame-retardant PC/PVC insulation, 47cm length.

✅ Safety & Compliance: UL94-V0 flame-retardant housing, 3kV/1min withstand voltage, insulation resistance ≥500MΩ.

✅ Wide Operating Conditions: 50/60Hz frequency, -30℃~+70℃ operating temperature, up to 90% relative humidity.

📊 Technical Specifications

Parameter Details
Model Series BZCT30AL / BZCT30AGL / BZCT30ACHL
Type Through-Core Current Transformer

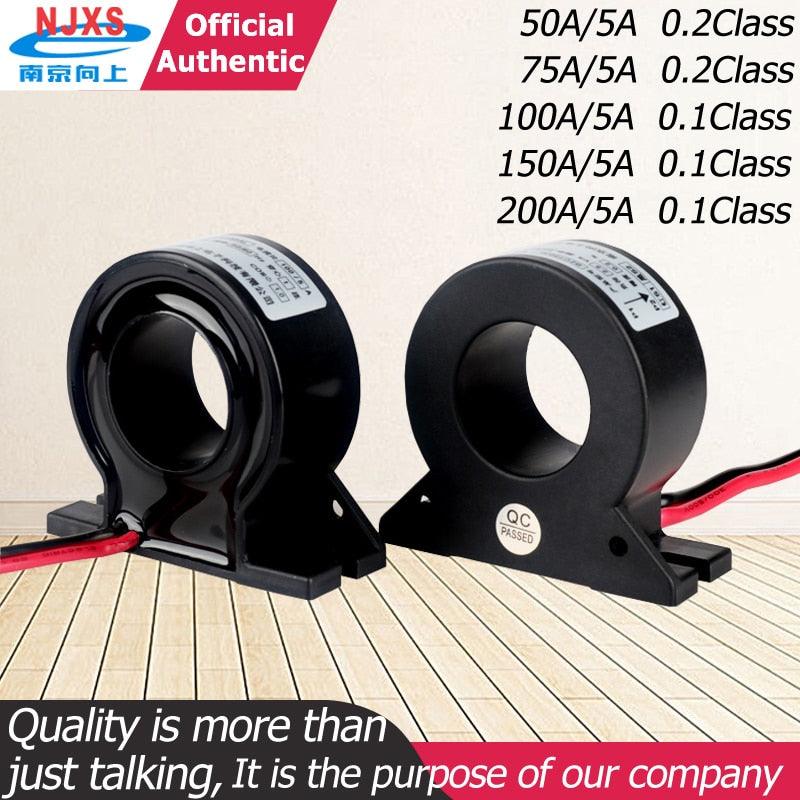

Rated Primary Current 50A/75A/100A/150A/200A/250A/300A/400A
Rated Secondary Current 5A
Accuracy Class 0.1 / 0.2 / 0.5 / 1 Class
Rated Load 0VA / 0.5VA / 1VA / 1.5VA / 2VA / 2.5VA
Core Material 085 High-Grade Silicon Steel Sheet
Winding Material Enameled Copper Wire

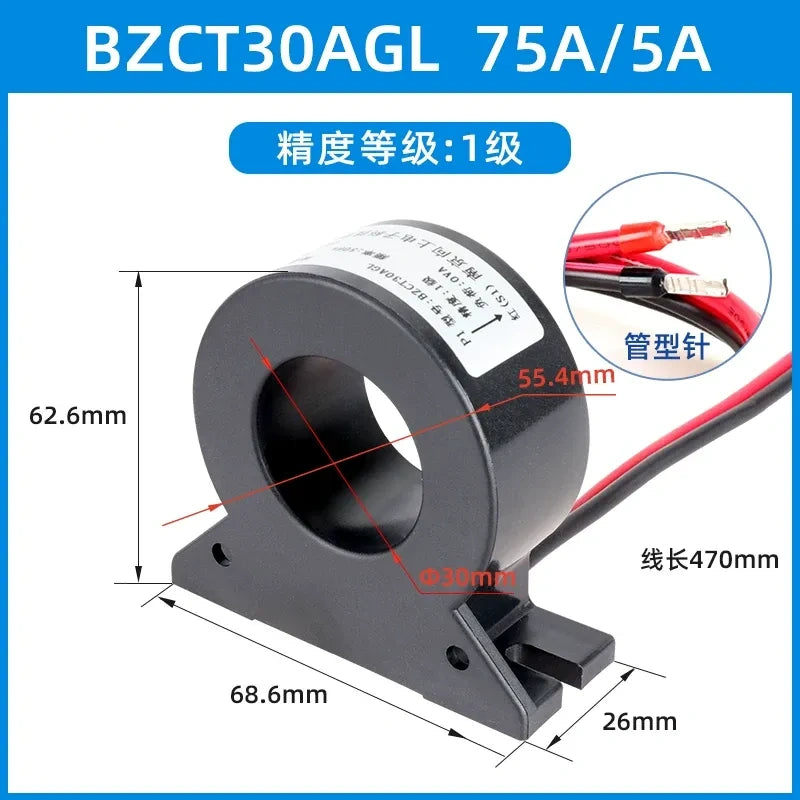

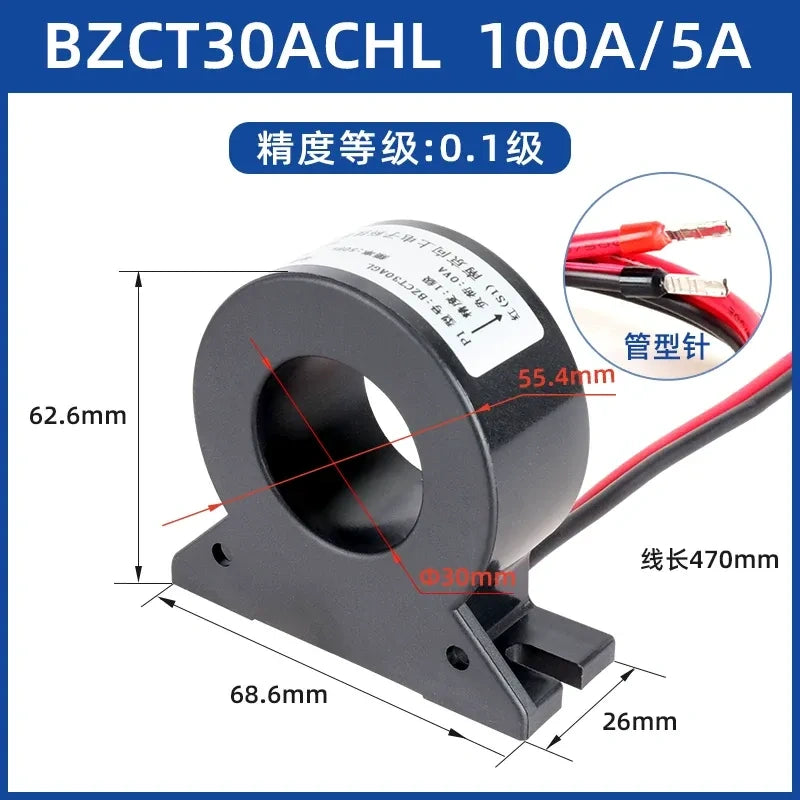

Lead Specification 2×2.5mm² Oxygen-Free Copper, 47cm Length
Insulation Resistance ≥500MΩ
Withstand Voltage 3kV/50Hz/1min
Operating Temperature -30℃ ~ +70℃
Application Energy Metering, Power Monitoring, Grid Renovation



🛠️ Applications


  • Residential and commercial energy meter integration
  • Distribution cabinet and power panel current monitoring
  • Industrial control and automation systems
  • Smart grid and power quality monitoring projects
