GW4632-370 6V 12V 24V 5W Initial 8500RPM Reducer 3 to 210PRM High Torque DC Motor

370 DC Brush Motor Series, Include 3 Family, click for details:

1) 370 (B2430): High-speed (No Gear)
2) GA25-370 (GA25-B2430): Common Gear

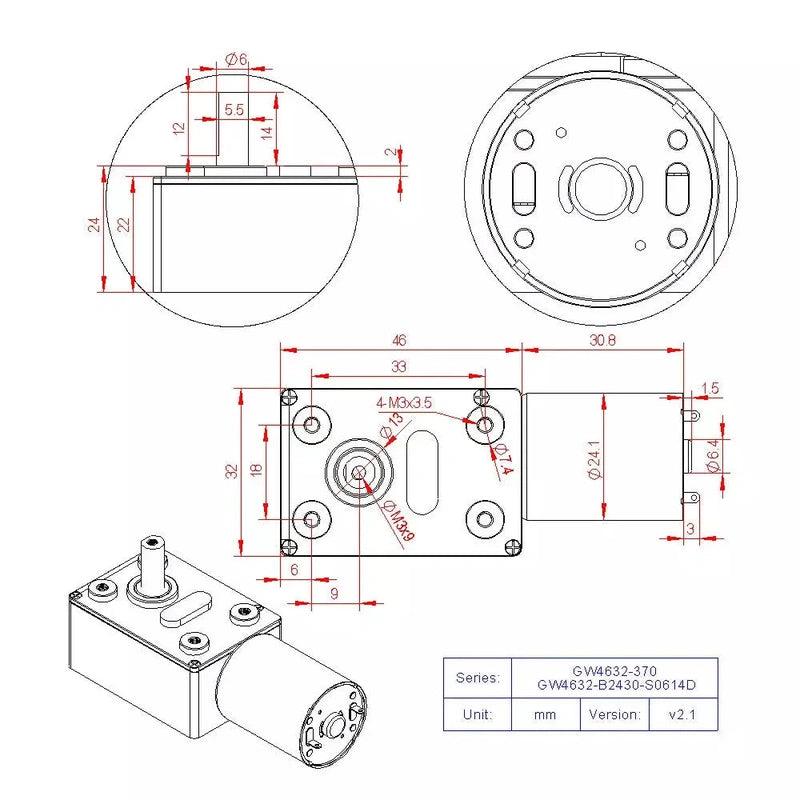

3) GW4632-370 (GW4632-B2430): Worm Gear



More DC Brush Motor Series (370 Series's Brother), click for details.

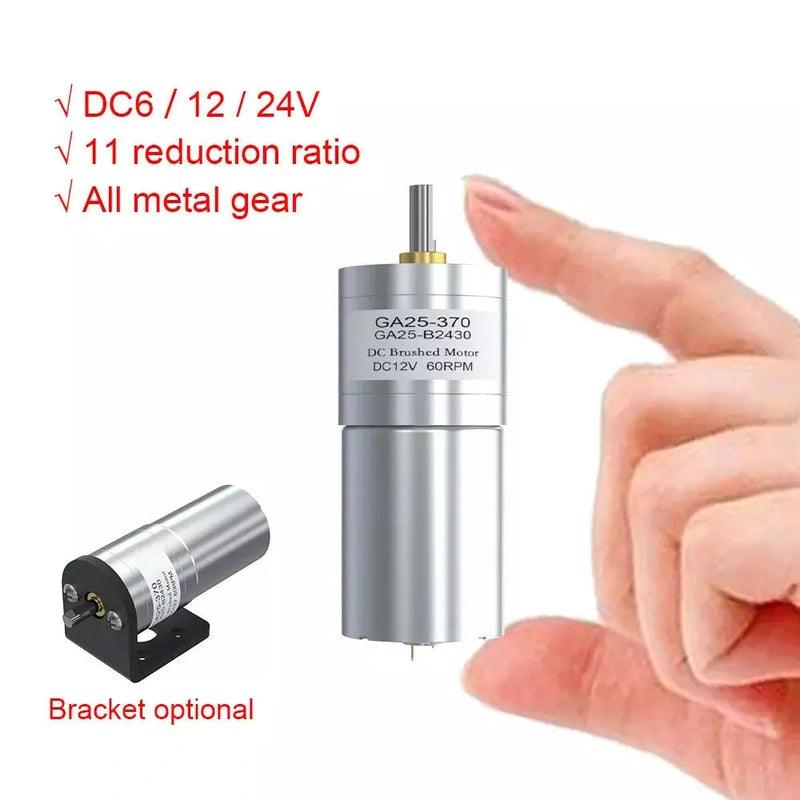

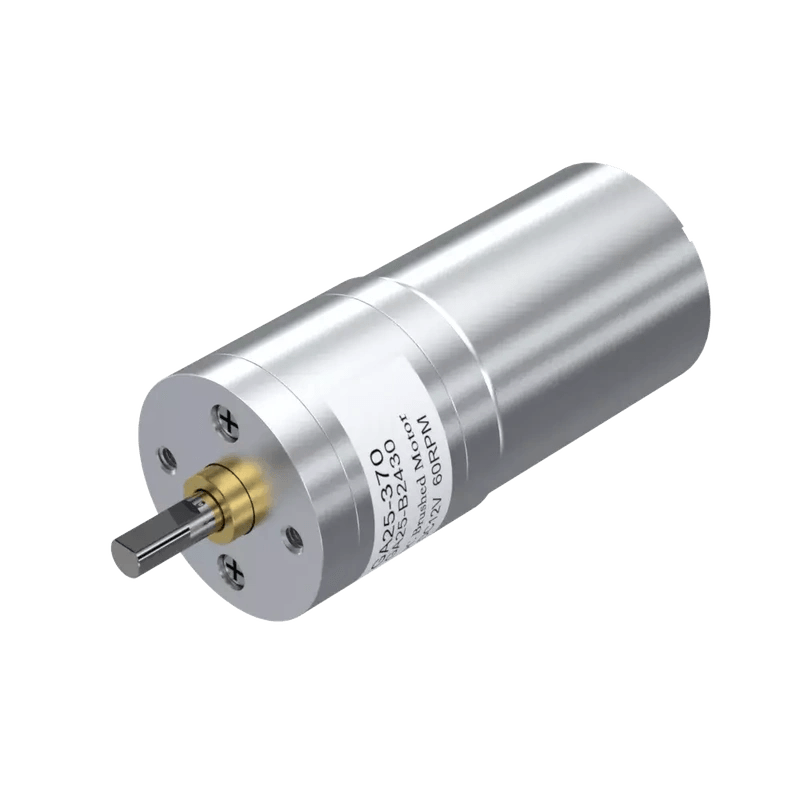

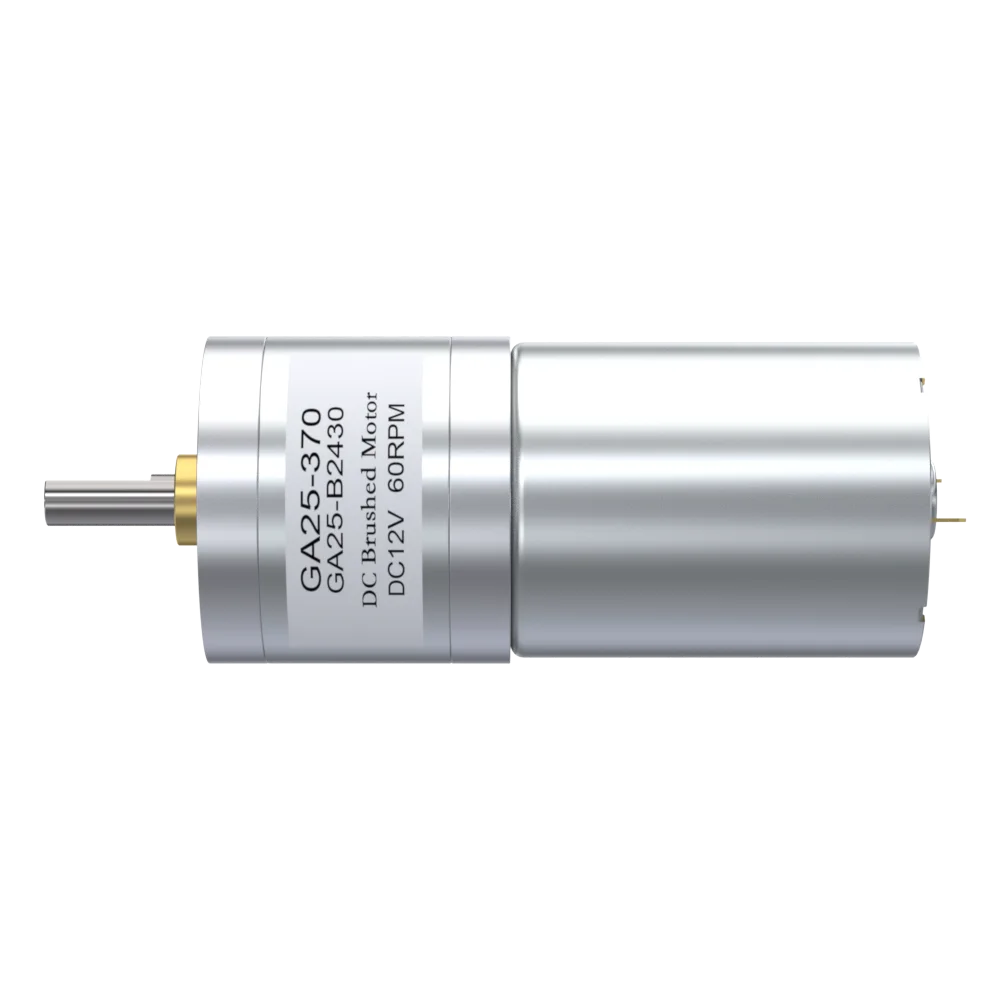

GA25-370(GA25-B2430) DC brushed common geared motor with rated voltage DC6V, 12V, 24V. The motor body has a variety of initial no-load speed (speed without gear reducer).

After the initial no-load speed is decelerated by the gearbox, a series of decelerated no-load speeds are obtained, usually the decelerated no-load speed (unit: RPM, r/min) are:

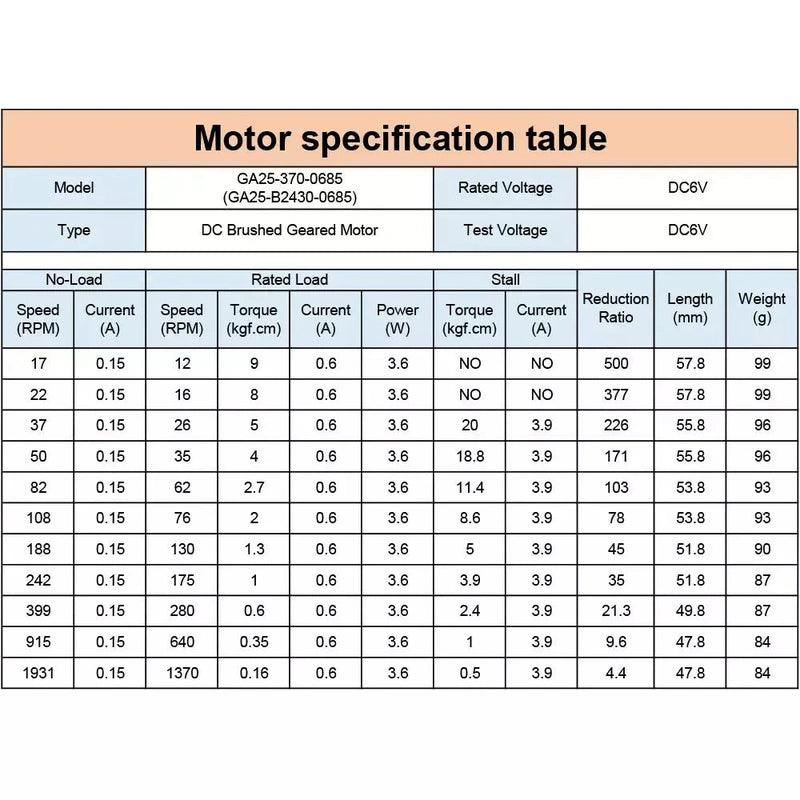

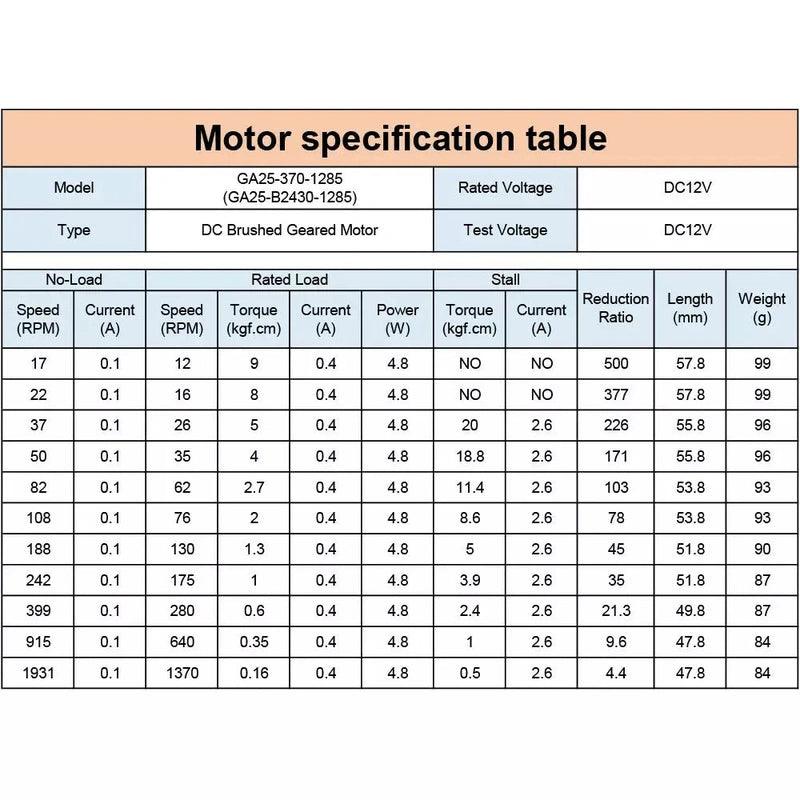

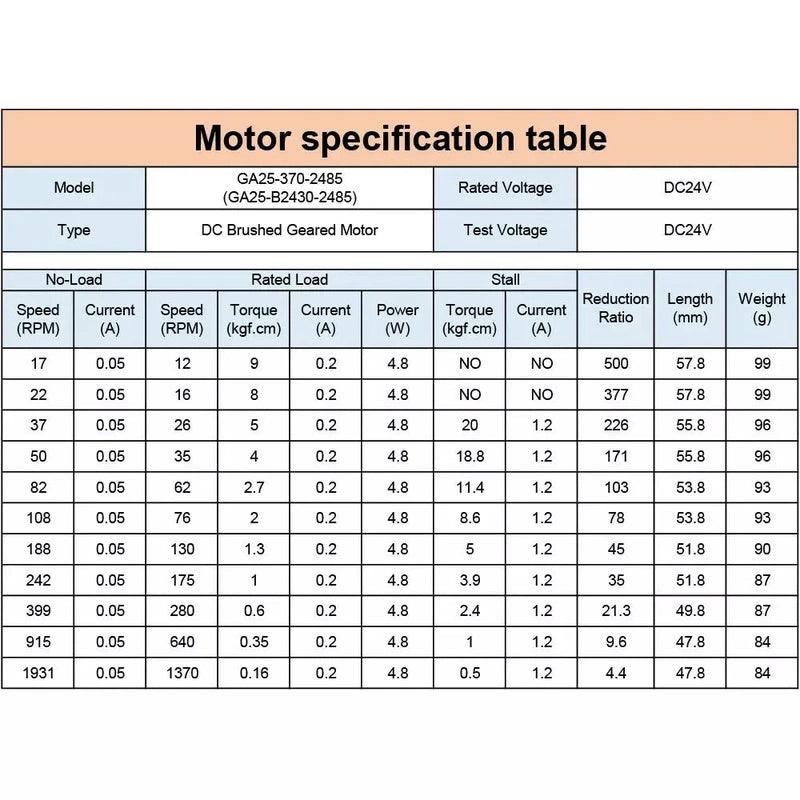

1) At initial no-load speed of 8500 RPM (DC6V, 12V, 24V):
17, 22, 37, 50, 82, 108, 188, 242, 399, 915, 1931 RPM (This listing)
2) At initial no-load speed of 6000 rpm (DC6V, 12V, 24V):
12, 16, 26, 35, 60, 77, 130, 170, 280, 620, 1360 RPM (Click for details)

More speed can also be customized according to your needs, please contact customer service for details.

Package:
- 1 x GA25-370 motor
