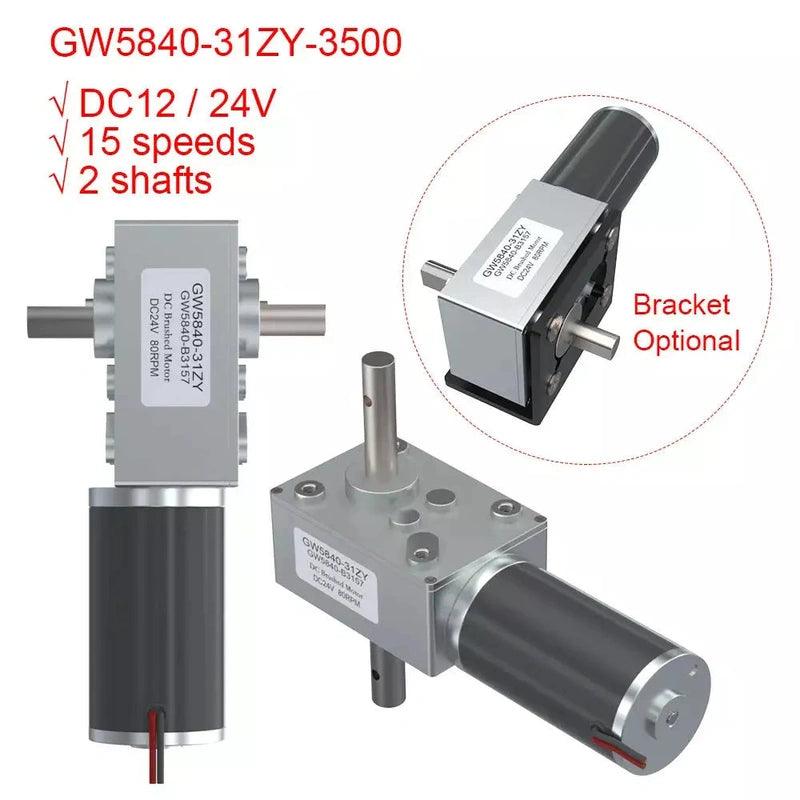

GW 5840 31ZY Double Shaft 3500 to 2.5 3 5 7 12 17 35 70 110 200RPM 24V 15W DC Brush Turbine Worm Gear Motor

GW5840-31ZY (GW5840-B3157) DC brushed turbo worm gear series motor with high purity copper wire, all metal high precision turbo worm gear, high reduction ratio and self-locking function, supports speed regulation and forward and reverse rotation, widely used in household appliances, industrial automatic control, medical equipment, precision instruments, etc.

This series motor has a variety of shaft types for select:

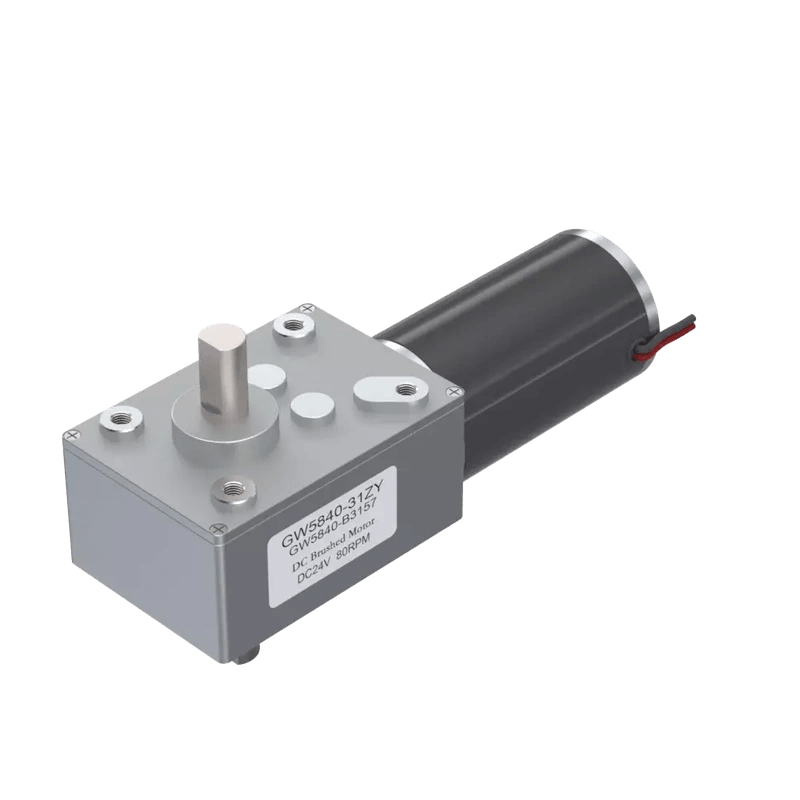

1）Single shaft:

S0815D：Single Φ8x15mm D cut shaft (D cut size 7x13mm)

S0851D：Single Φ8x51mm D cut shaft (D cut size 7x45mm)

S0853D：Single Φ8x53mm D cut shaft (D cut size 7x51mm)

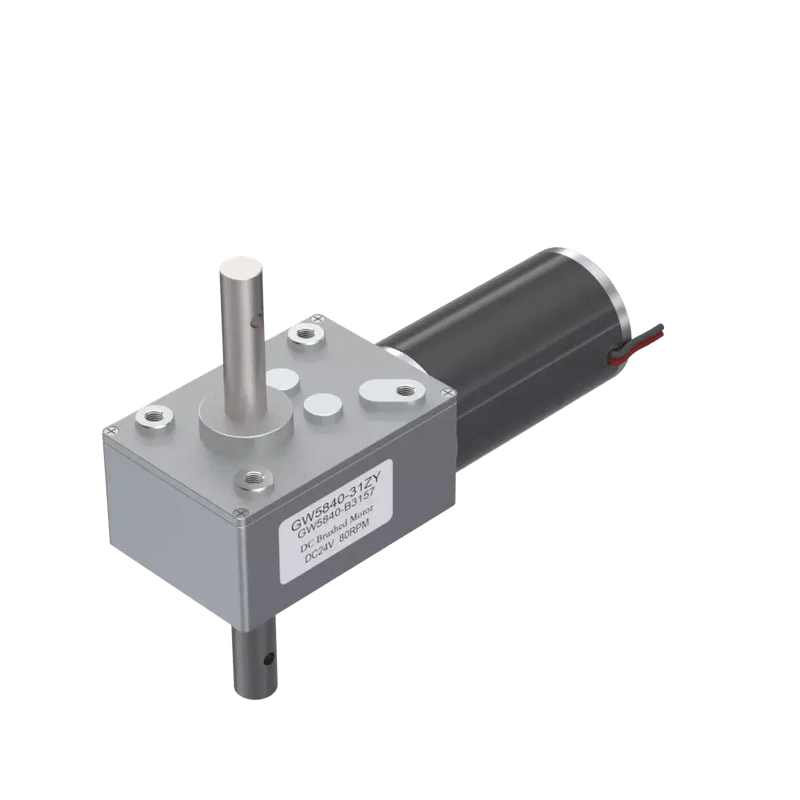

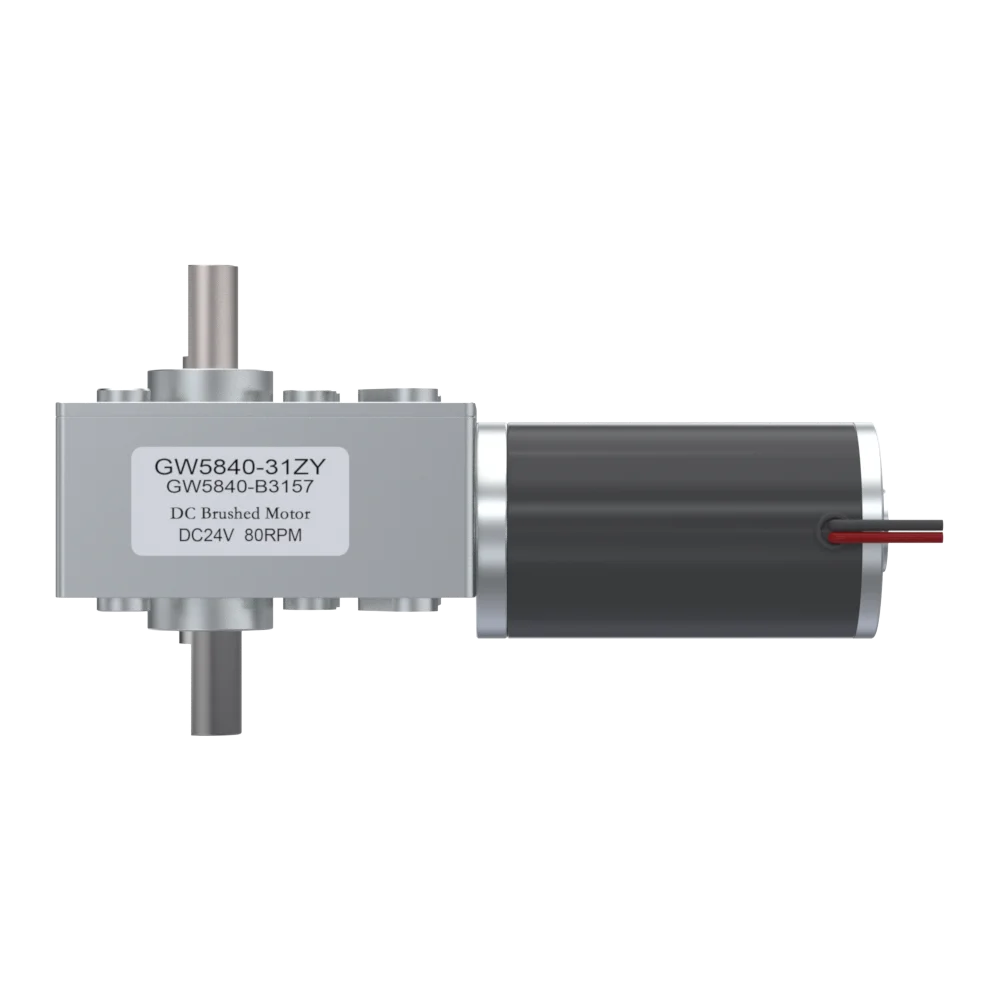

2）Double shaft:

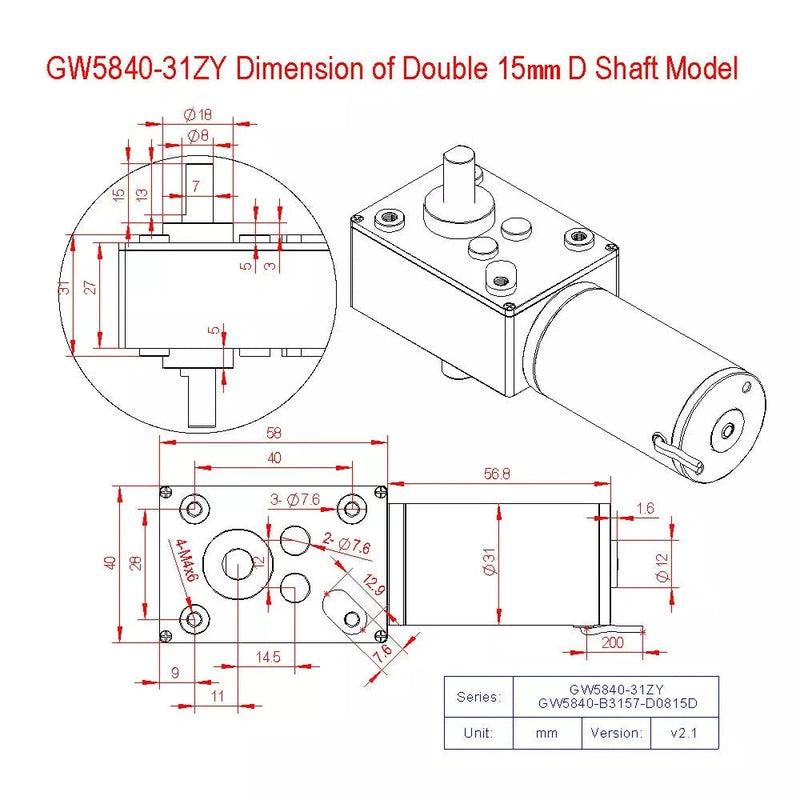

D0815D：Double Φ8x15mm D cut shaft (D cut size 7x13mm)

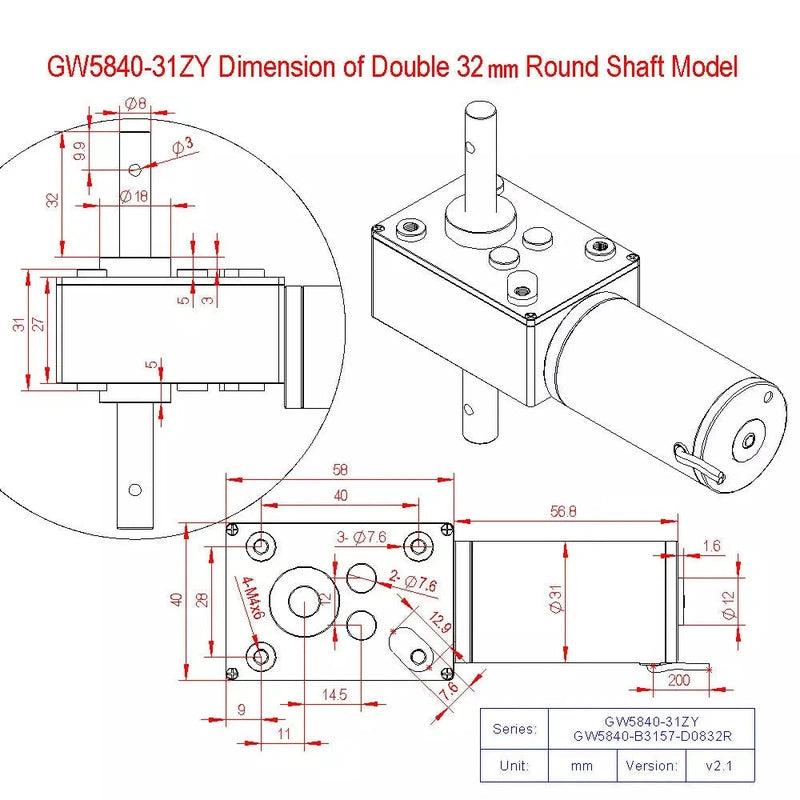

D0832R：Double Φ8x32mm Round shaft

3）Threaded shaft:

S0825T：Single Φ8x25mm Threaded shaft (thread size M8x18.9mm)

This series motor has a variety of rated voltage, a variety of initial speed (no-load speed of the motor body without
gearbox), and a variety of decelerated speed (the decelerated no-load speed obtained after the initial no-load speed of the motor body has been passed through the gearbox) for select:

1)At initial no-load speed of 8000 RPM (DC12V, 24V):

6, 8, 12, 16, 27, 40, 80, 160, 260, 470 RPM, please click for details: Single shaft, Double shaft, Threaded shaft

2) At initial no-load speed of 5000 RPM (DC24V):

3.5, 5, 7.5, 10, 17, 25, 50, 100, 160, 290 RPM, please click for details: Single shaft, Double shaft, Threaded shaft

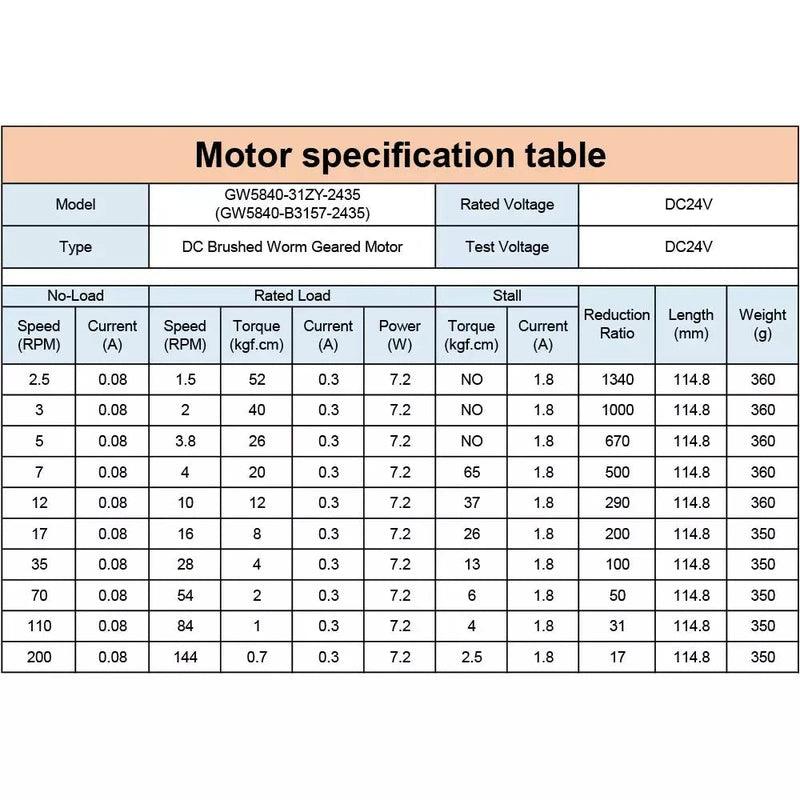

3) At initial no-load speed of 3500 RPM (DC24V)

2.5, 3, 5, 7, 12, 17, 35, 70, 110, 200 RPM, please click for details: Single shaft, Double shaft (This listing), Threaded shaft

More shaft type, voltage and speed can also be customized according to your needs, please contact customer service for
details.

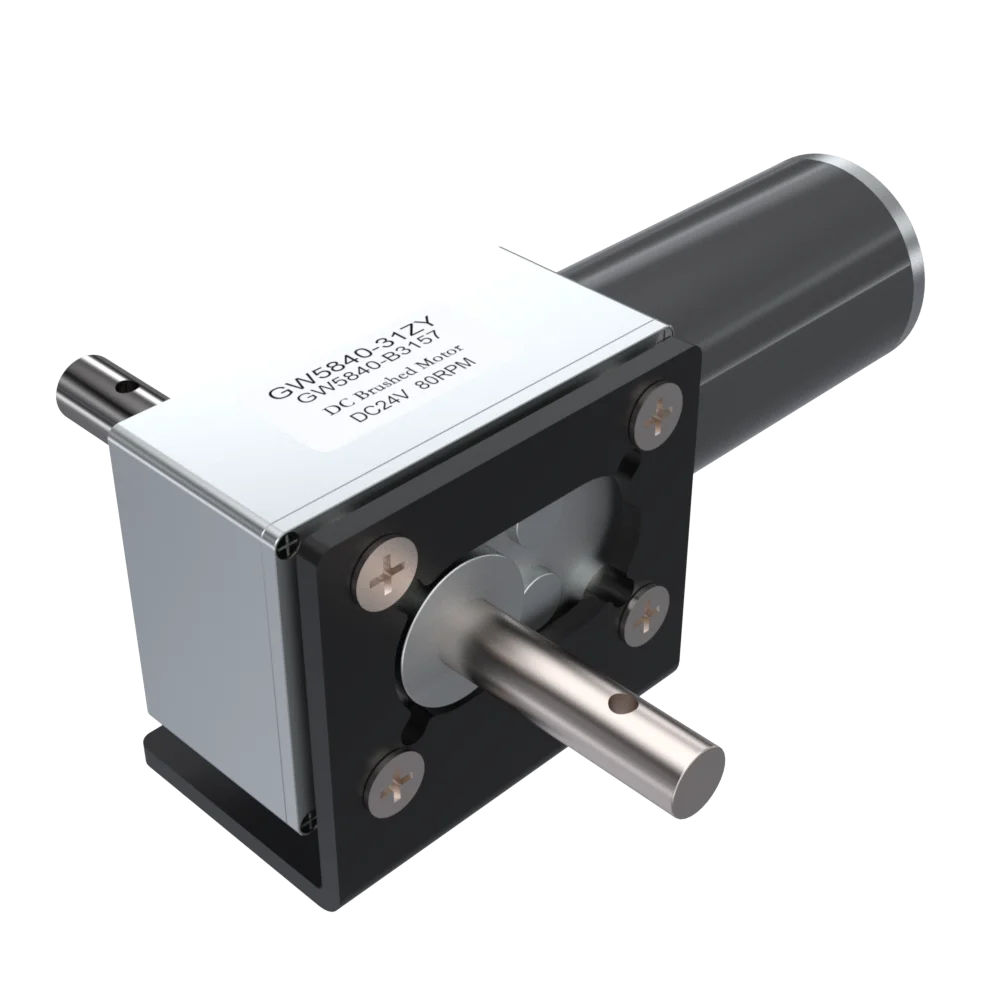

GW5840 series DC geared motors bracket (Click for details)
