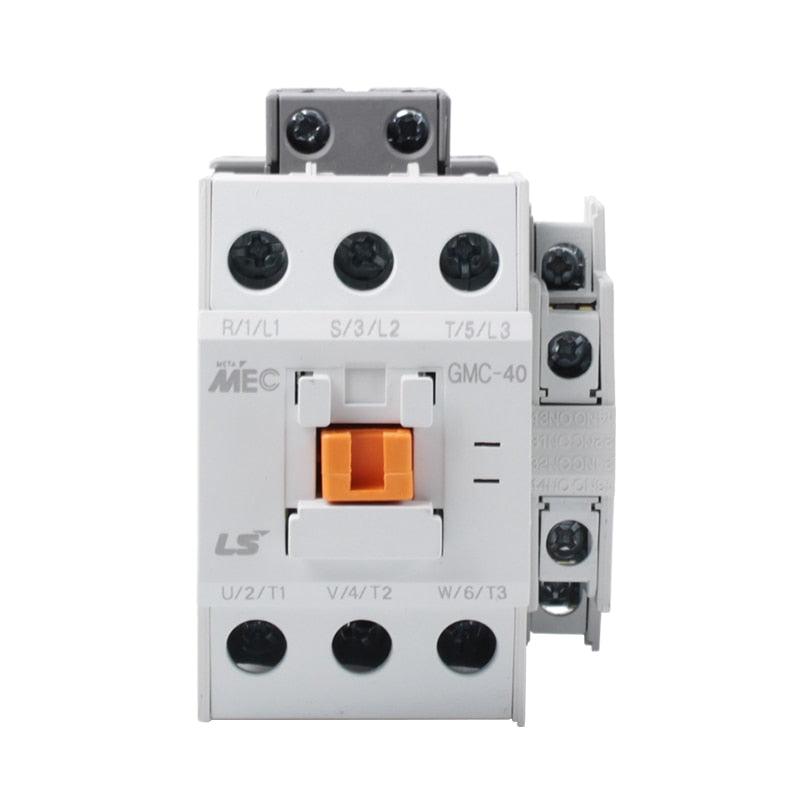

Genuine LS power production LG AC/DC contactor GMC (D)-75/85 DC24V DC48V DC110V DC220V

SPECIFICATIONS

Genuine LS power production LG AC/DC contactor GMC (D)-75/85 DC24V DC48V DC110V DC220V

Switch Type: Universal Switch

Origin: Mainland China

Model Number: GMC

Material: Plastic

Item Type: Switches

Current: 100A

Certification: FCC

Certification: ce

Electrical Magnetic Contactor Three Phase For Protect Home Improvement And Electrical Equipment

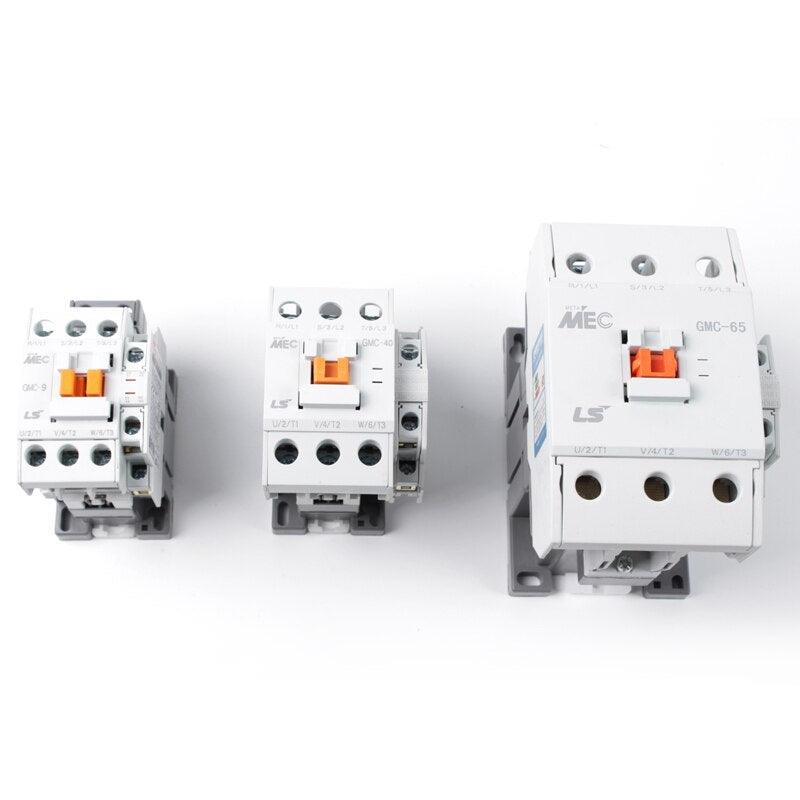

GMC (LG/LS) Series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50HZ or 60HZ, rated current up to 85A, for making frequently starting & controlling the AC motor. Combined with the auxiliary contact block, thermal relay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter.

Features:

(1) the electromagnetic system, including attracting coil, a movable iron core and the static iron core;

(2) the contact system, which comprises three groups of main contact and one to two groups of normally open, normally closed auxiliary contact and the moving iron core, it is together mutual linkage;

(3) out AC contactor arc device, generally larger capacity is provided with an arc extinguishing device, in order to quickly cut off from the main contact arc, burnt out;

(4) insulation casing and accessories, all kinds of spring, a transmission mechanism, a short circuit ring, terminal etc..

Technical data:
