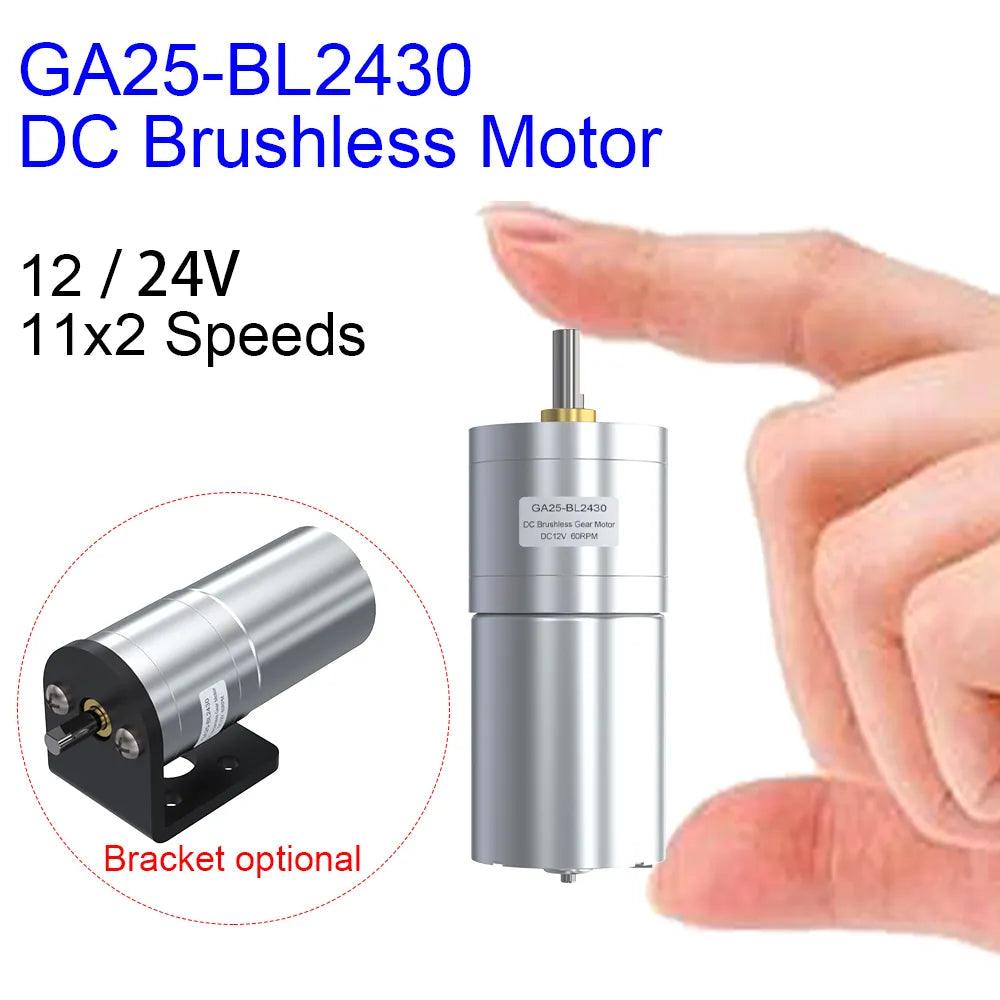

GA25-BL2430 DC Brushless 12V 24V High Torque Low Speed Micro BLDC Motor with Gearbox 12 15 25 35 50 77 130 170 280 600 1300RPM

BL2430 DC Brushless Motor Series, Include 4 Family, click for details:
1) BL2430: High-speed (No Gearbox)
2) GA25-BL2430: Common Gearbox
3) GP24-BL2430: Planetary Gearbox
4) GW4632-BL2430: Worm Gearbox

More DC Brushless Motor Series (BL2430 Series's Brothers), click for details.

Model: GA25-BL2430-S0412D
Gear Box Name: GA25
Gear Box Type: Common Gear
Motor Body Name: BL2430
Motor Body Type: DC Brushless Motor (BLDC)
Shaft Number: Single

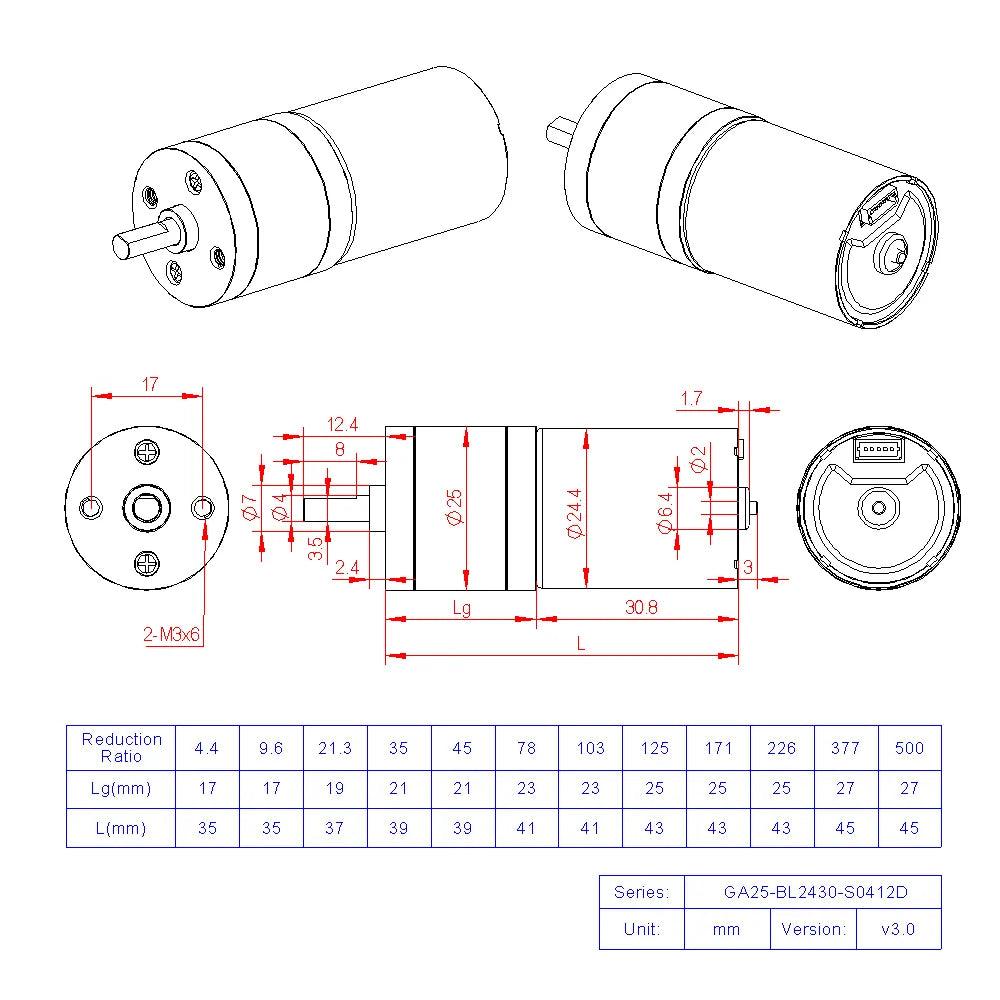

Shaft Size: 4mm(diameter) * 12mm(length)
Shaft Shape: D-Cut, 3.5mm(thickness) * 8mm(length)
Rated Voltage: DC12/24V (can be reduced)
Motor Weight: 110g (approx.)
Motor Use Temperature: 0℃ - 70℃
Motor Storage:
- Temperature: 0℃ - 40℃
- Humidity: 15% -90% RH

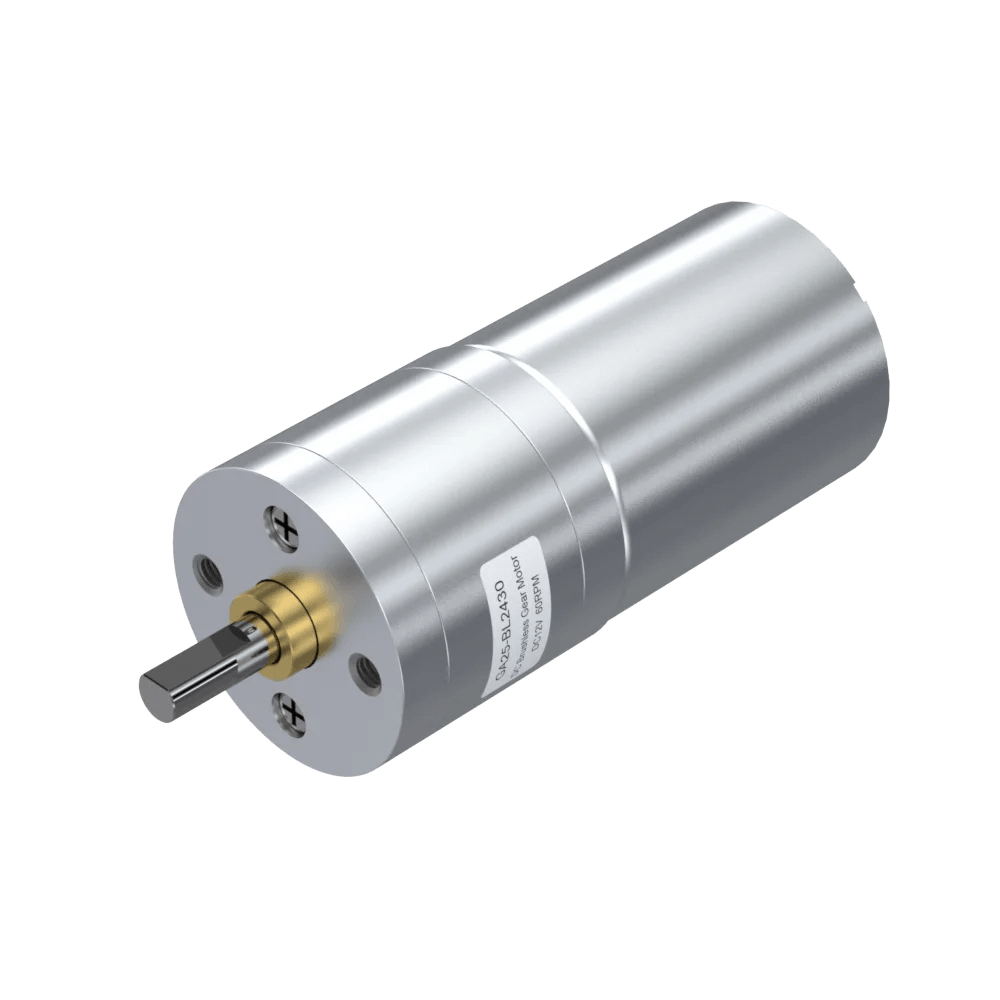

The GA25-BL2430 is DC Brushless Gear Motor with high torque, low RPM (low speed), and long life.

The BL2430 motor’s rated voltage is DC 12/24V, and it can be reduced.

When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

Usually when the voltage is reduced to 6/12V (the 1/2 of DC12/24V), then the speed, current and torque are about 1/2 of those of 12/24V.

The Speed (RPM) in the purchase option is rated voltage DC12/24V.

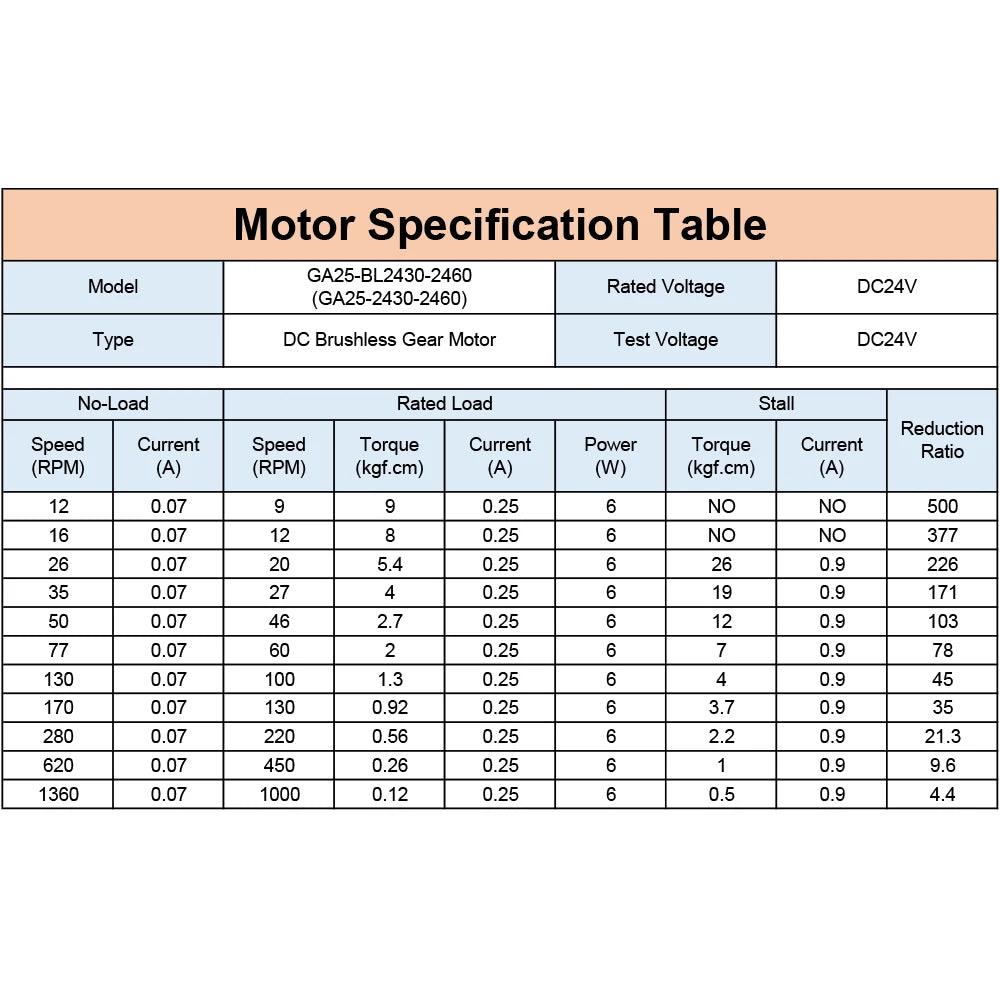

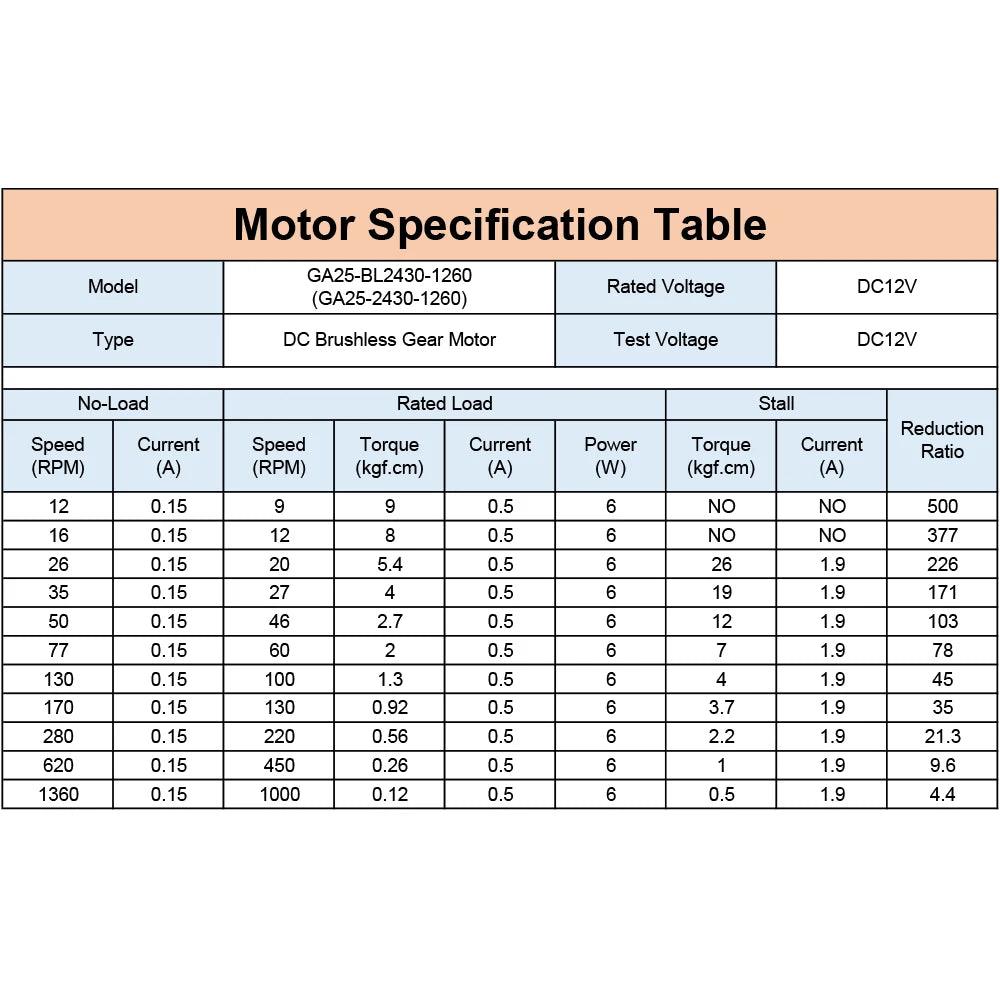

The No-load Speed at rated voltage DC 12/24V (Speeds in purchase options) is:
12 16 26 35 50 77 130 170 280 620 1360 RPM

The No-load speed at reduced voltage DC 6/12V is (Speeds in purchase options divided by 2):
6 8 13 17.5 25 38.5 65 85 140 310 680 RPM

For more voltages and speeds, please contact us.

Package included:
- 1 x Motor
- 1 x Motor Wire (about 200mm length)

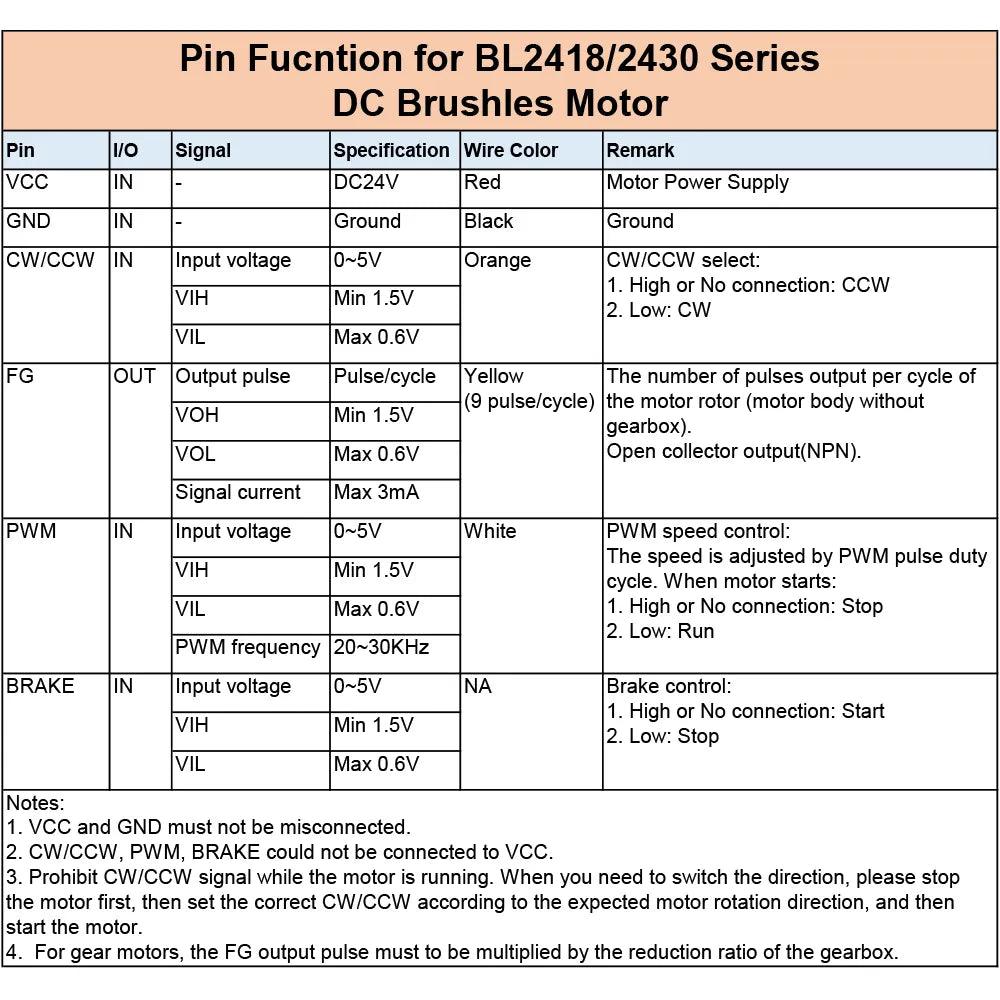

Notes:
1. VCC and GND must not be misconnected.
2. CW/CCW, PWM, BRAKE could not be connected to VCC.
3. Prohibit CW/CCW signal while the motor is running. When you need to switch the direction, please stop the motor first, then set the correct CW/CCW according to the expected motor rotation direction, and then start the motor.
4. For gear motors, the FG output pulse must to be multiplied by the reduction ratio of the gearbox.

Notes: Pin connect for DC brushless motor describes how the motor's pins are connected when the motor is started, and how the speed and brakes are controlled.
