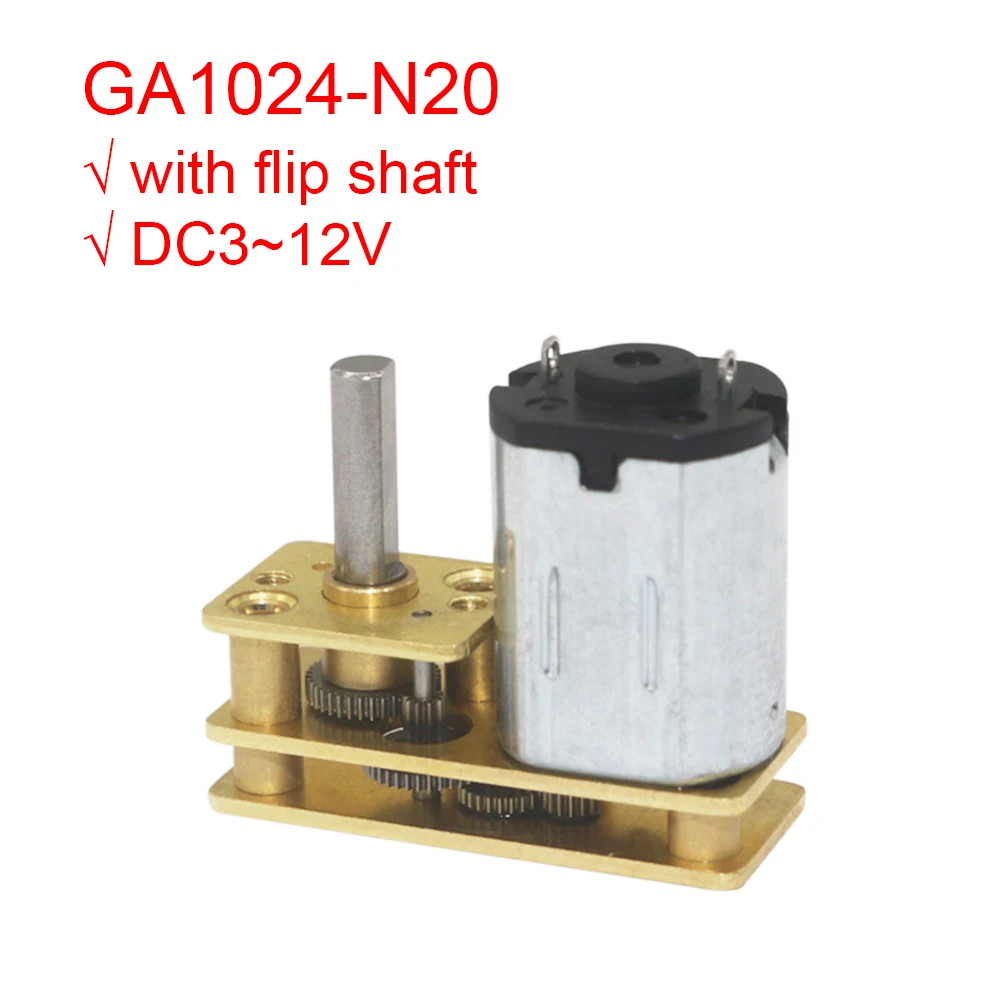

GA1024-N20 Flip Output 3mm D Cut Shaft DC 12V (6V 3V) Mini Gear Motor for Electronic Lock

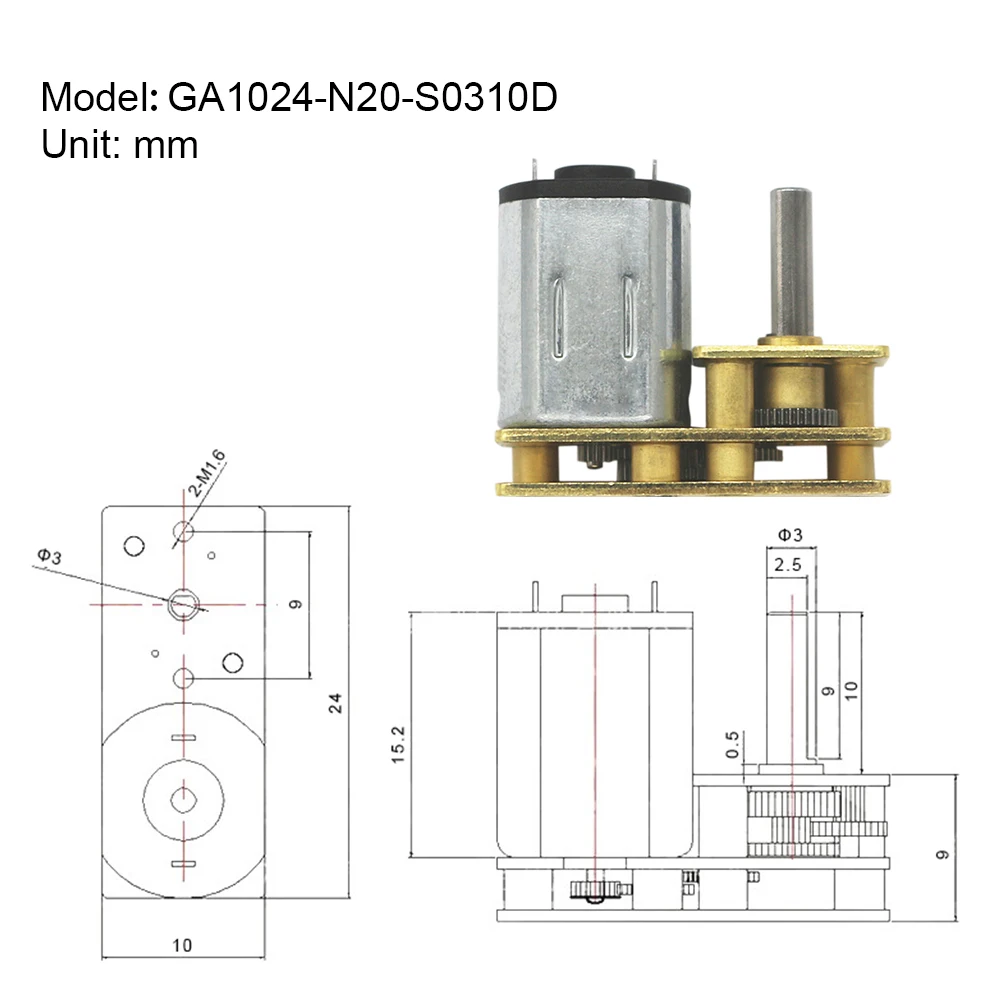

The N20 series motors have various models, click for details:Model: GA1024-N20-S0310D
Gear Box Name: GA1024
Gear Box Type: Spur Gear
Motor Body Name: N20 (B1215)
Motor Body Type: DC Brushed Motor (BDC)
Rated Voltage: DC 12V (can be reduced to 6V, 3V, etc.)
Motor Weight: 20g (approx.)
Motor Length: 19.2mm
Motor Body Size: 24mm(length) * 10mm(width) * 19.2mm(height)
Shaft Number: Single
Shaft Size: 3mm(diameter) * 10mm(length)
Shaft Shape: D-Cut, 2.5mm(thickness) * 9mm(length)
Motor Use Temperature: 0℃ - 70℃
Motor Storage:
- Temperature: 0℃ - 40℃
- Humidity: 15% -90% RH

The motor's rated voltage is DC 12V, it can be reduced to 6V, 3V, etc. When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

The Speed (RPM) in the purchase option is based on DC12V.
When the voltage is reduced to 6V, the speed is about 1/2 of those of 12V. So if you want a motor of 6V m RPM, please select 12V 2*m RPM, such as want 6V 30 RPM select 12V 60 RPM.
When the voltage is reduced to 3V, the speed is about 1/4 of those of 12V. So if you want a motor of 3V n RPM, please select 12V 4*n RPM, such as want 6V 15 RPM select 12V 60 RPM.

The No-load Speed at rated voltage DC 12V (Speeds in purchase options) is:
30 50 60 80 100 120 140 160 200 240 300 400 500 600 800 1000 1200 1400 1600 2000 2400 3000 4000 RPM

The No-load speed at DC 6V is (Speeds in purchase options divided by 2):
15 25 30 40 50 60 70 80 100 120 150 200 250 300 400 500 600 700 800 1000 1200 1500 2000 RPM

The No-load speed at DC 3V is (Speeds in purchase options divided by 4):
7.5 12.5 15 20 25 30 35 40 50 60 75 100 125 150 200 250 300 350 400 500 600 750 1000 RPM

For more voltages and speeds, please contact us.

Notes:
The vast majority of this serial motor models are shipped within 3 days after receipt of the paid order, but due to the large number of product models, some models may be temporarily out of stock and require an additional 3 to 4 days to stock, so the promised delivery time is 7 days.

Package included:
- 1 x Motor
