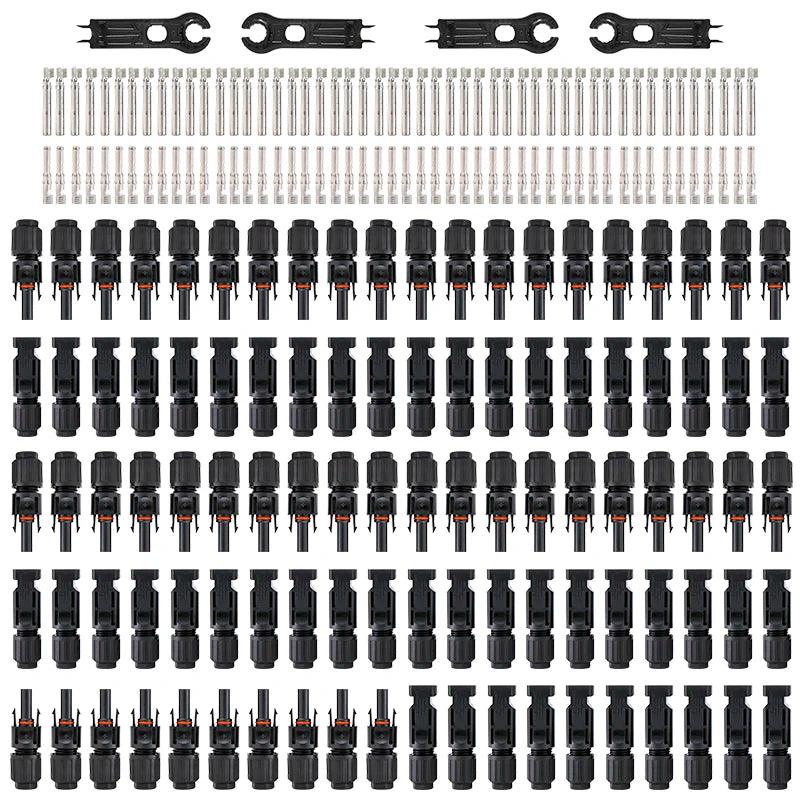

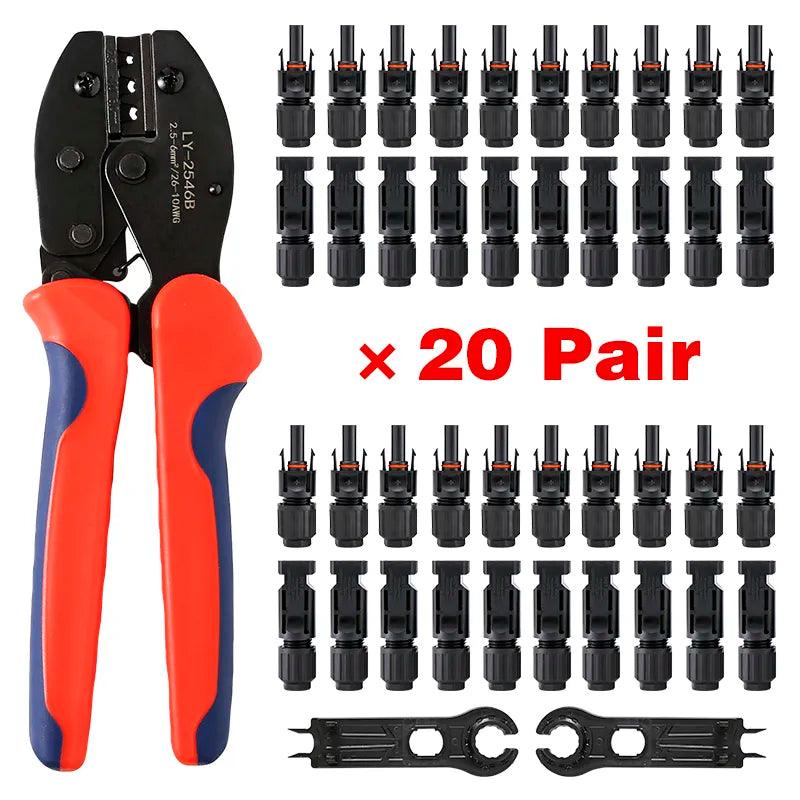

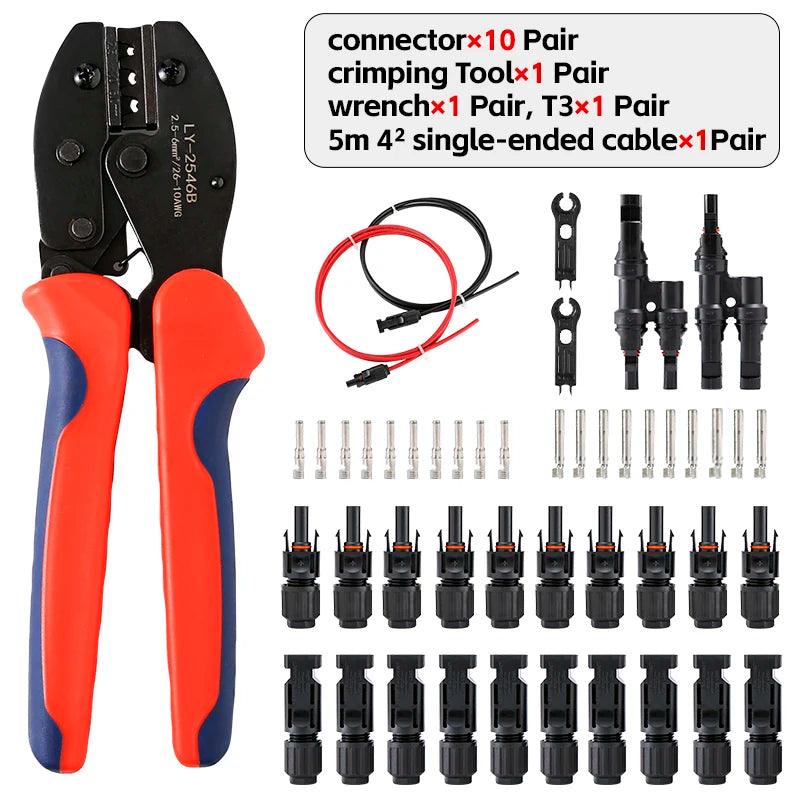

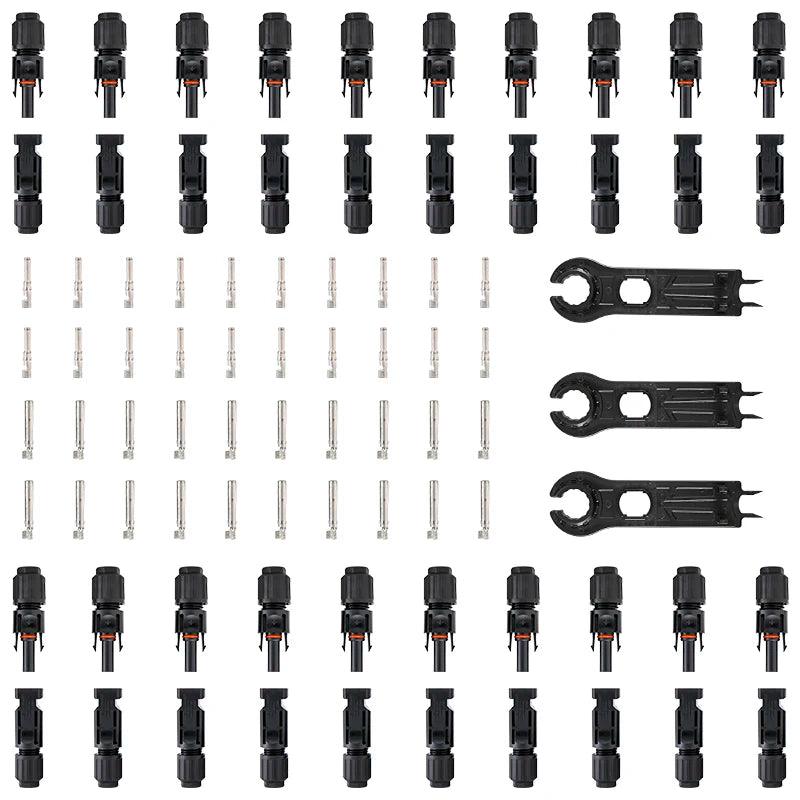

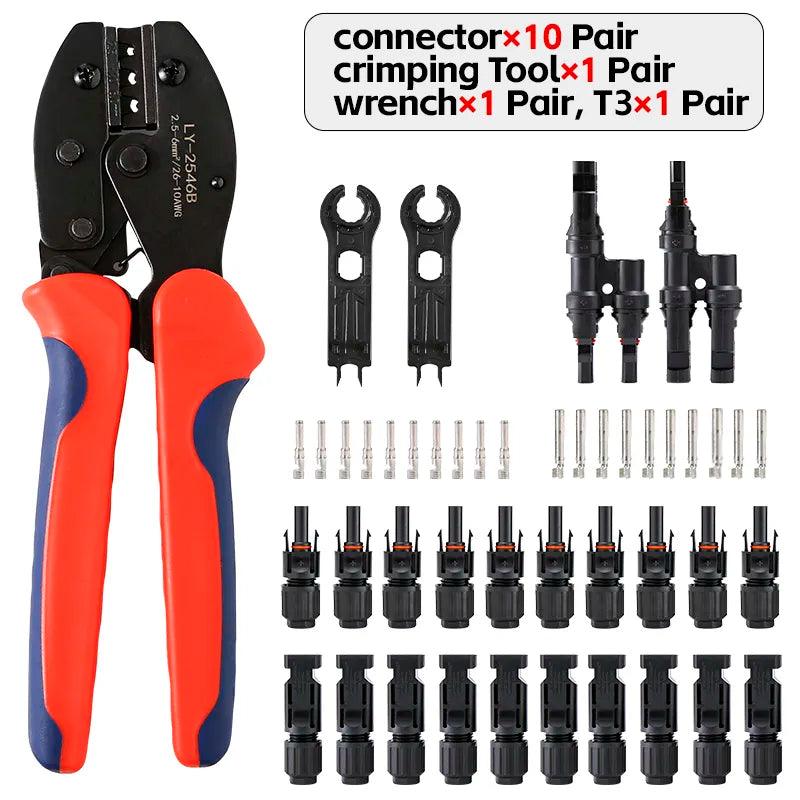

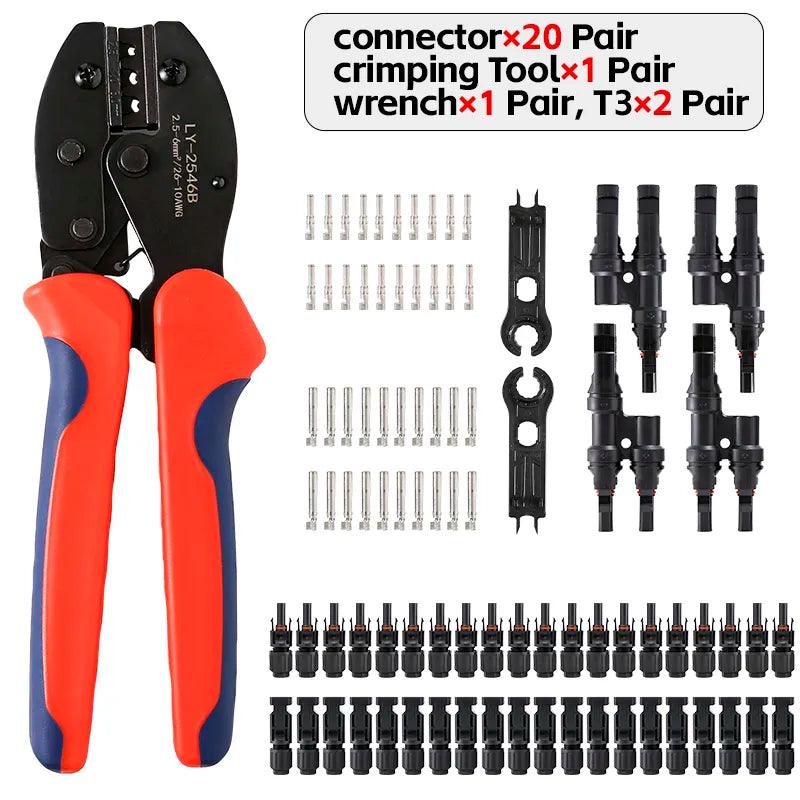

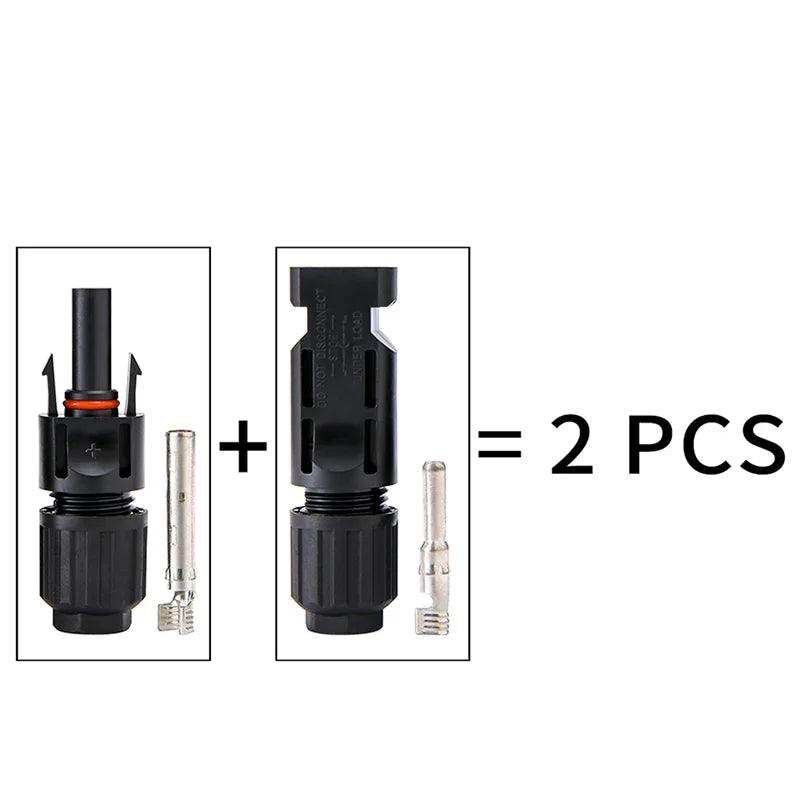

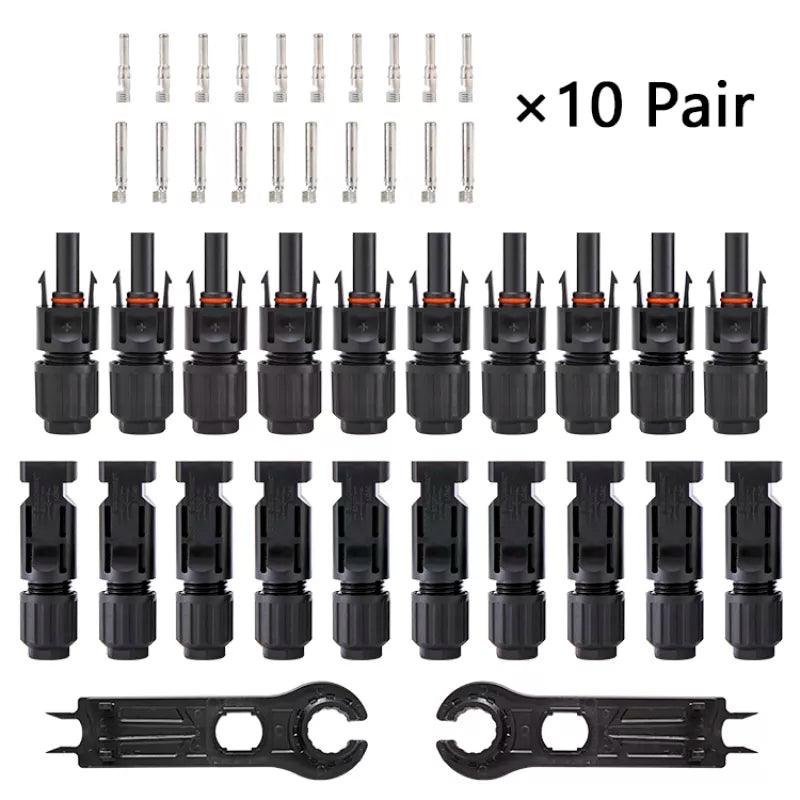

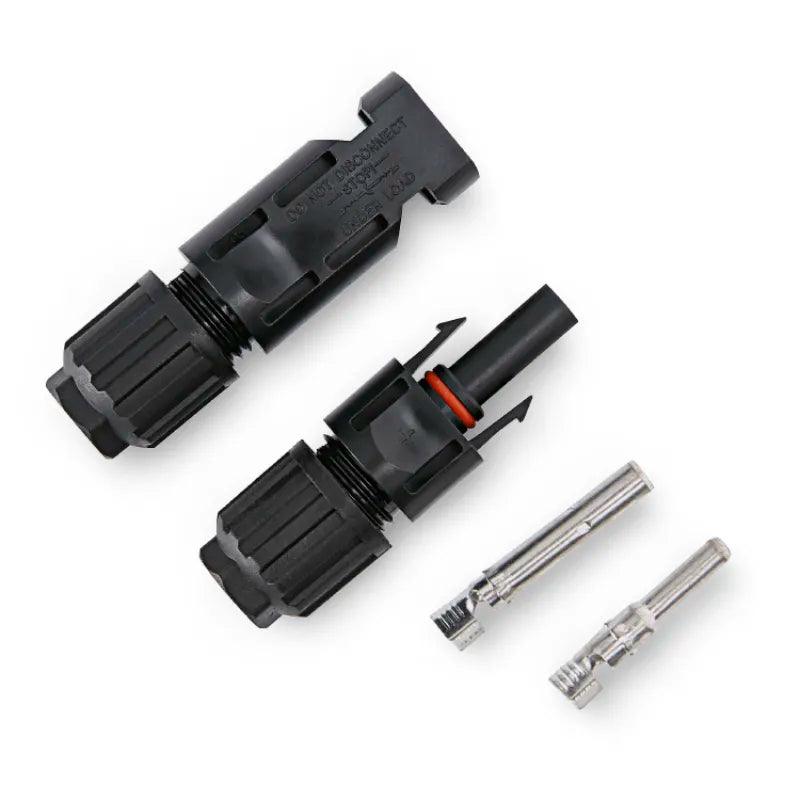

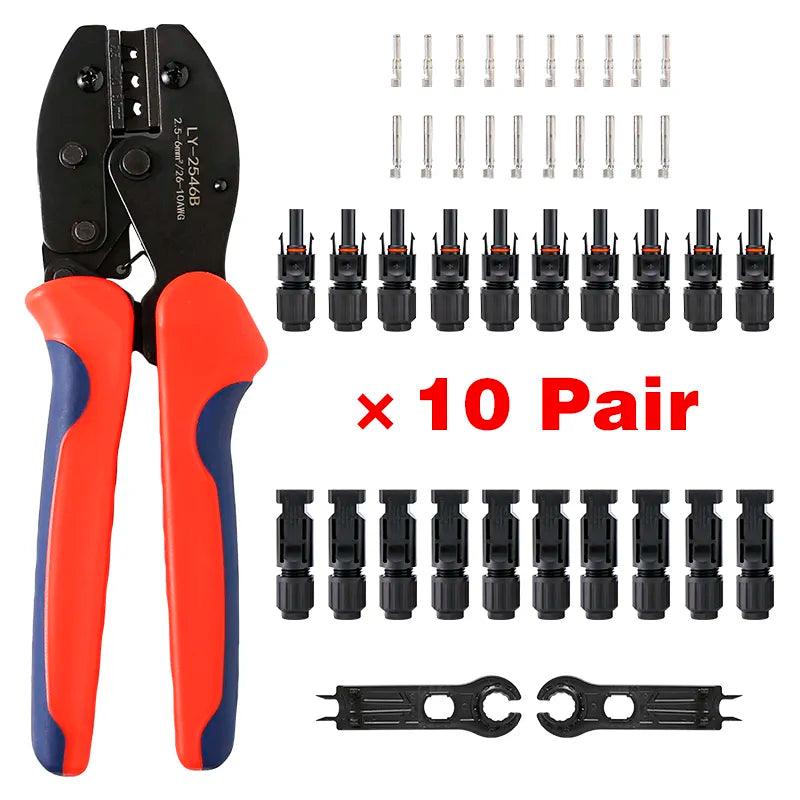

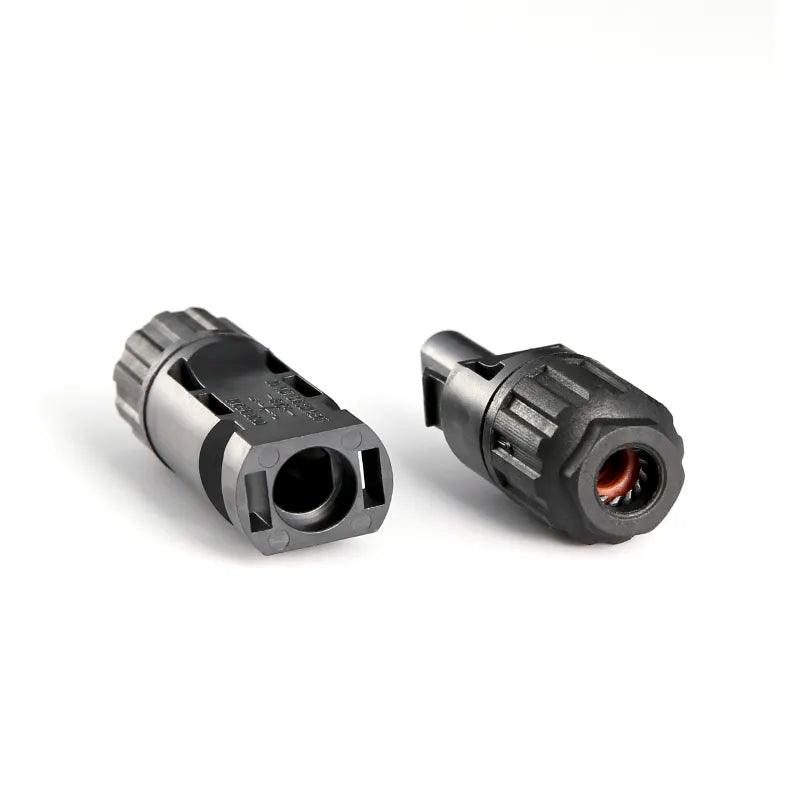

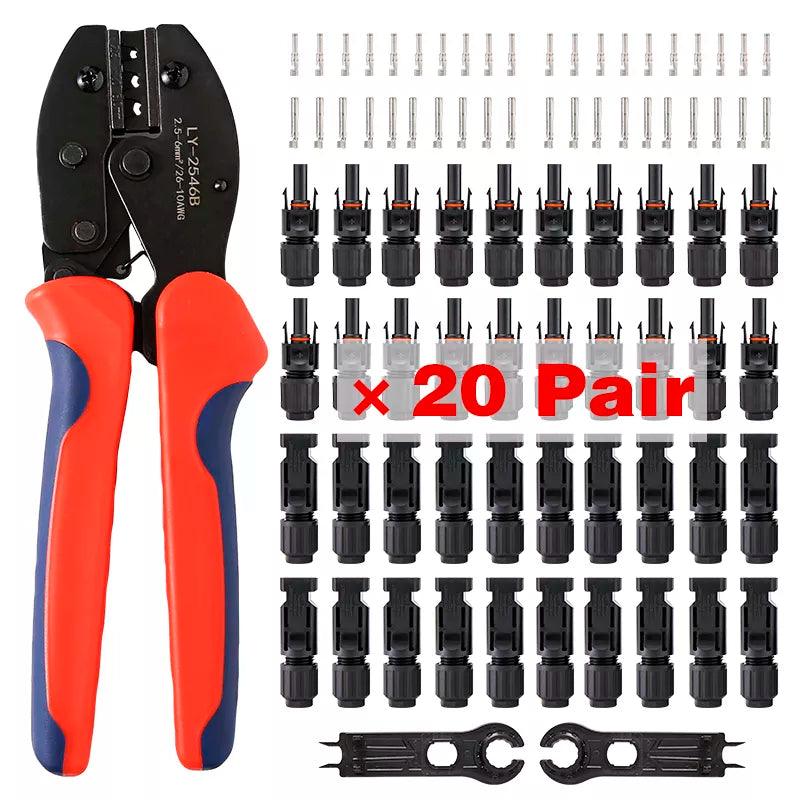

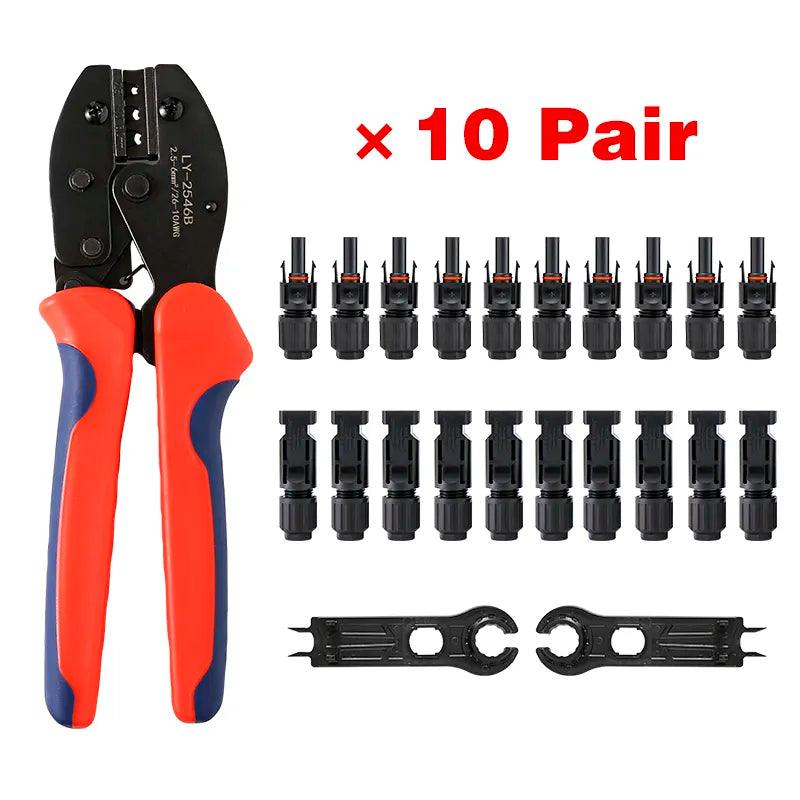

Free shipping DC Solar Connector 1000V30A Solar Panel Branch PV Connectors Connect Stecker Tool Crimping pliers Wholesale
Couldn't load pickup availability
SPECIFICATIONS
Free shipping DC Solar Connector 1000V30A Solar Panel Branch PV Connectors Connect Stecker Tool Crimping pliers Wholesale
Brand Name: PVMC
Origin: Mainland China
Model Number: 1000v
Voltage: 1000V
Certification: CE
Rated voltage: 1000V(Solar Connectors Rated voltage)
Rated current: 30A( Connector Rated current)
Degree of waterproof: IP67
Adapter Wire: OD 5mm-7mm
Connector Insulation material: PPO/PPE
Flammability rating: UL94-V0
Connector contact resistance: ≤0.5mΩ
Choice: yes
High quality Material】WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!
【Widely Compatible With Solar Cable】Compatible with PV cables with different insulation diameters (2.5m㎡--6m㎡).
【Easy installing】Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
【IP67 Professional Waterproof】Good waterproof performance for outdoors usage.
Specifications
* Rated current: 30A (2.5m㎡--6m㎡)
* Rated voltage: 1000V DC
* Connector contact resistance:≤0.5mΩ
* Degree of waterproof: IP67
* Flammability rating: UL94-V0
* Safety: Class II
* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )
* Adapter Wire: OD 5mm-7mm
* Connector conductor material: copper, Tin
* Connector Insulation material: PPO/PPE
* Insertion force: less or equal to 50N
* Withdrawal force: over or equal to 50N
* Operating temperature range: -40℃～ +85℃
* Connection: Clamp
