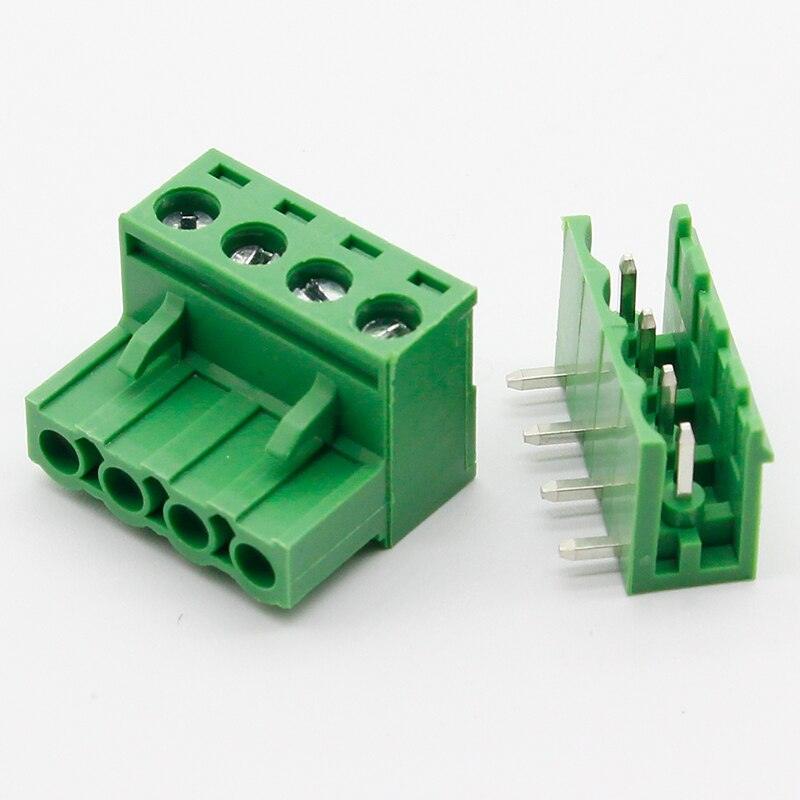

Free shipping 10 sets ht5.08 4pin Right angle Terminal plug type 300V 10A 5.08mm pitch connector pcb screw terminal block

$4.59 USD
$5.39 USD $4.59 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Free shipping 10 sets ht5.08 4pin Right angle Terminal plug type 300V 10A 5.08mm pitch connector pcb screw terminal block

Model Number: 4P

Certification: CE

Brand Name: ELECAPITAL

Packet:10 Sets 3P 5.08mm PCB Terminals
            (includes 10 Pcs Plugs + 10 Pcs Sockets)

Pitch:5.08mm
Poles: 3P
Screw: M2.5 Steel Zinc plated
Wire guard: phosphor bronze, Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
ELECTRICAL
Rated current: 10A
Withstanding voltage: AC1500V/1Min
MECHANICAL
Temp range: -40~+105 Celsius
MAX Soldering: +150 Celsius for 5sec
Torque: 0.4 Nm (3.5lb.in)
Strip length: 7-8mm
For AWG 22-14
MAX 2.5MM2
