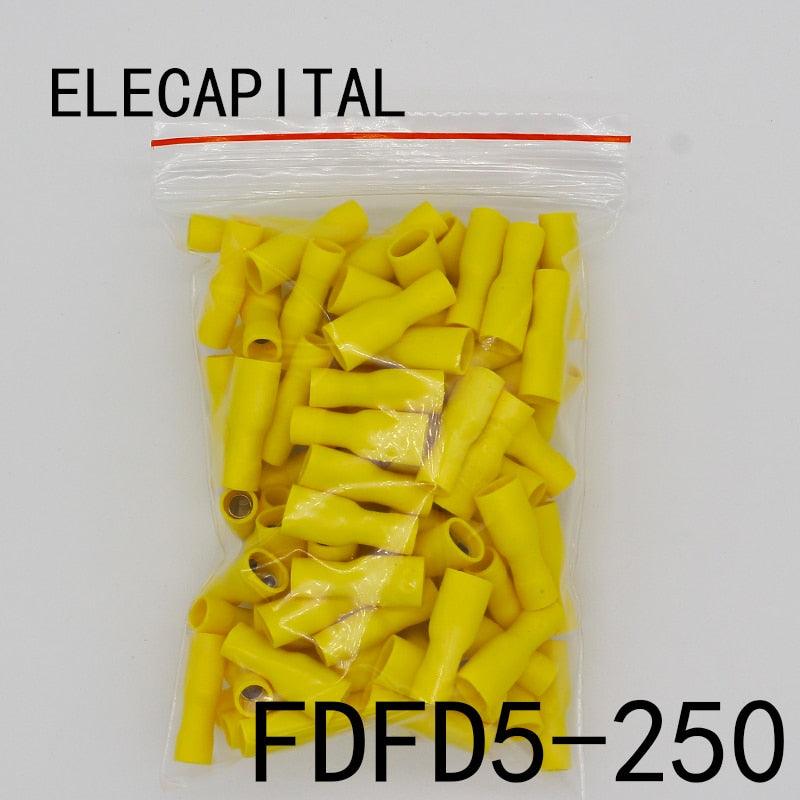

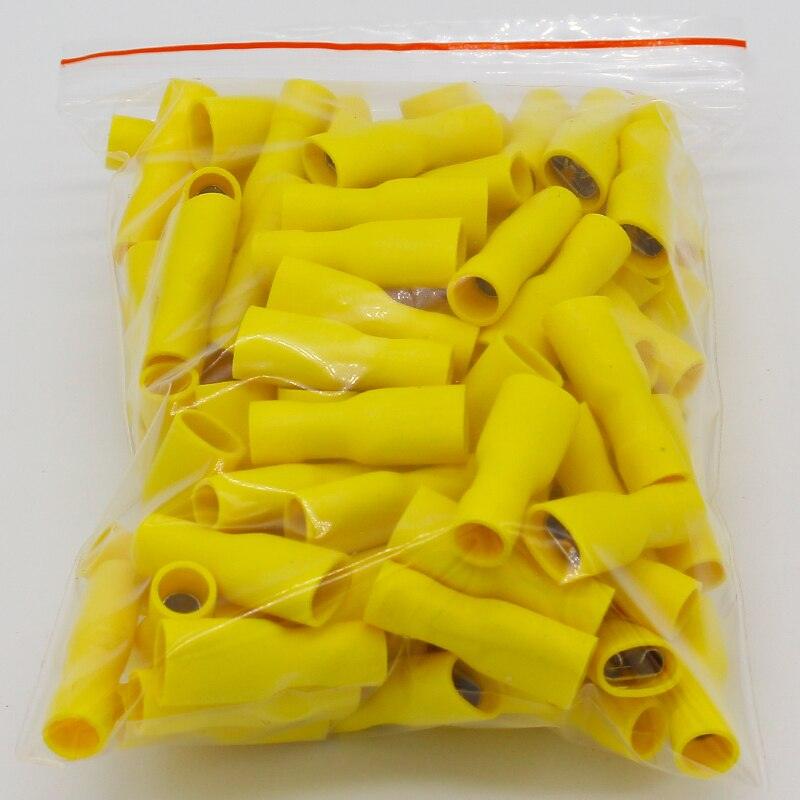

FDFD5-250 FDFD5.5-250 Female Insulated Electrical Crimp Terminal Connectors Cable Wire Connector 100PCS/Pack AWG 12-10 FDFD

$5.76 USD
$7.25 USD $5.76 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

FDFD5-250 FDFD5.5-250 Female Insulated Electrical Crimp Terminal Connectors Cable Wire Connector 100PCS/Pack AWG 12-10 FDFD

Model Number: FDFD5-250

Certification: CE

Brand Name: ELECAPITAL

Cable size:0.5-1.5mm⊃2;(22-16AWG) max current:Imax=10A;Material Brass

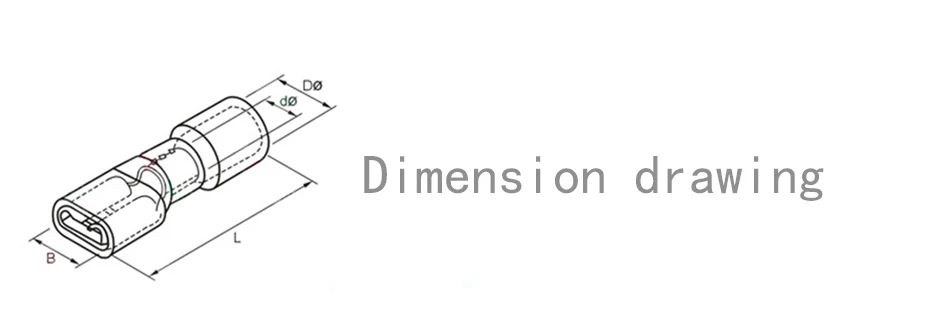

Item NO. Nema Tab(mm) Dimension(mm)
B L DΦ dΦ
FDFD 1.25-110(5) 0.5x2.8 4.6 19 3.8 1.7
FDFD 1.25-187(5) 0.5x4.75 5.6 20 3.8 1.7
FDFD1.25-187(8) 0.8x4.75 5.6 20 3.8 1.7
FDFD 1.25-250 0.8x6.3 7.4 21.5 3.8 1.7



Cable size:1.5-2.5mm⊃2;(22-16AWG) max current:Imax=15A;Material Brass
Item NO. Nema Tab(mm) Dimension(mm)
B L DΦ dΦ
FDFD 2-110(5) 0.5x2.8 3.2 19 4.5 2.3
FDFD 2-187(5) 0.5x4.75 5.6 20 4.5 2.3
FDFD2-187(8) 0.8x4.75 5.6 20 4.5 2.3
FDFD 2-250 0.8x6.3 7.4 21.5 4.5 2.3



Cable size:4-6mm⊃2;(22-16AWG) max current:Imax=24A;Material Brass
Item NO. Nema Tab(mm) Dimension(mm)
B L DΦ dΦ
FDFD 5.5-250 0.8x6.35 7.4 25.5 5.7 3.4
