0-500A AC Current Transmitter Current Sensor 4-20ma AC Current Transducer
Couldn't load pickup availability
SPECIFICATIONS

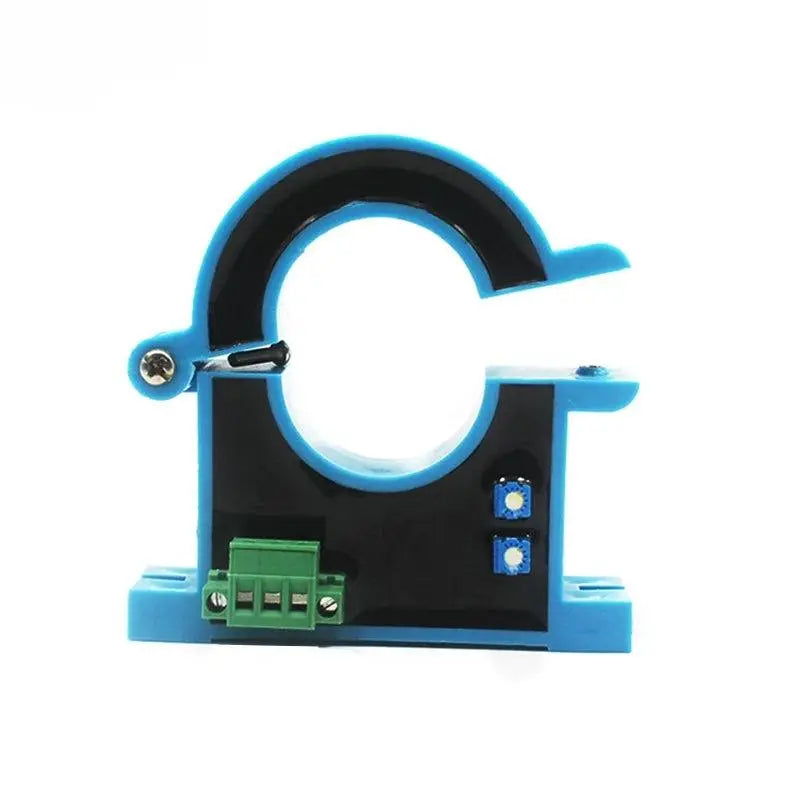

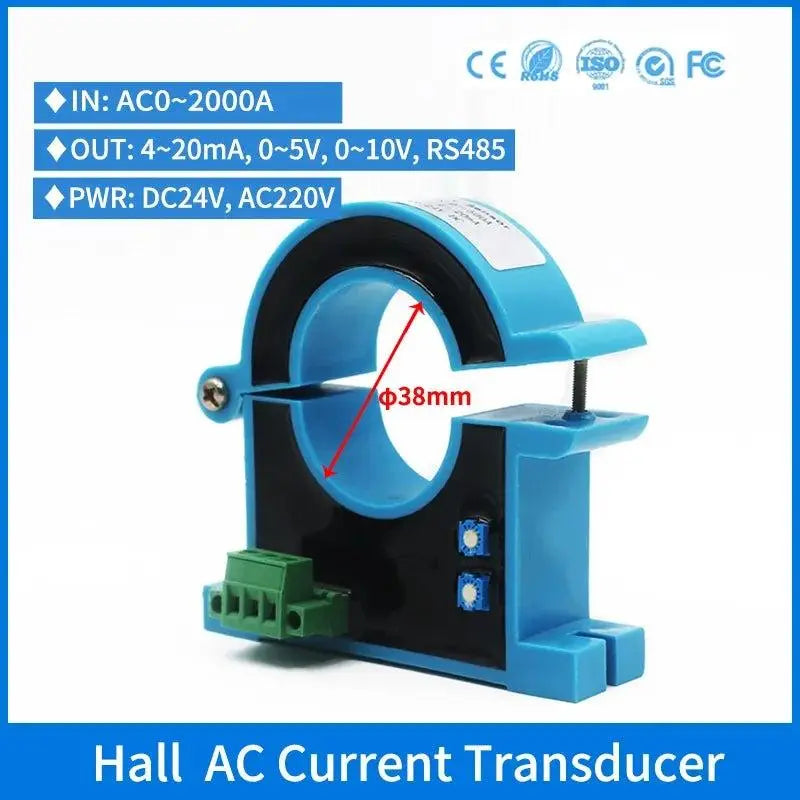

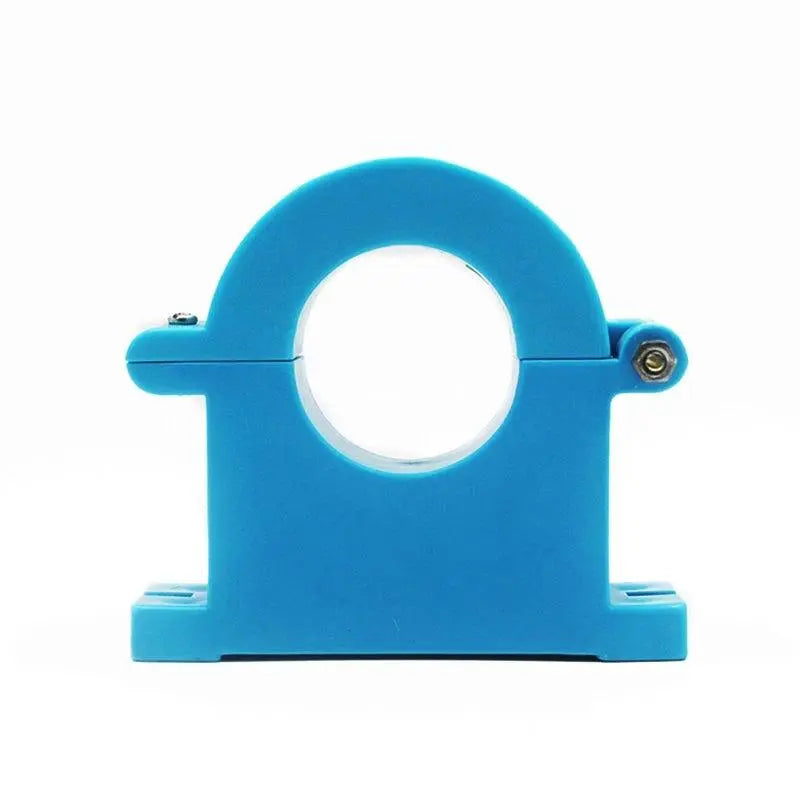

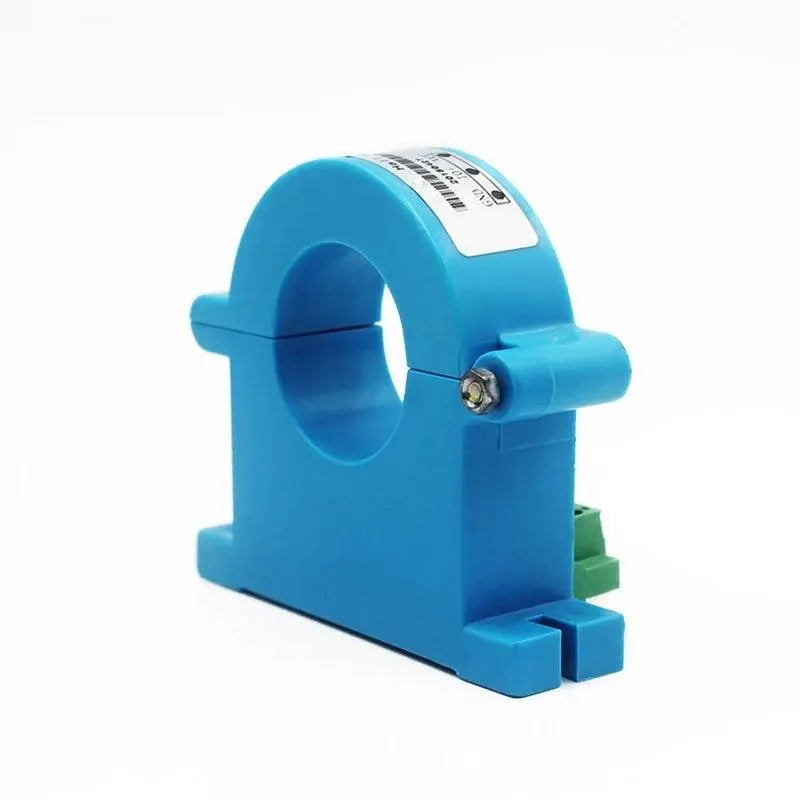

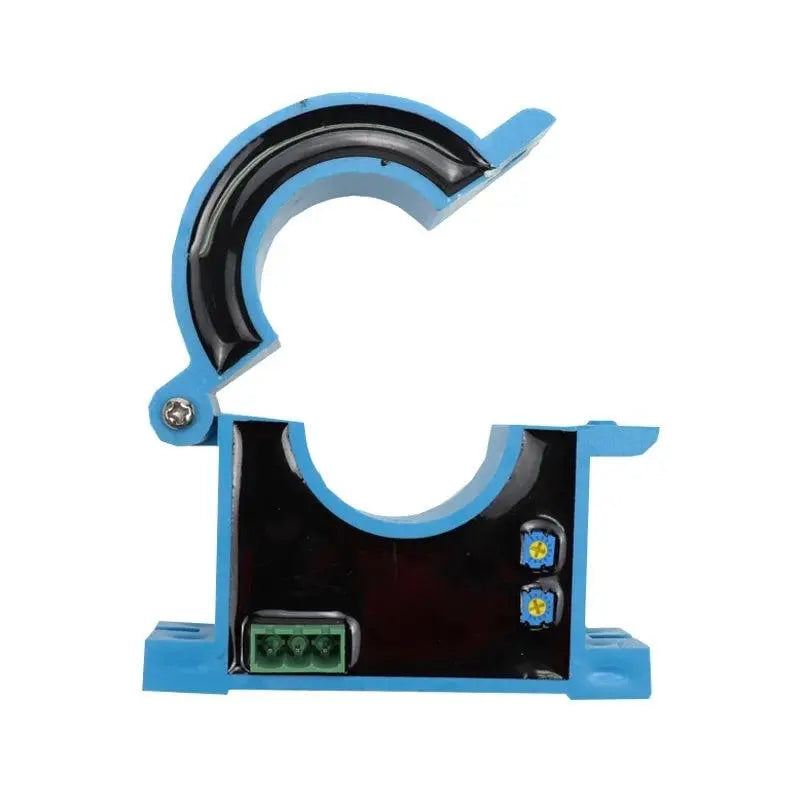

Factory price 0-500A AC Current Transmitter Hall Effect Open Loop Split Core Current Sensor 4-20ma AC Current Transducer 38mm aperture|DC24V
Supply Voltage: DC12V-24V, AC220V
Response time: <200ms
Product name: Hall current transducer
Output signal: 4-20mA,0-5V,0-10V,RS485
Origin: Mainland China
Operating Temperature: -30℃~+85℃

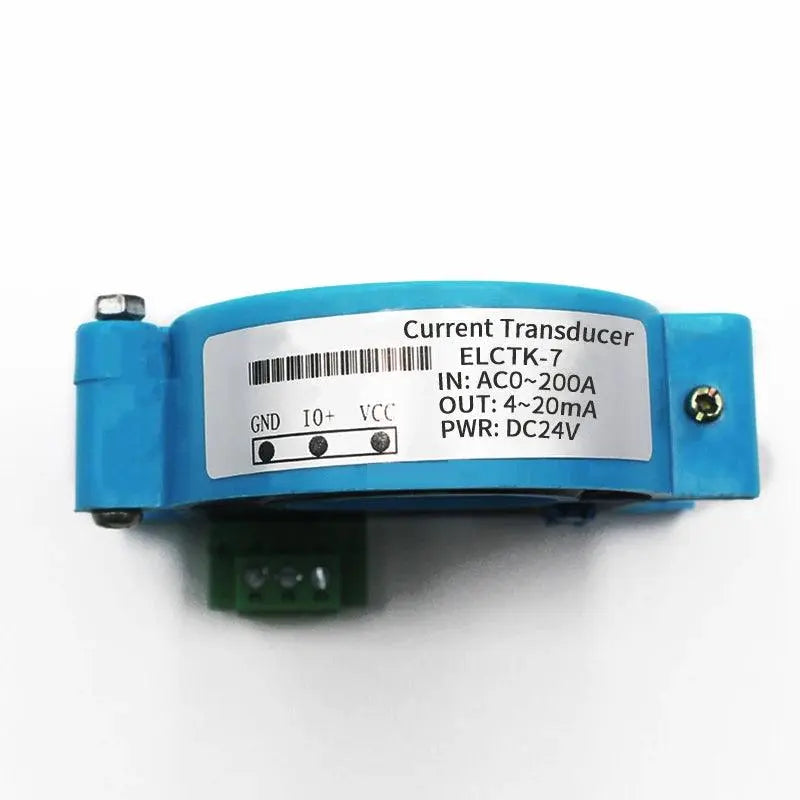

Model Number: ELCTK-7
Installation method: DIN 35mm rail+ plane screw fixation
Input current range: AC 0-2000A
Frequency range: 40-60HZ
Display Type: Analog Only
Dimensions: 25mm,38mm
DIY Supplies: ELECTRICAL
Certification: CE
Brand Name: KEJUN
Accuracy Class: 0.5%FS
Factory price 0-500A AC Current Transmitter Hall Effect Open Loop Split Core Current Sensor 4-20ma AC Current Transducer
This link is special for AC current transducer.
DC current transducer link click here: DC current transducer
NOTES:
What we can make:
1. Current range: any range within AC/DC0~1500A
2. Output signal: 4~20mA, 0-10V, 0-5V, RS485
3. Power supply: 12Vdc, 24Vdc, 220Vac
4. Aperture diameter: 20mm,25mm,38mm,50mm,80mm
So: if you need other parameters, please contact me.
And tell me the current range, output signal, power supply, aperture diameter.
We can make special customization for you.
1>>. Working principle: Open loop direct measurement.
2>>. Usage: Used for measuring DC,AC,pulse current and other arbitrary waveform current.
3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.
4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.
5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.
6>>. Full channel configuration,parameters customized.
