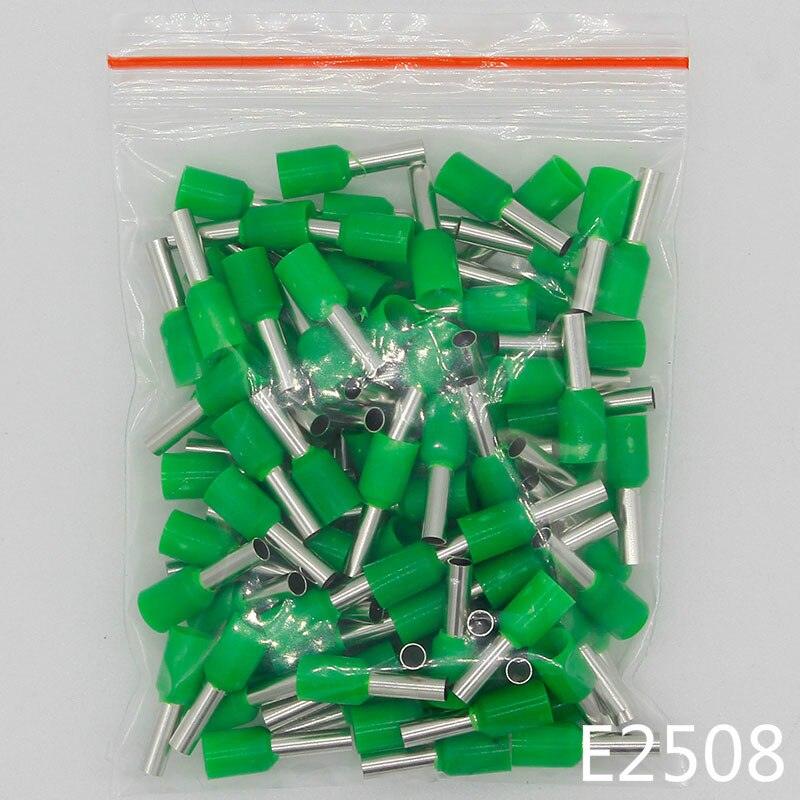

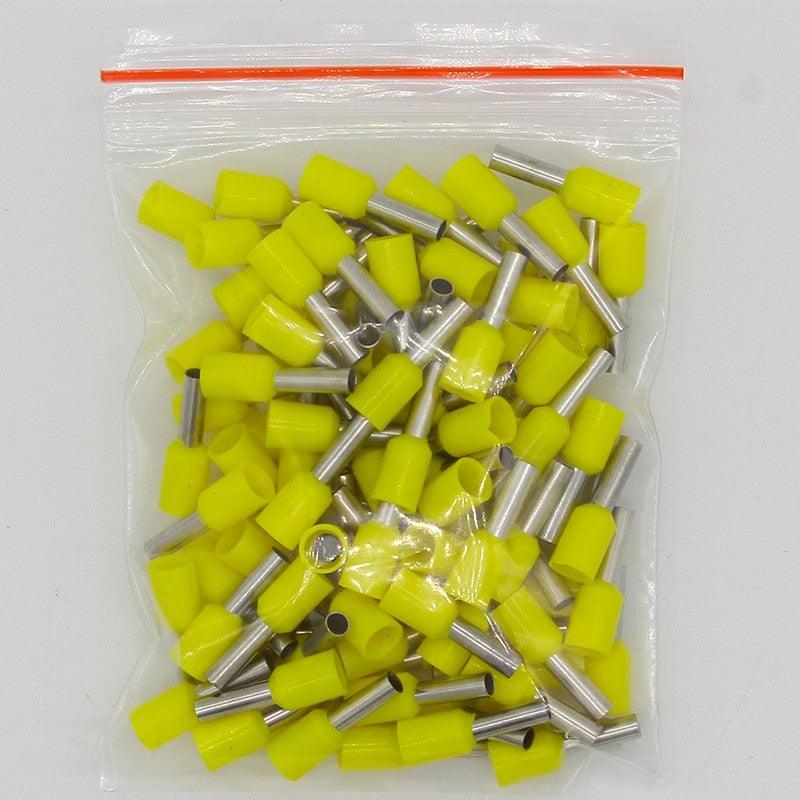

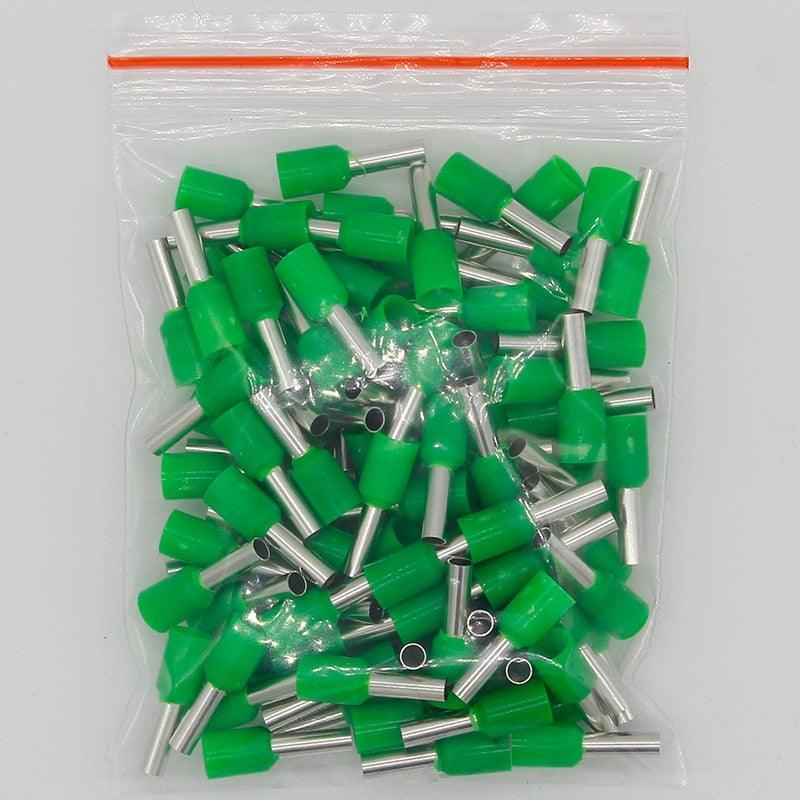

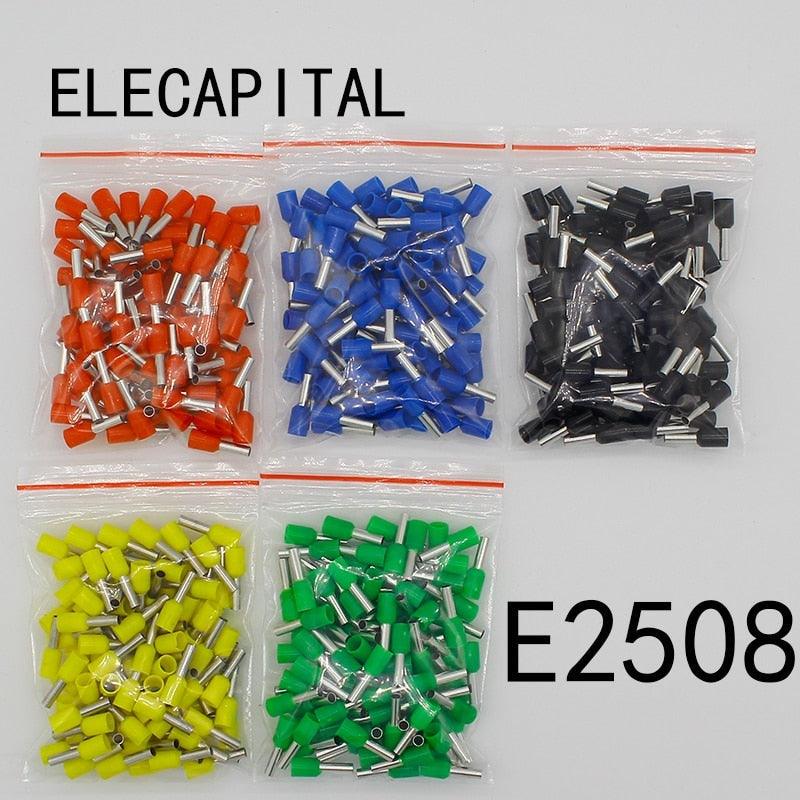

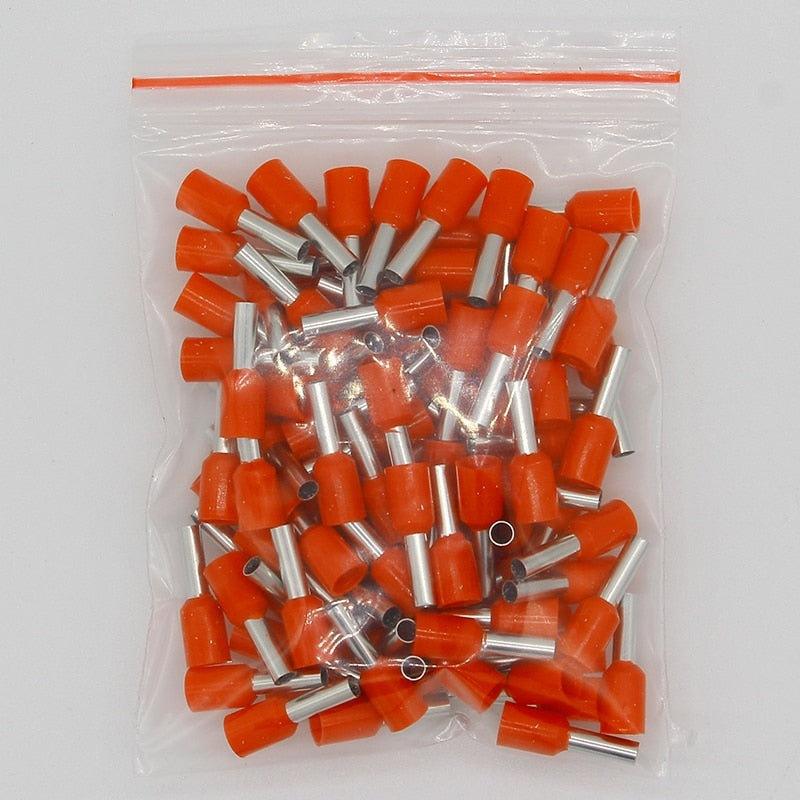

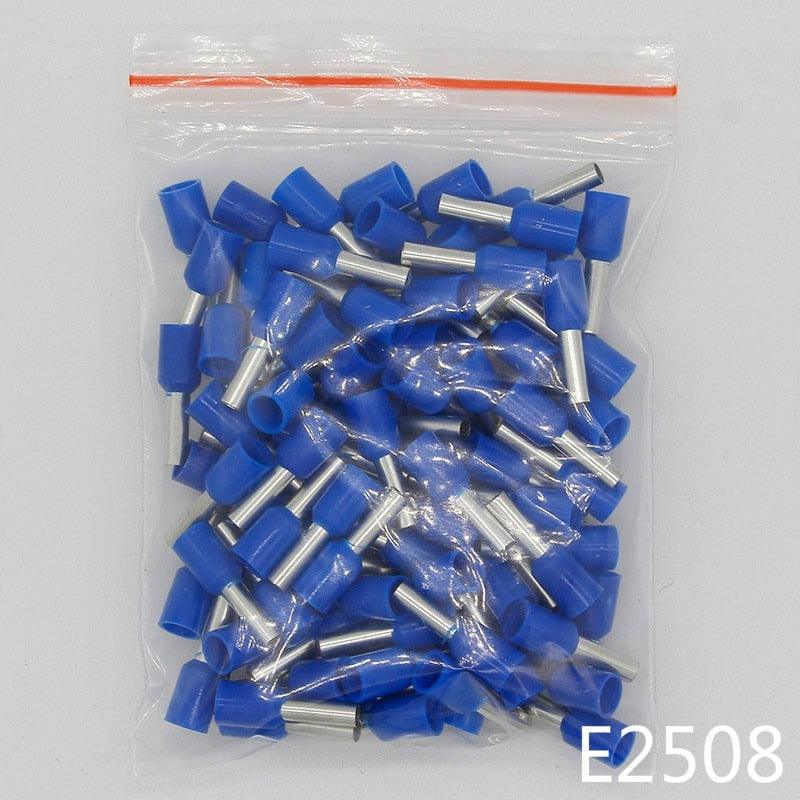

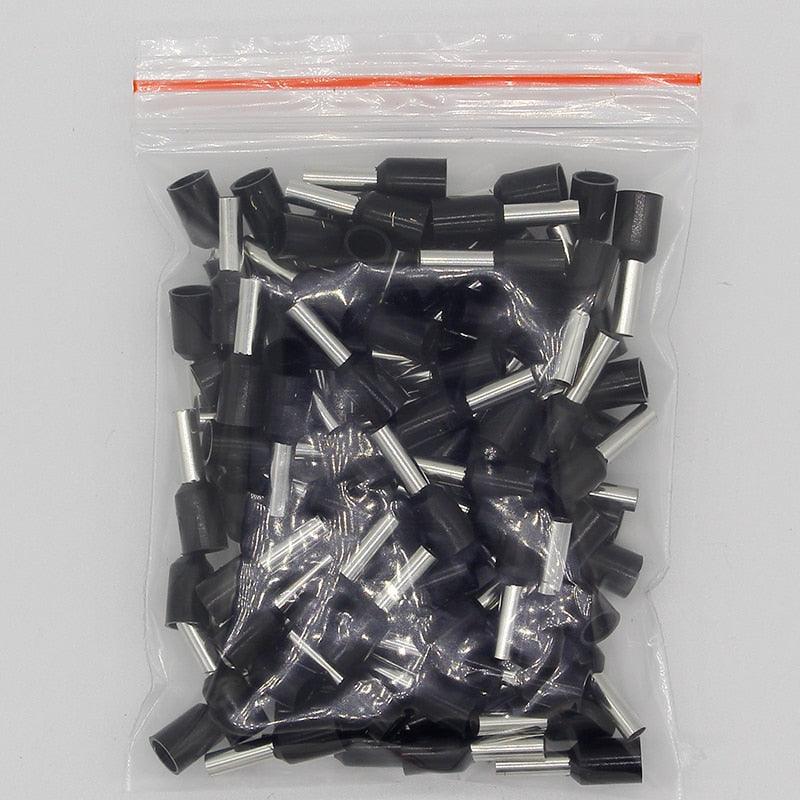

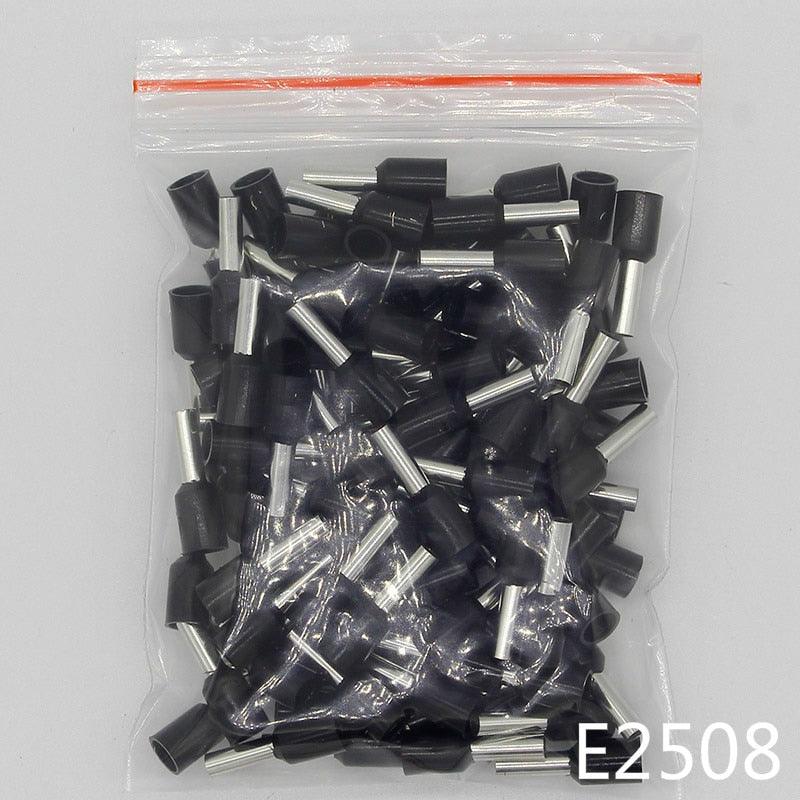

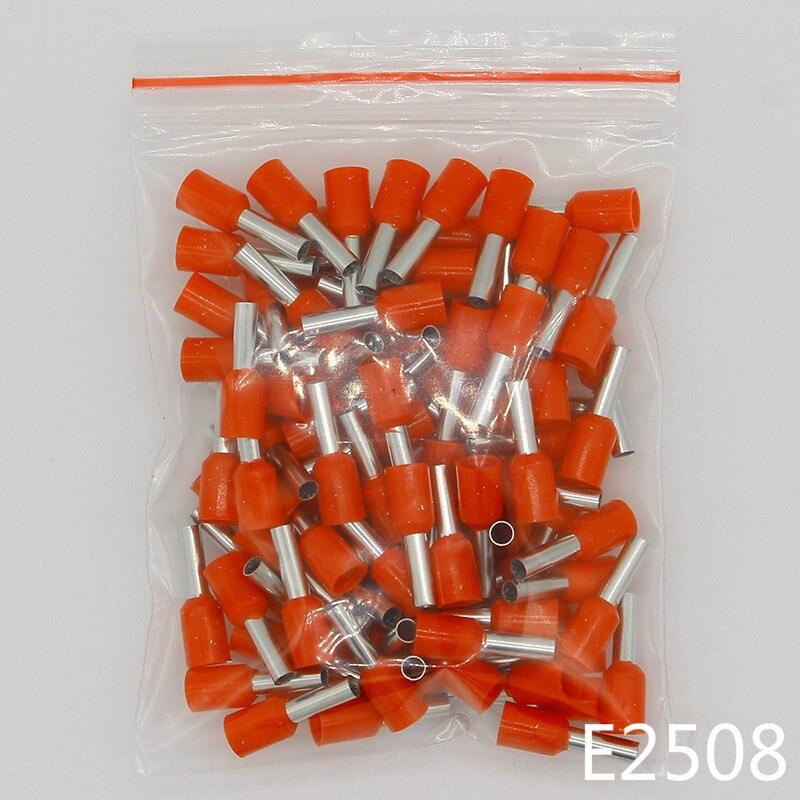

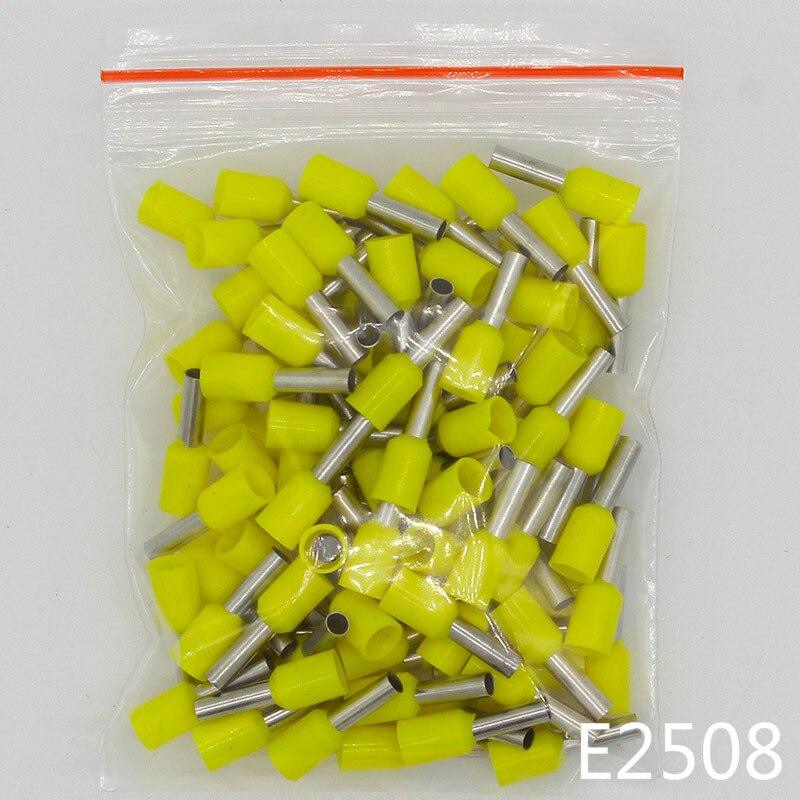

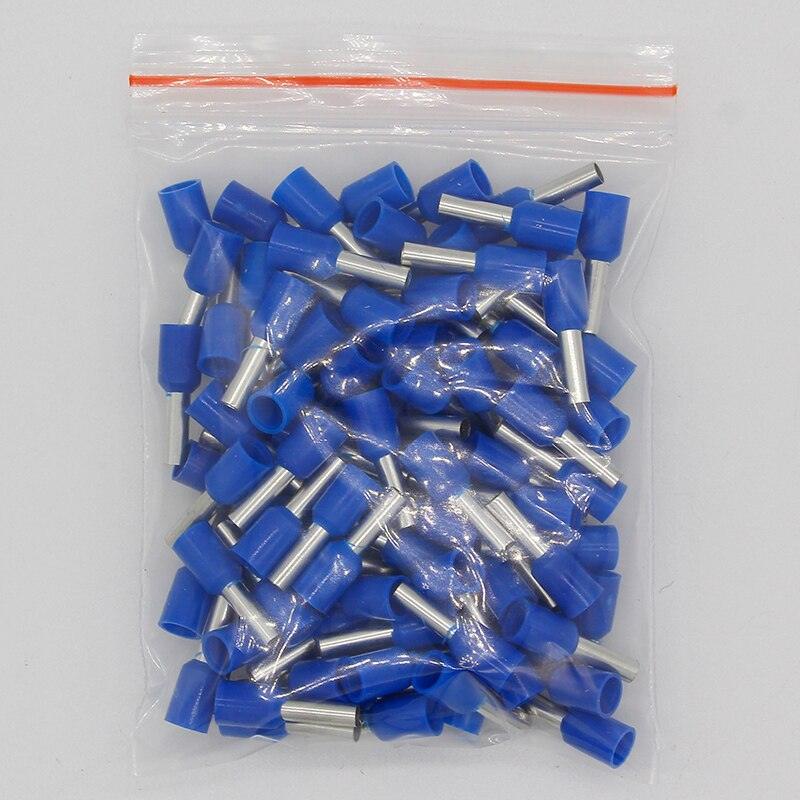

E2508 Tube insulating terminals 2.5MM2 100PCS/Pack Insulated Cable Wire Connector Insulating Crimp Terminal Connector E-
Regular price
$2.66 USD
Regular price
$1.27 USD
Sale price
$2.66 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
E2508 Tube insulating terminals 2.5MM2 100PCS/Pack Insulated Cable Wire Connector Insulating Crimp Terminal Connector E-
Model Number: E2508
Certification: CE
Brand Name: ELECAPITAL
|
Working temperature limit: 105 Ui = 300VThe Material of ends: Copper |
||||||||
| ITEMNO | Dimension(mm) | Conductor area(mm⊃2;) |
Insulating sleevecolor (Up)Germany (Down)France |
|||||
| F | L | W | DΦ | CΦ | A.W.G | |||
| E0506 | 6.0 | 12.0 | 2.6 | 1.3 | 1.0 | #22 | 0.5 |
Orange White |
| E0508 | 8.0 | 14.0 | ||||||
| E0510 | 10.0 | 16.0 | ||||||
| E7506 | 6.0 | 12.4 | 2.8 | 1.5 | 1.2 | #20 | 0.75 |
White Blue |
| E7508 | 8.0 | 14.6 | ||||||
| E7510 | 10.0 | 16.4 | ||||||
| E7512 | 12.0 | 18.4 | ||||||
| E876 | 6.0 | 12.4 | 3.0 | 1.7 | 1.4 | #18 | 1.0 |
Yellow Red |
| E878 | 8.0 | 14.6 | ||||||
| E1008 | 8.0 | 16.4 | ||||||
| E1012 | 12.0 | 18.4 | ||||||
| E1508 | 8.0 | 14.6 | 3.5 | 2.0 | 1.7 | #16 | 1.5 |
Red Black |
| E1510 | 10.0 | 16.4 | ||||||
| E1518 | 18.0 | 24.4 | ||||||
| E2508 | 8.0 | 15.2 | 4.0 | 2.6 | 2.3 | #14 | 2.5 |
Blue Gray |
| E2512 | 12.0 | 19.0 | ||||||
| E2518 | 18.0 | 25.0 | ||||||
| E4009 | 9.0 | 16.5 | 4.4 | 3.2 | 2.8 | #12 | 4.0 |
Gray Orange |
| E4012 | 12.0 | 19.5 | ||||||
| E4018 | 18.0 | 25.5 | ||||||
| E6012 | 12.0 | 20.0 | 6.3 | 3.9 | 3.5 | #10 | 6.0 |
Black Green |
| E6018 | 18.0 | 26.0 | ||||||
| E10-12 | 12.0 | 21.5 | 7.6 | 4.9 | 4.5 | #7 | 10.0 | Milky Brown |
| E10-18 | 18.0 | 27.5 | ||||||
| E16-12 | 12.0 | 22.2 | 8.8 | 6.2 | 5.8 | #5 | 16.0 |
Green Milky |
| E16-18 | 18.0 | 28.2 | ||||||
| E25-16 | 16.0 | 29.0 | 11.2 | 7.9 | 7.5 | #4 | 25.0 |
Brown Black |
| E25-22 | 22.0 | 35.0 | ||||||
| E35-16 | 16.0 | 30.0 | 12.7 | 8.7 | 8.3 | #2 | 35.0 | Taupe |
| E35-25 | 25.0 | 39.0 | ||||||
| E50-20 | 20.0 | 36.0 | 15.3 | 10.9 | 10.3 | #1 | 50.0 | Olive |
| E50-25 | 25.0 | 41.0 | ||||||
