Double Shaft Length 19mm DC Gear Motor Electric 3V 6V 12V 24V Low Speed 3.5rpm To 120rpm Self-locking Motor Metal 12 Volt Engine
Regular price
$34.53 USD
Regular price
$37.72 USD
Sale price
$34.53 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Double Shaft Length 19mm DC Gear Motor Electric 3V 6V 12V 24V Low Speed 3.5rpm To 120rpm Self-locking Motor Metal 12 Volt Engine
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Gear Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1

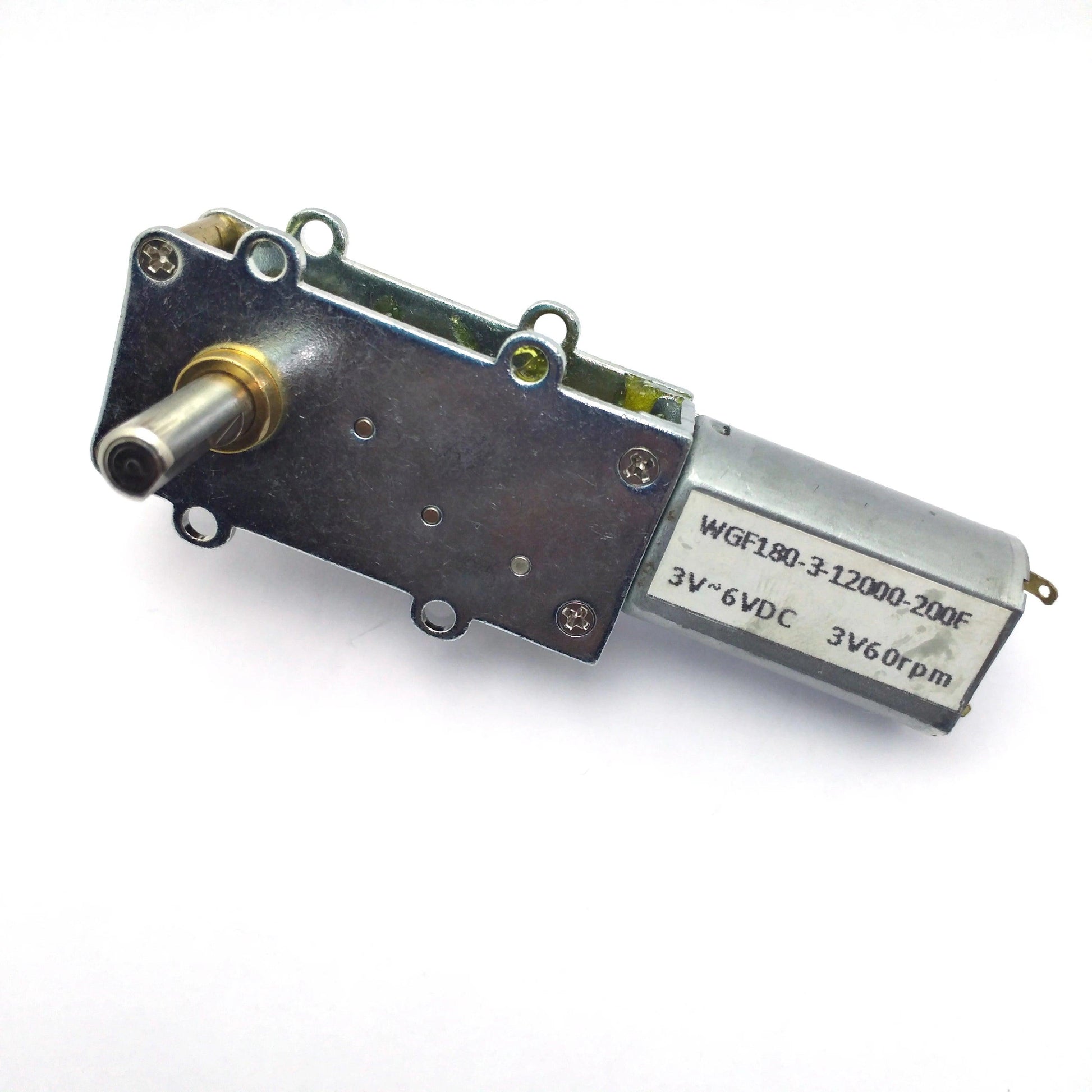

Model Number: WGF180-55
WGF180 turbine worm gear motor (metal gear)
Use voltage: DC 3V-24V
Weight: 100g
Reduction ratio is 1: 200 1: 404 1: 734 1: 1014
No-load speed: (rpm / min)
DC 1.5V 7rpm 8rpm 13rpm 28rpm
DC 3V 4rpm 5rpm 6rpm 7rpm 8rpm 11rpm 14rpm 15rpm 29rpm 30rpm 60rpm
DC 4.5V 17rpm 24rpm 43rpm 90rpm
DC 6V 2.5rpm 3.5rpm 6rpm 7rpm 8rpm 9rpm 12rpm 13rpm 14rpm 16rpm 2rpm 24rpm 29rpm 30rpm 32rpm 45rpm 58rpm 60rpm 120rpm
DC 12V 5rpm 7.5rpm 12rpm 13rpm 16rpm 24rpm 27rpm 29rpm 32rpm 44rpm 59rpm 60rpm 90rpm 120rpm
DC 24V 10rpm 15rpm 24rpm 27rpm 32rpm 55rpm 59rpm 120rpm
Note: Pls contact me if you needvoltage and speed
For example: Message DC12V 5rpm, then we will ship a motor dc12v5rpm
GWF180 turbo worm gear motor. Small size and high torque through large reduction ratio.
The Motors are widely used in: display racks, vending machines, electric curtains, crafts, robots, electric toys and so on:
Pls leave message ofVoltageandNo load Speedwhich you want, we have to shipping cargo according to our store if without message. Thanks for your understand!
Pls contact me if you have any question
