DIN Rail Cabinet Temperature Controller Industrial Thermostat KTO011 KTS011 0 to 60 Degree Centigrade Mechanical Thermoregulator
Couldn't load pickup availability
SPECIFICATIONS
DIN Rail Cabinet Temperature Controller Industrial Thermostat KTO011 KTS011 0 to 60 Degree Centigrade Mechanical Thermoregulator
installation: 35mm DIN
Usage: Industrial
Theory: Temperature Controller
Switch temperature difference: 7K(±4K)
Style: Standing Station
Storage temperature: -45℃-80℃
Shell material: Plastic UL94
Origin: Mainland China
Model Number: KTO011 KTS011 ZR011
Max Measuring Temperature: 50°C - 69°C
Is Smart Device: NO
Function: Bimetallic Mechanical Thermostat
Display Type: Analog
Display Size: 1.9 Inches & Under
Control output type 3: Normal Closed and Normal Open
Control output type 2: Blue color Normal Open
Control output type 1: Red color Normal Closed
Control Temperature Range2: -10-50 Celsius °C
Control Temperature Range1: 0-60 Celsius °C
Contact type: Snap-action contact
Contact Resistance: less than10m Omega
Certification: CE,RoHS

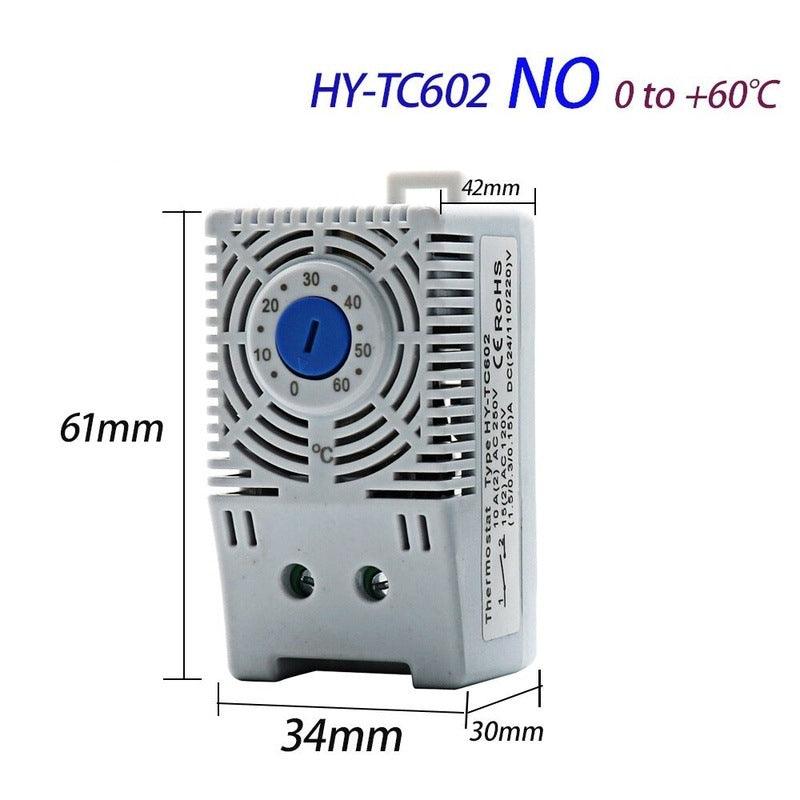

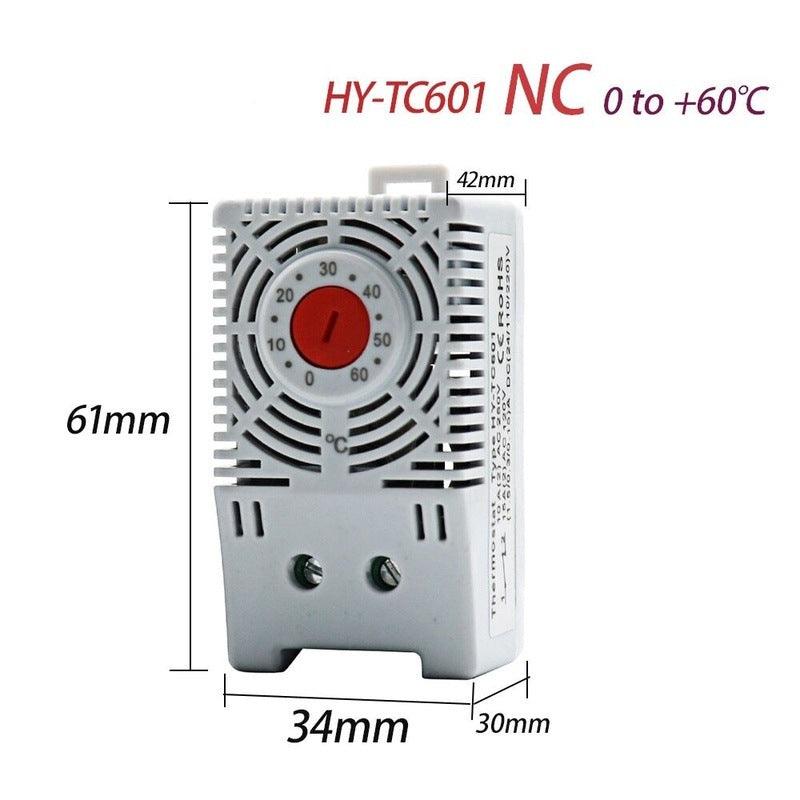

0-60℃ -10-50℃ KTO011 KTS011 HY-TC601 HY-TC602 ZR011 DIN Rail Mini Compact Bimetallic Thermostat Mechanical Temperature Controller Normal Open Closed

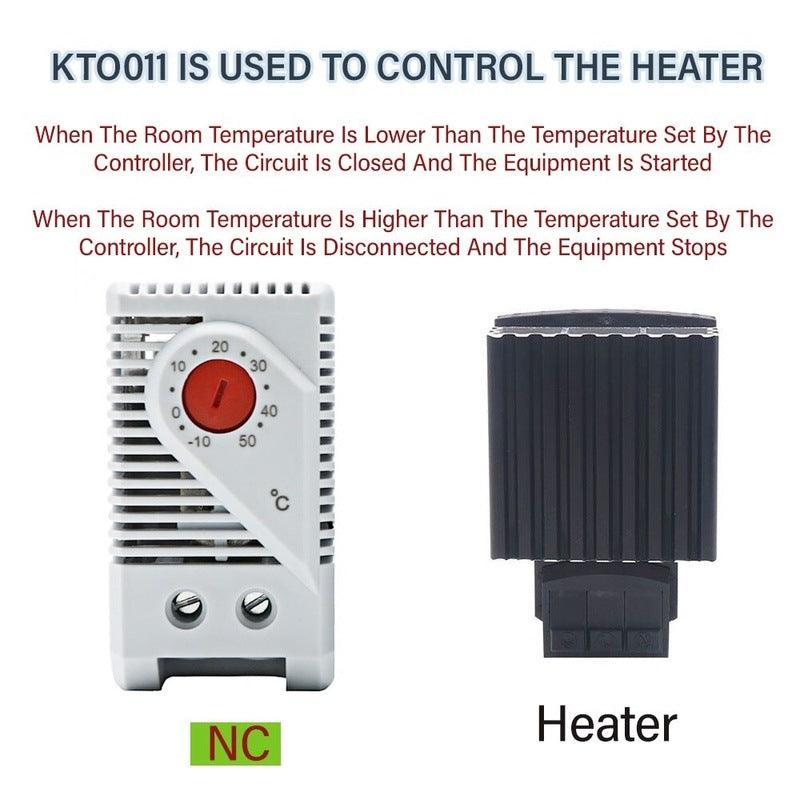

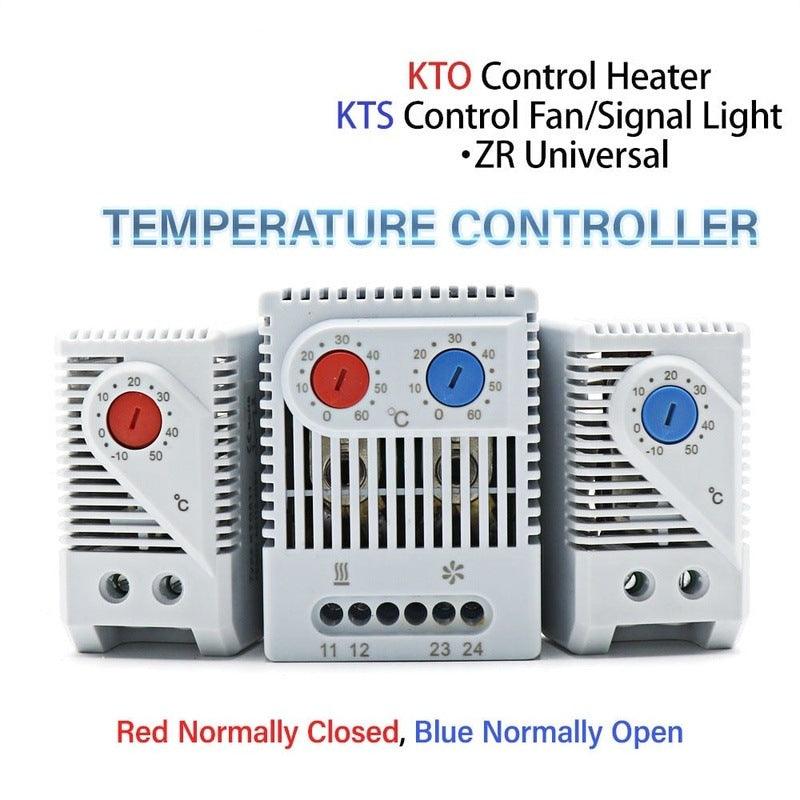

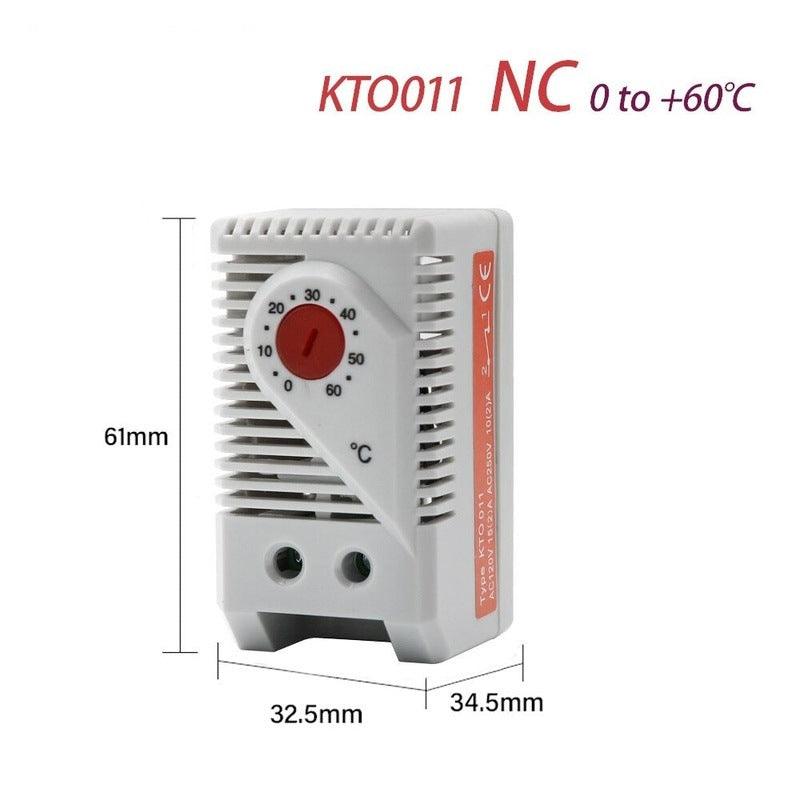

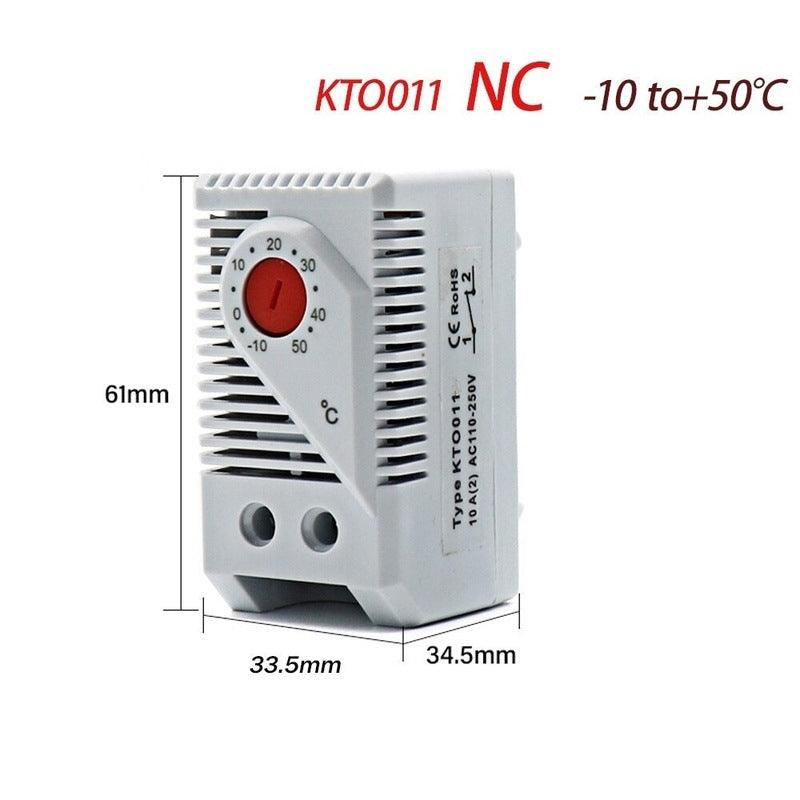

KTO 011: Heat Thermostat (normally closed); contact breaker for regulating heaters.

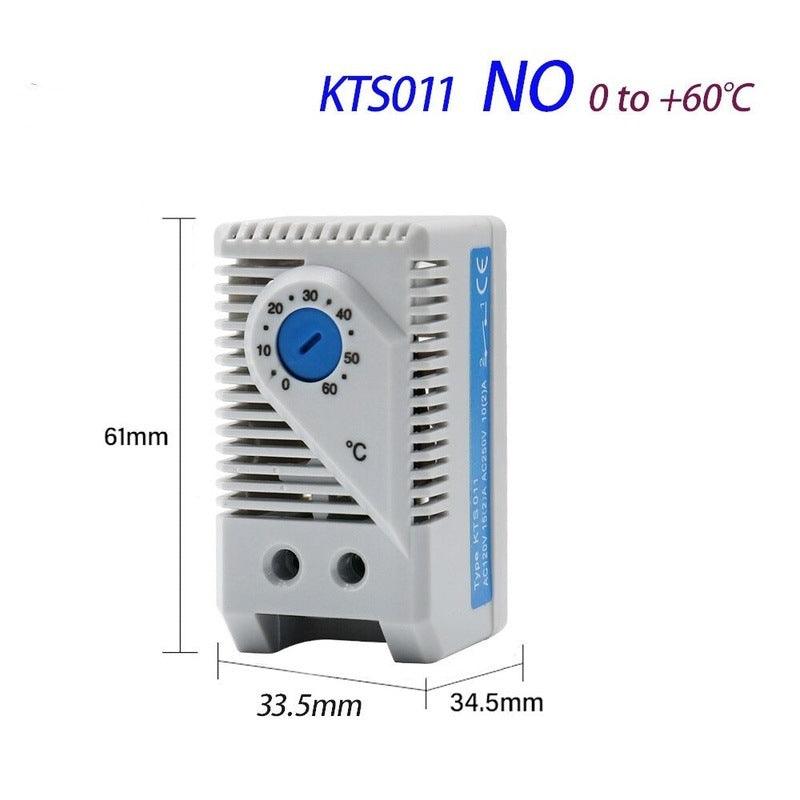

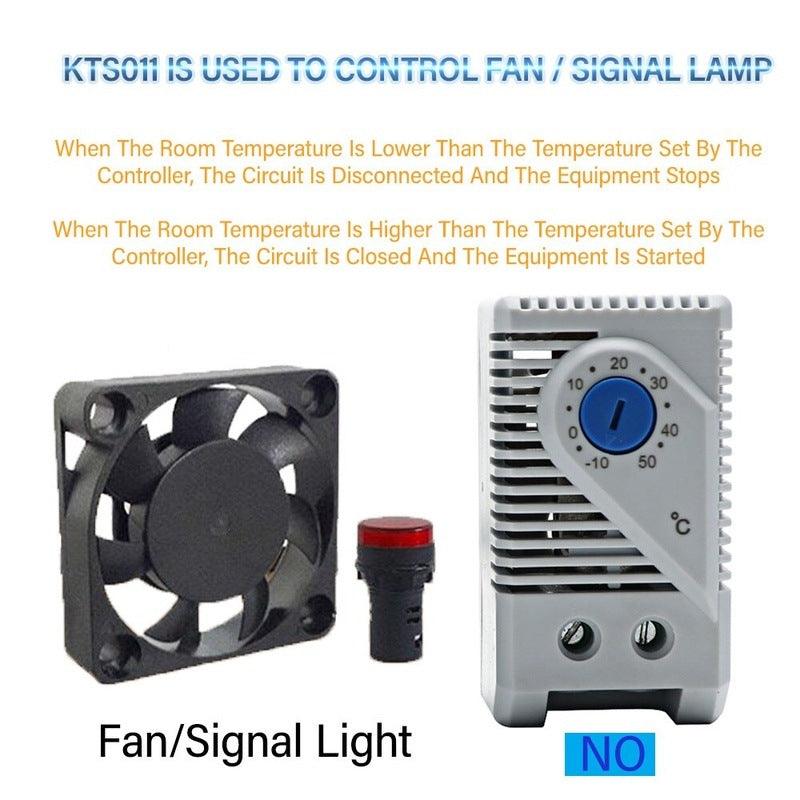

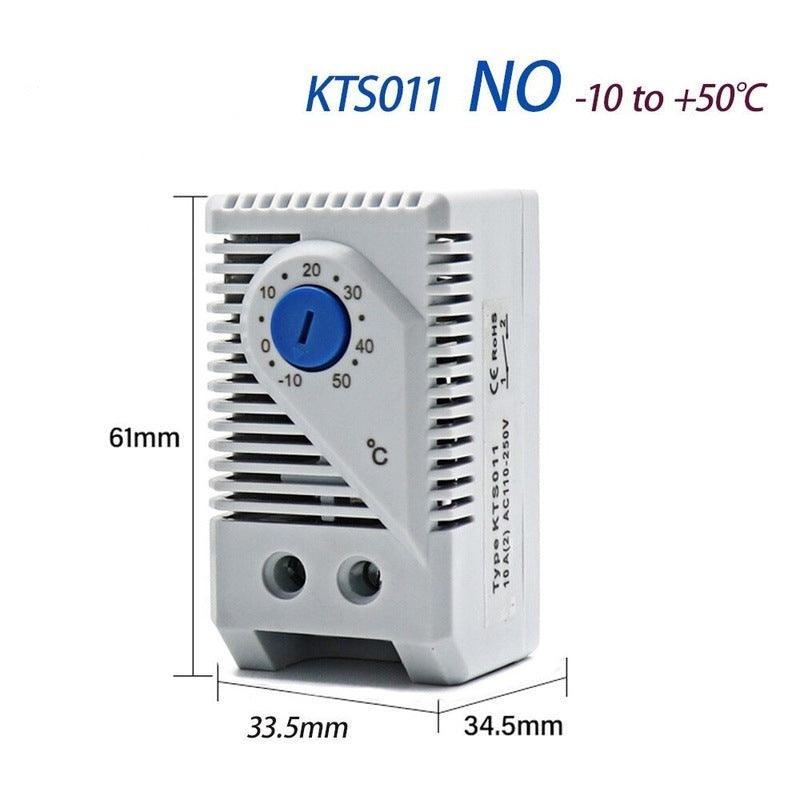

KTS 011: Cool Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

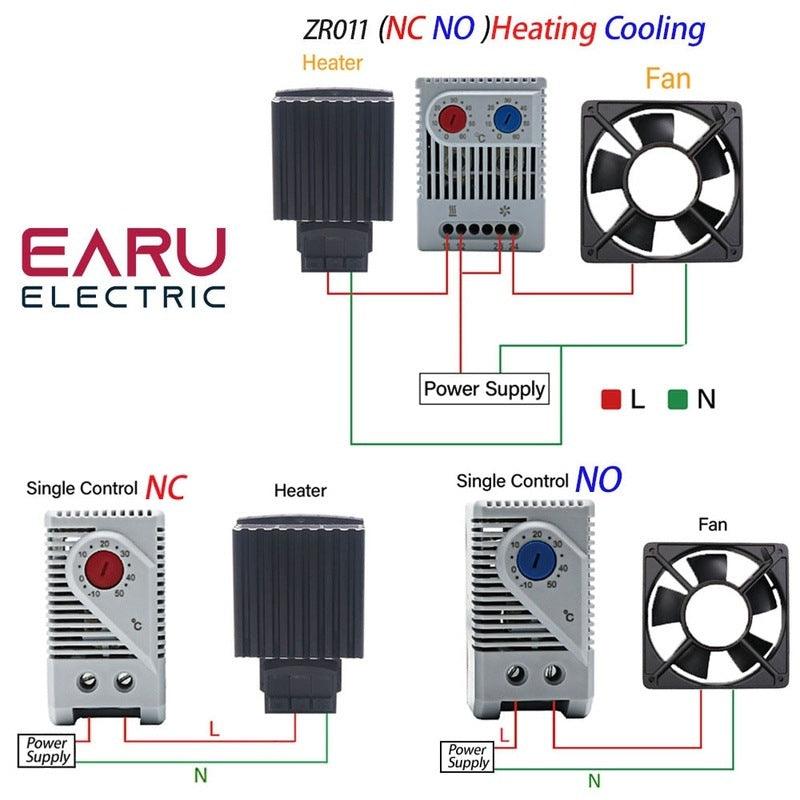

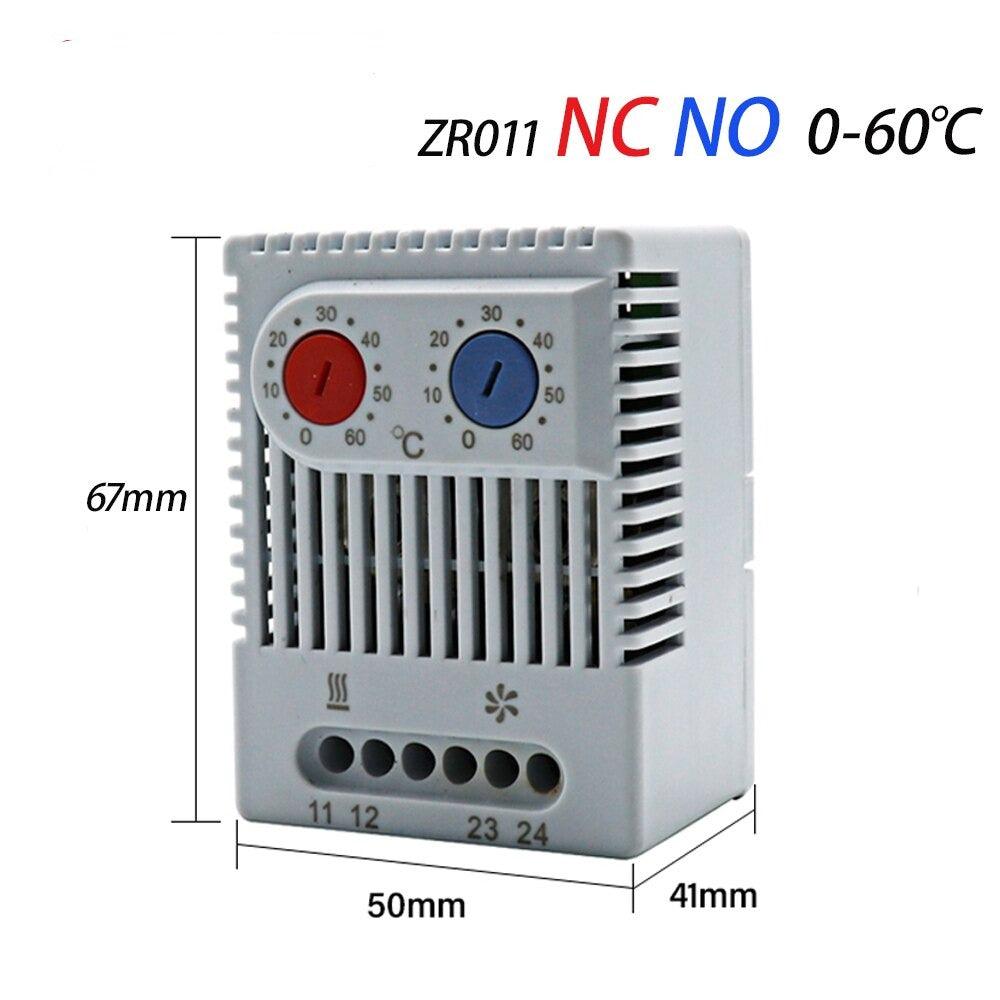

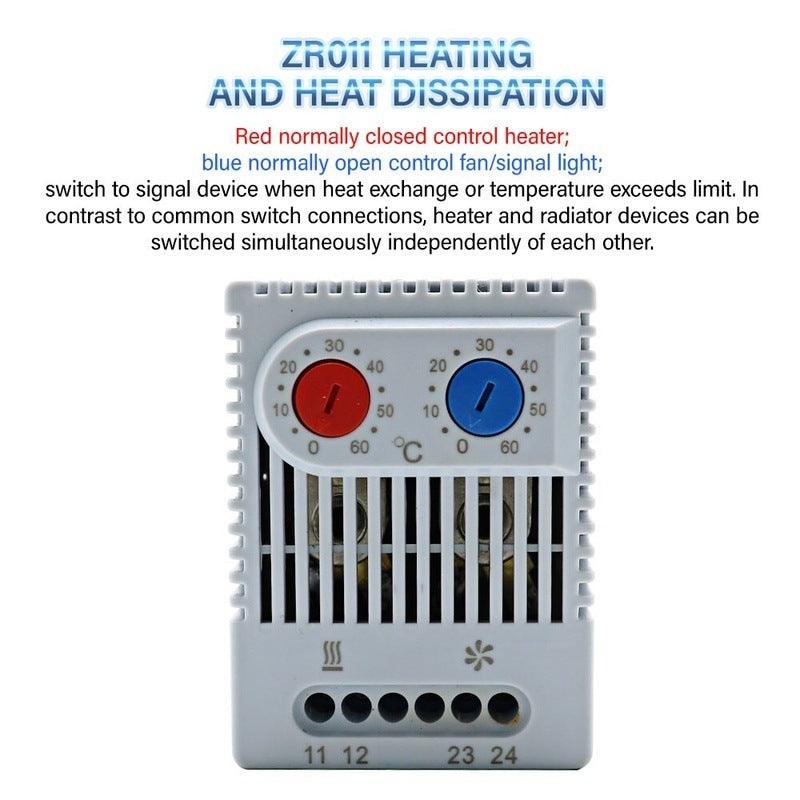

ZR 011:Heat and Cool combined; control the heating and cooling devices independently.
Applications:
The small mechanical temperature regulators are used to control electric heaters or cooling filter fans in electric cabinets, which are accidents caused by temperature factors. Widely used in communications, wind power generation, firefighting equipment, ships, petrochemicals, large factories, coastal factories, docks, water treatment facilities, equipment, etc. In addition, they can also be used as switching contacts for signal devices used as low-or high-temperature alarms. The adjustment range is 0℃ to 60℃. This product has the characteristics of easy installation, small size and long service life. It can automatically start electric heaters and fans, produce condensed water droplets, maintain a good working environment, and protect components. It can be fixed on DIN standard rails (DIN15, DIN32, DIN35)

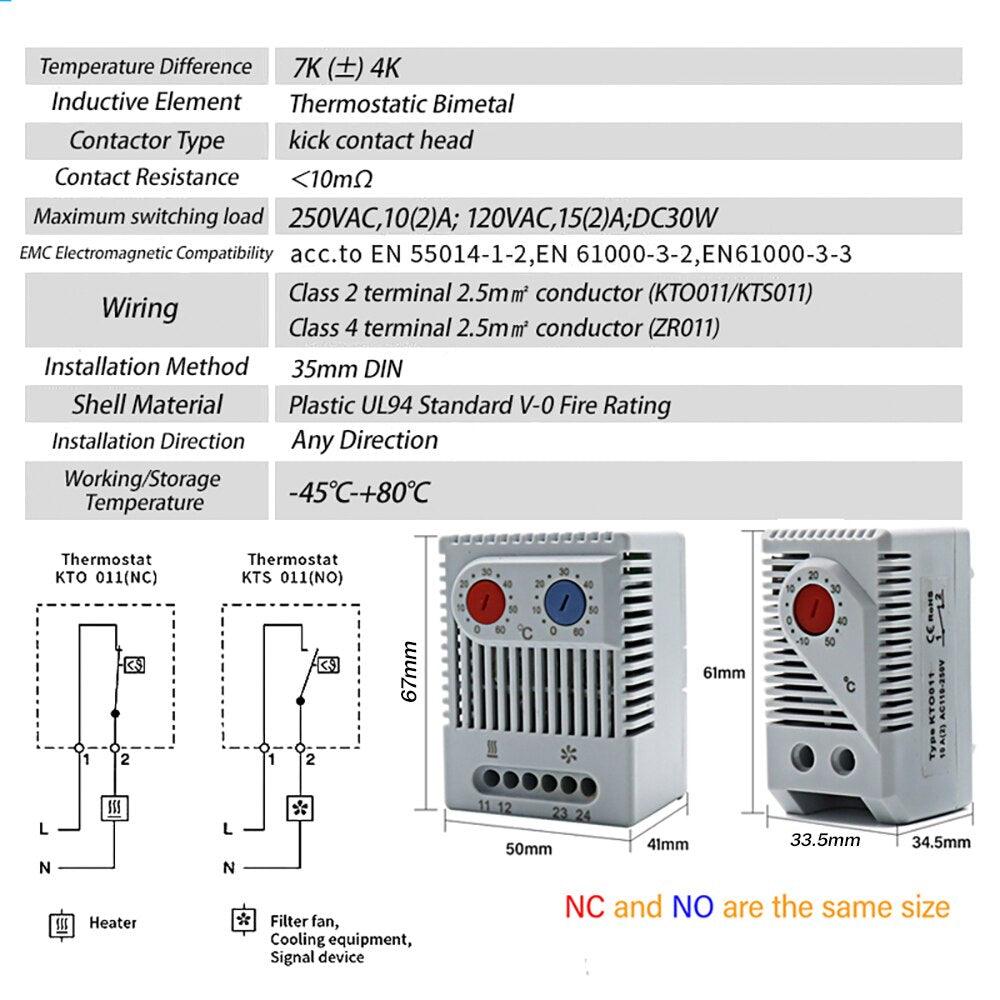

Product Description：
Switch temperature difference: 7K (± 4K tolerance)
Control temperature range: 0~60°C 、-10-50℃
Sensor element：Thermostatic bimetal
Contact type：snap-action contact
Service life：> 100,000 cycles
Connection：clamping torque 0.5Nm max., rigid wire 2.5mm
Mounting：clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)
Casing：plastic,light grey
Operating / Storage temperature：-45 to +80°C
Operating / Storage humidity：max. 90 % RH (non-condensing)
Protection type：IP20
Features：
The shell of our thermostat is made of high-quality plastic material with fine workmanship, environmental-friendly, safe, durable to use.
Its temperature controlling range is from 0°C to 60°C, perfect for using to control heater, filter fan, cooling equipment and other signal device in your home, market and so on.
It has a large data scale and an adjustable button is for easy and convenient to adjust the controlling temperature, and the button color(red/blue) of thermostat could be choose for you.
Adopting standard rail clip design, 4 feet holders, easy to install and disassemble.
Circuit interfaces in the bottom of thermostat can make wire connection become more sturdy and safer.
Setting recommendations:
The hysteresis (switching difference) of the temperature control should be take in account:
7K ± 4K (K= Kelvin)
In order to determine the actual set point of the normally closed contact and change-over contact (when used asnormally closed contact), the maximum rated hysteresis should be ad-ded to the required minimum operating temperature.
Example for Red KTO011 for heating:
Required minimum temperature in enclosure: 5°C (41°F)
Hysteresis of temperature control: +11K (=7K ± 4K)
Set point on adjustment knob: 16°C (61°F)
