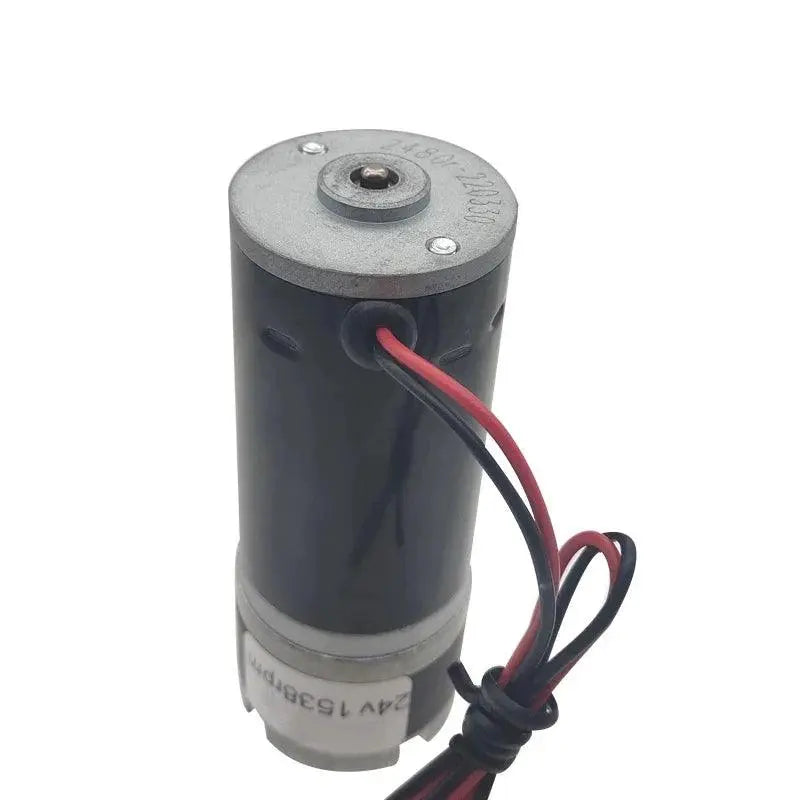

DC Planetary Gear Motor 24V 12V Low Speed Small Motor Diameter 32MM Adjustable Speed And Reversible Shaft Diameter 6MM Or 8MM
Couldn't load pickup availability
SPECIFICATIONS
DC Planetary Gear Motor 24V 12V Low Speed Small Motor Diameter 32MM Adjustable Speed And Reversible Shaft Diameter 6MM Or 8MM
Brand Name: HYSMOTOR
Certification: ROHS
Origin: Mainland China
Continuous Current(A): 0.2A-0.35A
Output Power: 13W-18W
Commutation: Brush
Type: Gear Motor
Protect Feature: Explosion-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: 32gp-31zy motor
Torque: 95kg.cm
Voltage: DC12V DC24V 12 V Volt
Geared Motor: can adjustment speed
DCmotor metal gear-: Can reversed Forward CW CCw

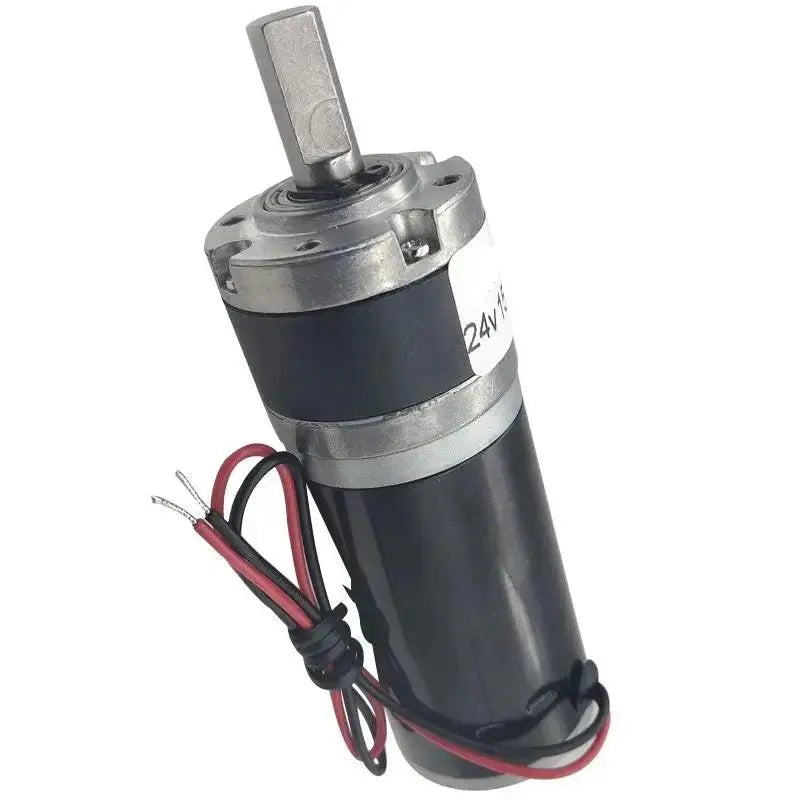

This motor can choose two shaft diameters, 6mm and 8mm.

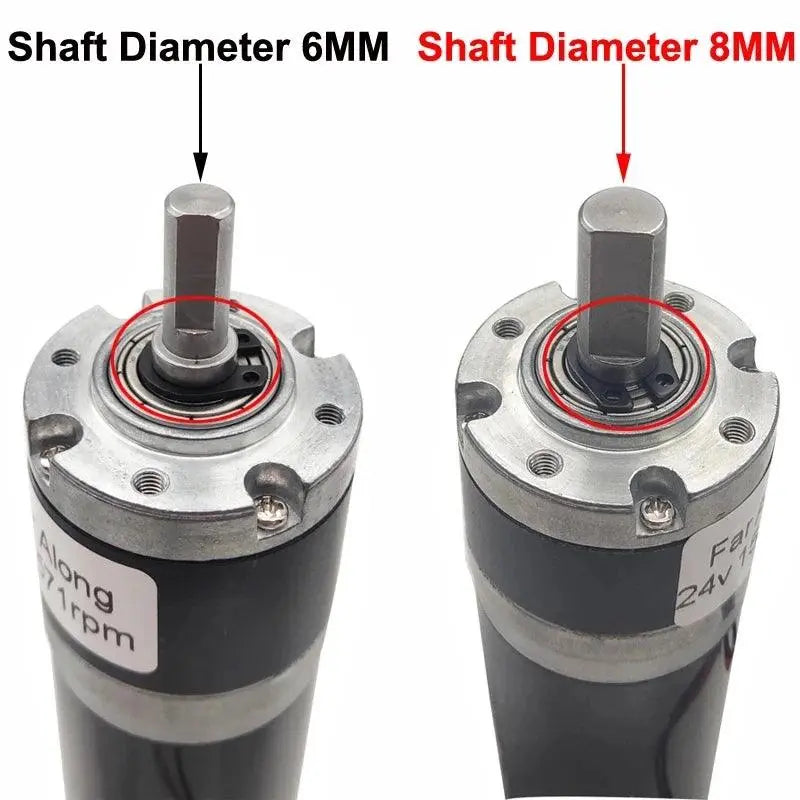

You can choose one of the shaft diameters, and the shaft type of the two will be slightly different. Please pay attention to the red circle marked in the picture below.Thanks

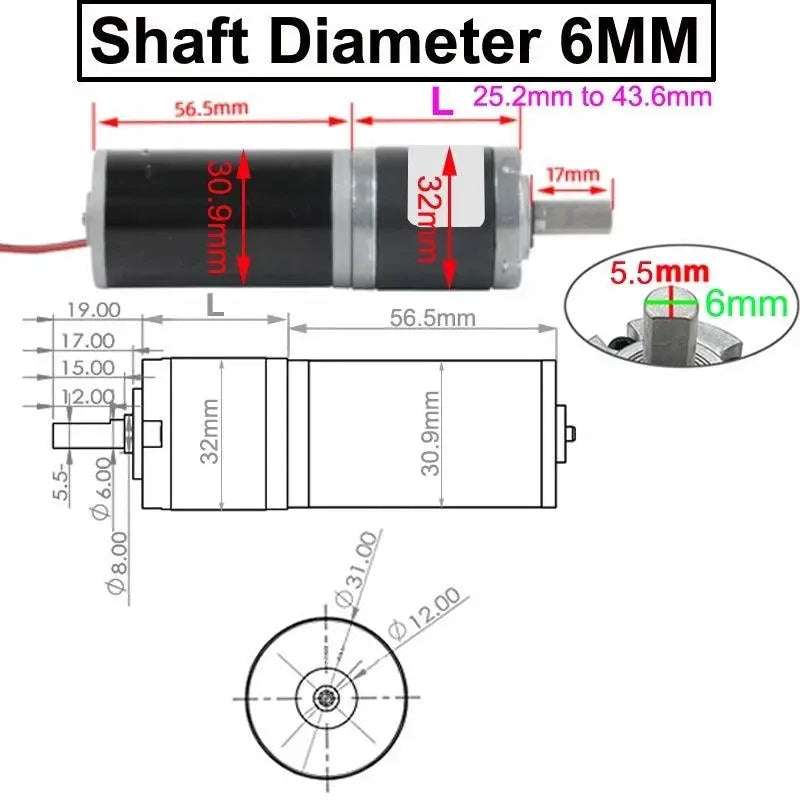

The following is the dimension drawing of the motor with a shaft diameter of 6MM
Important reminder
Because we use different measuring tools, so the measurement data of the product size will be slightly different.
If your project has high requirements for the size of the motor, we recommend that you contact us before purchasing.Thank you very much!
We name the length of the gearbox L. Note that the length of the gearbox will vary with the speed of the motor. For details, please refer to the L length of the corresponding parameter in the following parameter table.
The length of the gearbox is about 25.2mm to 43.6mm. The length of the gearbox is different for different speeds, so please check the corresponding gearbox length in the parameter table according to the speed you choose.

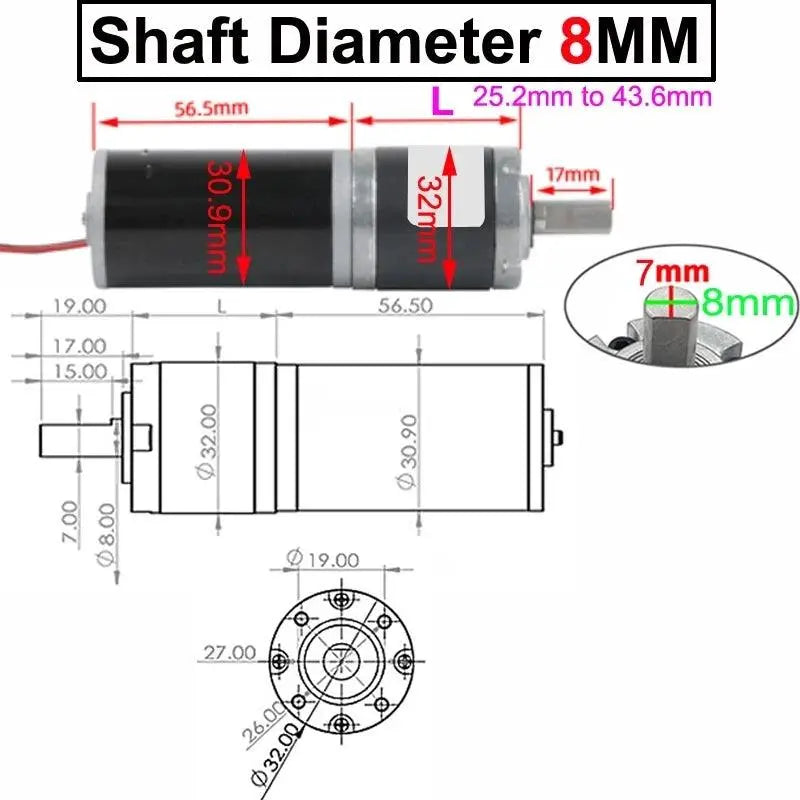

The following is the dimension drawing of the motor with a shaft diameter of 8MM
Important reminder
Because we use different measuring tools, so the measurement data of the product size will be slightly different.
If your project has high requirements for the size of the motor, we recommend that you contact us before purchasing.Thank you very much!
We name the length of the gearbox L. Note that the length of the gearbox will vary with the speed of the motor. For details, please refer to the L length of the corresponding parameter in the following parameter table.
The length of the gearbox is about 25.2mm to 43.6mm. The length of the gearbox is different for different speeds, so please check the corresponding gearbox length in the parameter table according to the speed you choose.
The following introduces the meaning of parameter table ① to (B)
① Reduction ratio
② Input rated DC voltage
③ No-load speed, the unit is RPM/MIN (The speed fluctuates up and down by 10%)
④ No-load current, unit is (A)
⑤ Rated load speed, the unit is RPM/MIN (The speed fluctuates up and down by 10%)
⑥ Rated load torque, unit is kgf.cm. Your project load should not exceed rated load torque of the motor, otherwise the life of the motor will be reduced or motor burned
⑦ Rated input power, the unit is (W)
⑧ Maximum limit load torque, unit is kgf.cm, please ignore this torque
⑨ Maximum limit load current, unit is (A), please ignore this current
⑩ Maximum limit load power, the unit is (W), please ignore this power
(A) "L" Gearbox length; The length of the gearbox is abbreviated as "L", and the unit of length is mm. This refers to the length of the gearbox corresponding to the parameter you selected. As we all know, the speed of the motor is different, the structure of the gear inside the gear box is different, so the length of the reduction box is different.
Important reminder, the length of the reducer is different, and the total length of the motor is also different. After you have selected the voltage and no-load speed of the motor, you need to check the corresponding length of the gearbox, and then you can refer to the size diagram below to get the motor total length.
(B) Approximate net weight of the motor, the unit is (g)
Refer to the following diagram to simply calculate the torque required for your project, that is, the torque of the motor you should choose.
The following are Figures A and B, respectively
The radius of Figure A is 1CM, which means that the radius of the object driven by the motor is 1CM, and the weight of the object is 10KG, then the motor torque you need to choose is 10KG.CM;
The radius of Figure B is 10CM, which means that the radius of the object driven by the motor is 10CM, and the weight of the object is 10KG, then the motor torque you need to choose is 100KG.CM;
Simply put, the load of your project needs to be inferred from the radius of the object, not just the weight of the object.
It is calculated as follows
Calculate the required torque = the radius of the driven object CM* times the weight of the object
The following introduces the basic information of this motor
(1) Name of the motor: Planetary dc geared motor
(2) What is a planetary geared motor?
Planetary geared motor is a new type of geared motor with wide versatility.
The motor has small size, low noise, large output torque, stable operation and long life.
The Life of the planetary gear motor is 3 times the ordinary gear motor (But the premise is that the load of your project does not exceed the torque of the motor)
(3) Rated voltage : DC 12V Or DC 24V
(4) No load speed have :
11 / 16 / 22 / 37 / 58 / 98 / 160 / 296 / 571 / 1538 RPM / Min
(5) About the rated load torque of the motor: the no-load speed of the motor is different, the torque will also be different, the lower the speed you choose this motor, the greater the torque of the motor;
In short, the slower the motor spins, the heavier the load it can drive, and the faster the motor spins, the lighter the load it can drive.
Some people will have a doubt. If the maximum speed of this motor is purchased, such as 1538rpm, if we reduce the speed of the motor from 1538rpm to 11rpm, when the motor is running at 11rpm, can the torque of the motor reach 95KG?
This is impossible. When the speed of the motor is adjusted, the torque of the motor will also decrease as the speed decreases. For example, the speed of the motor you bought is 1538rpm, and the torque of the motor is 1KG.CM. When you reduce the speed of the motor, the torque of the motor will be lower than 1KG. If the speed of the motor is greatly reduced, the torque of the motor will also be greatly reduced.
If you buy the lowest speed of this motor, such as 11rpm, the torque of the motor is 95KG, if you reduce the speed of the motor from 11rpm to 1rpm, the torque of the motor will also be lower than 95KG.
So you need to consider whether the final torque of the motor can reach the load of your project after the motor is decelerated. If not, you need to consider choosing other lower speeds or other motors.
You can contact us about the principle of torque change with speed, we can help you avoid buying mistakes, thanks!
(6) Direction of rotation of the motor: CW Or CCW ; Support Reversed
(7) Gear material: Metal gears make the motor last longer
(8) The speed of the motor can be adjusted using the speed controller. If you also need a speed controller, you can contact us and we will recommend the most suitable controller for you.
For example, the speed of the motor is 11rpm, you can adjust speed from 0rpm to 11rpm or 11rpm to 0rpm through the speed controller,that is, the speed you choose to buy is the adjustable range Maximum speed.
However, if you use a speed controller to control the rotation speed of the motor, the torque of the motor will decrease as the speed decreases. If the torque of the motor is lower than the load of your project, the motor will be damaged, you need to pay special attention.
(9) This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Smart Robot ; Smart Door Lock ; DIY tank etc.
The following is a description of the quality materials and structures of this motor.
① Double ball bearings can help the motor run stably and prolong its life
② The upper cover of the gear box
③ Position the retaining ring to fix the output shaft and offset the radial force
④ Planetary gear frame
⑤ The output shaft of the motor is available with a shaft diameter of 6mm and 8mm
⑥ Positioning retaining ring, fixing the gear position, making the internal gear smoother and more wear-resistant
⑦ Planetary gear, using thickened metal gear, high strength, reduce noise, make the motor run stably
⑧ DC brush high-speed motor
⑨ Positioning retaining ring can effectively reduce friction and increase the service life of the motor
⑩ Gearbox outer wall
The following is the outline drawing of the motor shaft diameter of 8MM
