DC 9V-60V 40A PWM DC Motor Fan Speed Controller Regulator 2000W High Power Potentiometer Electric 12V 18V 24V 36V 48V Governor

SPECIFICATIONS

DC 9V-60V 40A PWM DC Motor Fan Speed Controller Regulator 2000W High Power Potentiometer Electric 12V 18V 24V 36V 48V Governor

Brand Name: HYSMOTOR

Origin: Mainland China

Tips:If you need Large quantity, please contact us, we can wholesales.

Specification:

Input voltage: DC9-55V

Output Voltage: Linear under load

Output limit current: 40A (20A for long-term use, pay attention to keep the module unobstructed for heat dissipation)

Limit power: 2000W

Speed regulation type: flow regulation

Speed regulation mode: potentiometer (linear) with switch

Speed regulation duty cycle range: 0—100%

Control frequency: 25KHZ

Wiring Type: Barrier Terminal Block

Knob cable length: 20CM

Product Net Yield: 135g

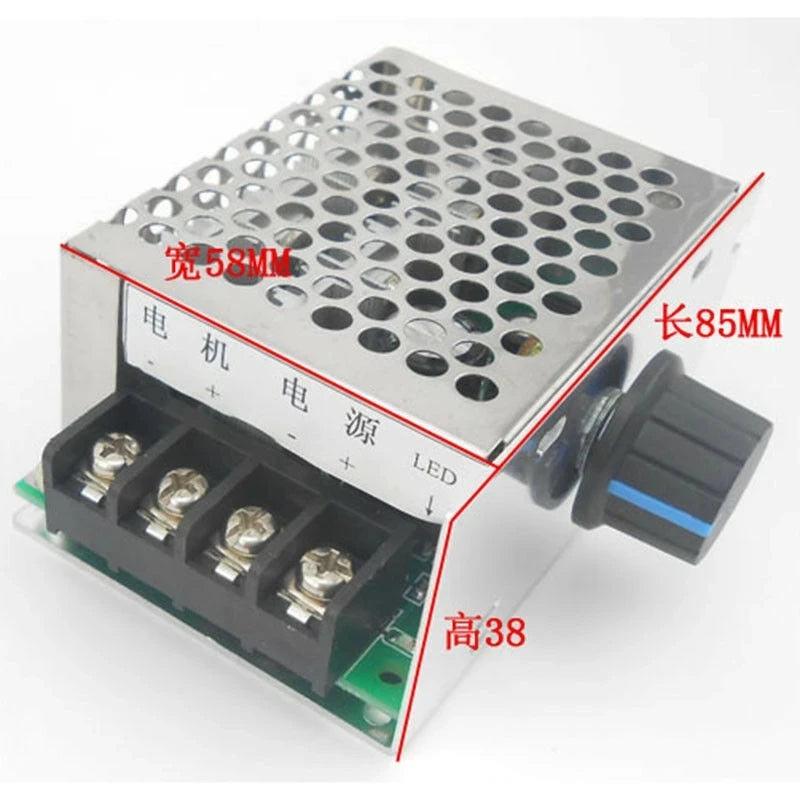

Motherboard according to installation size: length * width 85MM * 58MM * 38MM

Potentiometer according to the installation hole: 7MM

Package Include:

1 PCSx Speed Controller
