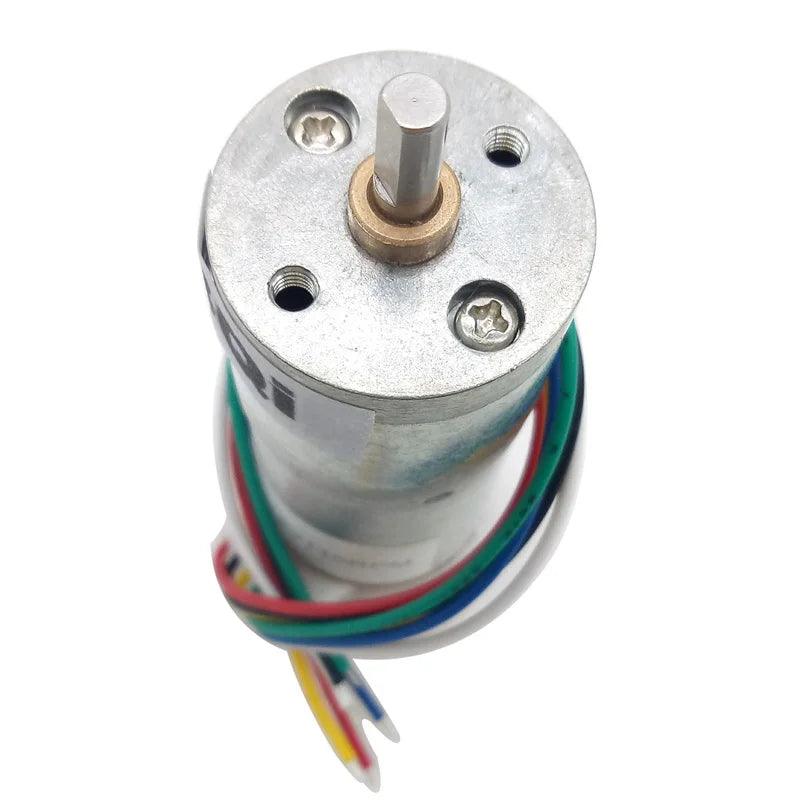

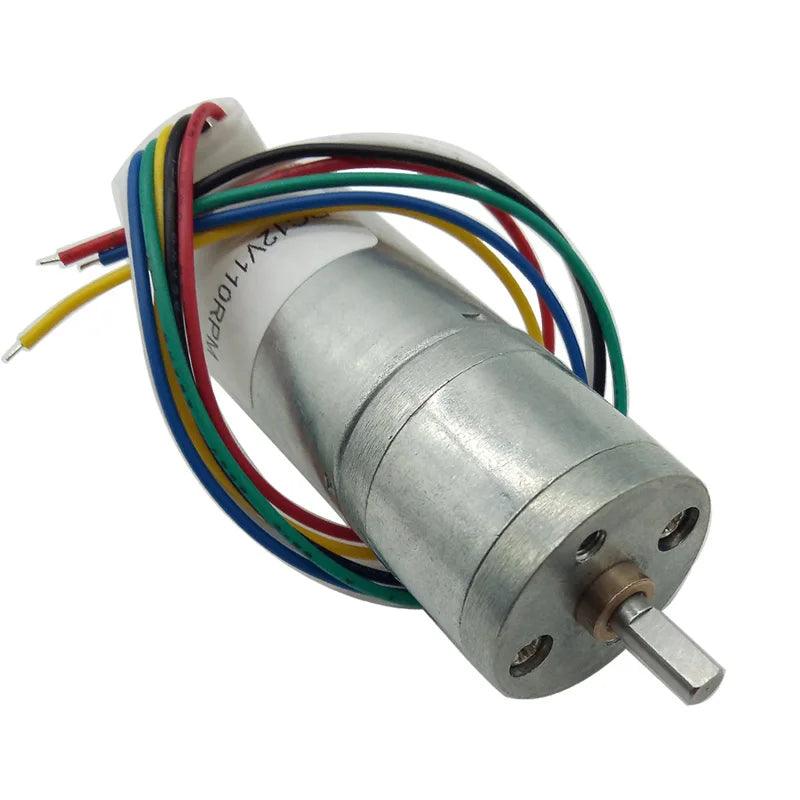

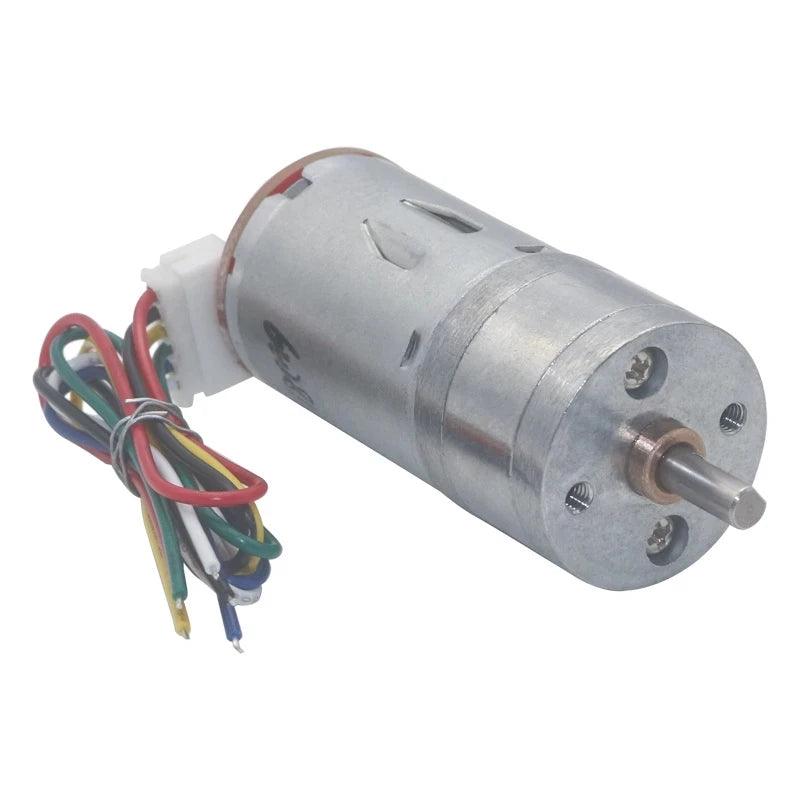

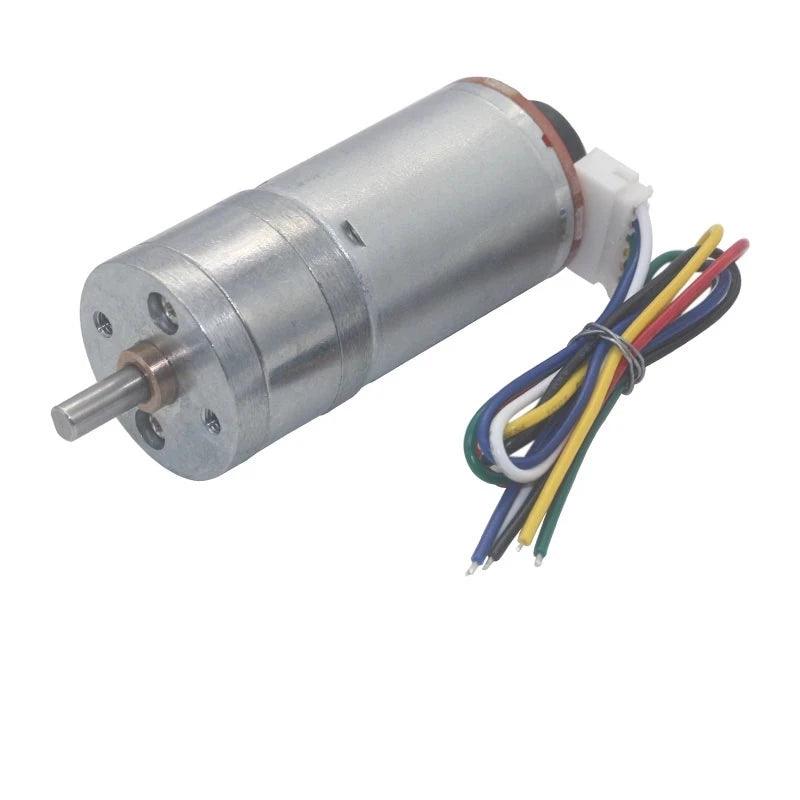

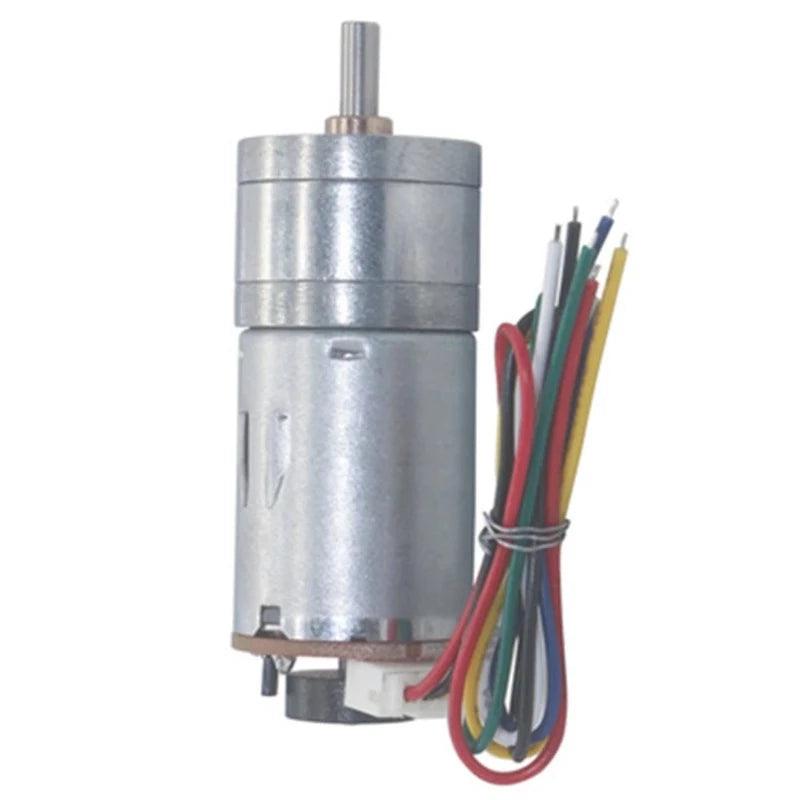

DC 6v 12v 24v High Torque Electric Reduce Motor Metal Gear Motor with Encoder
Couldn't load pickup availability
SPECIFICATIONS
DC 6v 12v 24v High Torque Electric Reduce Motor Metal Gear Motor with Encoder
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Gear Motor
Protect Feature: Totally Enclosed
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: JGA25-370 Encoder Motors
Torque: max 8kg.cm
Wiring method:
-
Red Wire - positive power supply of motor(+)(change positive and negative of motor the rotation will change)
-
White Wire - negative power supply of motor(-)(change positive and negative of motor the rotation will change))
-

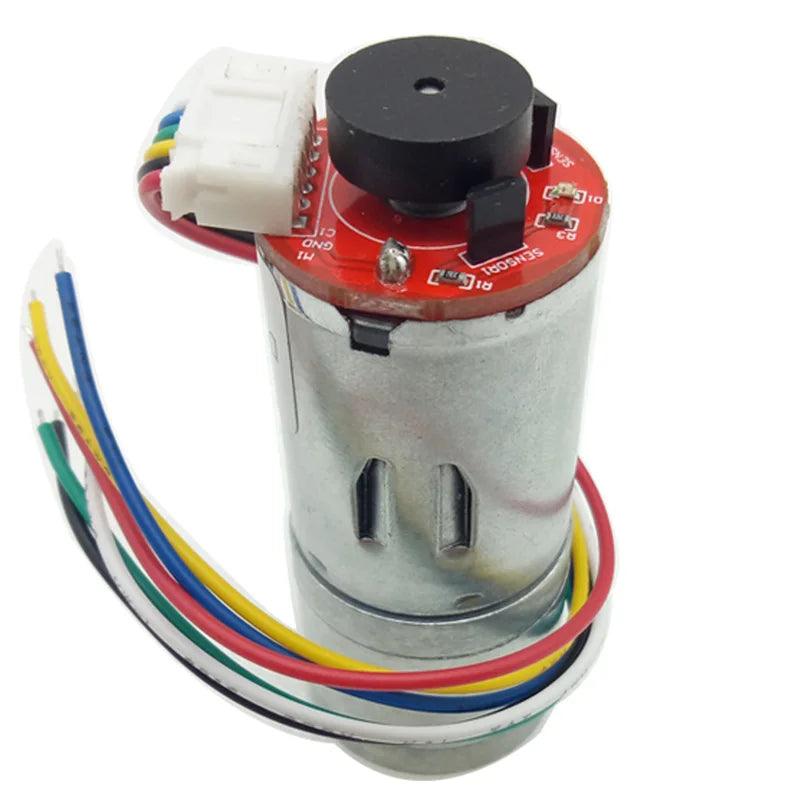

Yellow Wire - signal feedback (motor one turn has 11 signals)
-
Green Wire - signal feedback (motor one turn has 11 signals)
-
Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong
-
Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong
