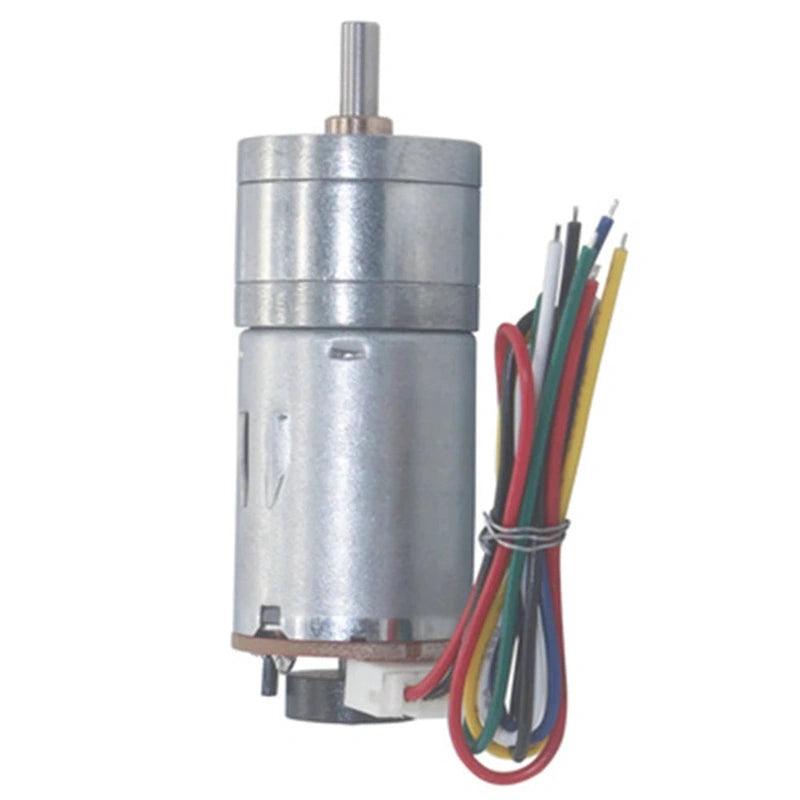

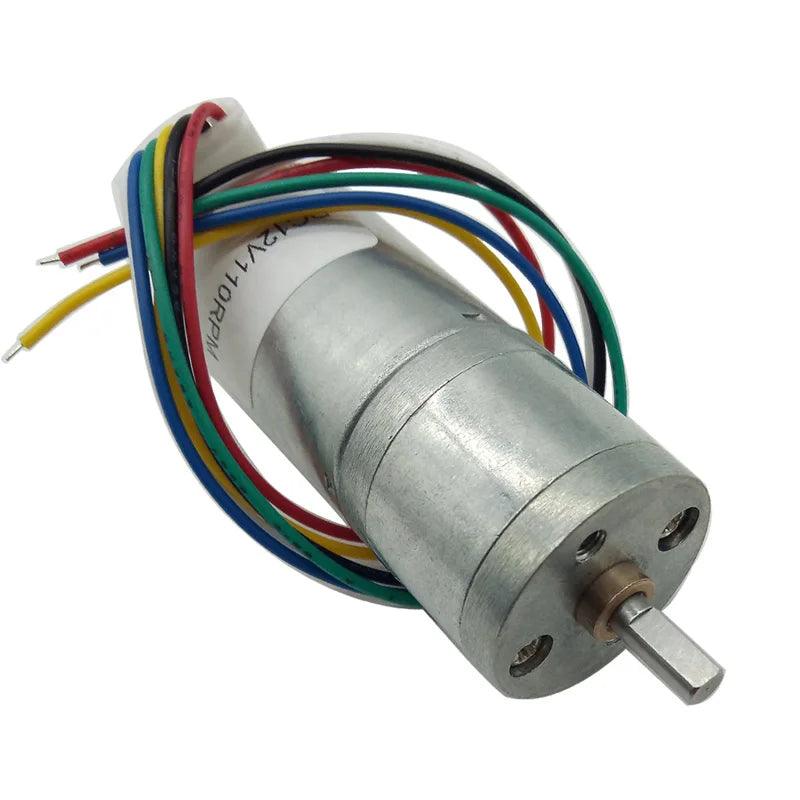

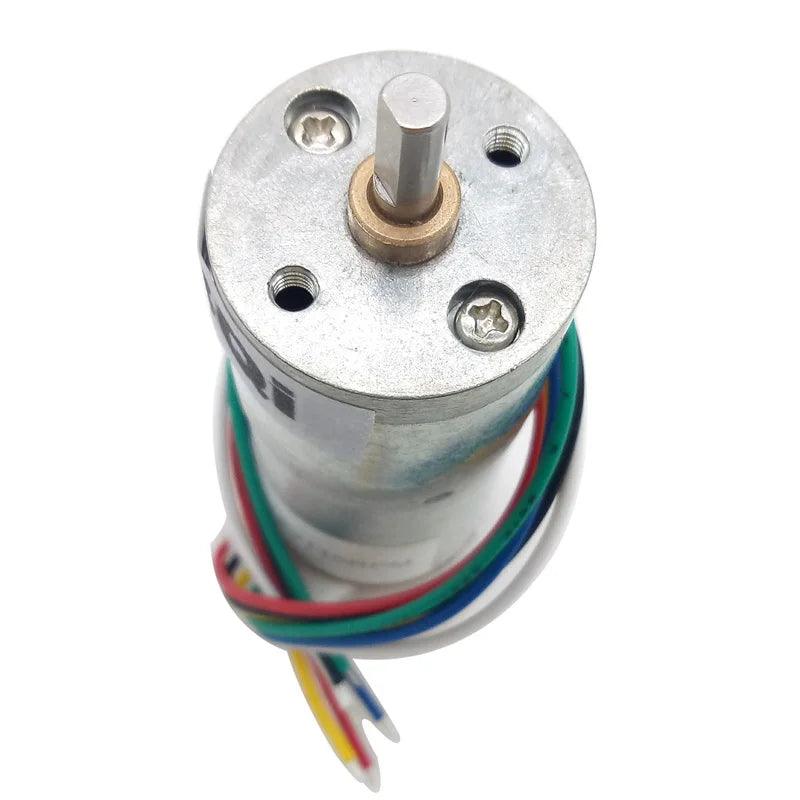

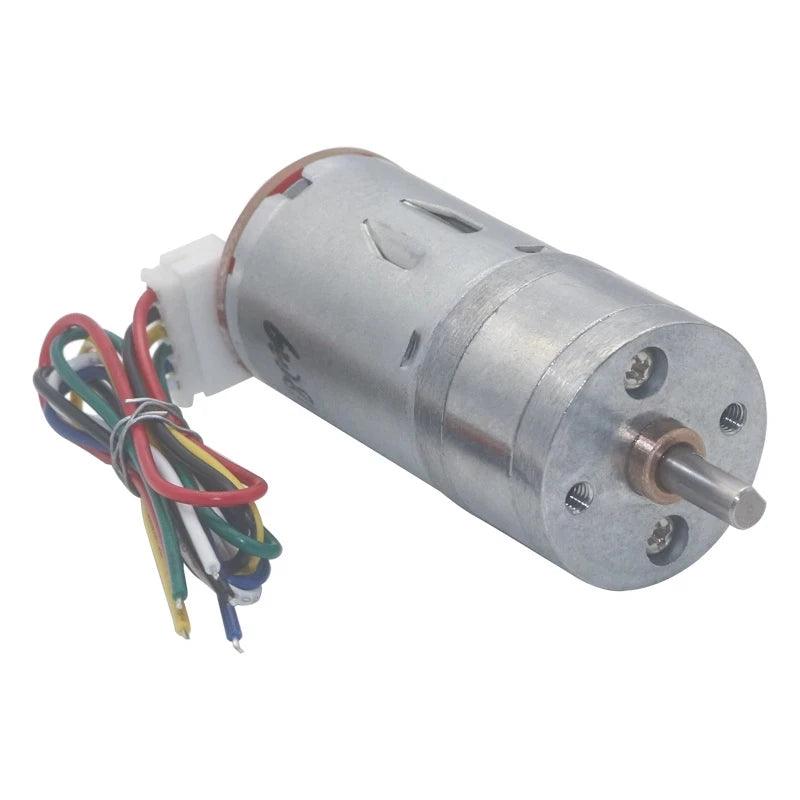

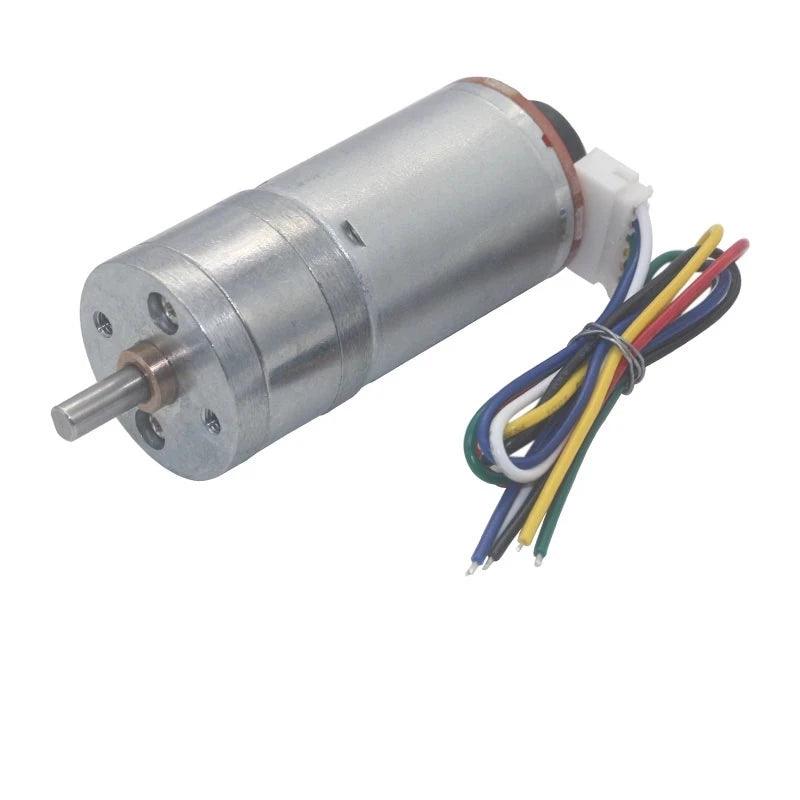

DC 6v 12v 24v High Torque Electric Motor Gear Motor with Encoder
Couldn't load pickup availability
SPECIFICATIONS
DC 6v 12v 24v High Torque Electric Motor Gear Motor with Encoder
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Gear Motor
Protect Feature: Totally Enclosed
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: JGA25-370 Encoder Motors
Torque: max 8kg.cm

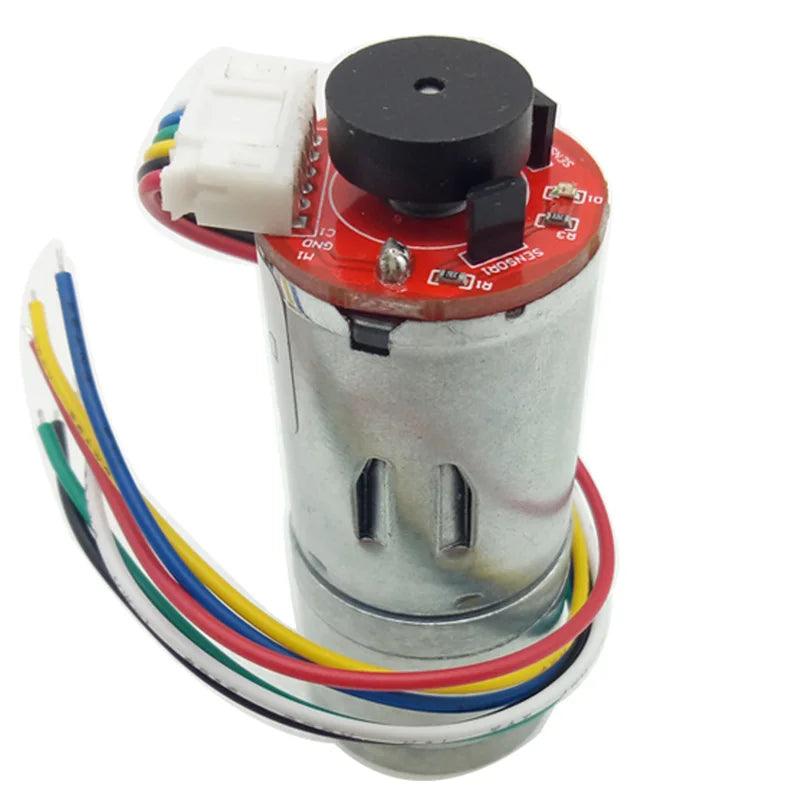

Wiring method:
-
Red Wire - positive power supply of motor(+)(change positive and negative of motor the rotation will change)
-
White Wire - negative power supply of motor(-)(change positive and negative of motor the rotation will change))
-
Yellow Wire - signal feedback (motor one turn has 11 signals)
-
Green Wire - signal feedback (motor one turn has 11 signals)
-
Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong
-
Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong
