Shunt Trip Breaker TRMF4-250 Mould Case Circuit Breaker MCCB 250F/3P 100A-250A
Couldn't load pickup availability

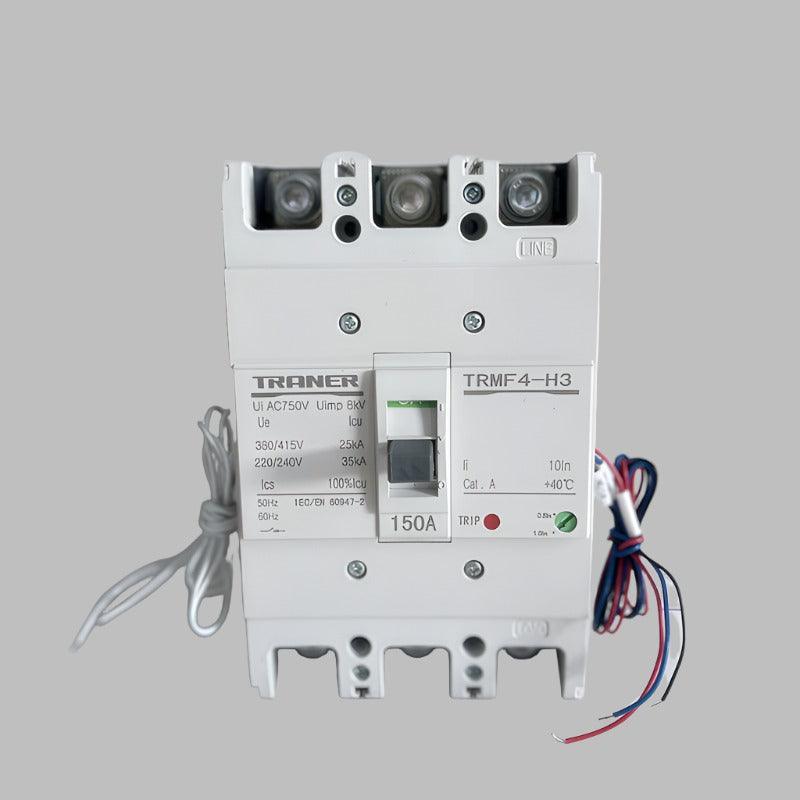

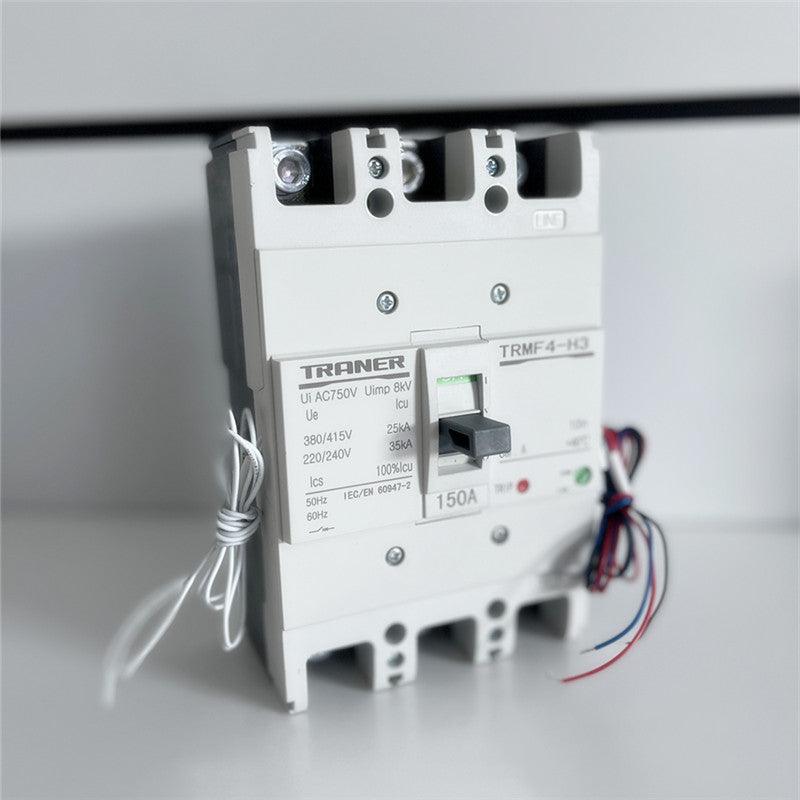

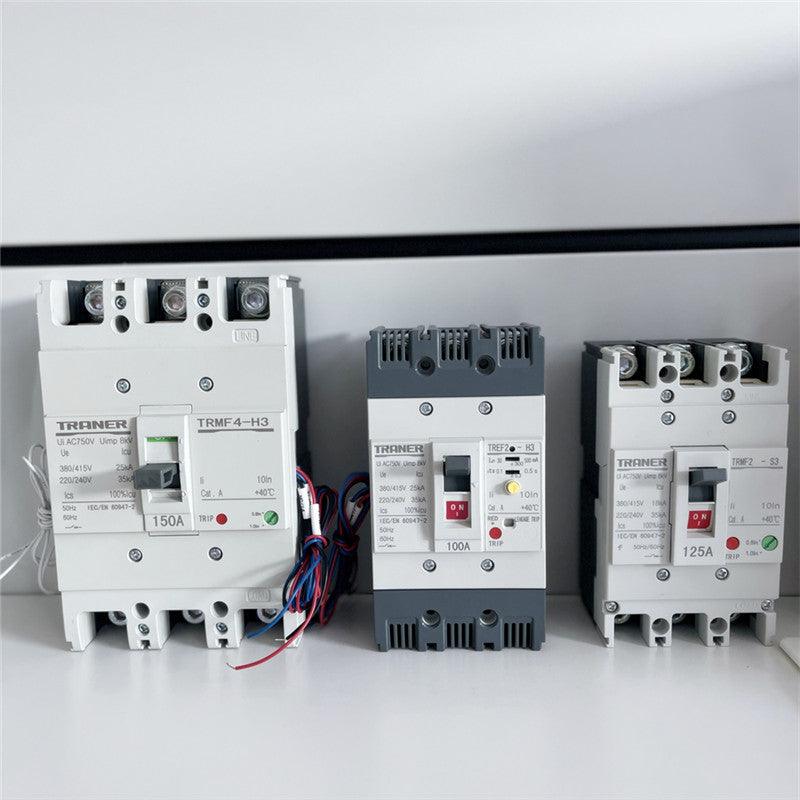

Shunt Trip Breaker TRMF4-250 Mould Case Circuit Breaker MCCB 250F/3P 100A-250A
Shunt trip breakers are often used in concert with sprinkle and other fire suppression systems that can potentially short-circuit electrical appliances. The shunt breaker is connected to the fire detector or alarm, so that when the alarm is triggered, the breaker is automatically tripped, cutting the power to any computers, electronic locks or other electrical equipment before the sprinklers can soak them in water.
For bulk purchasing, please email to: info@electric-b2c.com
Standard
TRM series circuit breaker and auxiliaries comply with the following international standard:
1.IEC/EN 60947-1
Low-voltage switchgear and controlgear-part 1: General rules;
2.IEC/EN 60947-2
Low-voltage switchgear and controlgear-part 2: Circuit breakers;
TRM series MCCB(Standard use environment for TRM series MCCB)
1. Ambient temperature: Within the range of -5ºC--+55ºC(However, when the temperature exceed 40ºC,it should be considered to reduce the capacity to use);
2. Relative humidity: Within the range of 45%--85%;
3. Altitude: 2000m or less(However, if it exceeds 1000m, atmosphere correction through humidity test and withstand voltage test can be considered);
4. Atmosphere where excessive steam, oil steam, smoke, dust, salt and other corrosive materials do not exist;
breaker 125 amp,3 phase circuit breaker,200 amp breaker,3 pole breaker,shunt trip breaker 100a,shunt trip breaker 250a
Classification:
According to the poles: 2-poles, 3-poles
According to the breaking capacity: S-type, H-type
According to the rated current: Fix type, Adjustable type(08In-1.0In)
Technical data table :
Ampere frame size | TRMF4(250A) | ||||||
Breaking capacity code | S | H | |||||
Product code and poles | 1P | 3P | 4P | 1P | 3P | 4P | |
TRMF4-S1 | TRMF4-S3 | TRMF4-S4 | TRMF4-H1 | TRMF4-H3 | TRMF4-H4 | ||
Rated current, In(A) | 100, 125, 160, 180, 200, 225, 250 | ||||||
Adjustable part | Rated current setting(0.8In-1.0In) | χ | √ | √ | χ | √ | √ |
Lockup device for operating handle | χ | √ | √ | χ | √ | √ | |
Rated operational voltage, Ue(V), AC 50/60 Hz | 240/415 | ||||||
Rated insulation voltage, Ui(V) | 1000 | ||||||
Rated impulse withstand voltage, Uimp(kV) | 8 | ||||||
Standard | Conformity with IEC/EN 60947-2 | ||||||
Rated frequency(Hz) | 50/60 | ||||||
Rated short-circuit breaking capacity, Icu(kA) | |||||||
AC | 240V | 25 | 50 | 36 | 65 | ||
415V | - | 37 | - | 50 | |||
Ics=% * Icu | 50% | 100% | 50% | 100% | |||
Mechanical life(circle) | 7000 | ||||||
Electrical life(circle) | 1000 | ||||||
Dimension: Length*Width*Height |
1-pole | 150*38*60 | |||||
2-poles | - | ||||||
3-poles | 165*105*60 | ||||||
4-poles | 130*140*60 |
