CNTD Limit switch Micro switch Waterproof Motion Sensor CSA-081 CSA-041
Couldn't load pickup availability

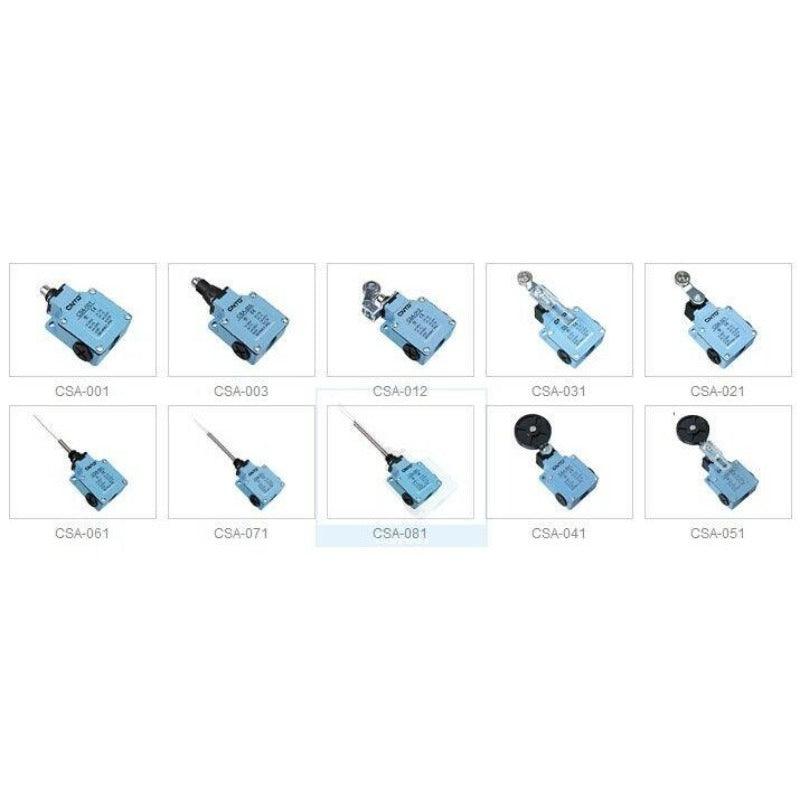

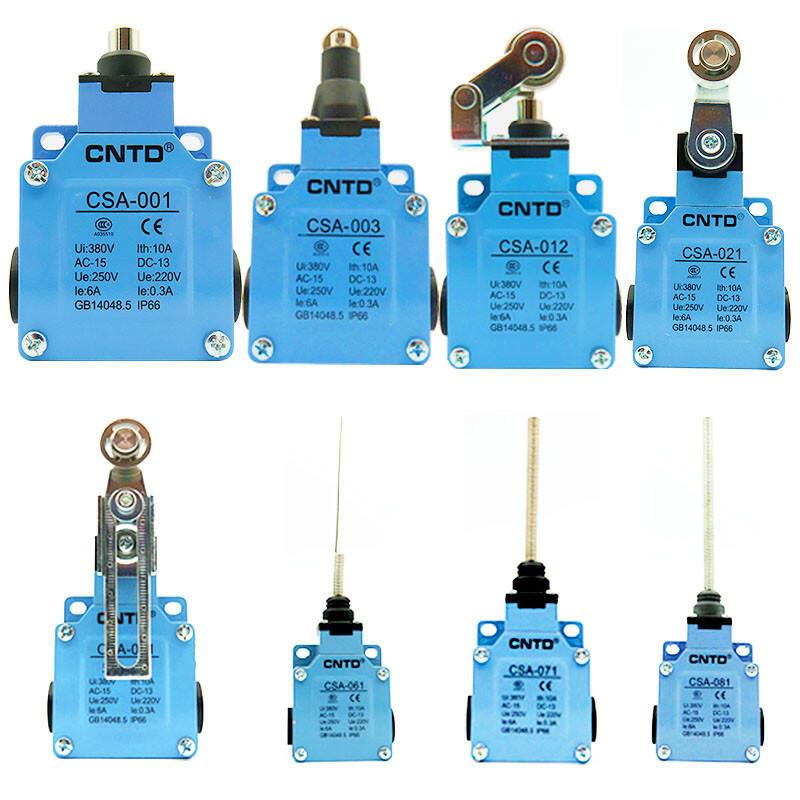

CNTD Limit switch Micro switch CSA-001 CSA-003 CSA-012 CSA-031 CSA-021 CSA-061 CSA-071 Waterproof Motion Sensor CSA-081 CSA-041
Origin: Mainland China
Certification: CCC
Model Number: CSA-051
Description
Feature
Strong metal outer shell, swing arm max.±95°
Stainless steel idler wheel, punch and spring
Selective M18x1.5 cable gland
Specification
|
Model |
CSA |

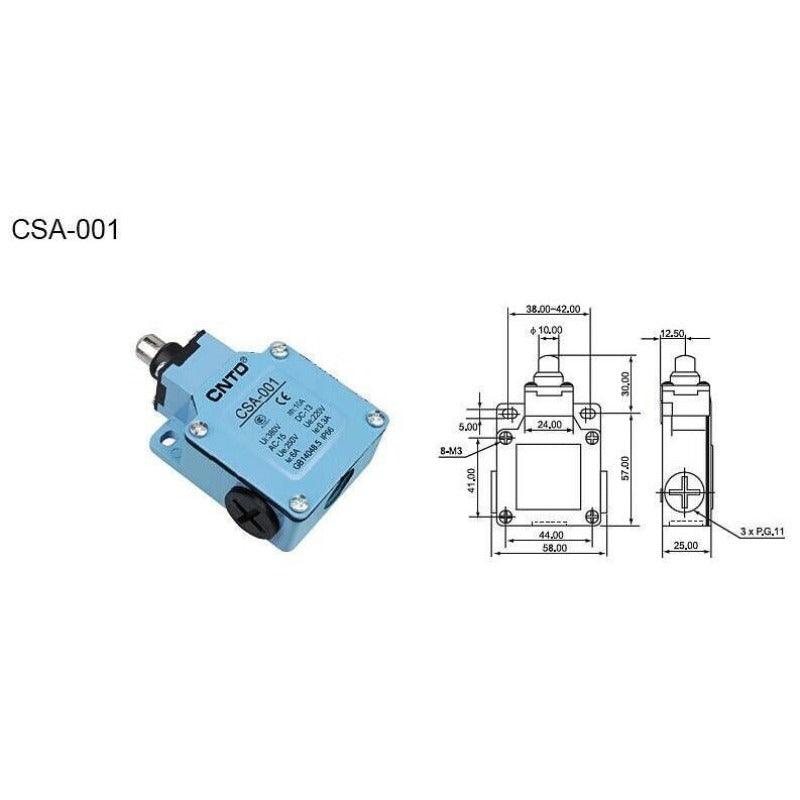

CSA-001 |

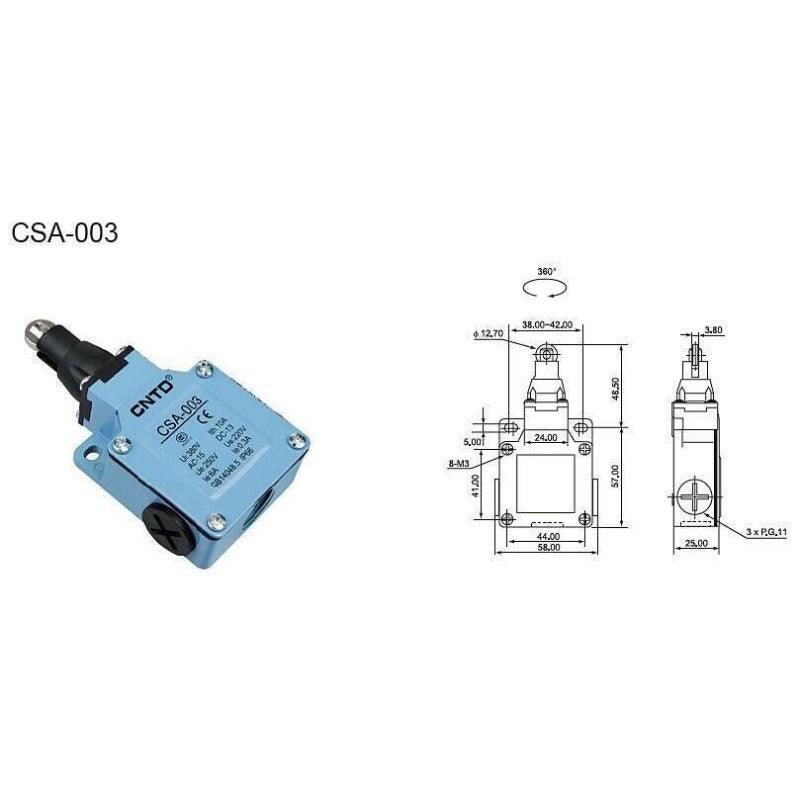

CSA-003 |

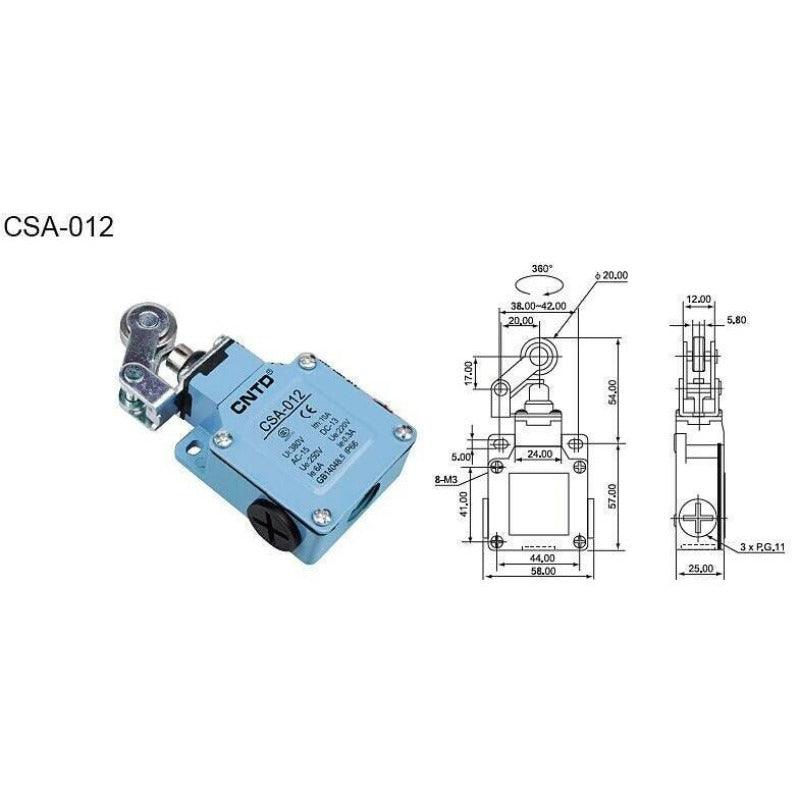

CSA-012 |

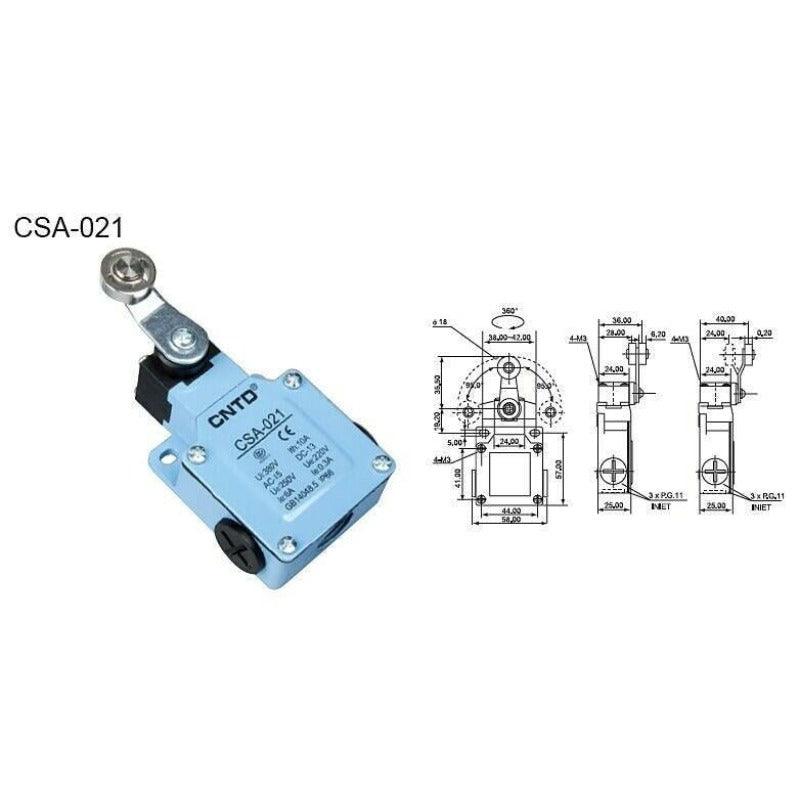

CSA-021 |

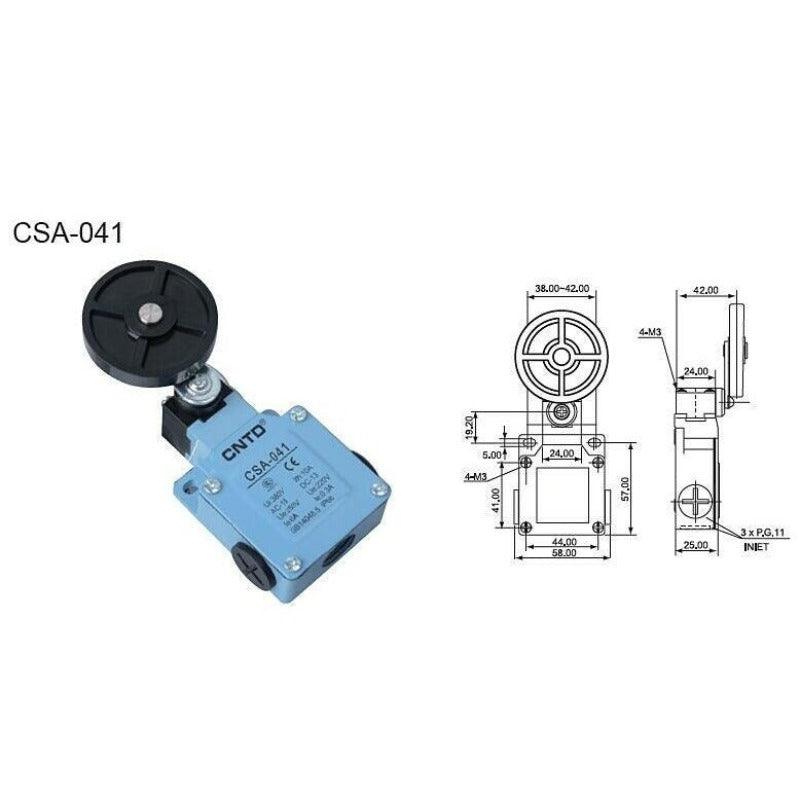

CSA-041 |

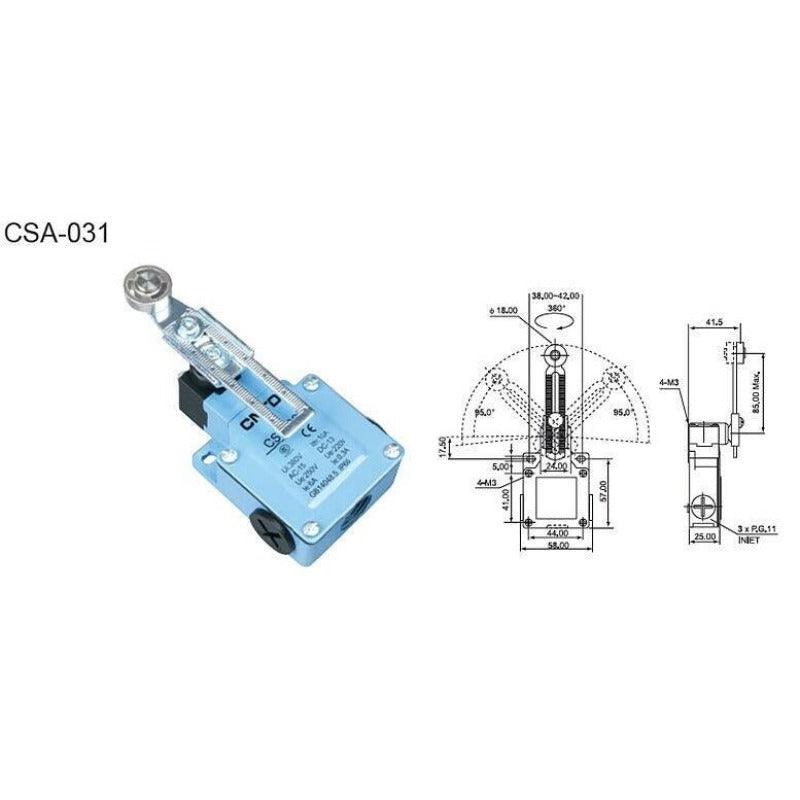

CSA-031 |

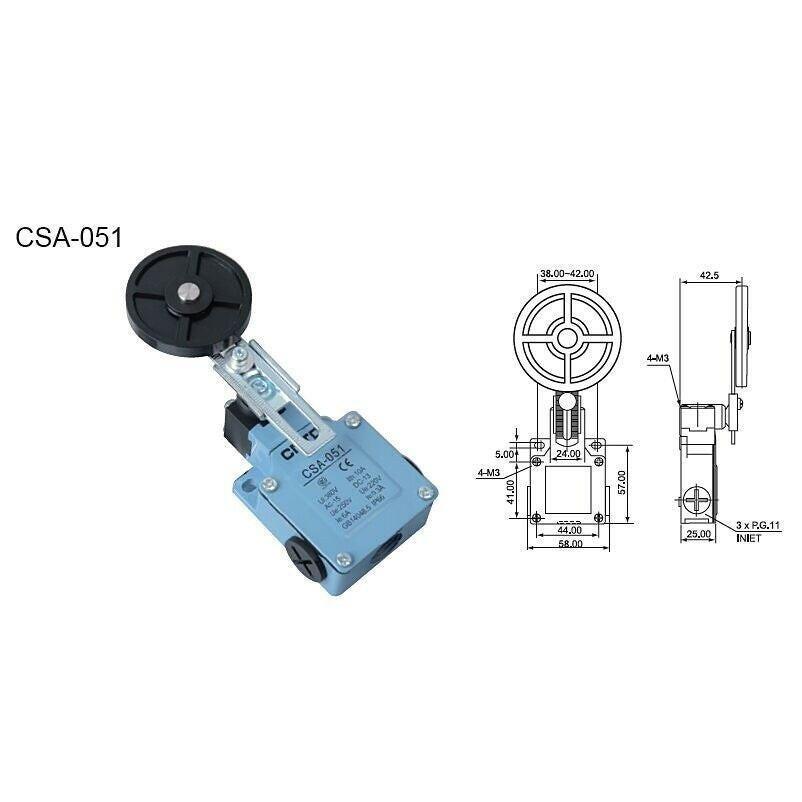

CSA-051 |

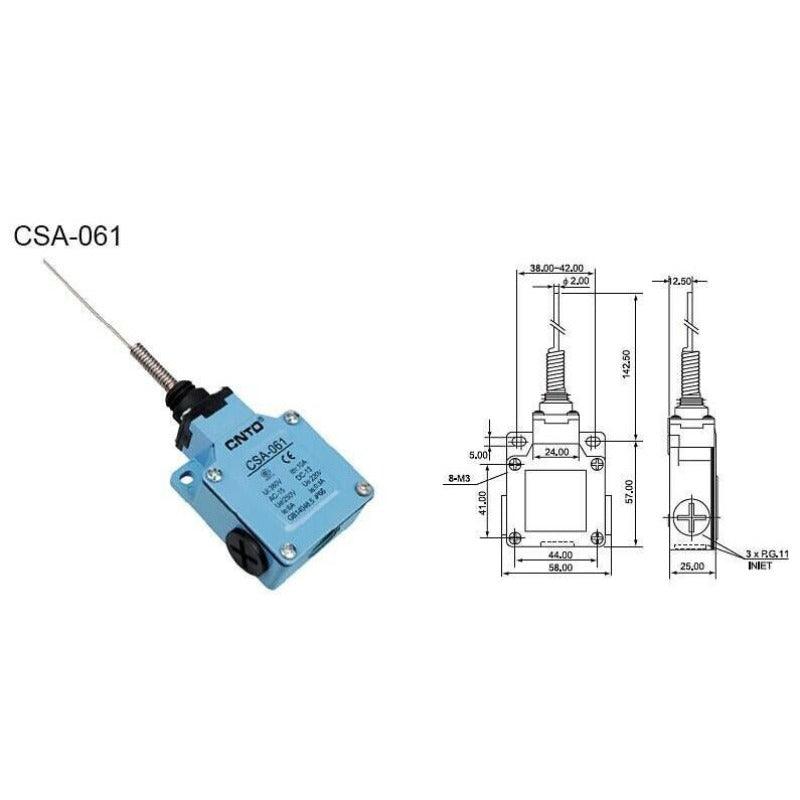

CSA-061 |

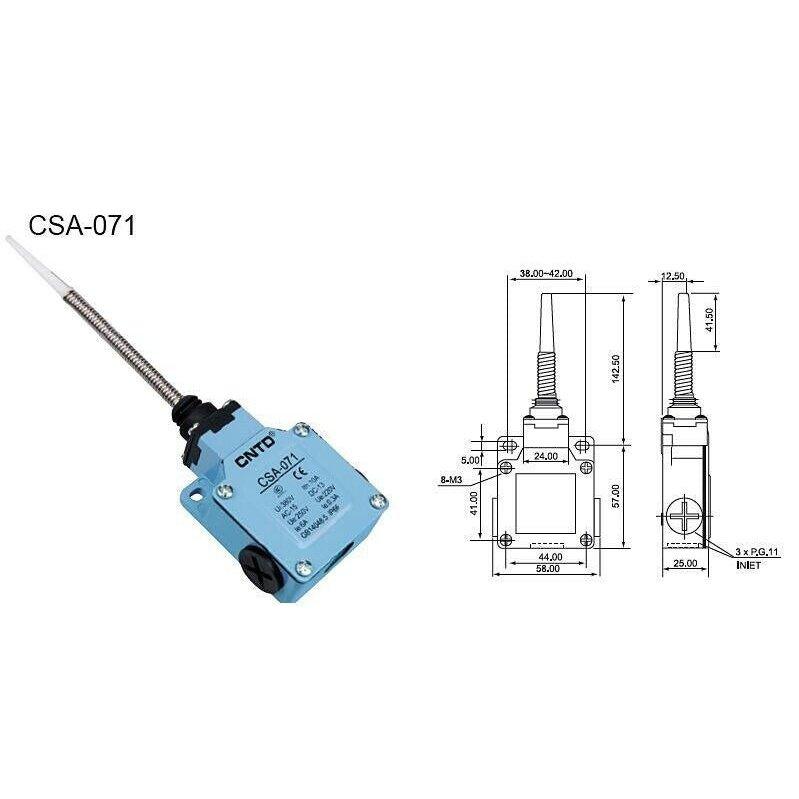

CSA-071 |
CSA-081 |
|
Operating force |
OF(Max.) |
800g |
800g |
800g |
400g-cm |
400g-cm |
400g-cm |
400g-cm |
150g |
150g |
150g |
|
Release force |
RF(Min) |
400g |
400g |
400g |
100g-cm |
100g-cm |
100g-cm |
100g-cm |
50g |
50g |
50g |
|
Pre-travel |
PT(Max) |
1.8mm |
1.8mm |
1.8mm |
20° |
20° |
20° |
20° |
30mm |
30mm |
30mm |
|
Tripping position |
TP±10% |
2.0mm |
2.0mm |
2.0mm |
22.5° |
22.5° |
22.5° |
22.5° |
22.5° |
22.5° |
22.5° |
|
Movement differential |
MD(Max.) |
1.2mm |
1.2mm |
1.2mm |
10° |
10° |
10° |
10° |
14° |
14° |
14° |
|
Over travel |
OT(Min.) |
4.0mm |
4.0mm |
4.0mm |
75° |
75° |
75° |
75° |
20mm |
20mm |
20mm |
|
Total travel |
TT |
5.8mm |
5.8mm |
5.8mm |
95° |
95° |
95° |
95° |
50mm |
50mm |
50mm |
|
Rotary indexing |
|
|
|
|
22.5° |
22.5° |
22.5° |
22.5° |
|
|
|
Characteristic
|
Double Break Mechanism |
INO+INC Force Break snap action |
|
Rated Voltage / Current |
10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosφ=0.4 |
|
Contact Resistance |
25mΩ max. (initial value) |
|
Insultation Resistance |
100mΩ min. (at 500VDC) |
|
Dielectric Strength |
1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
|
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts |
|
|
1500VAC, 50/60 Hz for 1 minute between each terminal and ground |
|
|
Electrical Life |
500,000 at 10A 250VAC Resistive |
|
Mechanical Life |
10, 000, 000 operations min. (under rated conditions) |
|
Operating Speed |
5mm/s to 0.5m/s |
|
Degree of Protection |
IP66 |
|
Ambient Temperature Rised |
Max 30 over ambient temperature at rated voltage/current |
|
Conformed Standards |
Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660 |
|
Operating Temperature |
-5~+65 (with no icing) |
|
Storage Temperature |
-5~+65(with no icing) |
|
Ambient Operating Humdity |
95% RH Max. |
|
Shock Resistance |
Mechanical durable: 1000m/s2 min. |
|
Malfunction: 300m/s2 min. |
|
|
Vibration Frequency |
Malfunction: 10 to 55Hz, 1.5mm double amplitude |
|
Terminal Screw Torsional Force |
6-8 kgf-cm |
|
Other Screw Torsional Force |
Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm |
|
Bare Wire Diameter |
φ2 Max |
|
Cable Diameter |
φ12 Max(IP 65 if use cable φ8-9) |
