CHNT CHINT Relay NXR-38 23A-32A 30A-38A Thermal Overload Relay for NXC series AC Contactor

SPECIFICATIONS

CHNT CHINT Relay NXR-38 23A-32A 30A-38A Thermal Overload Relay for NXC series AC Contactor

Place of Origin: Zhejiang, China

Brand Name: CHNT

Model Number: NXR-38

Theory: Thermal Relay

Usage: AUTO

Size: Miniature

Protect Feature: Sealed

Contact Load: Low Power

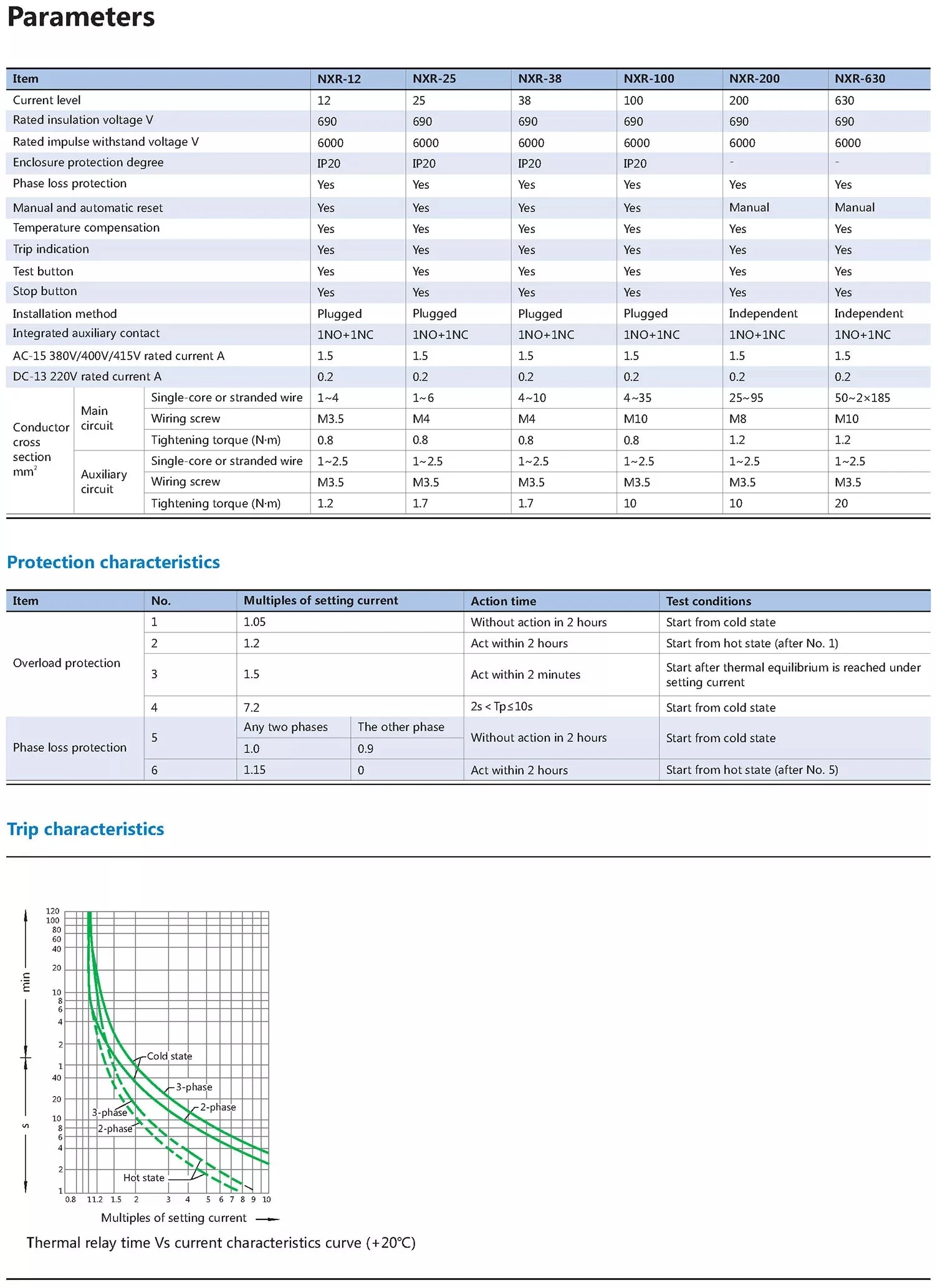

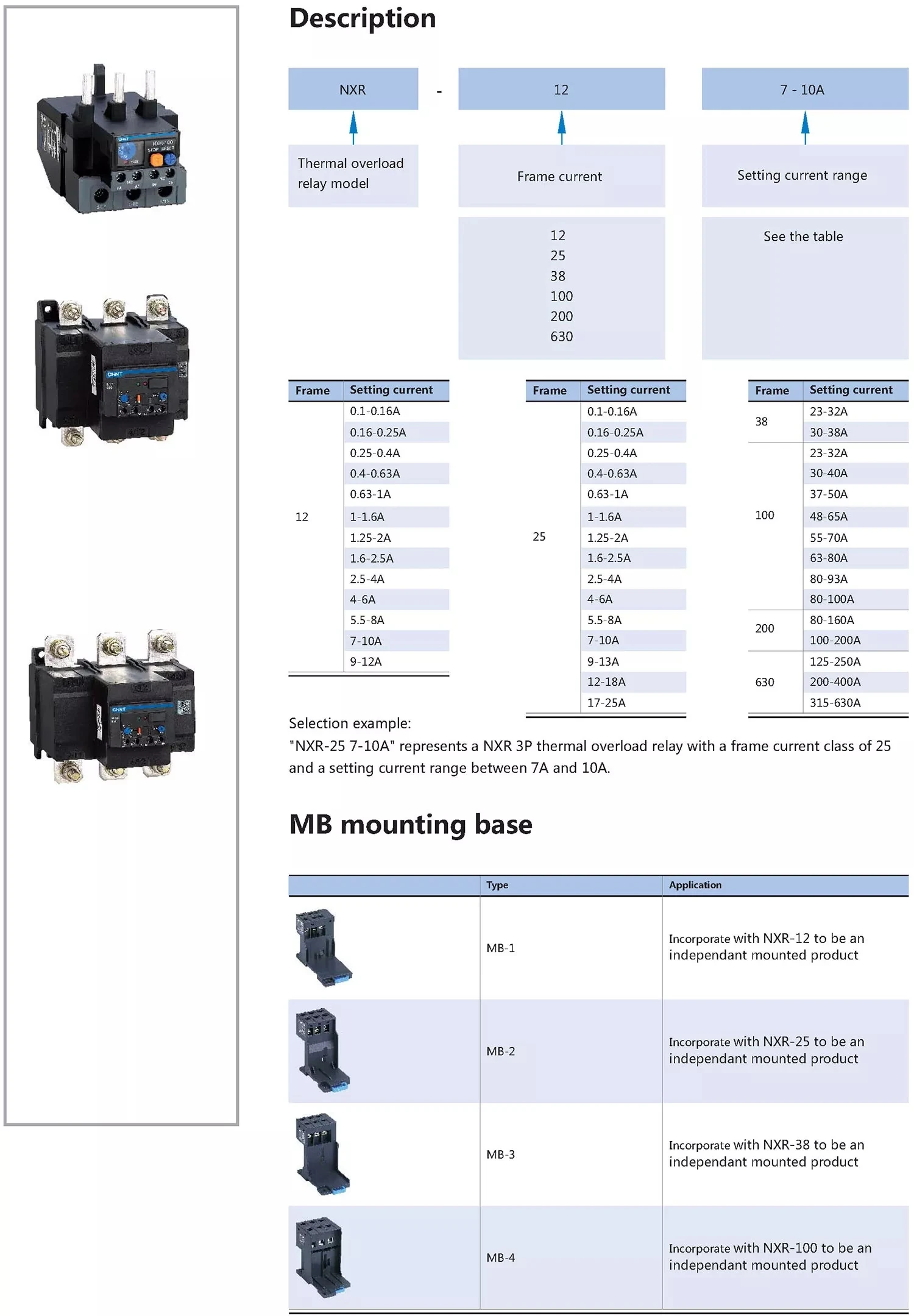

Product Information

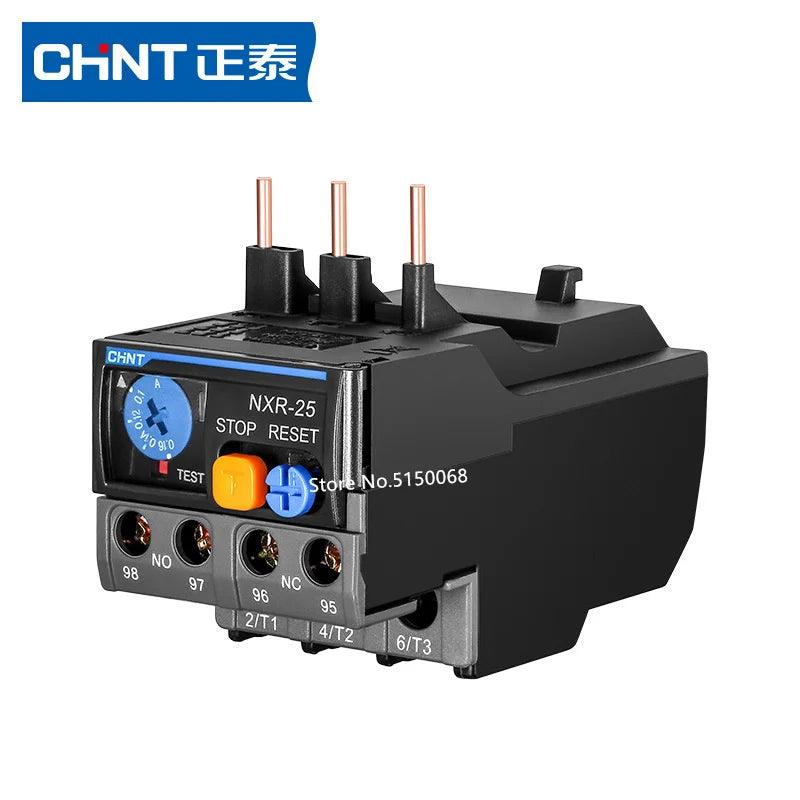

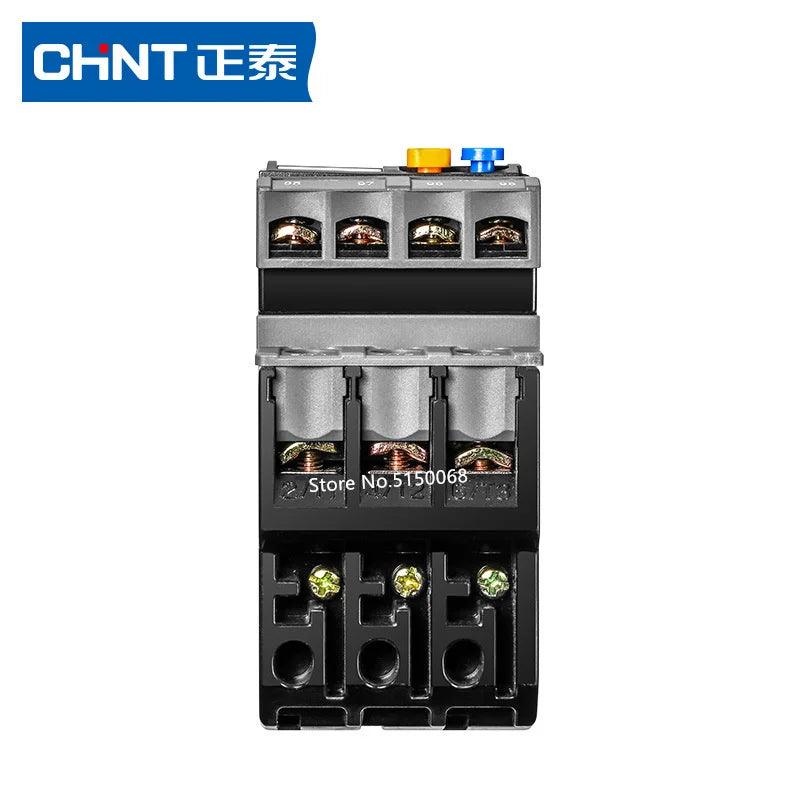

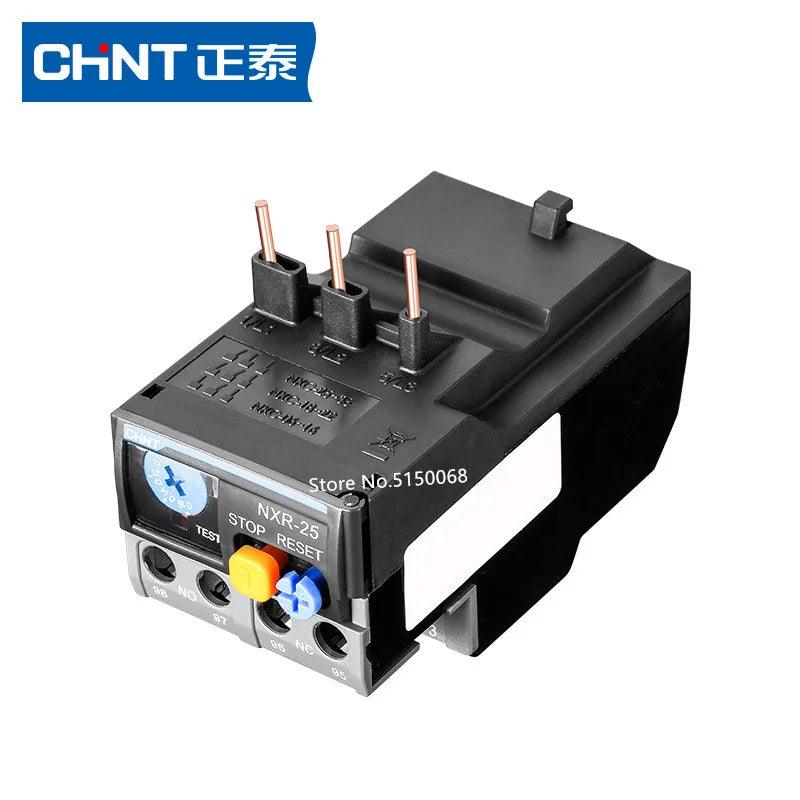

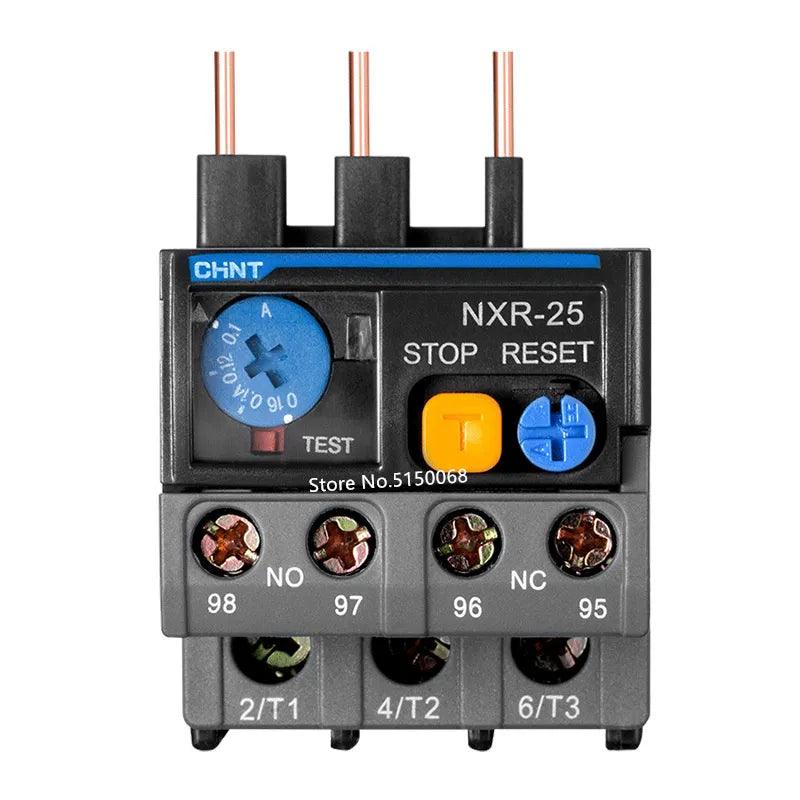

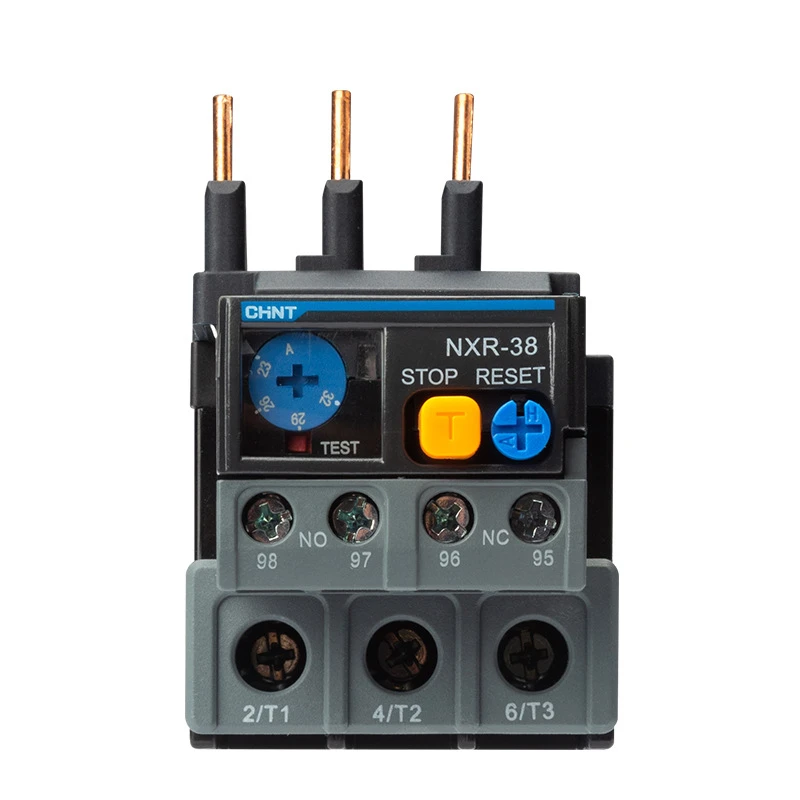

Product Display

NXR series thermal overload relay (hereinafter referred to as thermal relay) is suitable for overload and phase failure protection of AC motors with AC 50Hz/60Hz, voltage up to 690V, and set current of 0.1~630A for long-term operation or intermittent operation. The thermal relay also has functions such as temperature compensation, action indication, automatic and manual reset, stop and test, and the product performance is stable and reliable. The thermal relay can be plugged into the contactor or installed independently. Compliant with standards: G/TB 14048.4/IEC 60947-4-1, GB/T 14048.5/IEC 60947-5-1.
