Brushless Gear Worm Motor DC 12V 24V High Torque 70KG.CM Speed 12rpm-471rpm BLDC Motors PWM Forward Reversed 5840-3650
Regular price
$164.46 USD
Regular price
$79.63 USD
Sale price
$164.46 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Brushless Gear Worm Motor DC 12V 24V High Torque 70KG.CM Speed 12rpm-471rpm BLDC Motors PWM Forward Reversed 5840-3650
Brand Name: HYSMOTOR
Origin: Mainland China
Specification:
-
Voltage: DC12V
No-load Speed: 235rpm,130rpm,80rpm,40rpm,20rpm,14rpm,8rpm
-
Voltage: DC24V
No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm
-
Error: plusmn5%
Wire:
1.Red line:Power supply +
2.Black line:Power supply -
3.Yellow:Pulse signal output,when motor run 1 turn ,it output 6 pulses.
4.Blue line: PWM
5.White line:CW/CCW, when this line put on the black line togehter, then motor Reverse

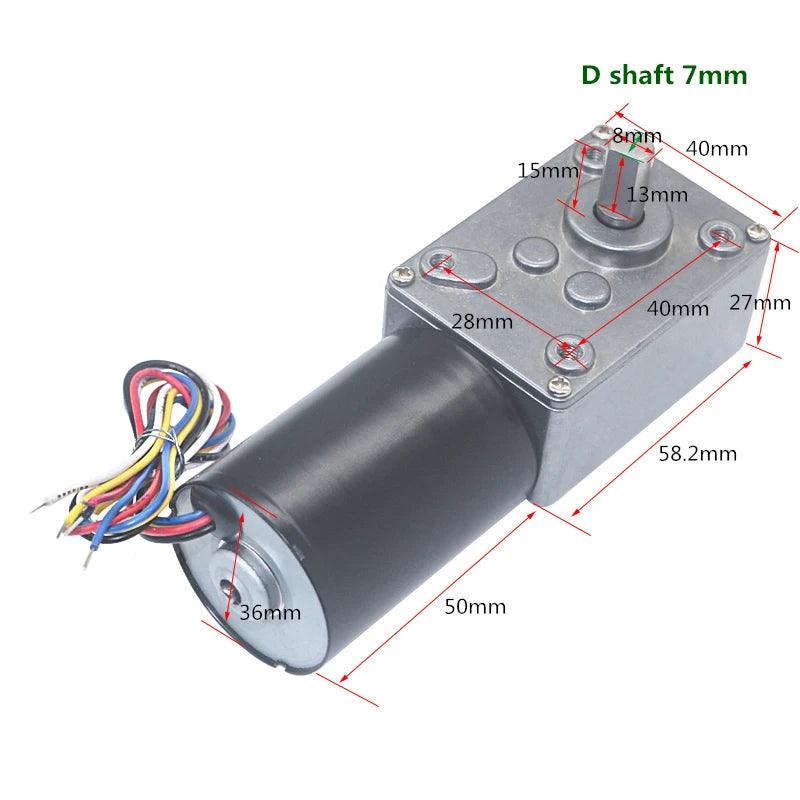

Size:

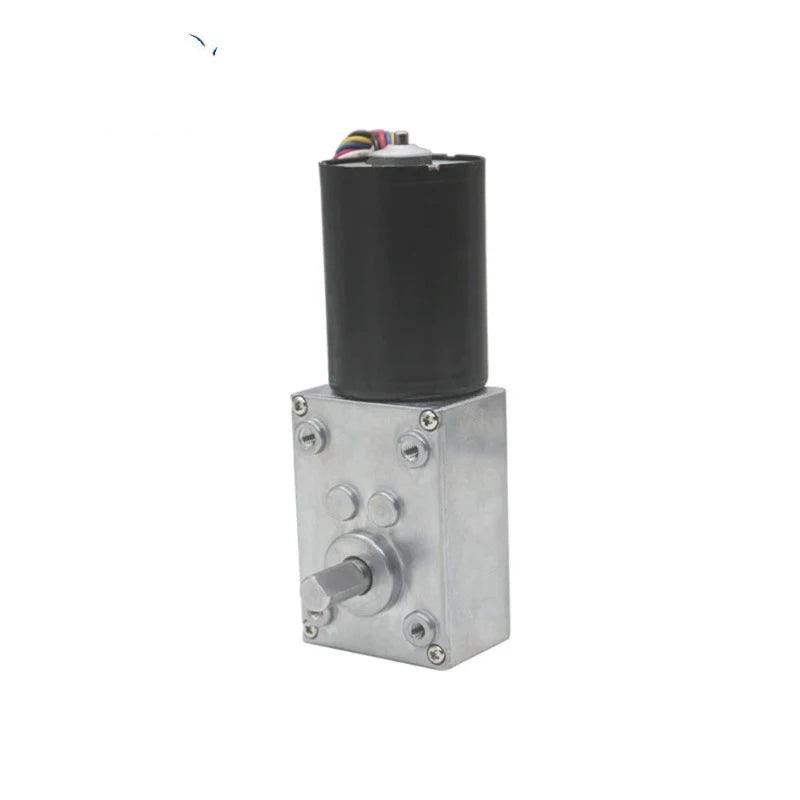

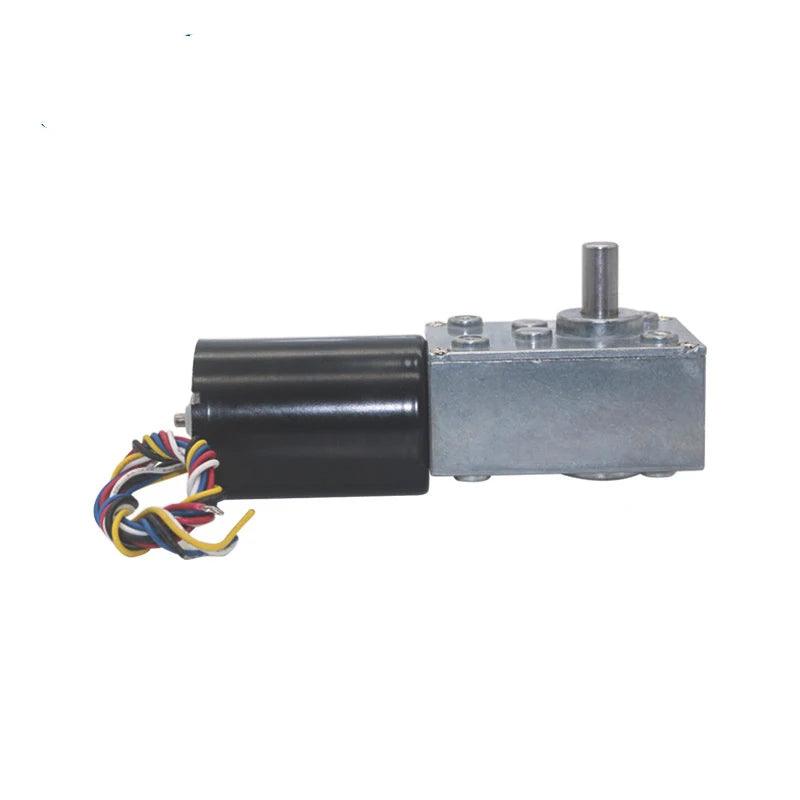

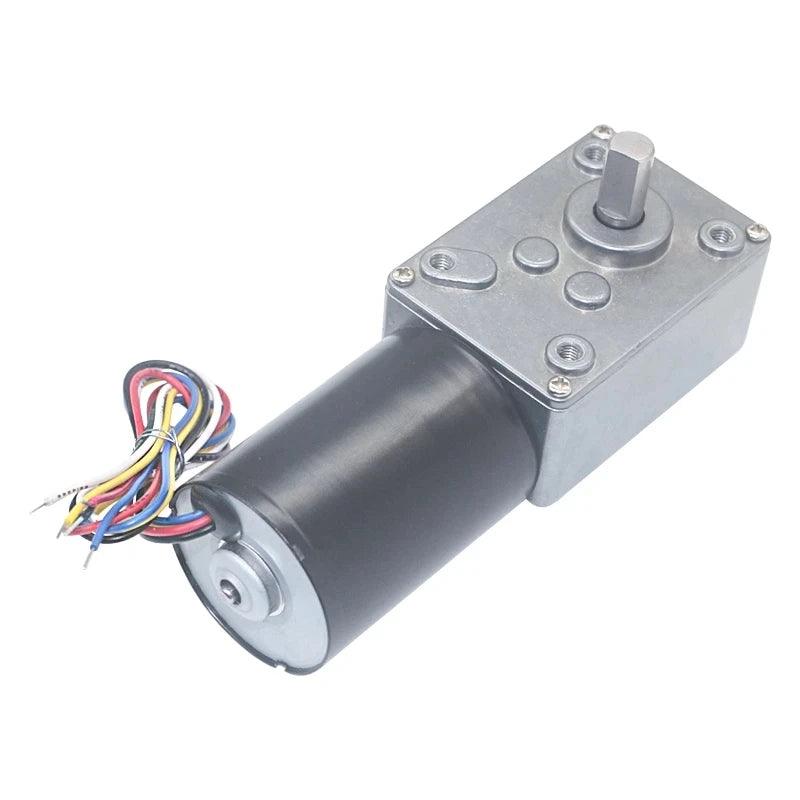

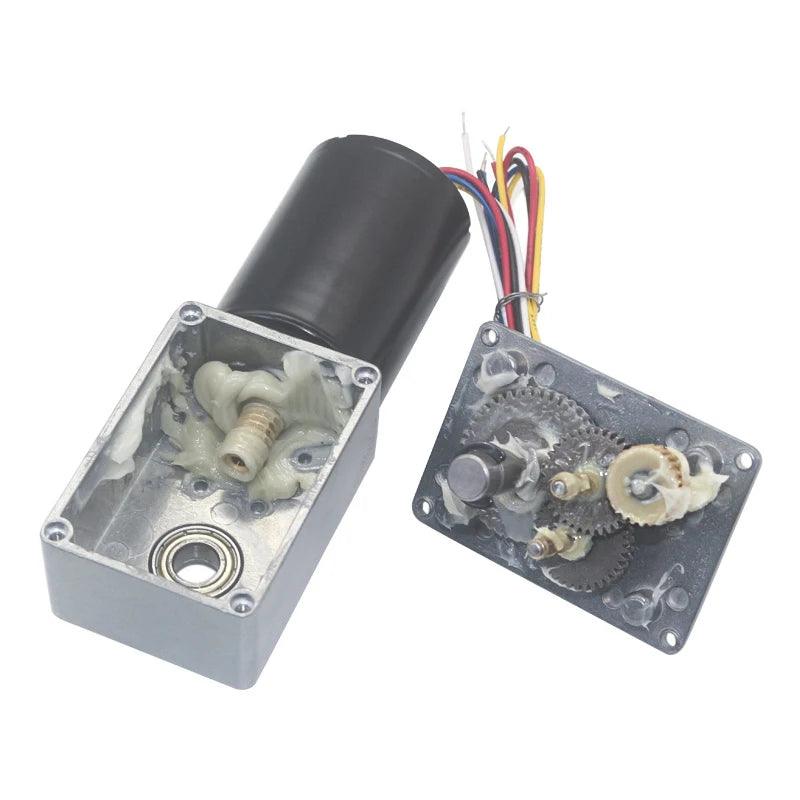

Worm gear motor Show:
Applications:
