BL3650 36mm DC Brushless 12V 24V 24W 8000RPM BLDC Powerful Motor

BL3650 DC Brushless Motor Series, Include 4 Family, click for details:

1) BL3650: High-speed (No Gearbox)

2) GB37-BL3650: Common Gearbox

3) GP36-BL3650: Planetary Gearbox

4) GW5840-BL3650: Worm Gearbox

More DC Brushless Motor Series (BL3650 series's brothers), click for details.

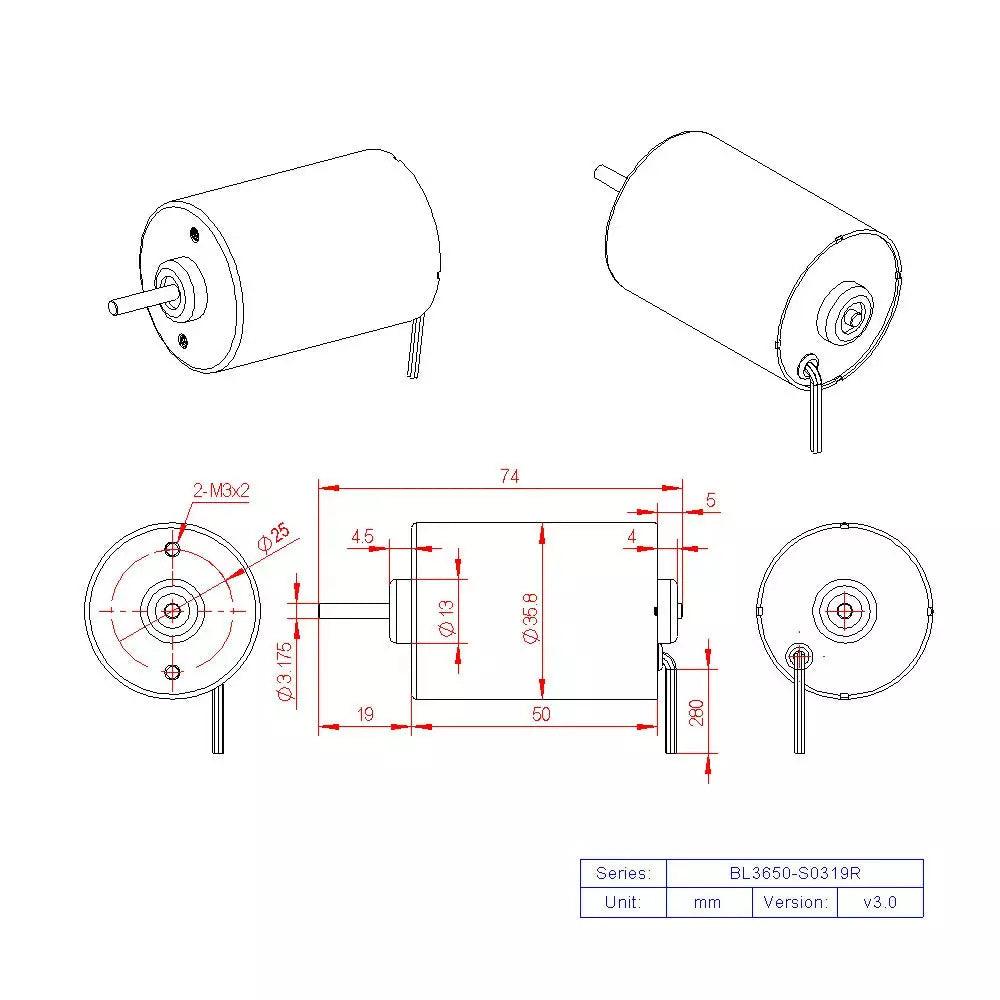

Model: BL3650-S0319R
Gear Box Name: -
Gear Box Type: -
Motor Body Name: BL2418
Motor Body Type: DC Brushless Motor (BLDC)
Shaft Number: Single
Shaft Size: 3.175mm(diameter) * 19mm(length)
Shaft Shape: Round
Rated Voltage: DC 12/24V (can be reduced)
Motor Weight: 180g (approx.)
Motor Use Temperature: 0℃-70℃
Motor Storage:
- Temperature: 0℃-40℃
- Humidity: 15%-90% RH

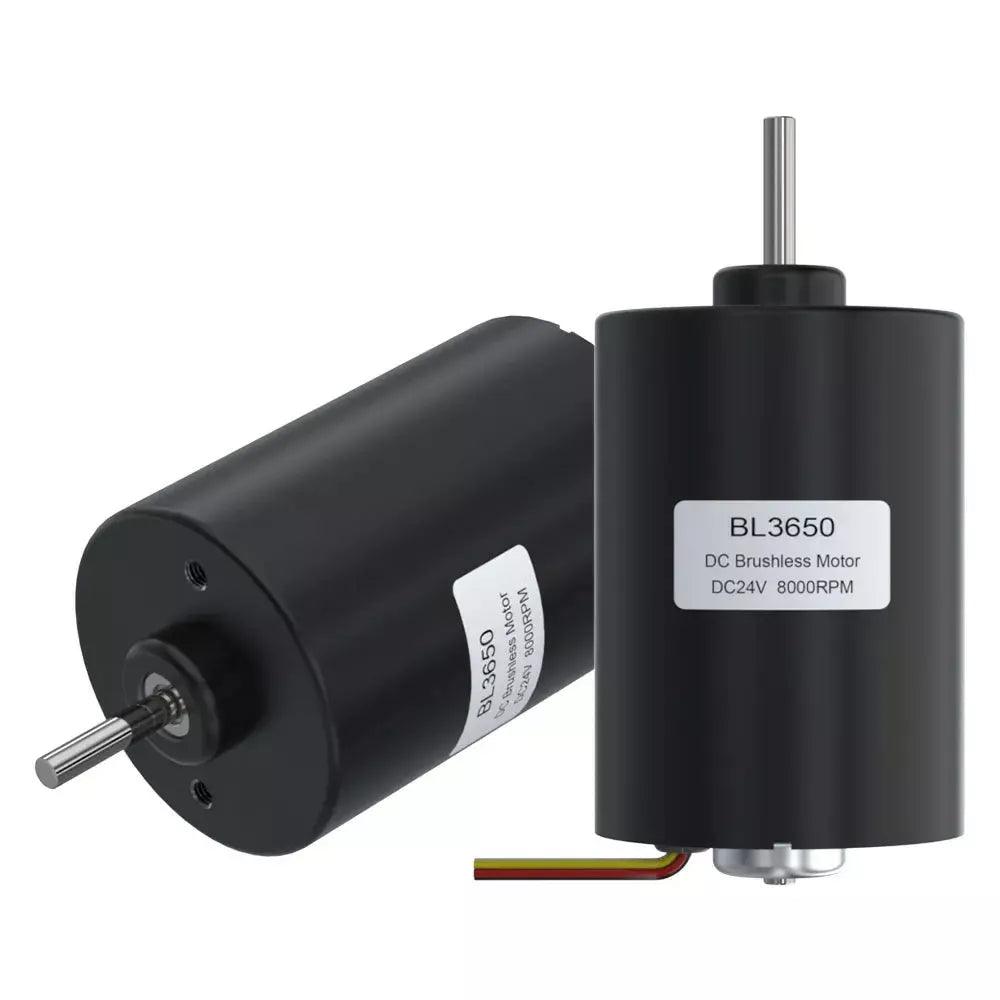

The BL3650 is DC Brushless Motor with high reliability, no electric spark, low noise, adjustable speed, forward and reverse rotation, etc.

The BL3650 motor’s rated voltage is DC 12/24V, and it can be reduced.

When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

Usually when the voltage is reduced to 6/12V (the 1/2 of DC12/24V), then the speed, current and torque are about 1/2 of those of 12/24V.

The Speed (RPM) in the purchase option is rated voltage DC12/24V.

The No-load Speed at rated voltage DC 12/24V (Speeds in purchase options) is:
8000RPM

The No-load speed at reduced voltage DC 6/12V is (Speeds in purchase options divided by 2):
4000 RPM

For more voltages and speeds, please contact us.

Package included:
- 1 x Motor with Wire (about 280mm length)

Notes:
1. VCC and GND must not be misconnected.
2. CW/CCW, PWM, BRAKE could not be connected to VCC.
3. Prohibit CW/CCW signal while the motor is running. When you need to switch the direction, please stop the motor first, then set the correct CW/CCW according to the expected motor rotation direction, and then start the motor.
4. For gear motors, the FG output pulse must to be multiplied by the reduction ratio of the gearbox.

Notes: Pin connect for DC brushless motor describes how the motor's pins are connected when the motor is started, and how the speed and brakes are controlled.
