AC Current Transmitter Din Rail 0-1000A Output 4-20mA RS485 DC24V powered
Couldn't load pickup availability
SPECIFICATIONS
AC Current Transmitter Din Rail 0-1000A AC Current Sensor Open Loop Hall Current Transducer Output 4-20mA RS485
Brand Name: ZUIDID
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Type: Analog Only
Supply Voltage: DC12V, DC24V, AC220V
Certification: CE

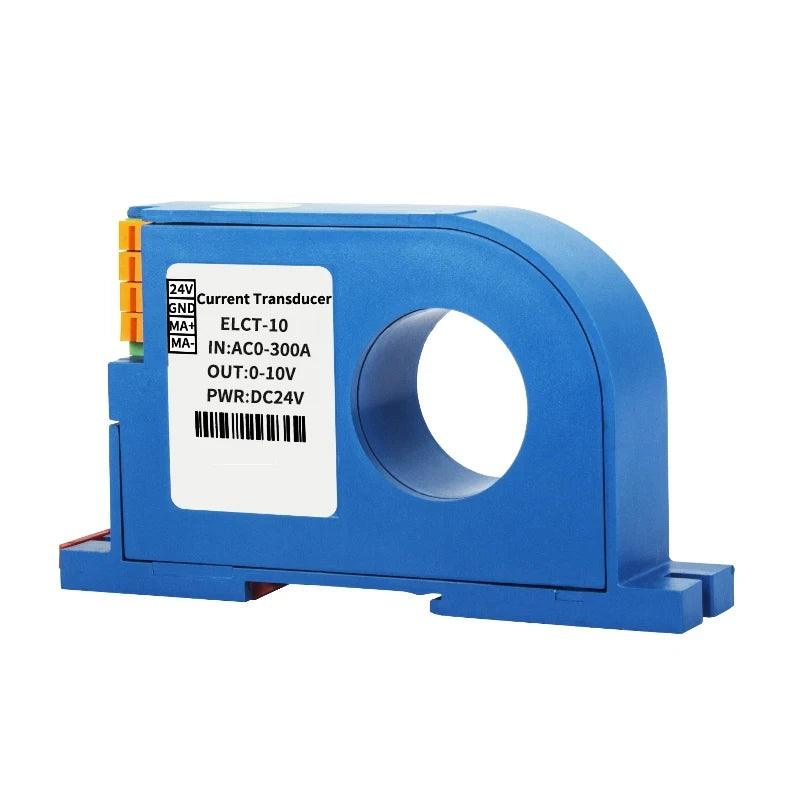

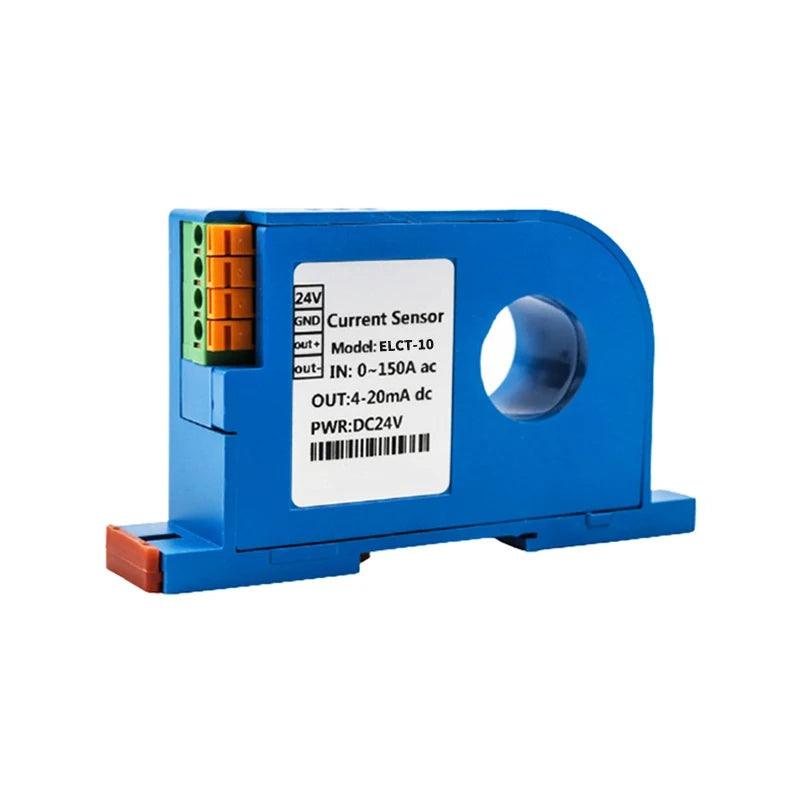

Model Number: ELCT-10
Dimensions: 22mm
Operating Temperature: -30℃~+85℃
Accuracy Class: 0.5%FS
Product name: Hall current transducer
Input current range: AC 0-1000A
Output signal: 4-20mA,0-5V,0-10V,RS485
Frequency range: 40-60HZ
Response time: <200ms

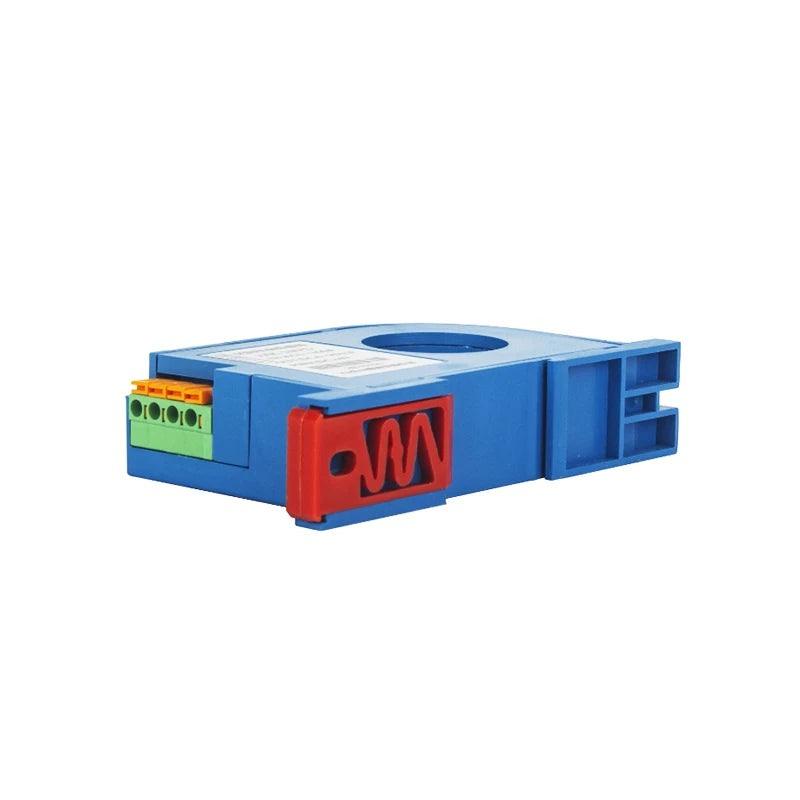

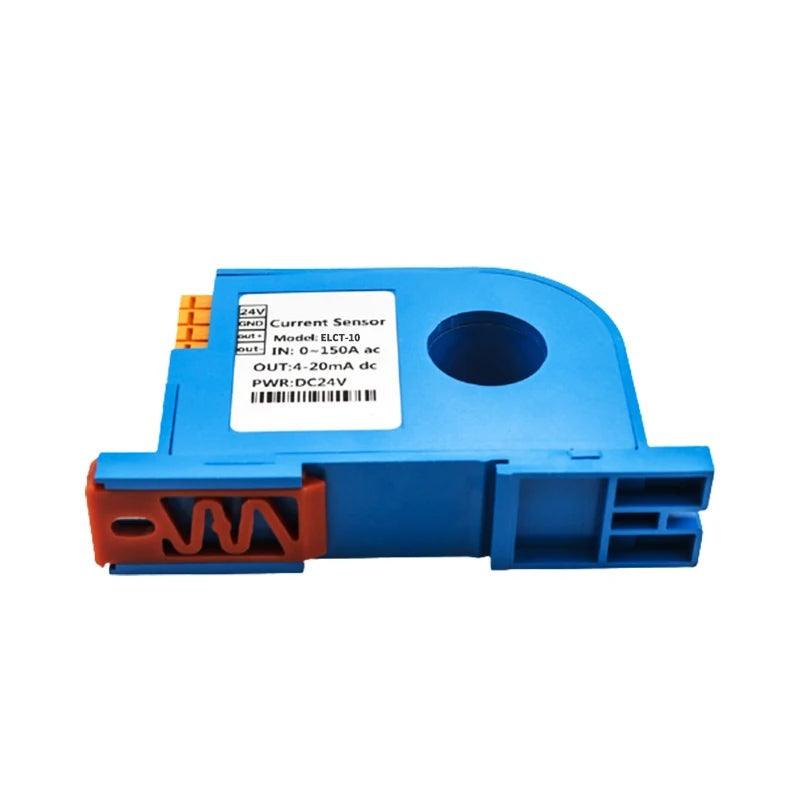

Installation method: DIN 35mm rail+ plane screw fixation
AC Current Transmitter Din Rail 0-1000A AC Current Sensor Open Loop Hall Current Transducer Output 4-20mA RS485
This link is special for AC current transducer.
DC current transducer link click here: DC current transducer
NOTES:

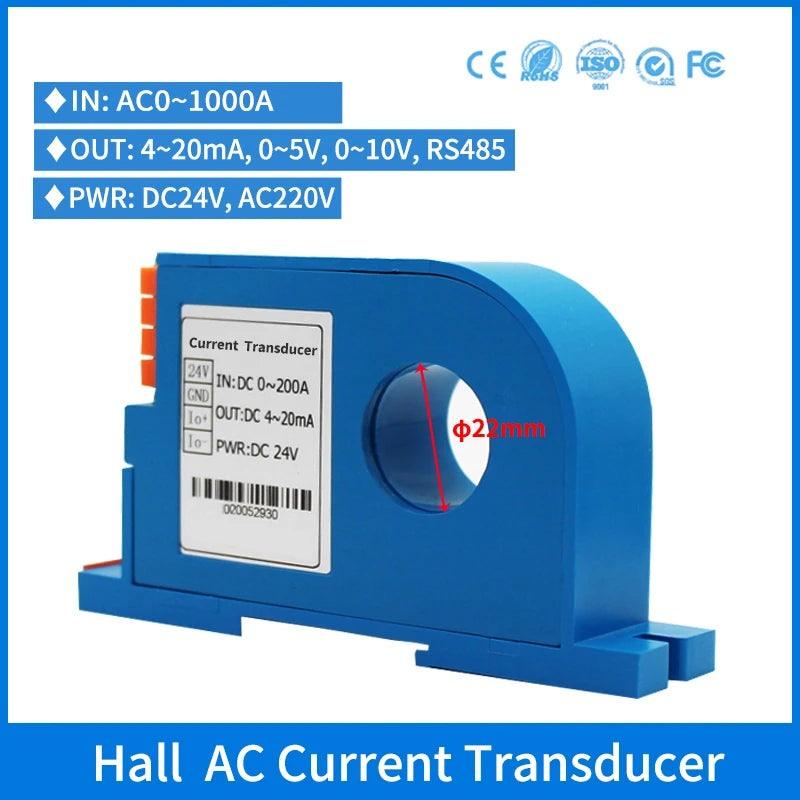

The aperture diameter is 22mm.
If you need other size (25mm, 31mm), please contact me.
We can make special customization for you.
1>>. Working principle: Open loop direct measurement.
2>>. Usage: Used for measuring DC,AC,pulse current and other arbitrary waveform current.
3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.
4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.
5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.
6>>. Full channel configuration,parameters customized.
