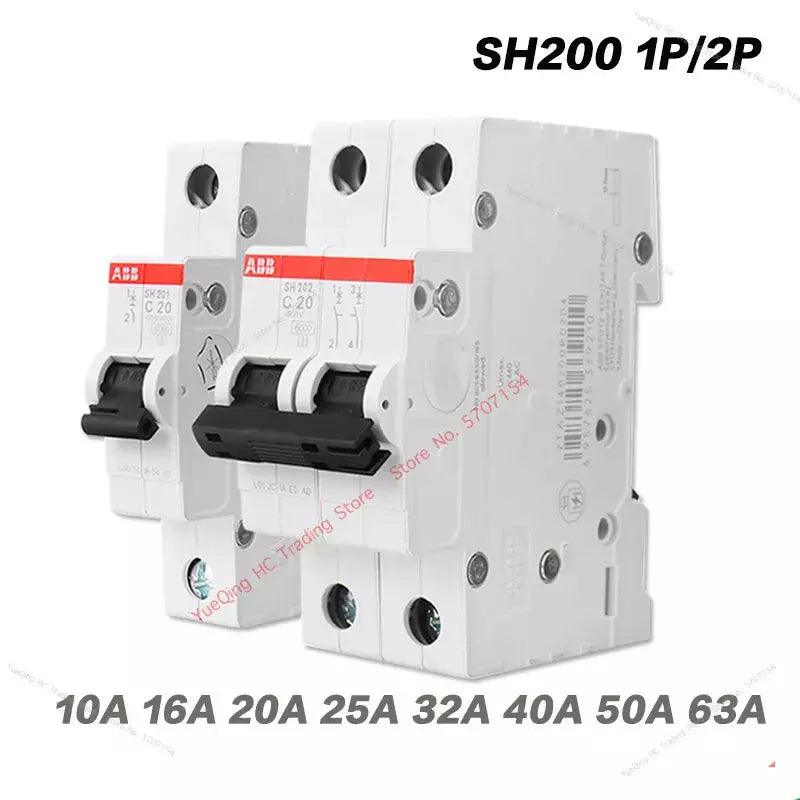

ABB Electric SH200 MCB Miniature Circuit Breaker AC 1P 2P C 10A 16A 20A 25A 32A 40A 63A

ABB Electric SH200 MCB miniature circuit breaker Circuit breaker Air switch 1P 2P C 10A 16A 20A 25A 32A 40A 50A 63A

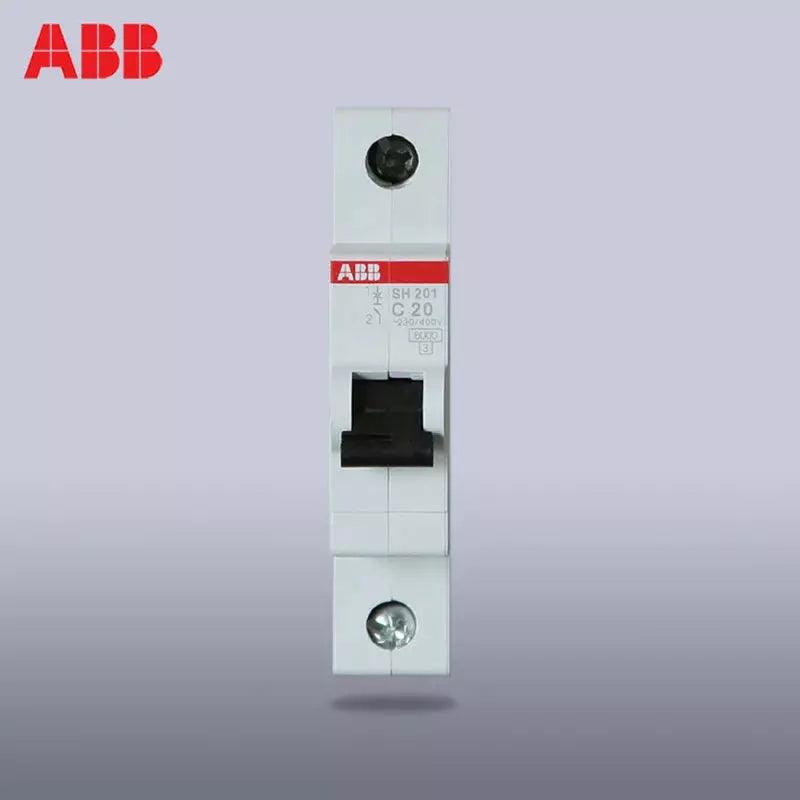

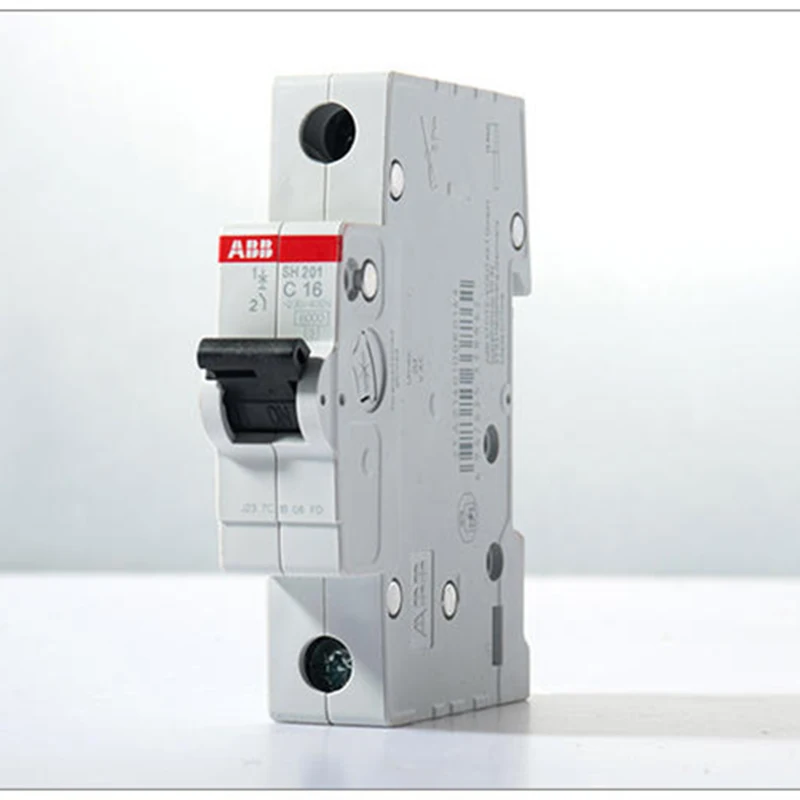

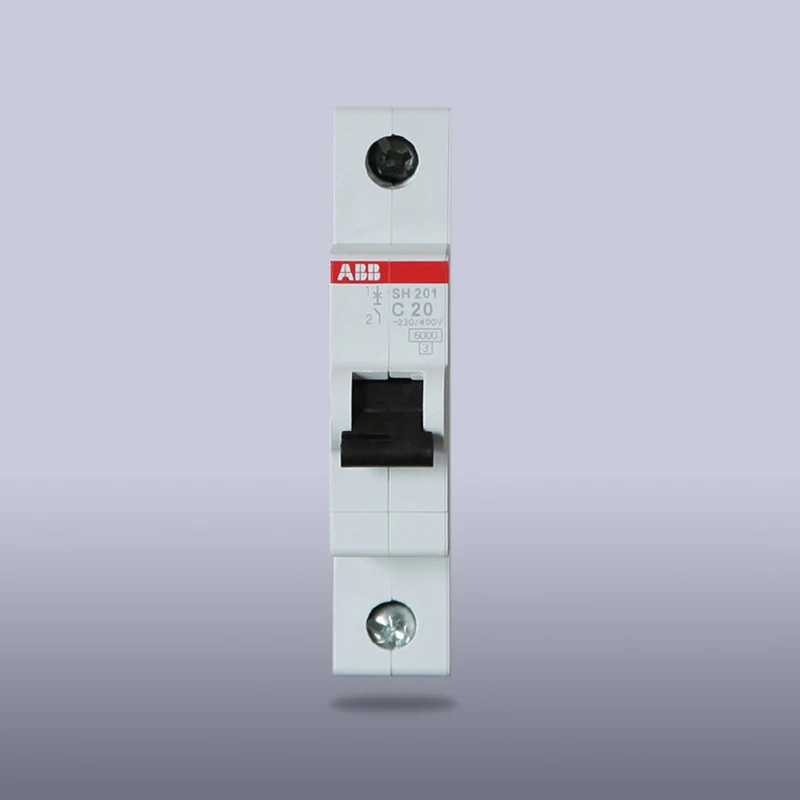

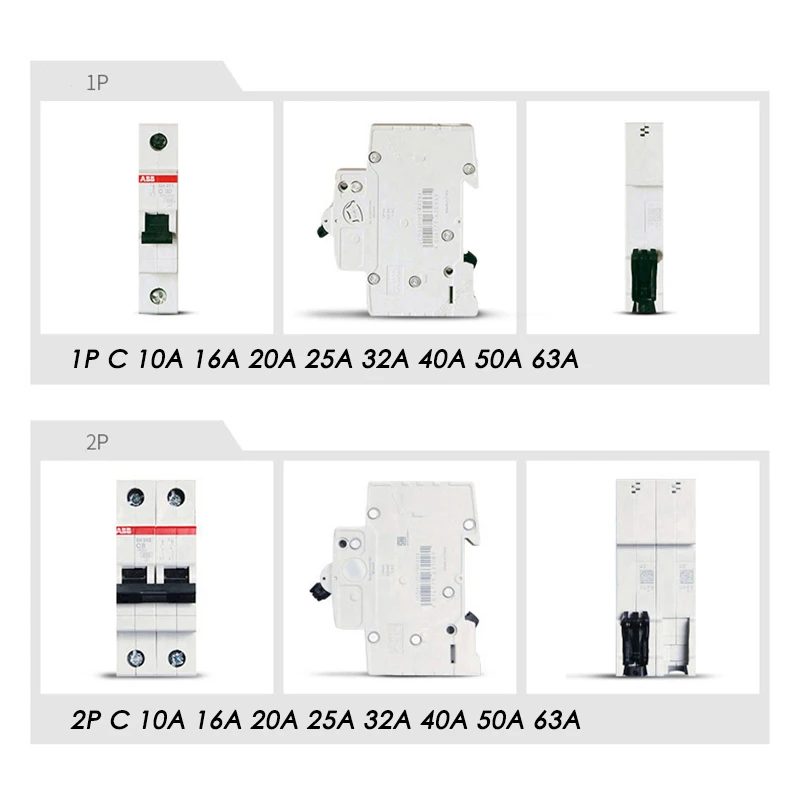

SH201 C 10A 16A 20A 25A 32A 40A 50A 63A

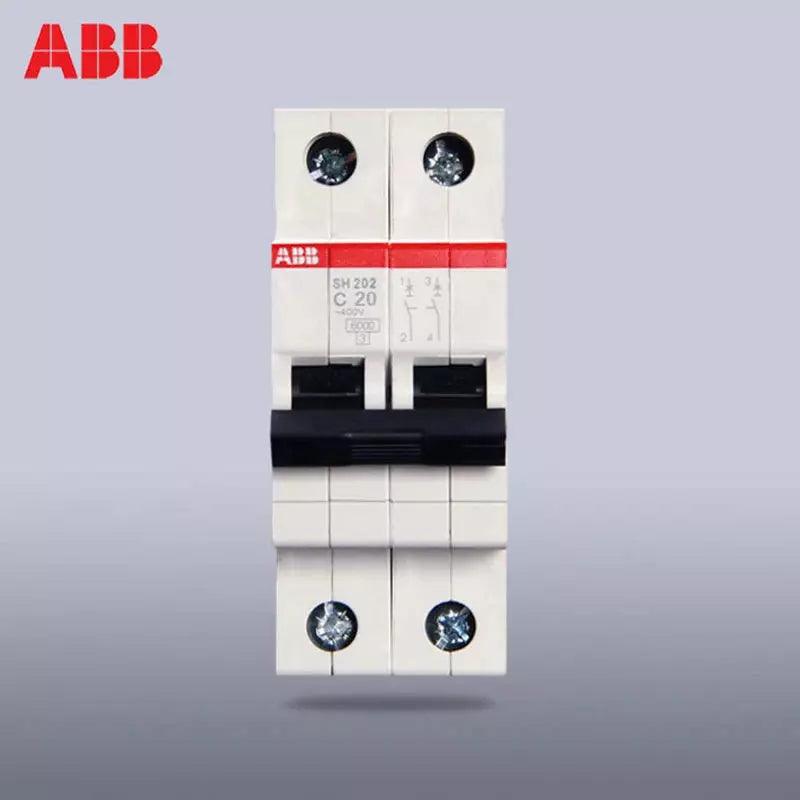

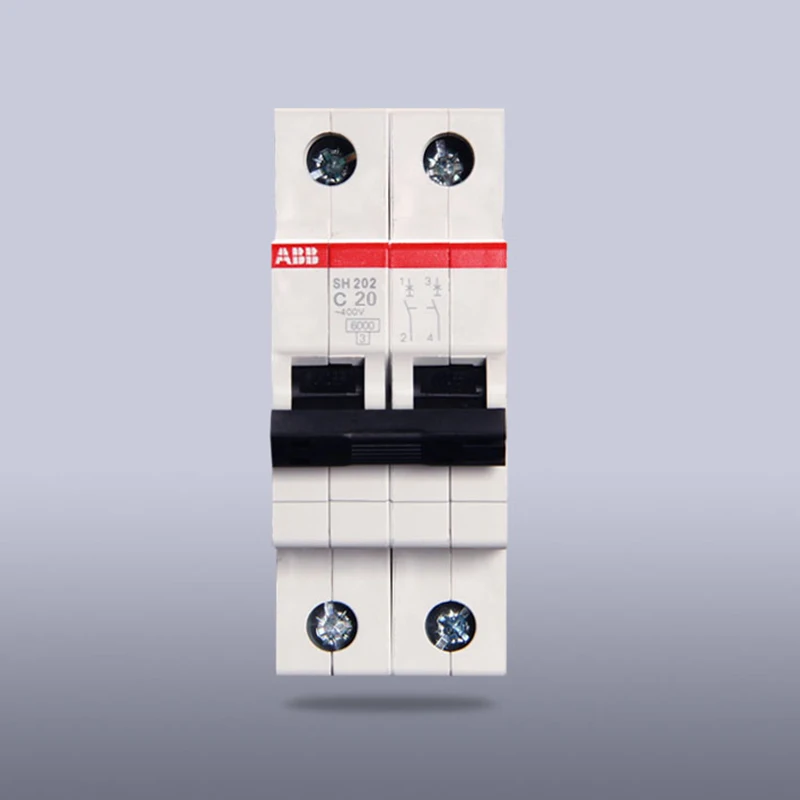

SH202 C 10A 16A 20A 25A 32A 40A 50A 63A

General Information

• Extended Product Type:SH201-C

• Catalog Description:Miniature Circuit Breaker - SH200 - 1P - C -  ampere

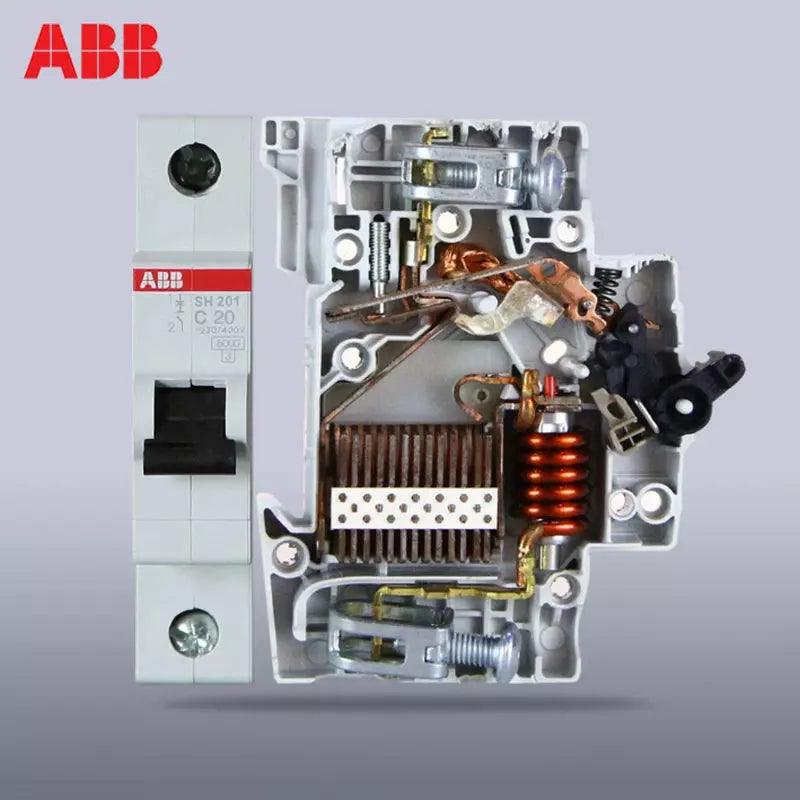

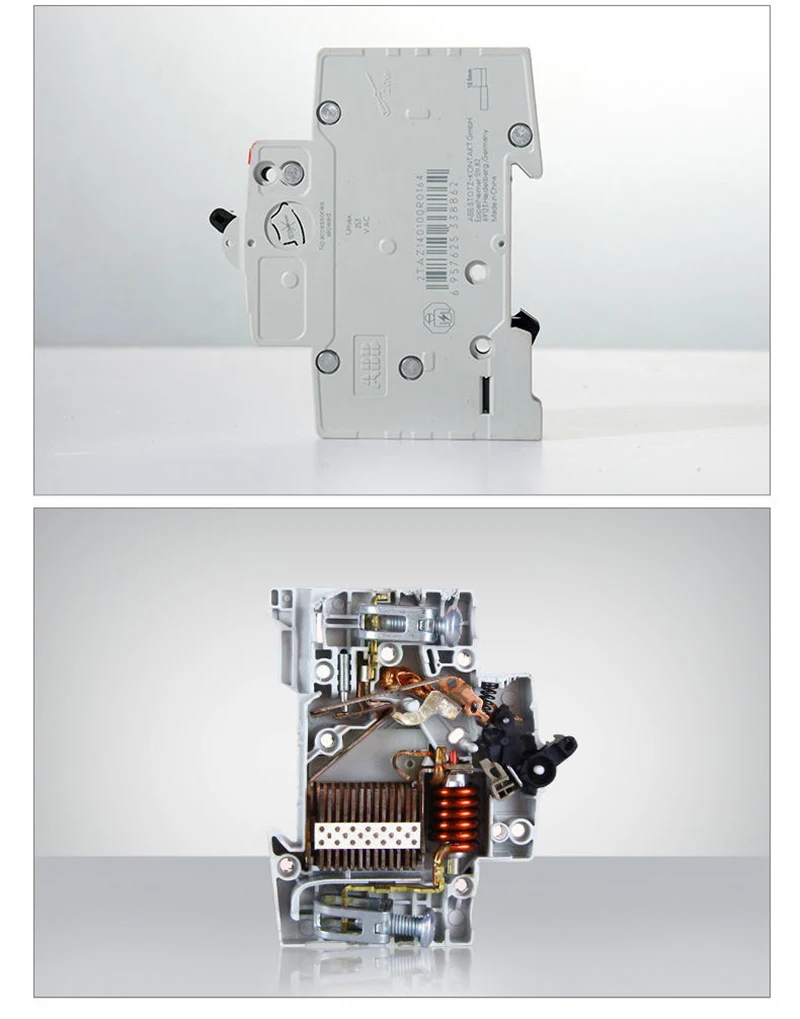

• Long Description:Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (from 0,5 A up to 63 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.

  Technical

  • Number of Poles:1

  • Tripping Characteristic:C

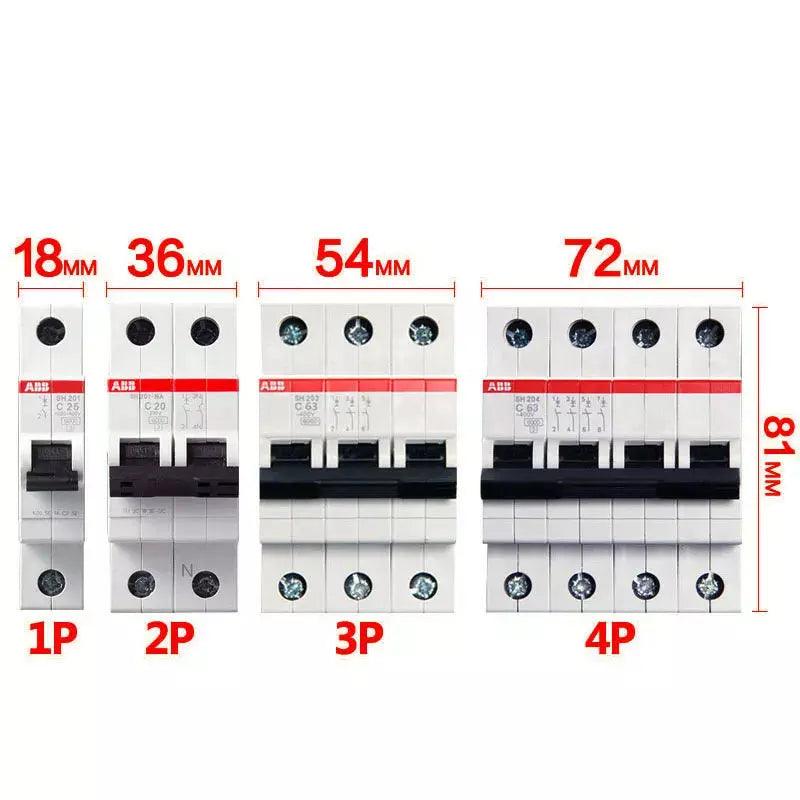

  Dimensions

  • Product Net Width:17.5mm

  • Product Net Depth / Length:69mm

  • Product Net Height:85mm
