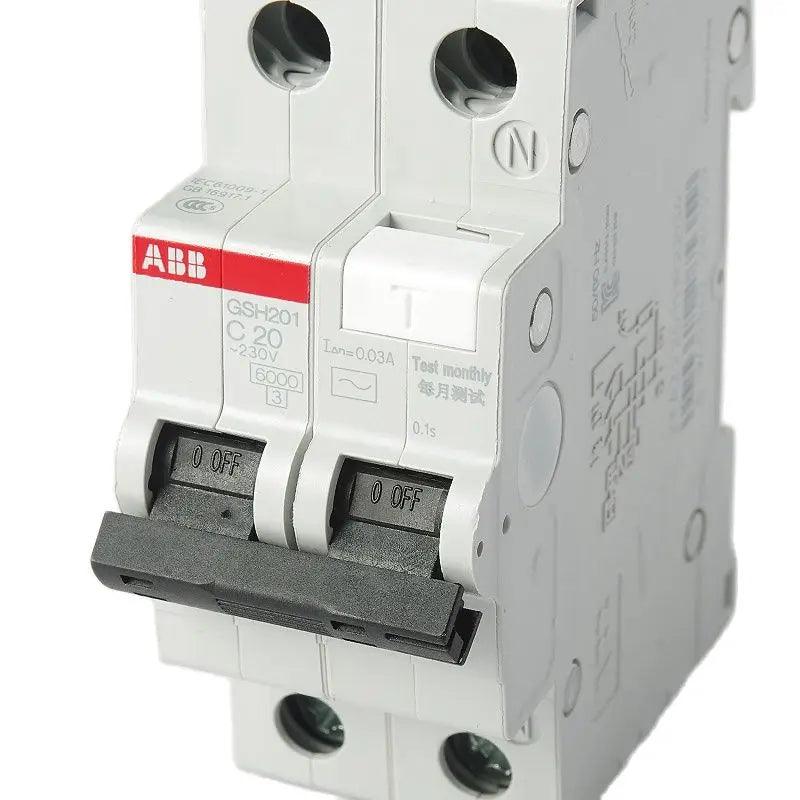

ABB Electric GSH201 1P+N 2P AC-C 40A 30MA Mini AIR Leakage Circuit Breaker Protection Switch

ABB Electric GSH201 1P+N 2P AC-C 40A 30MA Mini AIR Leakage circuit breaker protection switch Residual current operation  device

GSH201 1P+N C 10A 16A 20A 25A 32A 40A 50A 63A  30MA 0.03

GSH201 AC-C /0.03

General Information

• Extended Product Type:

  GSH201 AC-C /0.03

• Catalog Description:

  GSH201 AC-C /0.03 - RCBO

• Long Description:

  Residual Current Circuit Breaker with Overcurrent Protection GSH201 AC-C /0.03



  Technical

  • Standards:

    IEC 61009
    GB 16917

  • Type of Residual Current:

    AC type

  • Number of Poles:

    1+N

  • Number of Protected Poles:

    1

  • Rated Short-Circuit Capacity (Icn):

    6 kA

  • Tripping Characteristic:

    C

  • Position of Neutral Terminals:

    Right

  Technical UL/CSA

  • Short-Circuit Current Rating (SCCR):

    30 mA

  Dimensions

  • Product Net Width:

    69 mm

  • Product Net Height:

    85 mm

  • Product Net Depth / Length:

    70 mm
