895 DC Motor High Power Model Cutting Table Saw Garden Branch Repair Scissors 775 795 12V-24V DC Moter Saw Electric Drills

Regular price $69.14 USD
Regular price $73.06 USD Sale price $69.14 USD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)

SPECIFICATIONS

895 DC Motor High Power Model Cutting Table Saw Garden Branch Repair Scissors 775 795 12V-24V DC Moter Saw Electric Drills

Brand Name: HYSMOTOR

Certification: CCC

Origin: Mainland China

Commutation: Brush

Type: Micro Motor

Protect Feature: Explosion-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Pls contact me if you have any question

80W 775 motor Motor shaft: 5mm

Voltage: DC12V-24V (universal)

Maximum current: 6A

Maximum speed:

12V 4000rpm Torque: 0.9kg

24V 8000rpm Torque: 1.8kg


150W 775 motor Motor shaft: 5mm

Voltage: DC12V (only 12V can be used)

Maximum current: 12A

Maximum torque: 2.6kg

Maximum speed: 12000rpm


288W 775 motor Motor shaft: 5mm

Voltage: DC12V-24V (universal)

Maximum current: 12A

Maximum speed:

12V 6000rpm Torque: 1.9kg

24V 12000rpm Torque: 3.8kg



288W 795 motor Motor shaft: 5mm

Voltage: DC12V-24V (universal)

Maximum current: 12A

Maximum speed:

12V 6000rpm Torque: 2.6kg

24V 12000rpm Torque: 5kg


368W 895 Motor shaft: 5mm

Voltage: DC12V-24V (universal)

Maximum current: 16A

Maximum speed:

12V 6000rpm Torque: 7.6kg

24V 12000rpm Torque: 9.8kg

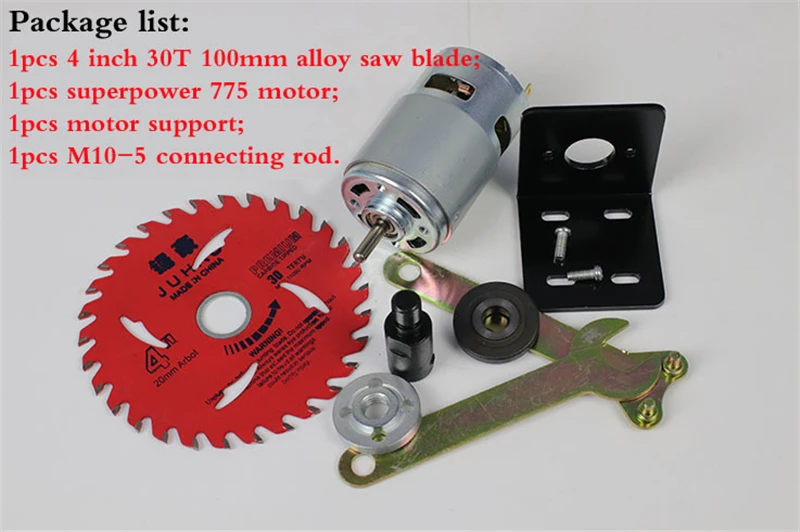

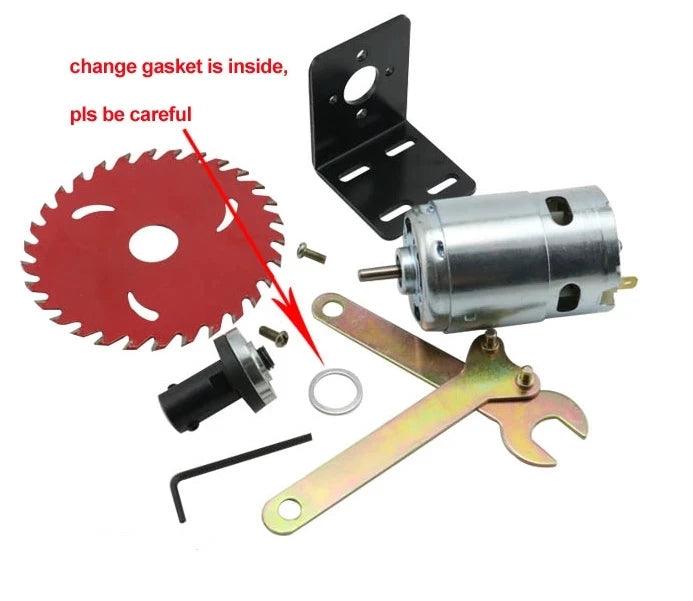

Only Table saw Packing List:
775 dc motor *1pcs
755 motor support *1pcs
M10-5mm coupler *1pcs
100mm saw blade *1pcs
2mm Hex Wrenches *1pcs
set screws *2pcs

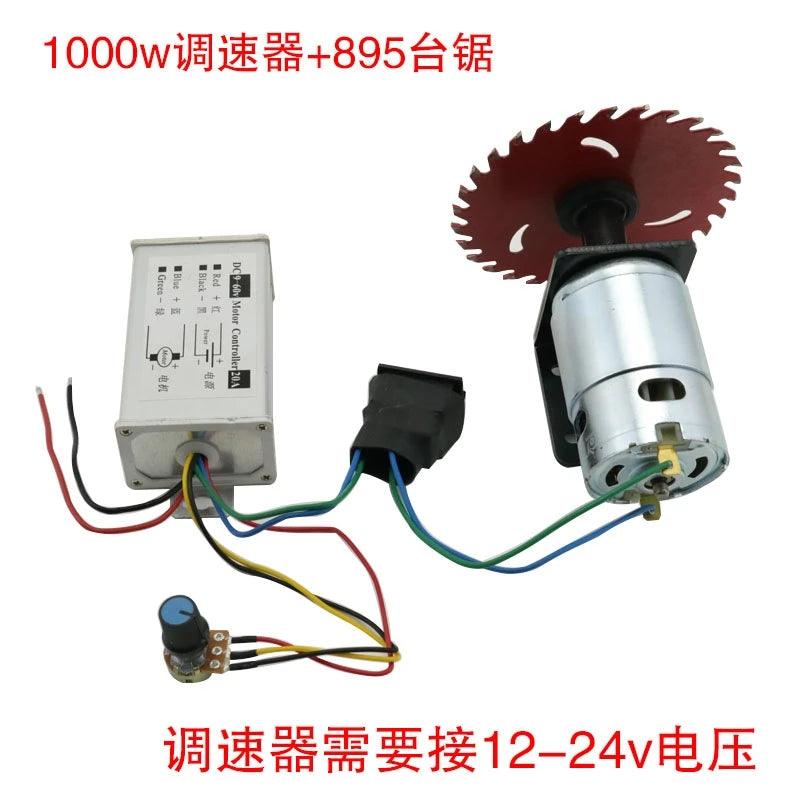

Table saw and Controller Packing List:

775 dc motor *1pcs
755 motor support *1pcs
M10-5mm coupler *1pcs
100mm saw blade *1pcs
2mm Hex Wrenches *1pcs
set screws *2pcs

1000W PWM Controller

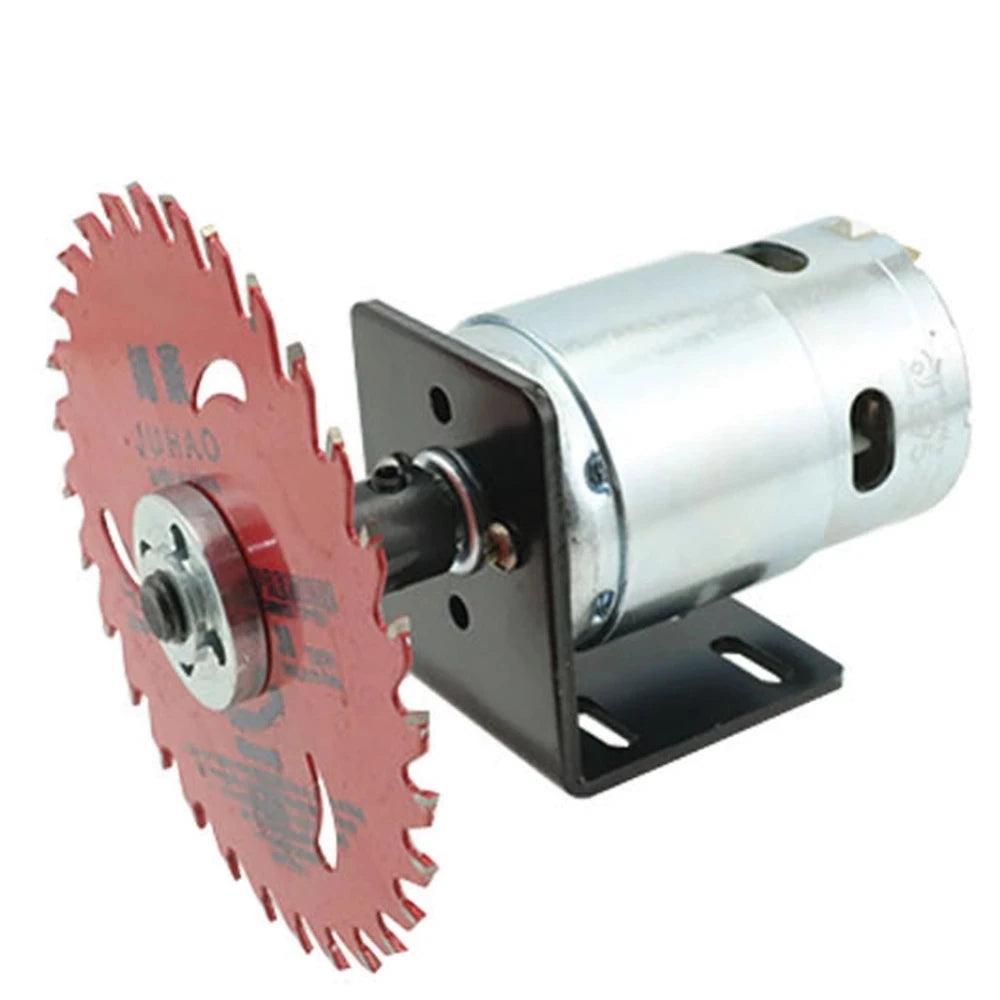

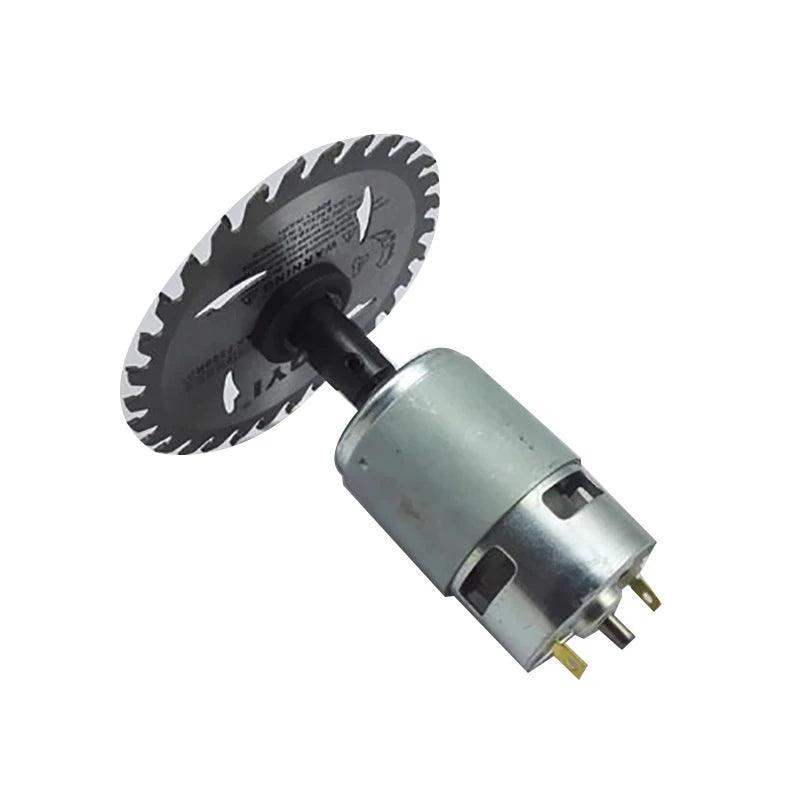

The following are photos of the 895 motor
