80GHz FMCW Radar Level Transmitter
Regular price
$612.90 USD
Regular price
$674.19 USD
Sale price
$612.90 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
80GHz FMCW Radar Level Transmitter, ??1mm High Precision Non-Contact Liquid Solid Level Sensor, 0~120m Range IP67 Explosion Proof for Sewage, Cement Silo, Corrosive Tank
-
?????????????????????

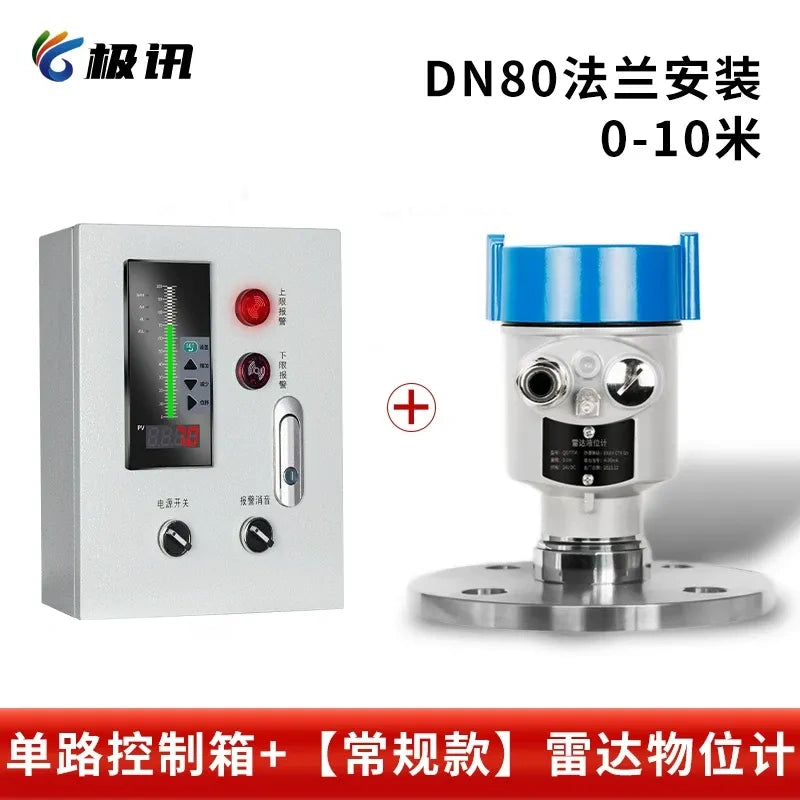

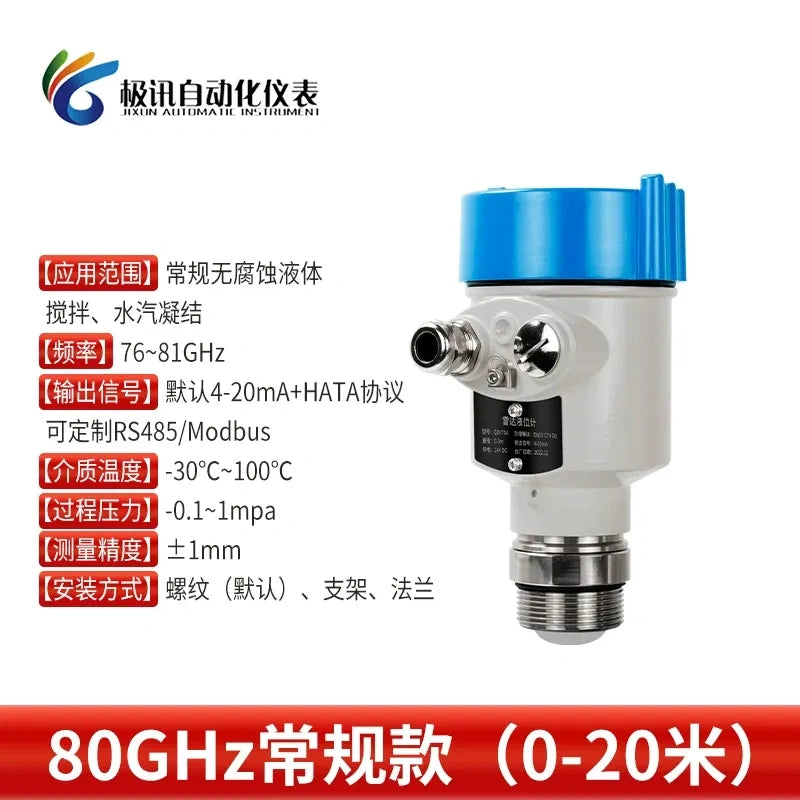

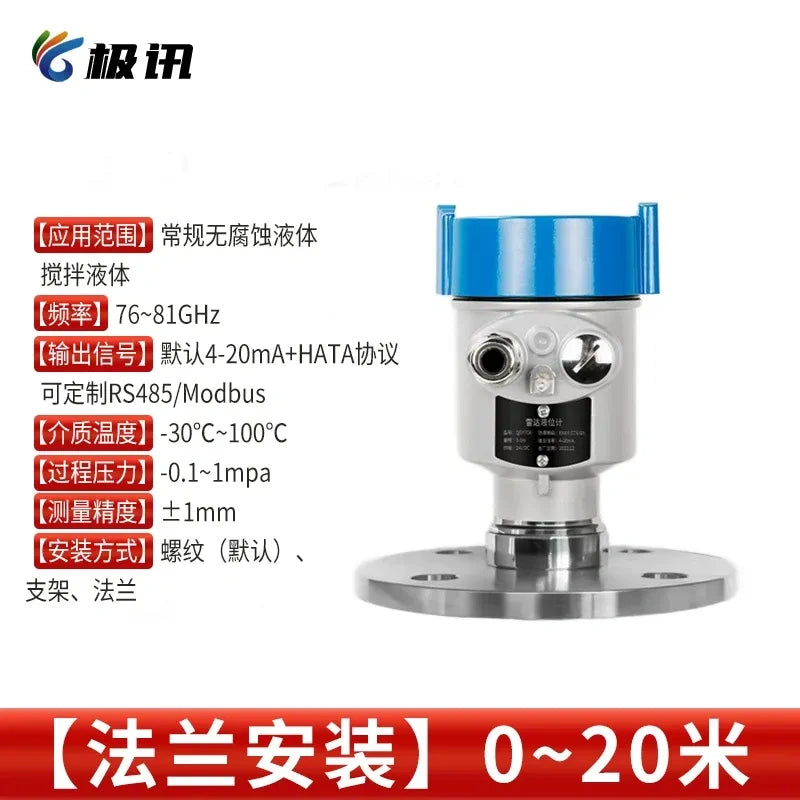

80GHz Radar Liquid Level Gauge Thread Mount 4-20mA HART, 0~20m Range Anti-Foam Anti-Stirring for Waste Water Tank -
?????????????????????

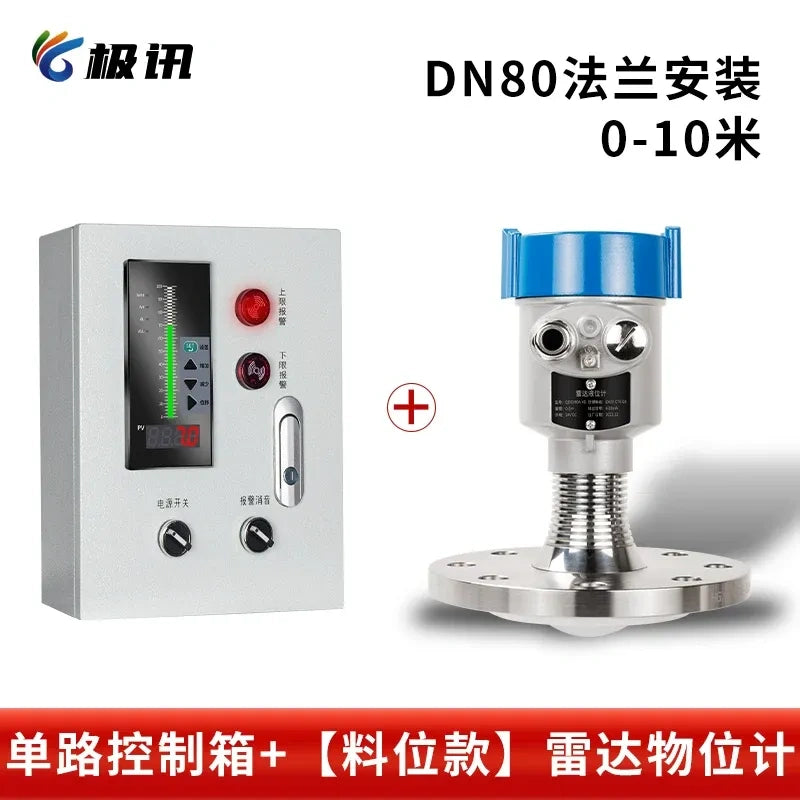

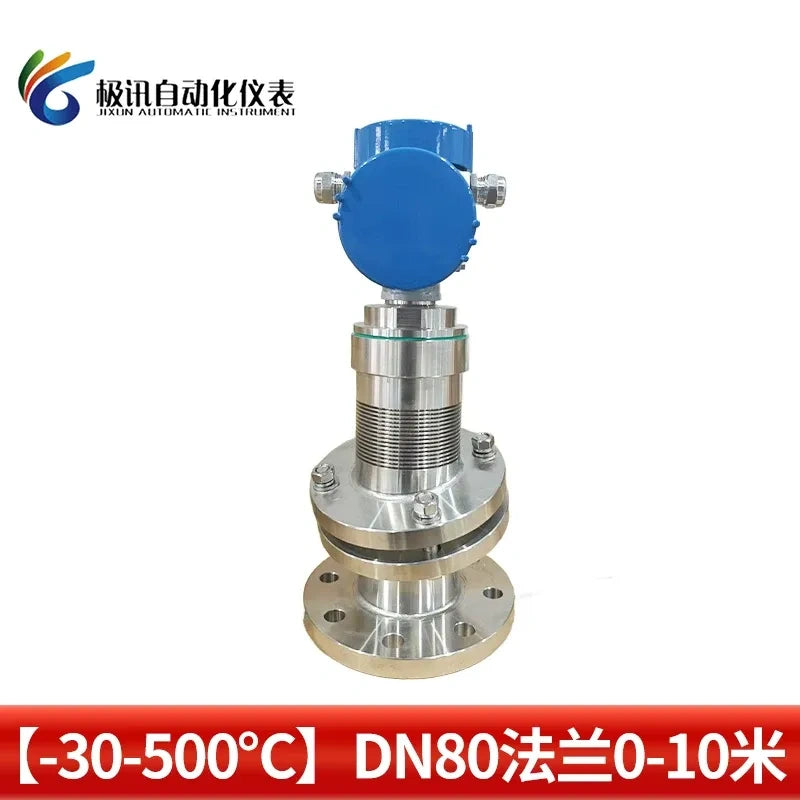

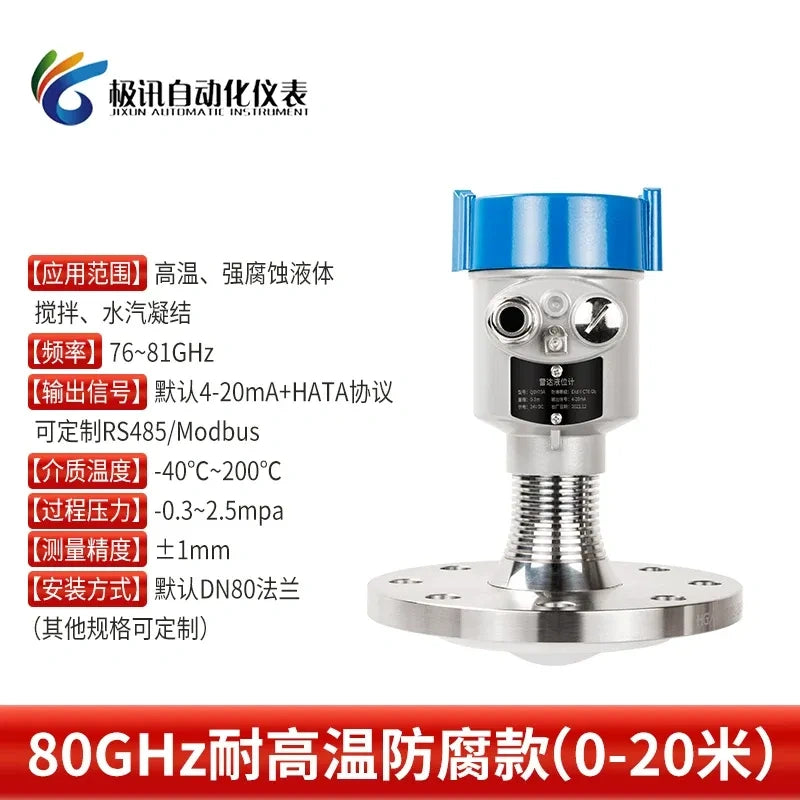

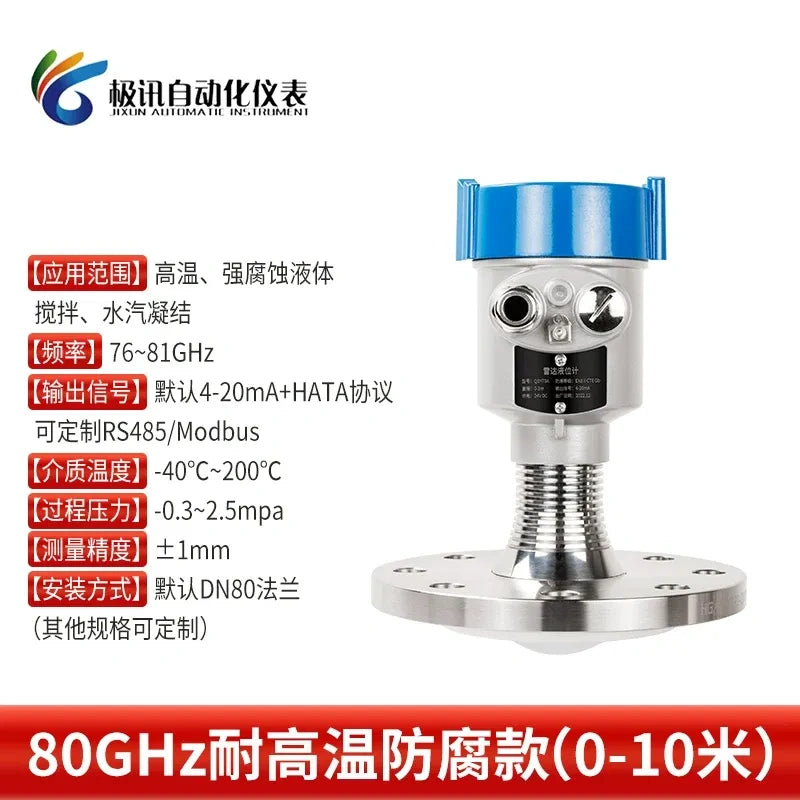

High Temperature Anti-Corrosion Radar Level Transmitter DN80 Flange -40~500???, Corrosive Chemical Liquid Level Meter -
???????????????????????????

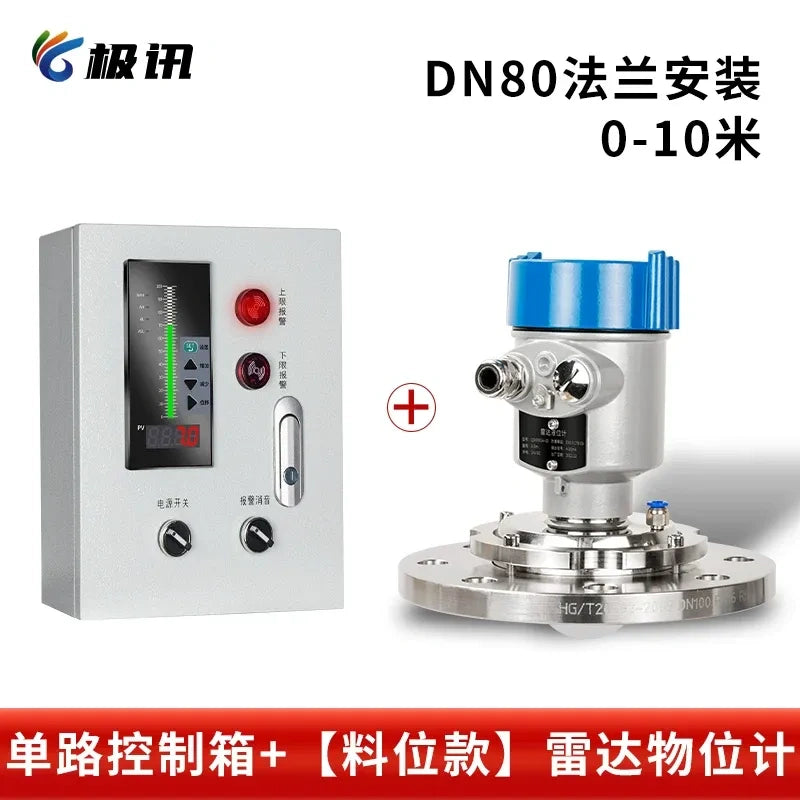

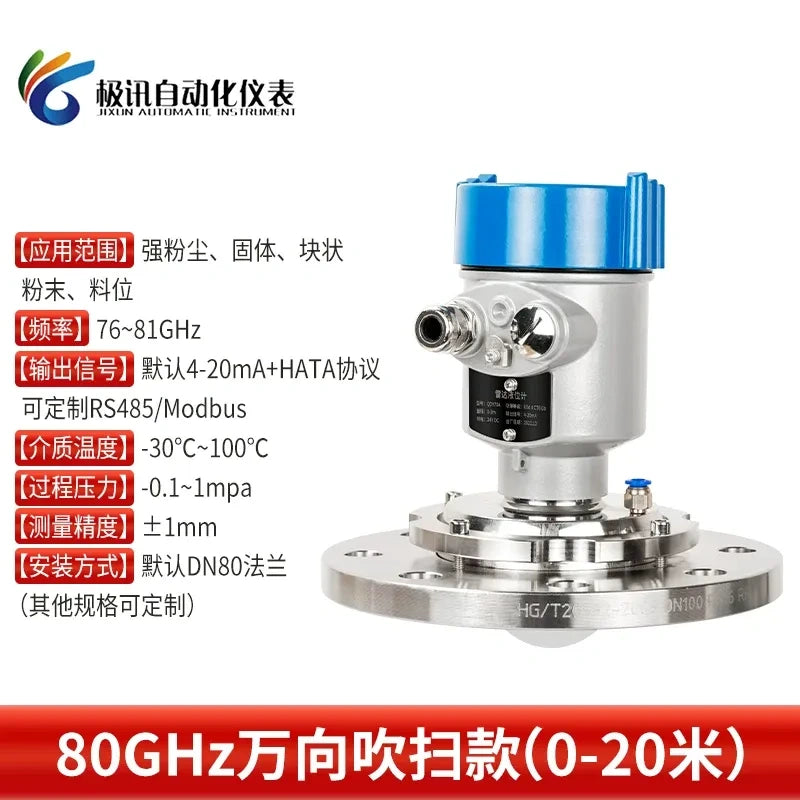

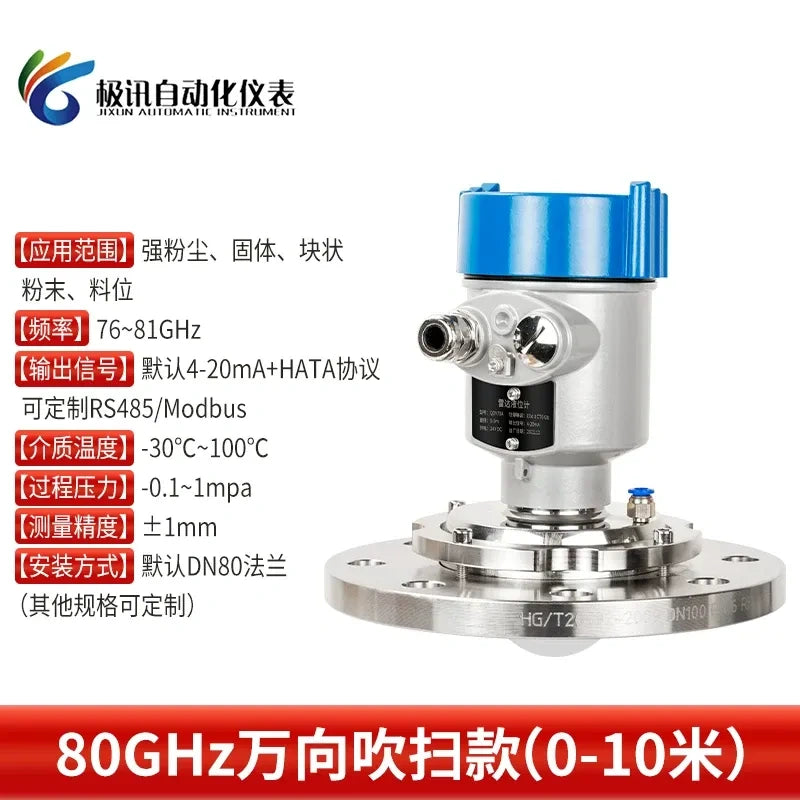

Universal Swivel Air Purge Radar Solid Level Meter 80GHz, Anti-Heavy Dust for Cement Grain Silo Bulk Powder -
???????????????????????????
Sanitary Tri-Clamp Radar Level Transmitter 50.5/64 Clamp, Food Grade Non-Contact Liquid Level Sensor -
???????????????????????????

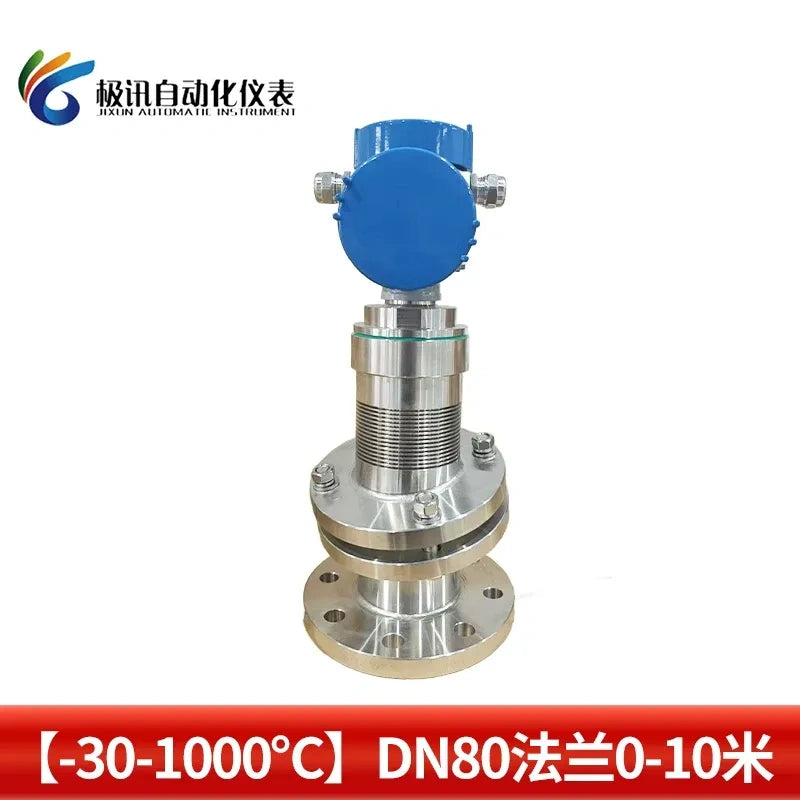

Ultra High Temp Radar Level Transmitter -40~1000??? DN80 Flange, Furnace & Molten Liquid Level Measurement

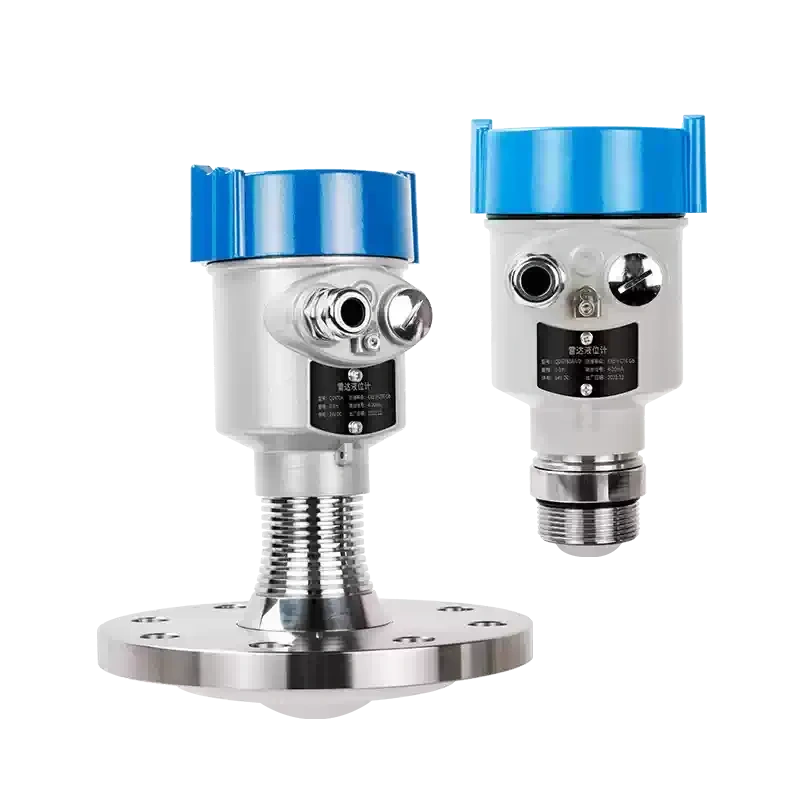

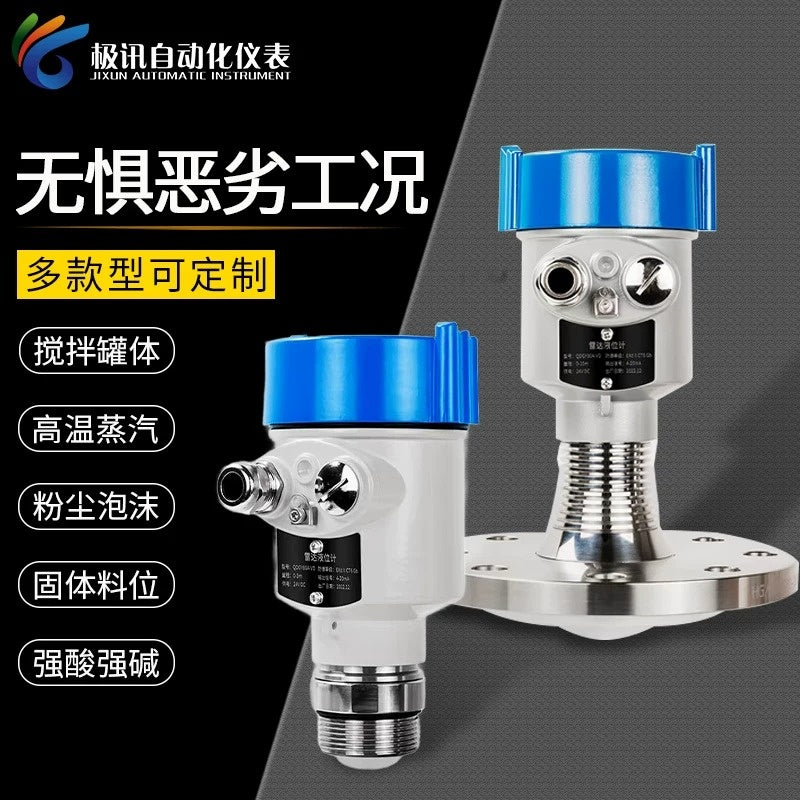

This 80GHz FMCW radar level transmitter adopts high-frequency 76~81GHz radar wave, featuring ultra-strong penetration to resist heavy dust, sewage foam, stirring turbulence, steam oil contamination and harsh industrial interference. It achieves ??1mm ultra-high measuring accuracy with measuring range up to 120 meters.

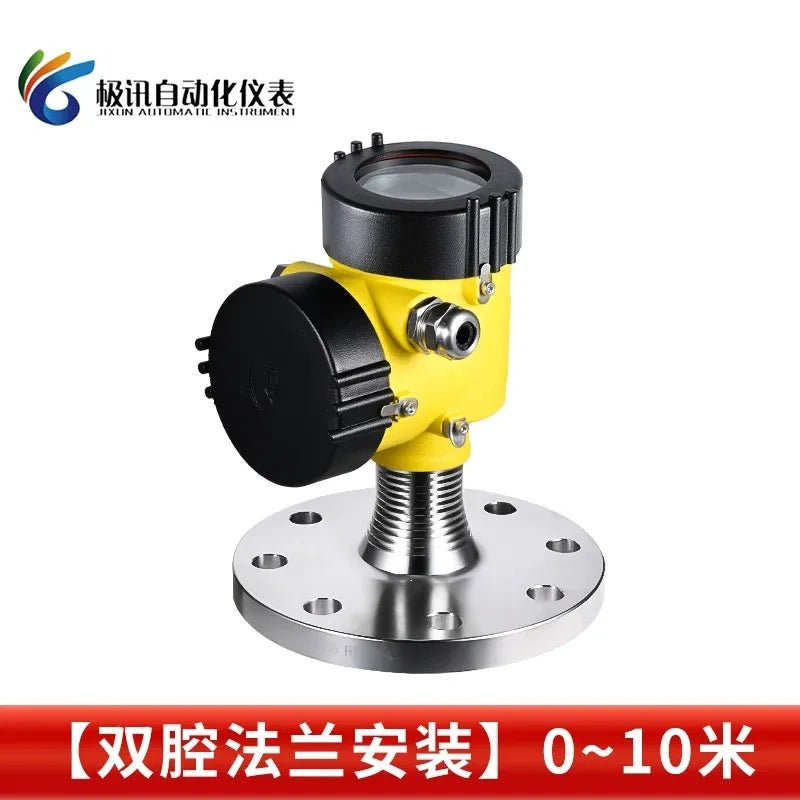

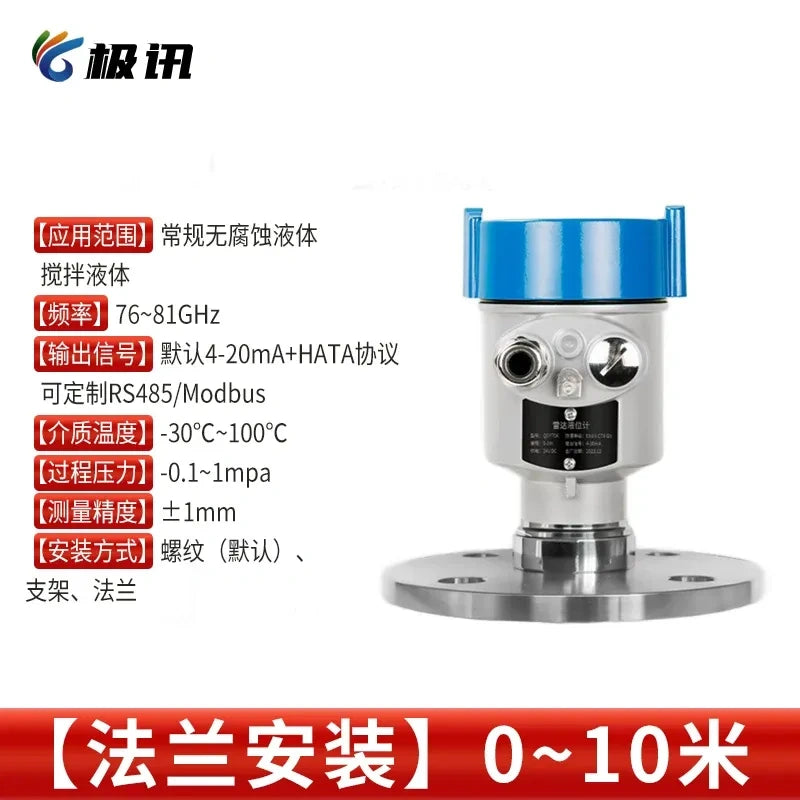

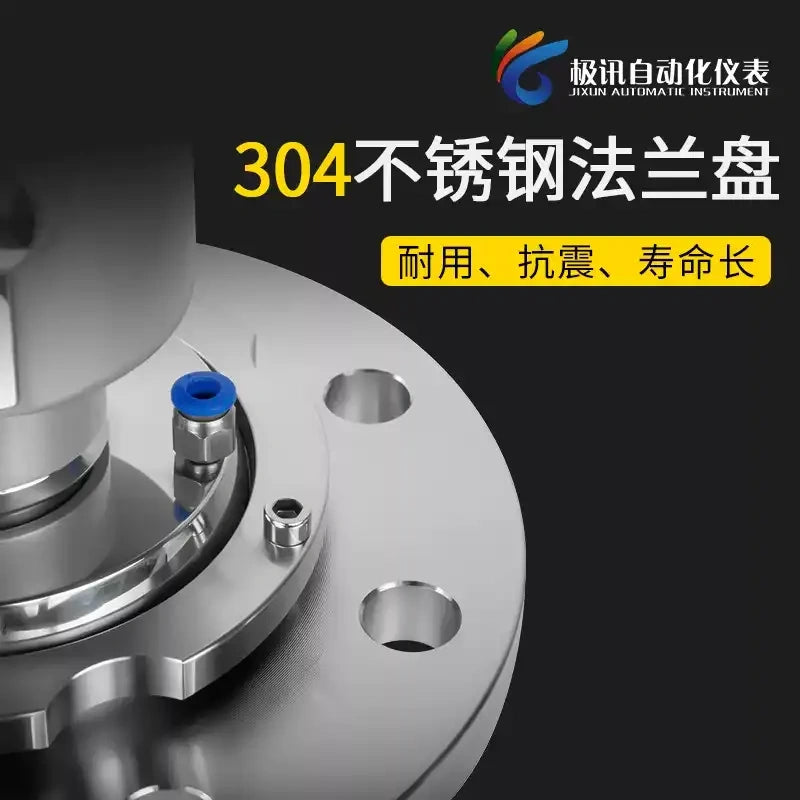

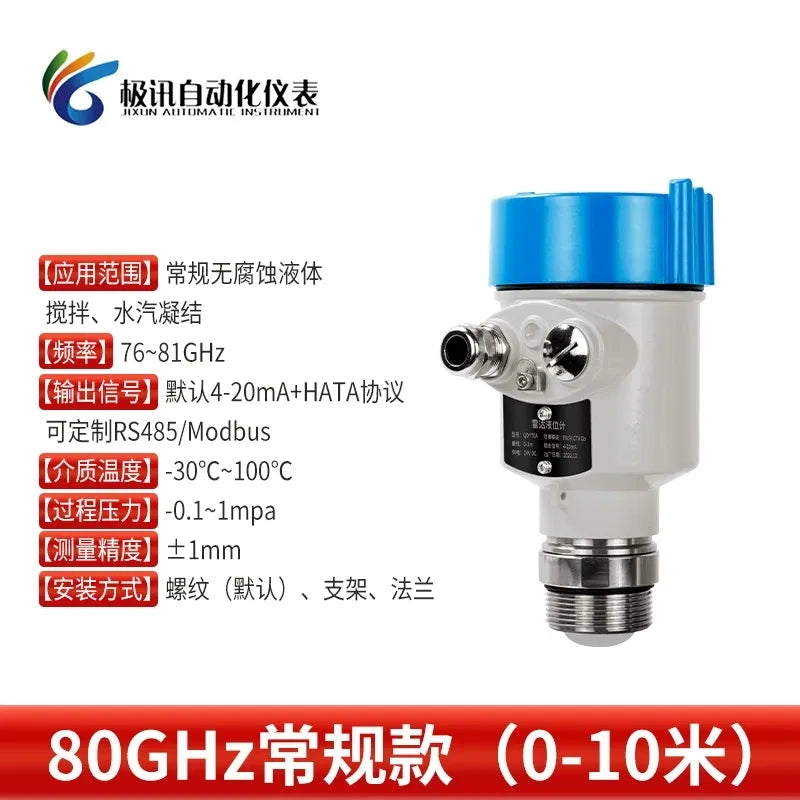

Multiple installation structures are optional: thread, universal swivel air purge flange, high-temperature anti-corrosion flange, sanitary tri-clamp and double-chamber flange, adapting to liquid, solid powder, block materials, corrosive chemicals and ultra-high temperature working conditions.
Standard output is 4-20mA+HART protocol, RS485 Modbus communication is customizable, supports 2-wire/4-wire system. Equipped with LCD local display and operation keys, IP67 waterproof & Ex d ia IIC T6 explosion-proof grade, widely applied in chemical plants, sewage treatment, cement silos, grain warehouses, boilers and reservoir water level monitoring.
Specification
| Key | Value |
|---|---|
| Product Name | 80GHz FMCW Radar Level Transmitter / Level Gauge / Solid Silo Level Meter |
| Frequency | 76~81GHz (80GHz High Frequency) |
| Measuring Range | 0.08~10m / 0.08~20m / 0.08~30m / 0.3~60m / 0.6~120m |
| Accuracy | ??1mm High Precision |
| Beam Angle | 3?? Large Lens / 8?? Small Lens |
| Power Supply | DC 12~28V (Standard 24V DC); Optional AC220V |
| Output Signal | Standard 4-20mA + HART; Custom RS485 Modbus RTU; 2-wire / 4-wire Optional |
| Update Interval | Fastest 100ms |
| Medium Temp Range | Standard: -30~100???; High Temp Corrosion Resist: -40~200??? / Custom -40~500??? / -40~1000??? |
| Process Pressure | Standard: -0.1~1MPa; Corrosion Flange: -0.3~2.5MPa |
| Dielectric Constant | ???2 |
| Display & Operation | 128*64 LCD Dot Matrix Screen + 4 Keys; Support PC Configuration Software |
| Housing Material | Aluminum Alloy / Stainless Steel |
| Protection Grade | IP67 |
| Explosion Proof Grade | Ex d ia IIC T6 |
| Process Connection Types | Thread Mount / Universal Swivel Flange / Corrosion Resistant Flange / Sanitary Tri-Clamp / Double Chamber Flange / Quartz Isolation Flange |
| Cable Entry | M20*1.5 |
| Recommended Wire | AWG18 / 0.75mm?? |
| Dimension | ??100*270mm |
| Core Advantages | Strong penetration, anti-dust, anti-foam, anti-stirring interference, anti-vapor oil pollution, high temp & anti-corrosion available |
| Application Scenarios | Sewage tank, chemical corrosive liquid, cement silo, grain silo, river reservoir, high temperature furnace, mixing tank, boiler |
??
