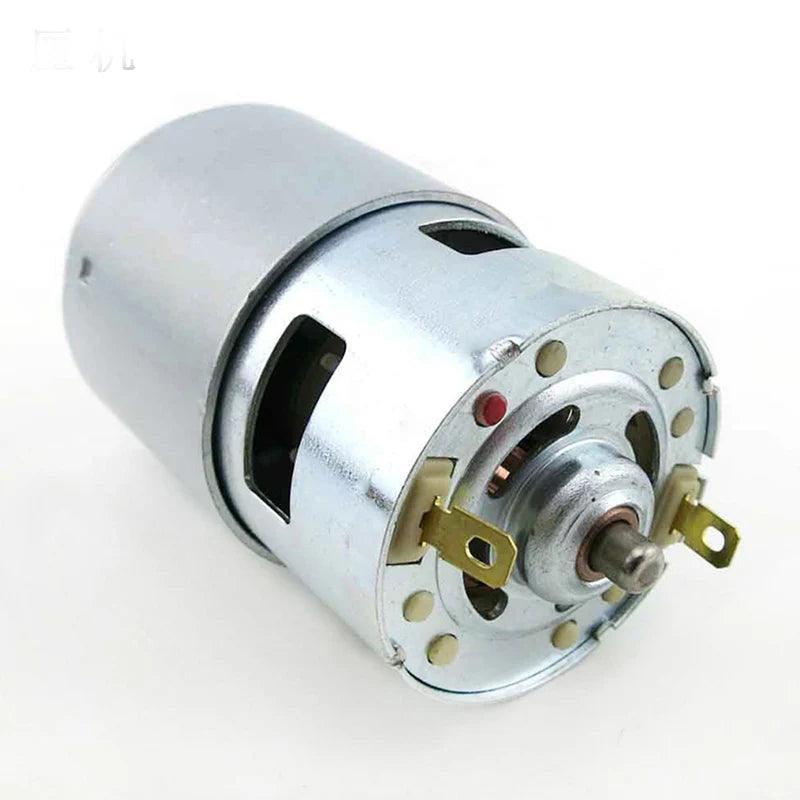

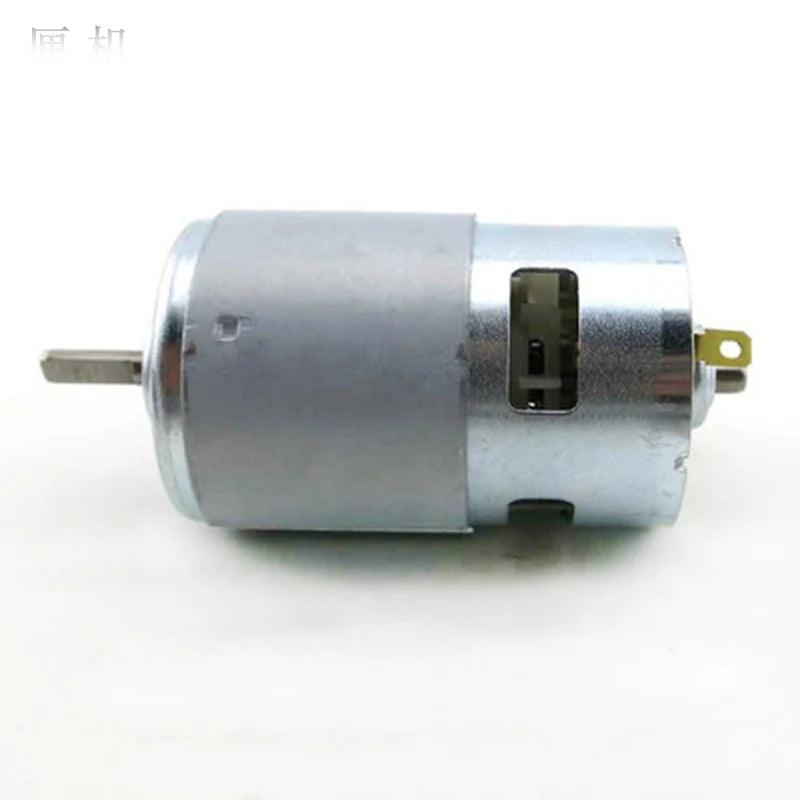

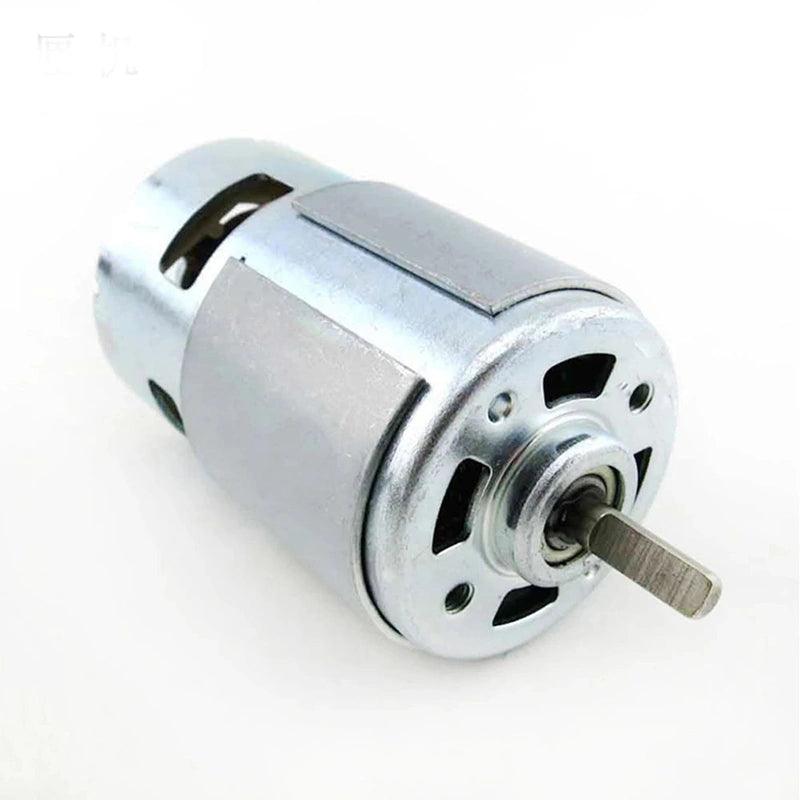

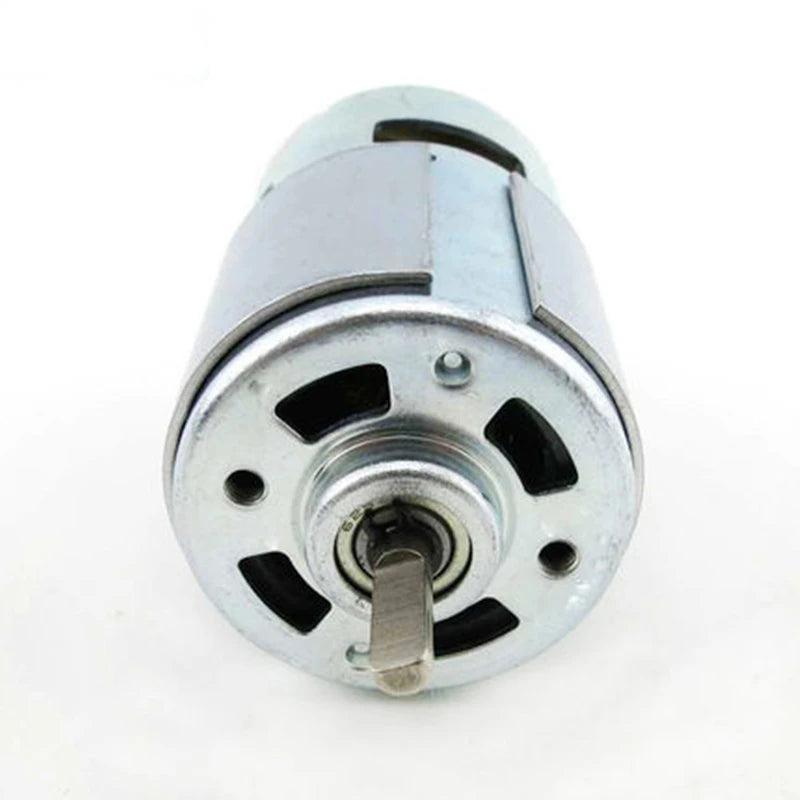

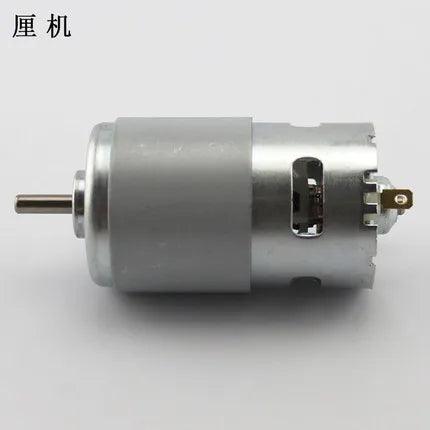

775 DC Motor Shaft D Length 16mm High Speed 12V 4500rpm PWM DC12V-24V Ball Bearing Low Noise Electric DIY Drill Tools Cut Engine
Couldn't load pickup availability
SPECIFICATIONS
775 DC Motor Shaft D Length 16mm High Speed 12V 4500rpm PWM DC12V-24V Ball Bearing Low Noise Electric DIY Drill Tools Cut Engine
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: 775

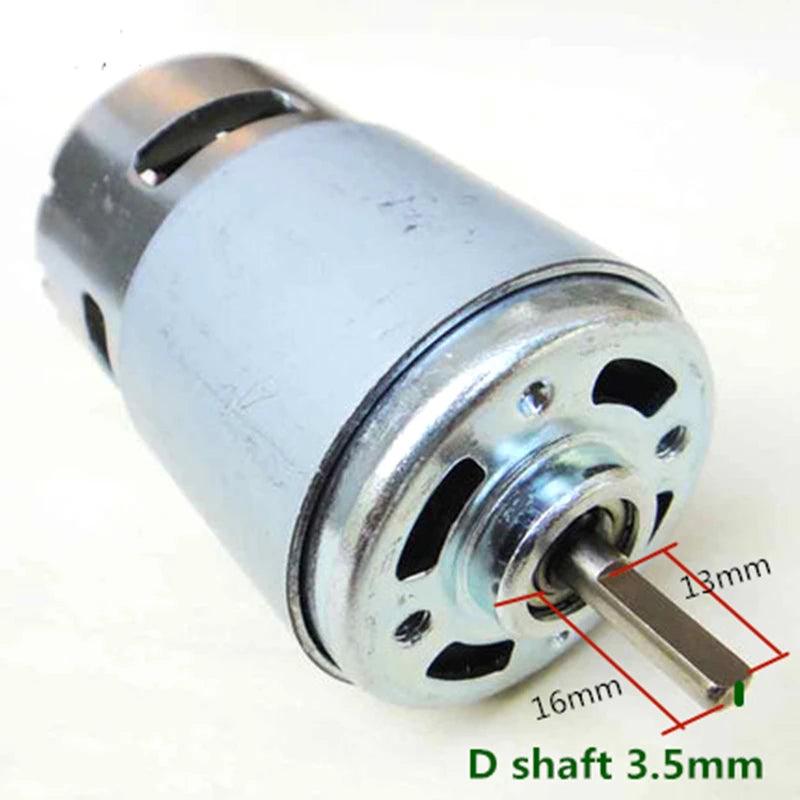

Long life, with precision ball bearing (above), new D-type edge cutting shaft 775 motor, is the power source of electric tools and equipment, edge cutting shaft will not slip, D-type shaft can also use round hole gear
It is recommended to use a power adapter above 5A for power supply, and the ideal power supply current is 8A
Measured parameters of motor (for reference)
Rated voltage: 12V
Voltage range: 12-24 V
No load current: 0.27A
Locked rotor current: 3.25a
No load speed: 4500 rpm
Motor step height: 4.5mm
Motor step diameter: 17.5mm
Shaft length: 16mm (shaft length above step level)
Shaft diameter: 5mm shaft (trimming 1.5mm, trimming length 13mm)
Motor diameter: 42mm
Motor length: 66.5mm
Step height of motor tail: About 7mm
Motor tail shaft length: About 4.5mm
Distance between mounting holes: about 29mm
Diameter of mounting hole: M4 screw
Motor weight: 350g
