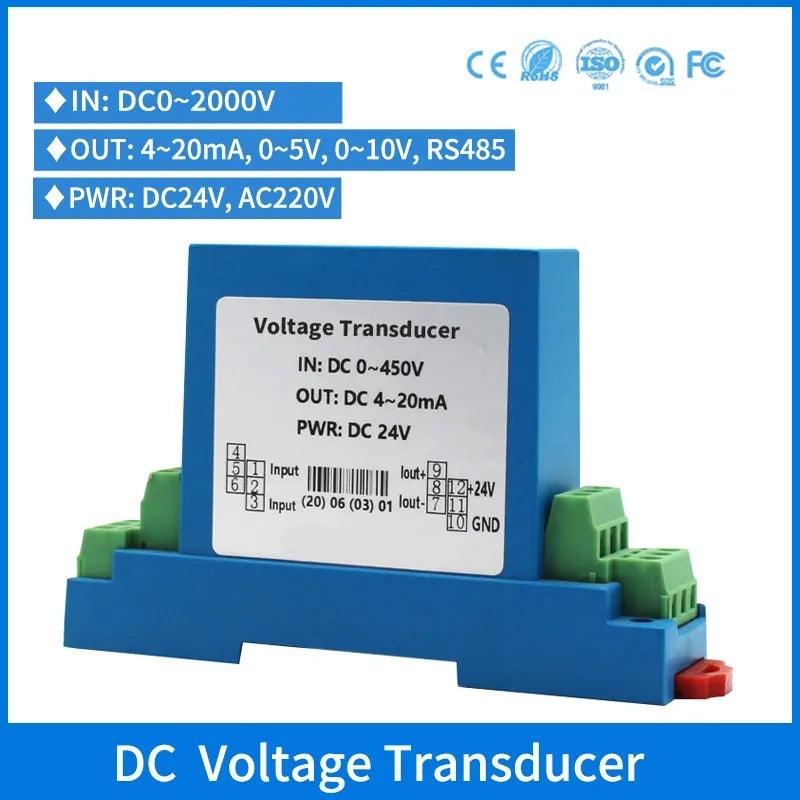

DC12V Powered 75mV 1000V 1500V DC Voltage Transducer Hall Voltage Sensor RS485

Regular price $44.09 USD
Regular price $52.00 USD Sale price $44.09 USD
Sale Sold out
Shipping calculated at checkout.
Color
Measuring Range
Voltage
 More payment options

SPECIFICATIONS

75mV 1000V 1500V DC Voltage Transducer Hall Voltage Sensor RS485 DC Voltage Transmitter Price

Response time: <200ms

Product name: Voltage transducer

Power Supply: DC

Output signal: 4-20mA,0-5V,0-10V,RS485

Origin: Mainland China

Operating Temperature: -30℃~+85℃

Model Number: ELVTB-7

Installation method: DIN 35mm rail+ plane screw fixation

Input voltage range: DC 0-2000V

Frequency range: 40-60HZ

Display Type: Analog Only

Dimensions: No aperture

DIY Supplies: ELECTRICAL

Certification: CE

Brand Name: KEJUN

Accuracy Class: 0.2%FS

75mV 1000V 1500V DC Voltage Transducer Hall Voltage Sensor RS485 DC Voltage Transmitter Price

This link is special for DC voltage transducer.

AC voltage transducer link click here: AC voltage transducer


NOTES:

The DC voltage transducer can make any range within DC0~2000V.

If you need other ranges, please contact me.

We can make special customization for you.


Product Description

1>>. Working principle: Linear photoelectric isolation.

2>>. Usage: Used for special place for measuring input signal frequency variation and input waveform.AC DC universal.

3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.

4>>. Application: Measurement of distortion waveforms such as triangular wave, trapezoidal wave and thyristor adjustable.

5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.

6>>. Full channel configuration,parameters customized.


Technical Specifications
Product Features


Product Selection
Product Dimension
Wiring Diagram
