60SRZ-Y 36W Permanent Magnet DC Motor 12V 24V Adjustable Speed Motors High Speed Brushed Double Ball Bearing :Low Noise 12 Volt

Descriptions:

This DC motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. and supporting speed regulation, and clockwise and counterclockwise rotation.Widely used in cutting machine, belt cutting machine, lawn mower, electric drill. winding machine, cotton candy machine and so on.

Features:

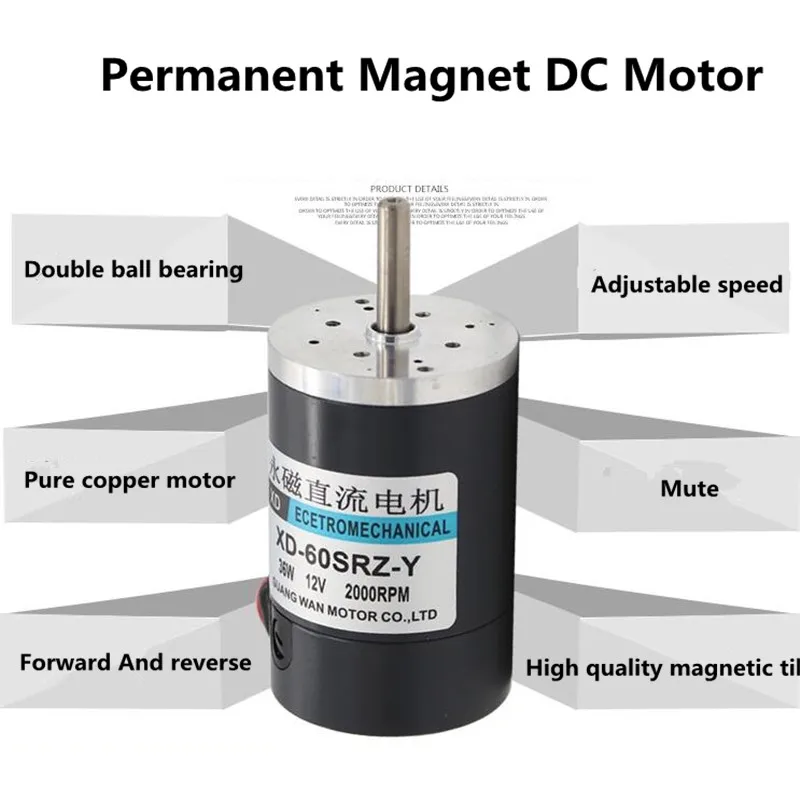

It adopts precision machining, magnetic material treatment, and insulation treatment, features stable and reliable.
This DC motor features large torque, high speed, and low noise.
The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
Widely used in cutting machine, belt cutting machine, lawn mower, electric drill. winding machine, cotton candy machine and so on.
Supporting speed regulation, and clockwise and counterclockwise rotation.

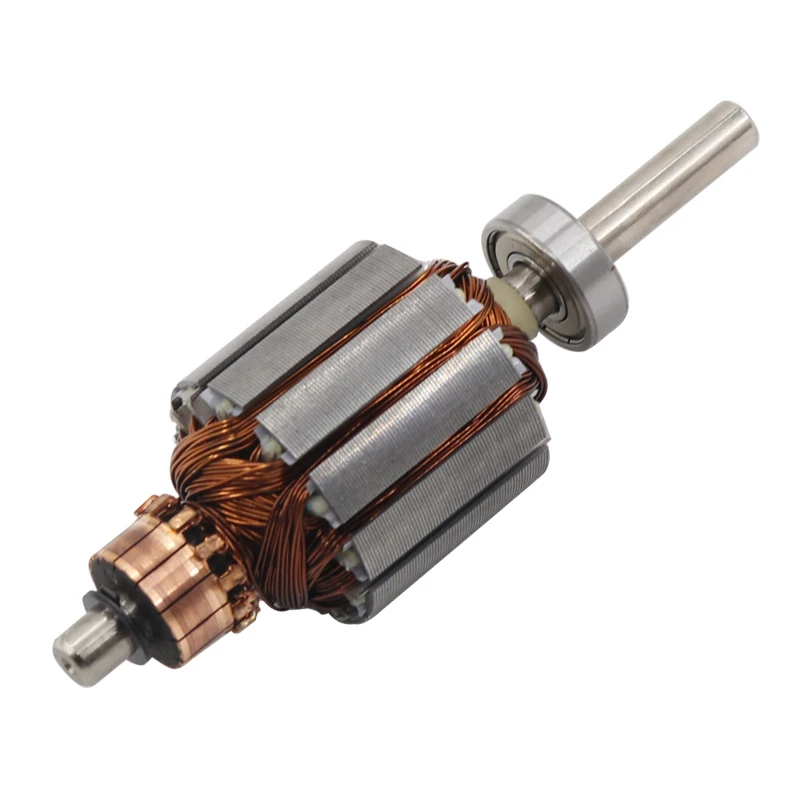

This motor is adopted of pure copper wire coil, with low heat and low loss.
The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.

The position of the bearing is good, so with high work efficiency, at same time, help reducing the friction.

Specifications:

Model: XD- 60SRZ

Rated power: 36 (W)

Product type: brush DC motor

Rated voltage: 12/24 (V)

Rated current: 0.86 (A)

Rated speed: 2000/300/4000 (RPM)

Type(Optional): 2000RPM 12V, 3000RPM 12V, 4000RPM 12V,  2000RPM 24V,  3000RPM 24V, 4000RPM 24V

Rated torque: 0.2 (NM)

Product certification: CE

Efficiency: 89 (%)

3C rated voltage range:< DC 36V

Weight: 855g

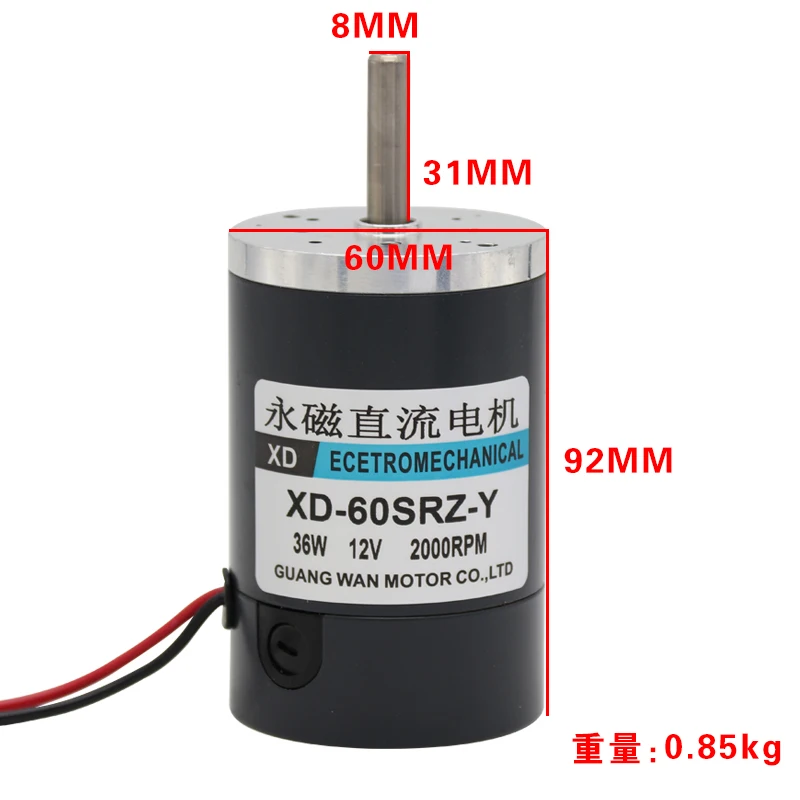

Size:as the picture

Package Included:

1 x DC Motor
